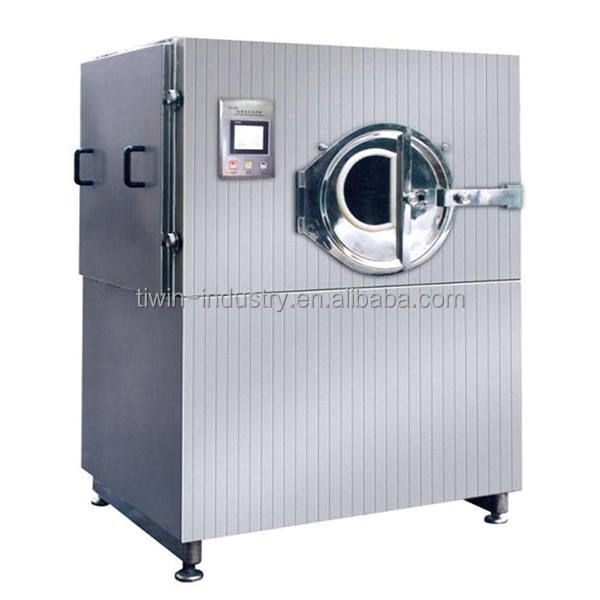

BG series Chinese and Western medicine tablet coating pharmaceutical automatic tablet coating machine
- $20000.00 /set
- 1 set
- Shanghai Tiwin Industry Co., Ltd.
- Shanghai, China
- Ms Toi Foo
| strength: | 3000 | weight: | 800kg |
| Packaging Details: | 1. Export standard tablet press 2. Inner packing: stretch film 3. Outer packing: wooden box 4. Accept special requirements | payment terms: | wire transfer |
| Voltage: | 220v | Supply capacity: | Annual output of 500 fully automatic tablet coating machines |
| Certification: | ISO9001 CE | Coating drum speed range (rpm): | 1-15 |
| Overall size (mm): | 1750*1500*2150 | Warranty: | 18 months |
| Health status: | used | Hot air cabinet motor power (kw): | 3 |
| Hot air cabinet range (℃): | Room temperature -80 | Delivery Details: | Automatic tablet coating machine 30-60 working days |
| usage: | Pharmaceutical | Machine size (mm): | 3 |
| Fume cupboard motor power (kw): | 5.5 | Key words: | Automatic tablet coating machine |
| port: | Shanghai | After-sales service provided: | Engineers can repair machinery overseas |
| Machine weight (kg): | 800 | year: | 2015 |
| Dimensions (L*W*H): | 1750*1500*2150mm | brand: | TIWIN |
| Coating Roller Diameter(mm): | 1350 | model: | BG300 |
| place of origin; place of origin: | China Shanghai |
BG series Chinese and Western medicine tablet coating pharmaceutical automatic tablet coating machine
BG10/40/80/150/300/400 Coating Machine
Main Specifications
Product number | 10 | 40 | 80 | 150 | 300 | 400 |
Maximum production capacity (kg/time) | 10 | 40 | 80 | 150 | 300 | 400 |
Coating drum diameter (mm) | 580 | 780 | 930 | 1200 | 1350 | 1580 |
Coating drum speed range (rpm) | 1-25 | 1-21 | 1-16 | 1-15 | 1-13 | |
Machine size (mm) | 0.55 | 1.1 | 1.5 | 2.2 | 3 | 3 |
Hot air cabinet range (℃) | Room temperature -80 | |||||
Hot air cabinet motor power (kw) | 0.55 | 1.1 | 1.5 | 2.2 | 3 | |
Fume cupboard motor power (kw) | 0.75 | 2.2 | 3 | 5.5 | 7.5 | |
Overall size (mm) | 900*840*2000 | 1000*800*1900 | 1200*1000*1750 | 1550*1250*2000 | 1750*1500*2150 | 2050*1650*2350 |
Machine weight (kg) | 220 | 300 | 400 | 600 | 800 | 1000 |
application
It is an elegant, high-efficiency, energy-saving, safe, and easy-to-clean equipment that is suitable for coating Chinese and Western medicine tablets and pills (including micro-pills, small pills, shuijie pills, dripping pills, etc.). Granulated pills) sugar, organic film, water-soluble film, slow-release film, suitable for pharmaceutical, food, biology and other fields. The machine is equipped with programmable PLC (human-machine interface), and its operation process and process parameters such as negative pressure and temperature can be automatically controlled. The operation is simple and the operation process is reasonable and advanced.

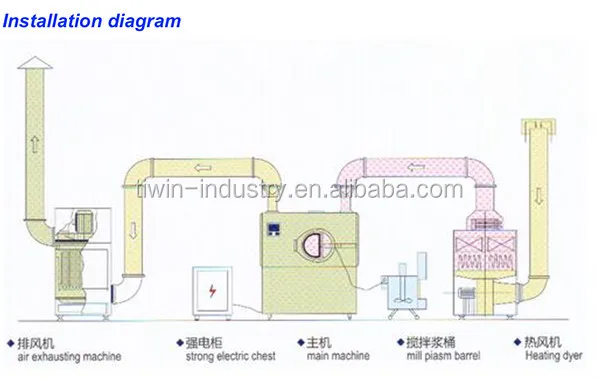

The main engine, cleaning system, hot air cabinet, exhaust cabinet, and constant temperature mixing barrel are all made of imported high-quality stainless steel, which meets the requirements of GMP.
feature
- longevity
- low cost
- 24H-7D customer service and technical support via email
- Fully automatic and easy to use
- Suitable for multi-variety and small batch production
- Stainless steel heating element for easy replacement
- Vibrating feeding device, feeding evenly
showroom
