SCU hybrid solar energy systems + battery energy storage system + EV charging station solutions new energy charging station
- $20000.00 / 1 - 9 sets
$19000.00 / >=10 sets - 1 set
- Sicon Chat Union Electric Co., Ltd.
- Hebei, China
- Ms Vivian Zhang
PRODUCT DETAIL
| product name: | Solar BESS Charging Station | brand: | SCU |
| Package preview: | Charges: | CCS-1/2, CHAdeMO, AC TYPE-2, GB | |
| Nominal power: | 0-360kW | The output voltage: | 50-1000VDC |
| Supported languages: | Available in eight languages | Packaging Details: | export box |
| Input voltage: | 380Vac, 400Vac | Certificate: | CE/UN38.3/MSDS/G99/EN50549 |
| DC output current: | maximum. 360A | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Supply capacity: | 10000 sets per month | place of origin; place of origin: | Hebei china |
| model: | renewable charging station | charging port: | 1 port - 8 ports |
| Protection class: | IP54 | port: | Xingang, China |
overview

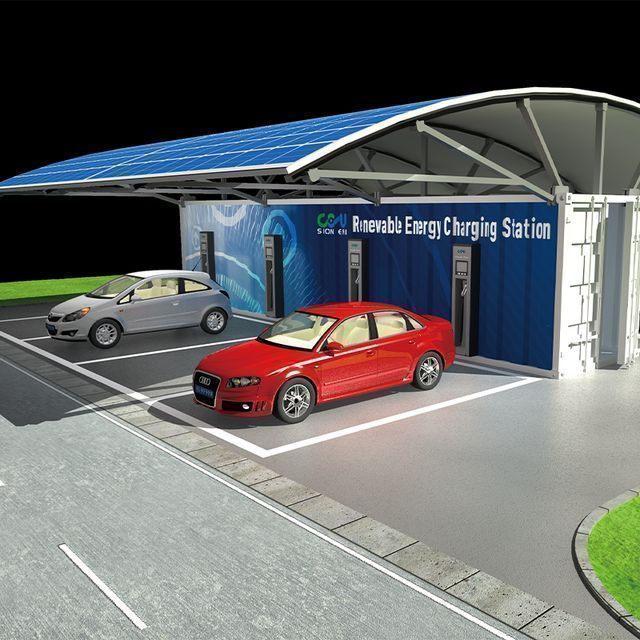

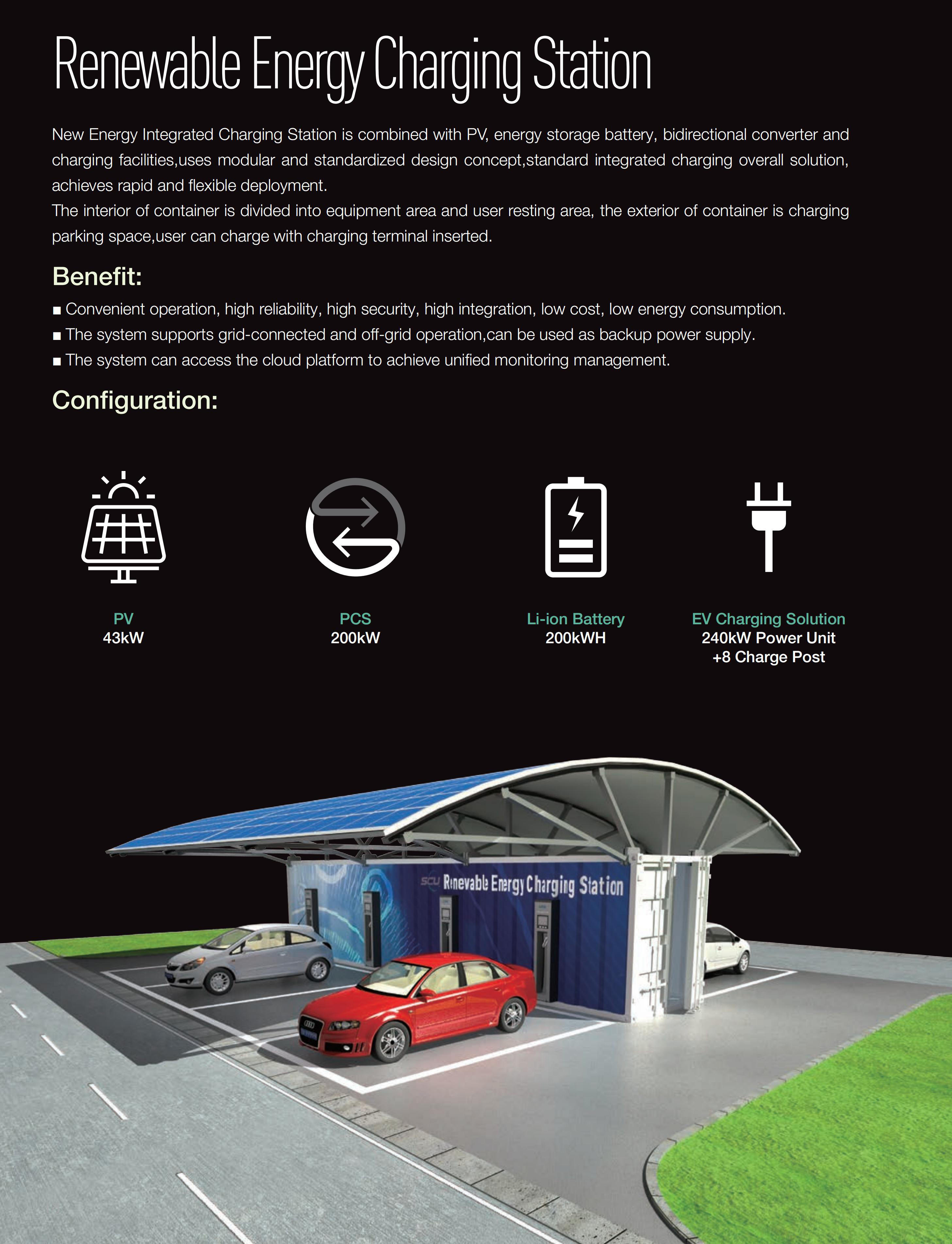

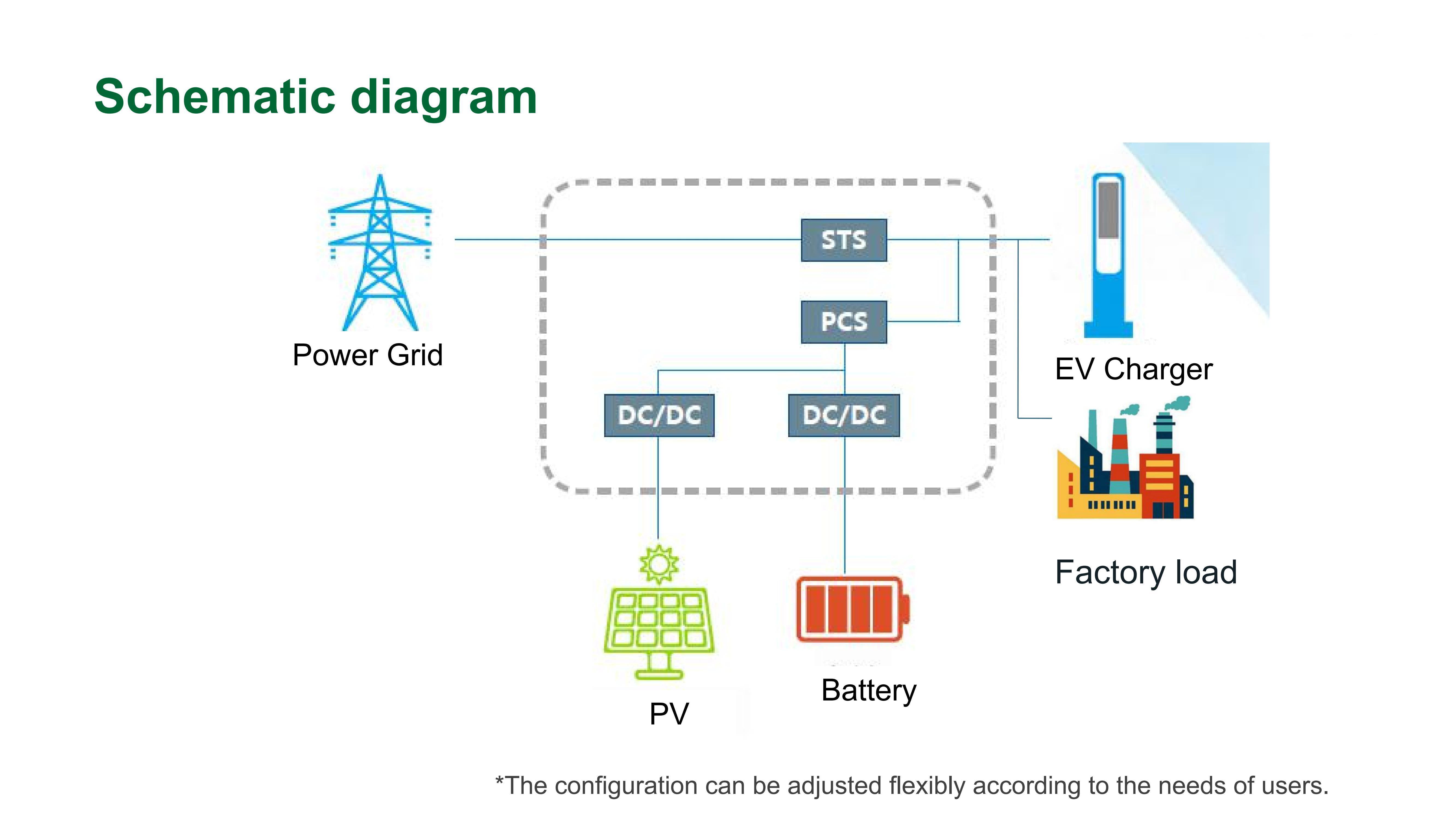

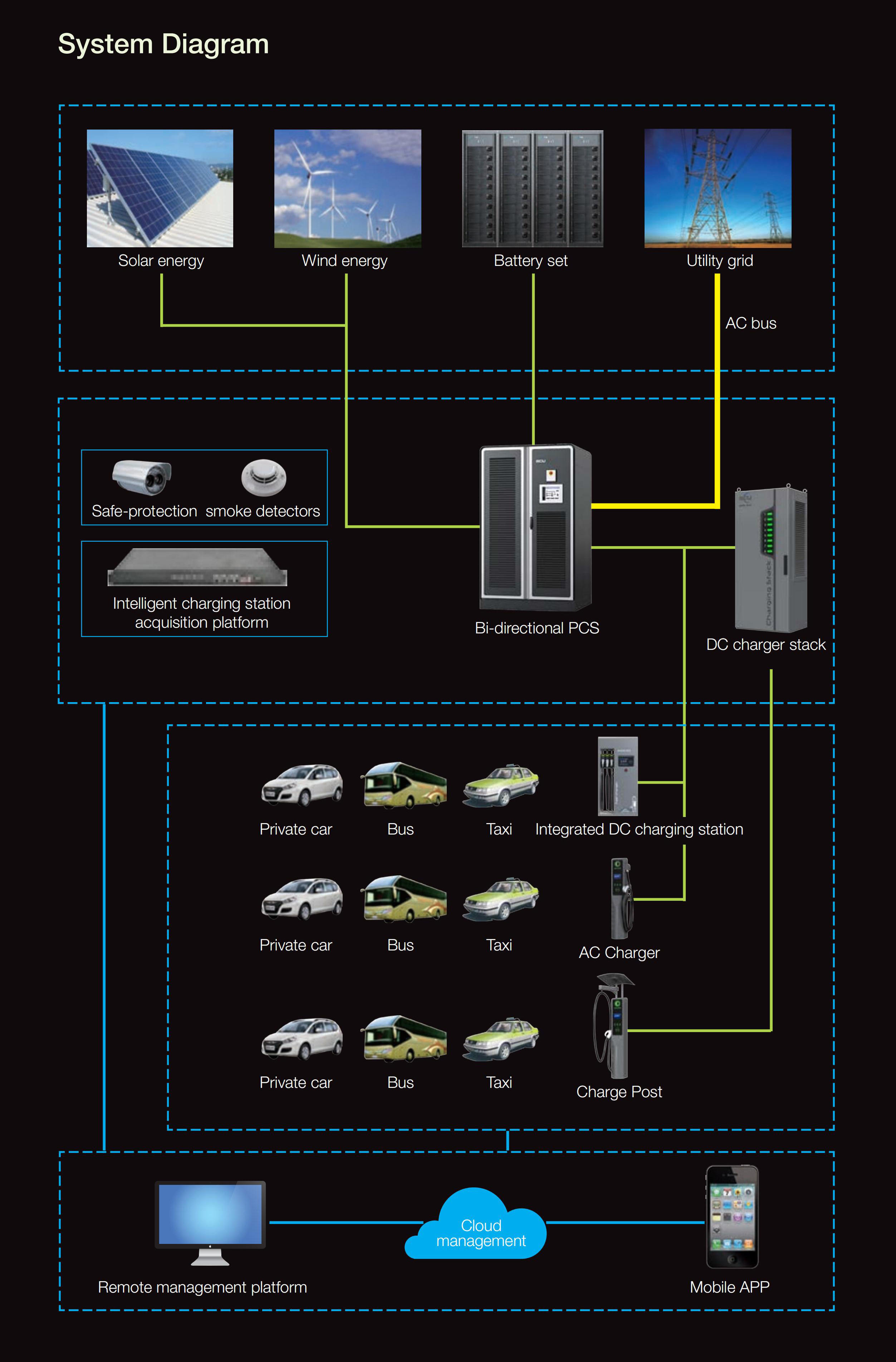

The new energy charging station is a standard one-to-eight charging solution with a modular and standardized design concept. It consists of photovoltaic modules, energy storage batteries, PCS and charging facilities. Dynamic growth can be achieved according to user needs and new energy usage priorities. Charging facilities, energy storage facilities, power distribution, monitoring and temperature control systems are integrated in the container. There is a charging parking space outside the container, and the charging terminal is embedded in the outer wall of the container, which is convenient for users to operate. The equipment has high reliability, high security, high integration, low cost, and low energy consumption, enabling rapid and flexible deployment. It is a standard integrated solution for new energy charging stations.
Product Details

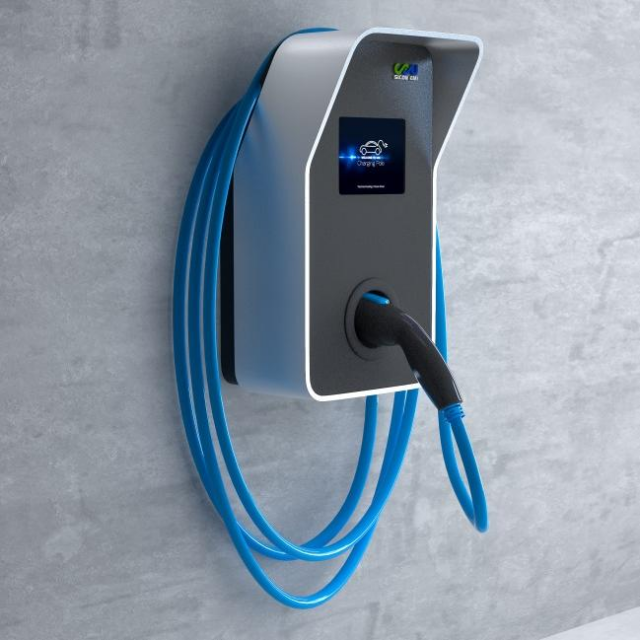

EVMS-30 DC Wallbox Charger
EVMS DC Wallbox chargers are capable of charging all current and next generation vehicles using CCS and CHAdeMO. The 30kW Charging Station is a configurable single or dual socket wall-mounted DC fast charger to meet the changing needs of each customer. With its compact, space-saving and attractive design, it is ideal for a wide range of installations, both indoors and outdoors.
Model | EVMS-30 | |
system capacity | 30 kW | |
Input parameters | ||
Voltage | 400Vac, 3P+N+PE | |
voltage range | 304V~456Vac | |
power factor | >0.99 | |
frequency | 50/60 Hz | |
Output parameters | ||
Connector | Single output CCS1/CCS2/CHAdeMO | |
Voltage | 50-1000Vdc | |
current | 100A max, 30kW max | |
strength | 30 kW | |
overall efficiency | 95% | |
Other parameters | ||
exhibit | 10.4'' TFT touch screen | |
RFID system | ISO/IEC14443A, Mifar | |
Internet connection | 4G (GSM or CDMA) | LAN | Wi-Fi | |
letter of agreement | OCPP1.6J (OCPP 2.0 can be upgraded) | |
Operating temperature | -20℃～60℃ | |
Storage temperature | -40ºC ～ +70ºC | |
Working humidity | 5%~95%, non-condensing | |
high | 2000 meters | |
Protect | IP54, IK10 | |
noise | ＜ 55dB | |
environment | outdoor/indoor | |
system protection | Leakage detection and protection; over-voltage and under-voltage protection; self-test recovery; over-temperature protection; double lightning protection; emergency stop button protection; power failure data recording. | |
Compliance and Security | CE, IEC EN61851, EN62196, DIN70121, ISO15118 | |
Dimensions (W*D*H) | 460*345*735MM | |

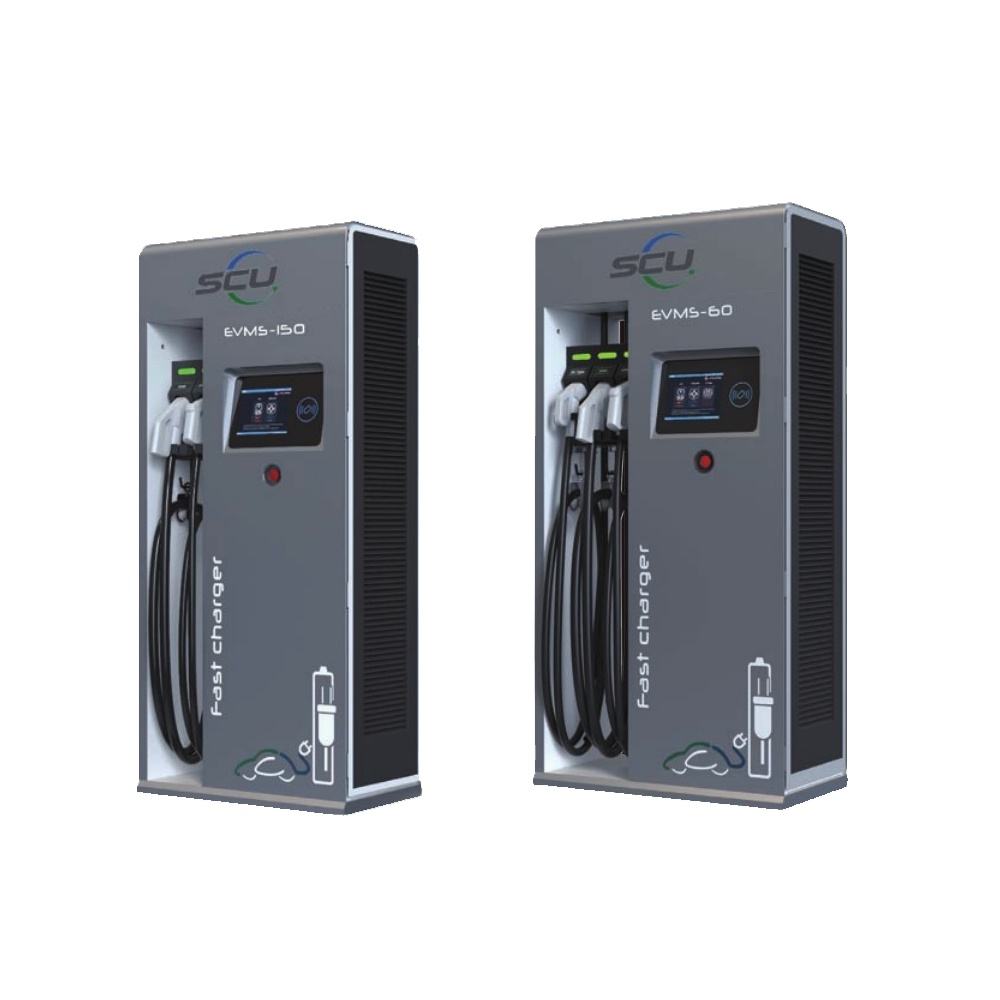

Model | EVMS-60 | EVMS-150 | ||
AC input for DC output | ||||
power connection | 50 Hz or 60 Hz | |||
voltage range | 400 VAC ±20% | |||
frequency | 50 Hz or 60 Hz | |||
Nominal input current and power | 87A, 60kW | 217A, 150kW | ||
power factor | > 0.99 | |||
overall efficiency | 95% | |||
DC output | ||||
Voltage | 50Vdc-1000Vdc | |||
Maximum current | 200A | 250A (200A optional) | ||
Nominal power | 0-60kW | 60-150kW | ||
AC output | ||||
Voltage | 400 volts | - | ||
current | 63 A (default) / 32 A (optional) | - | ||
Nominal power | 43 kVA (default) / 22 kVA (optional) | - | ||
General Specifications | ||||
output method | Multistandard DC output (Mode 4), with AC (Mode 3) | |||
Connector | CCS2, CHAdeMO, AC Type 2 | |||
AC interface | Type 2 plug 43kW (default) Type 2 plug 22kW (optional) Type 2 socket 22kW (optional) | |||
exhibit | 10.4'' TFT touch screen | |||
RFID system | ISO/IEC14443A, Mifar | |||
Internet connection | 4G (GSM or CDMA) | LAN | Wi-Fi | |||
letter of agreement | OCPP1.6J (OCPP 2.0 can be upgraded) | |||
environment | Indoor and outdoor | |||
Operating temperature | -35ºC-60ºC (-20ºC to -35ºC, heating required) | |||
Working humidity | ≤95% non-condensing | |||
high | up to 1000 m | |||
Protect | IP54, IK10 | |||
noise | <55dB | |||
Compliance and Security | CE, IEC EN 61851, EN 62196, DIN 70121, ISO 15118 | |||

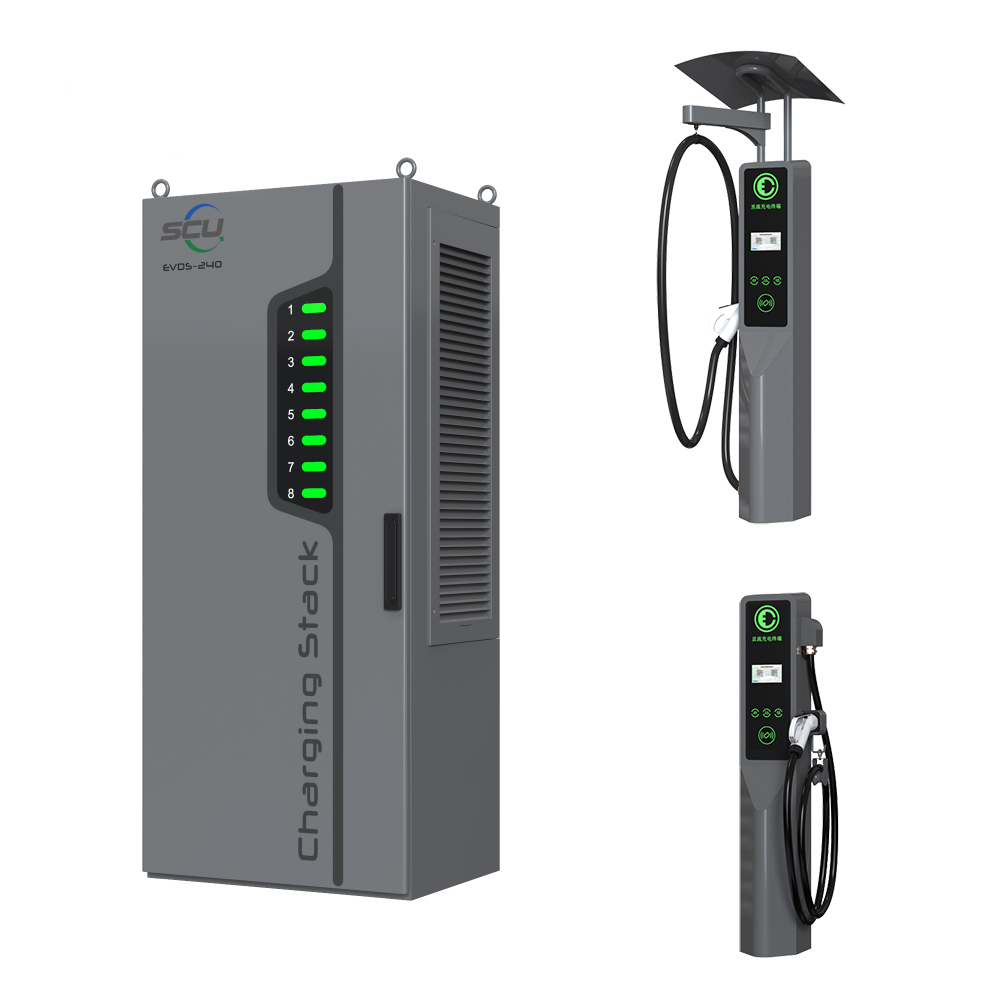

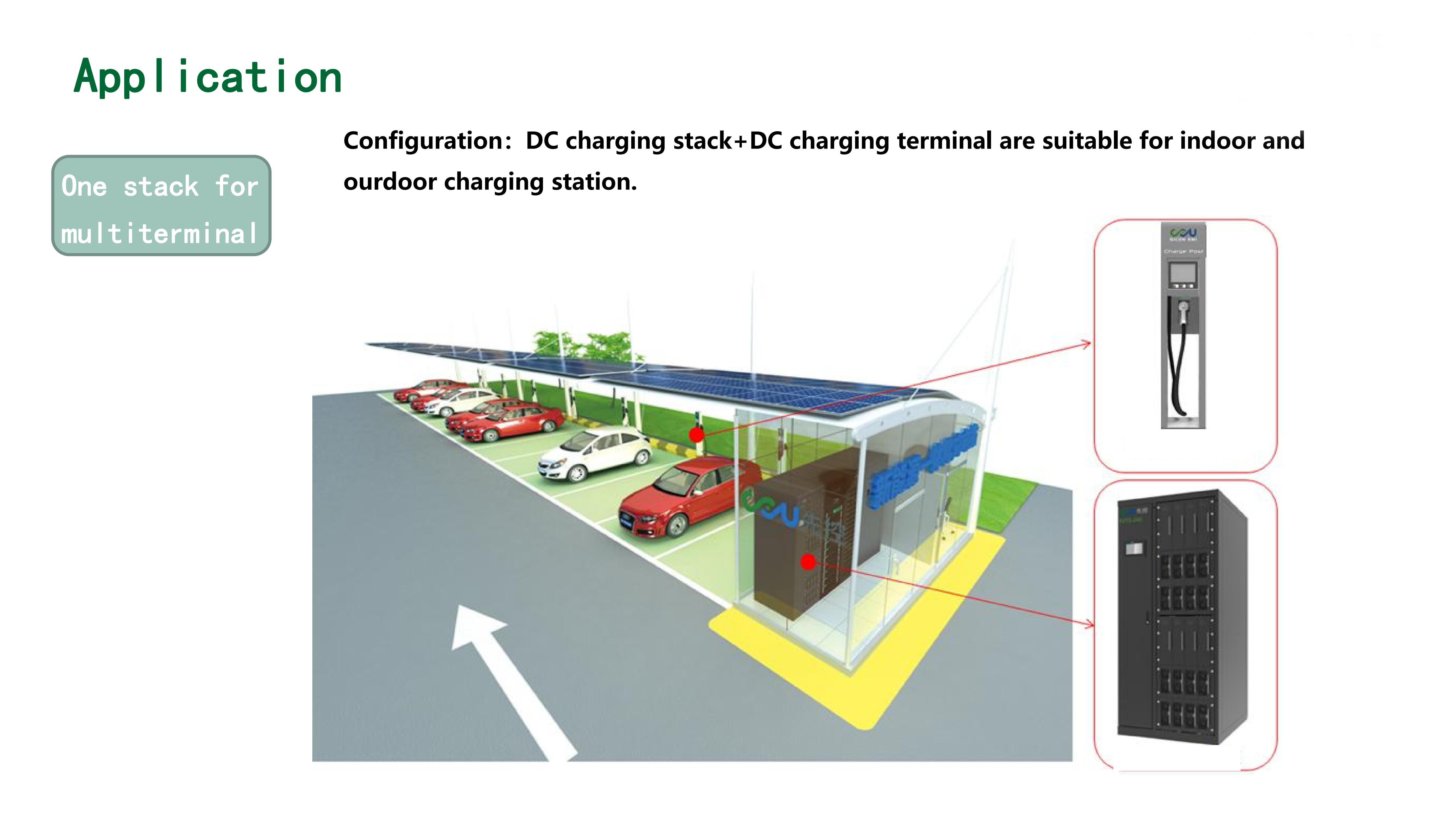

(power pack + charging pile)
EVMS series EV charging pile is a split charging system that meets multiple standards such as CCS, CHAdeMO, and GB/T. Adopting modular design concept and cutting-edge power electronic technology, it is composed of power stack, control unit and charging pile. Can be installed both outdoors and indoors.
Model | EVMS-240 | EVMS-360 | |||
environment | outdoor/indoor | ||||
system capacity | 240KW | 360KW | |||
Maximum network | 8 | 12 | |||
Each output capacity | 0~60KW or 0~120kW | 30~180kW | |||
Input voltage | 400VAC±20% | ||||
Input voltage range | 260V~530V (260V~304VAC, output power derating 50%) | ||||
power factor | > 0.99 | ||||
working frequency | 50/60 Hz | ||||
The output voltage | 50VDC-1000VDC | ||||
overall efficiency | 95% | ||||
RFID system | ISO/IEC14443A, Mifar | ||||
Internet connection | 4G (GSM or CDMA) | LAN | Wi-Fi | ||||
letter of agreement | OCPP1.6J (OCPP 2.0 can be upgraded) | ||||
Operating temperature | -35ºC-60ºC (-20ºC～-35ºC, heating is required) | ||||
Working humidity | ≤ 95%, non-condensing | ||||
high | up to 1000 m | ||||
Protect | IP54, IK10 | ||||
noise | ＜ 55dB | ||||
Compliance and Security | CE, IEC EN61851, EN62196, DIN70121, ISO15118 | ||||
Dimensions (W*D*H) | DC power stack | 800*650*1850 mm | 800*650*2250 mm | ||
Charging pile | 320*320*2300 mm | ||||

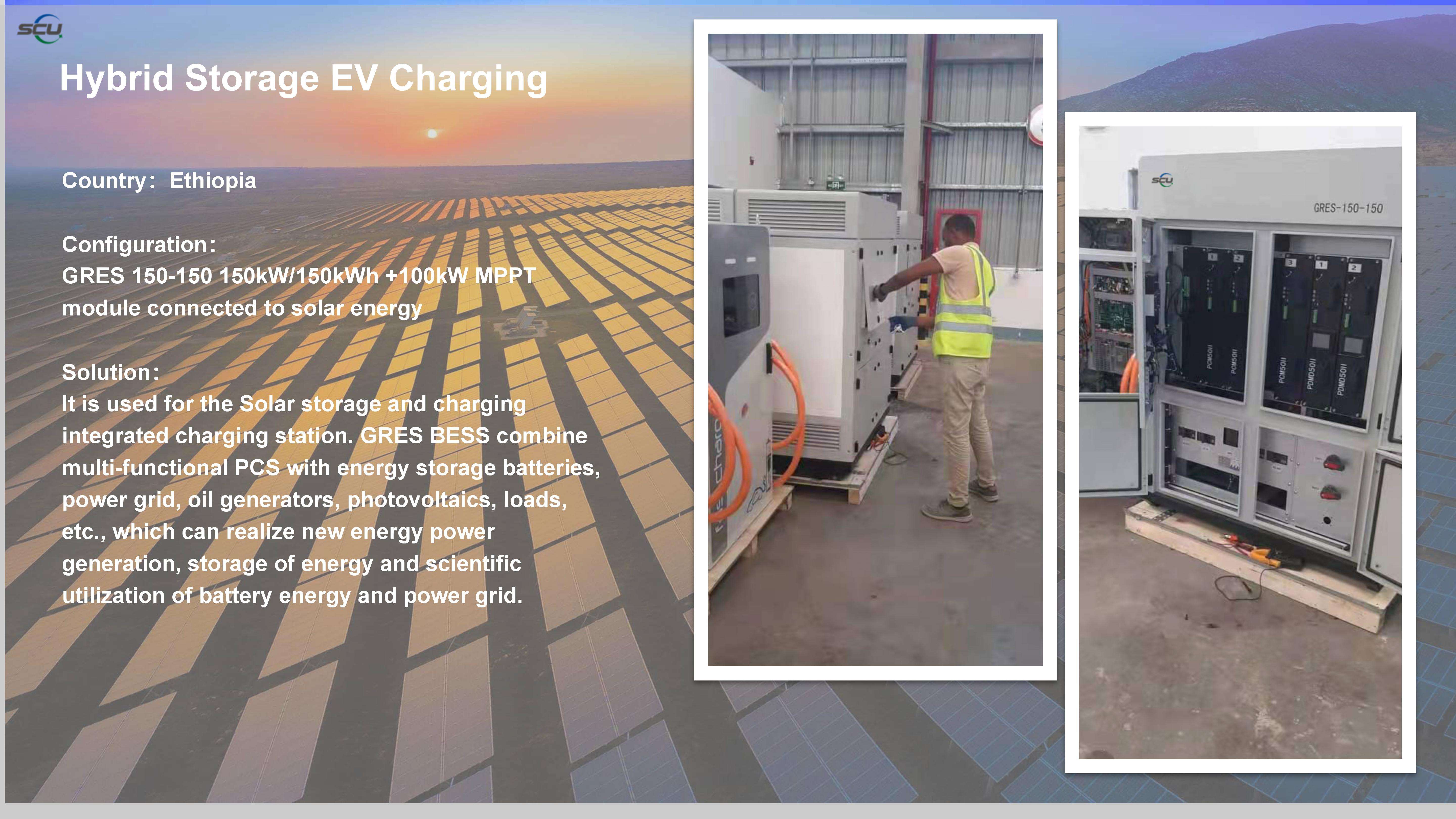

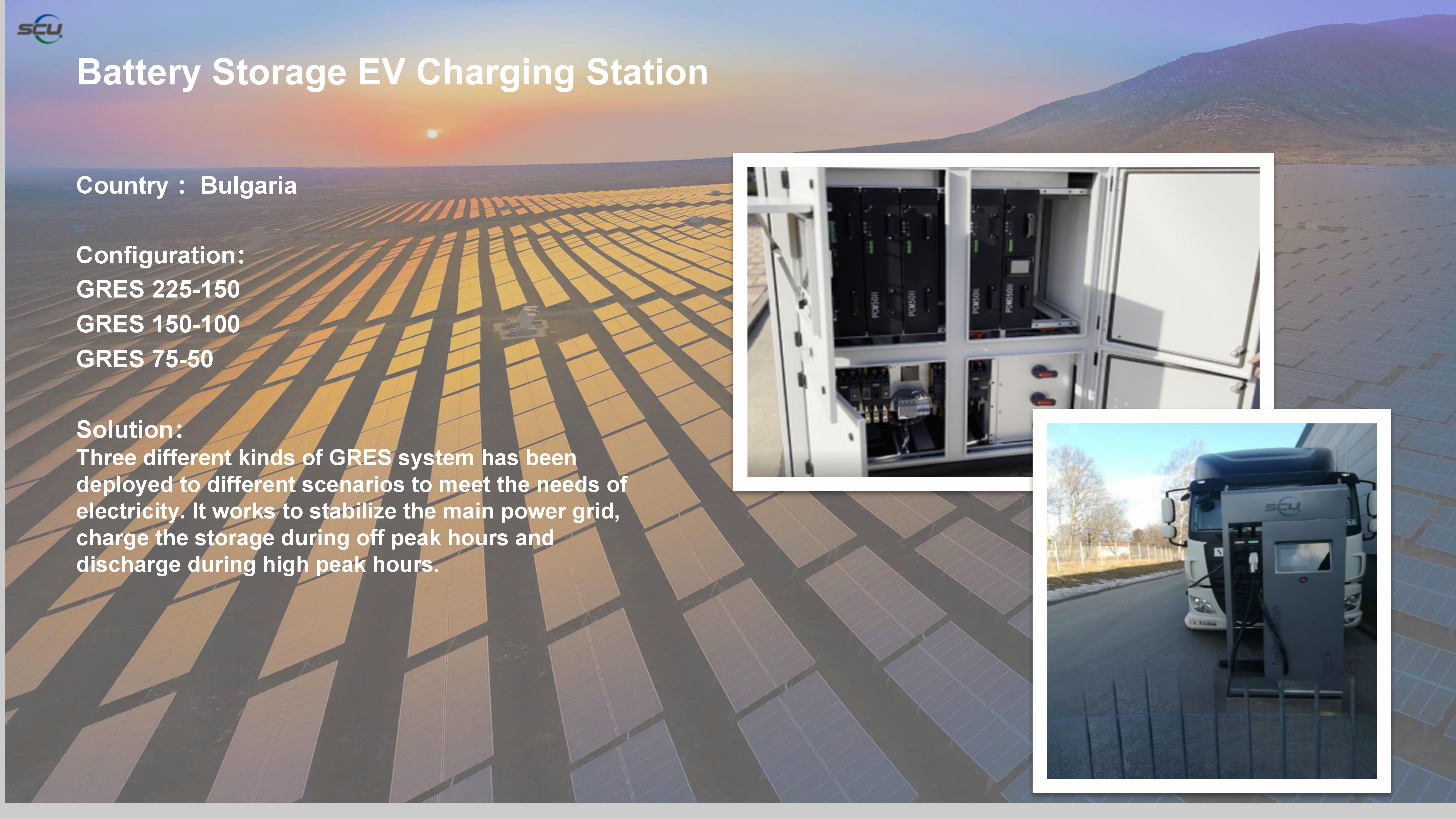

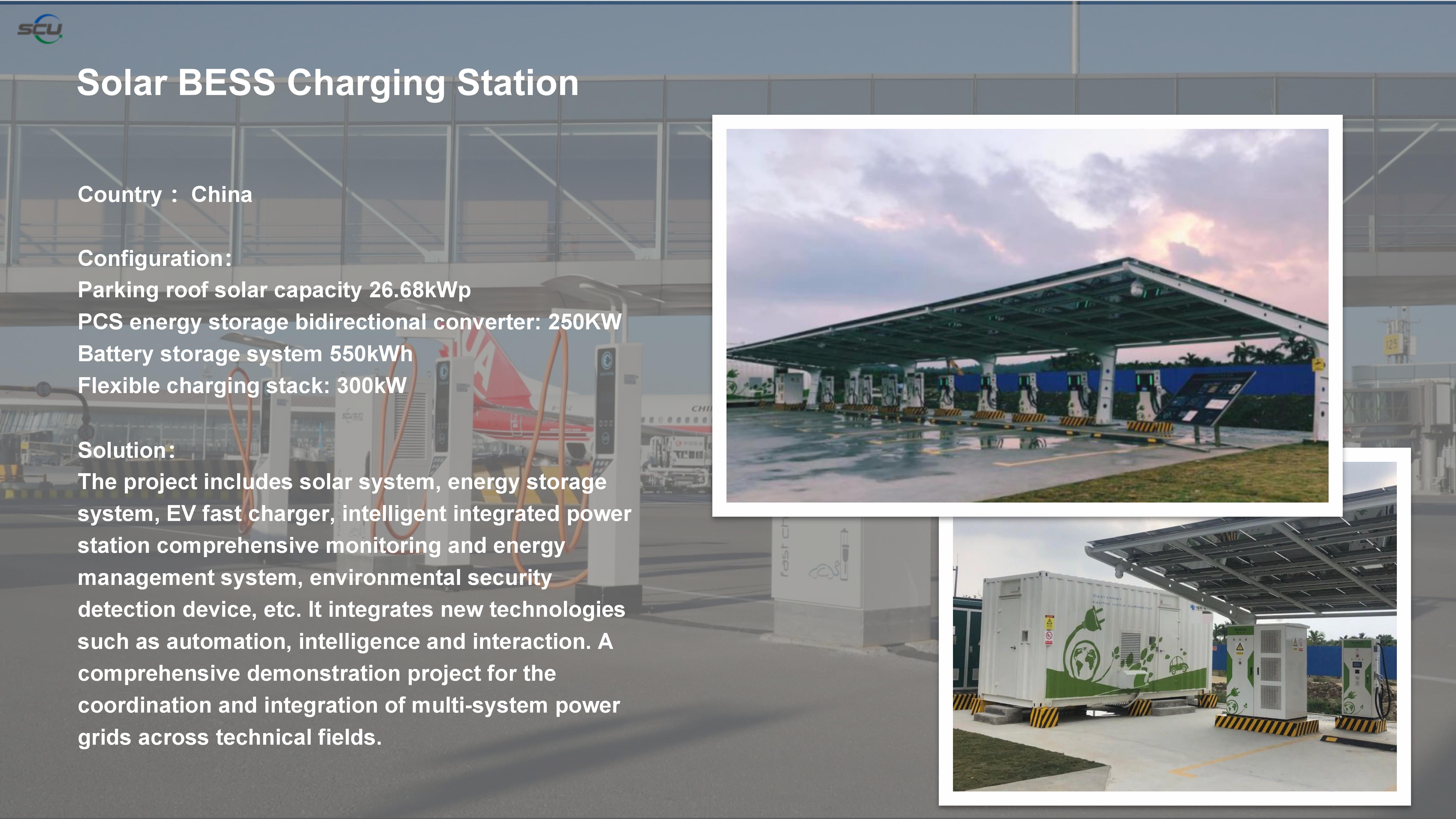

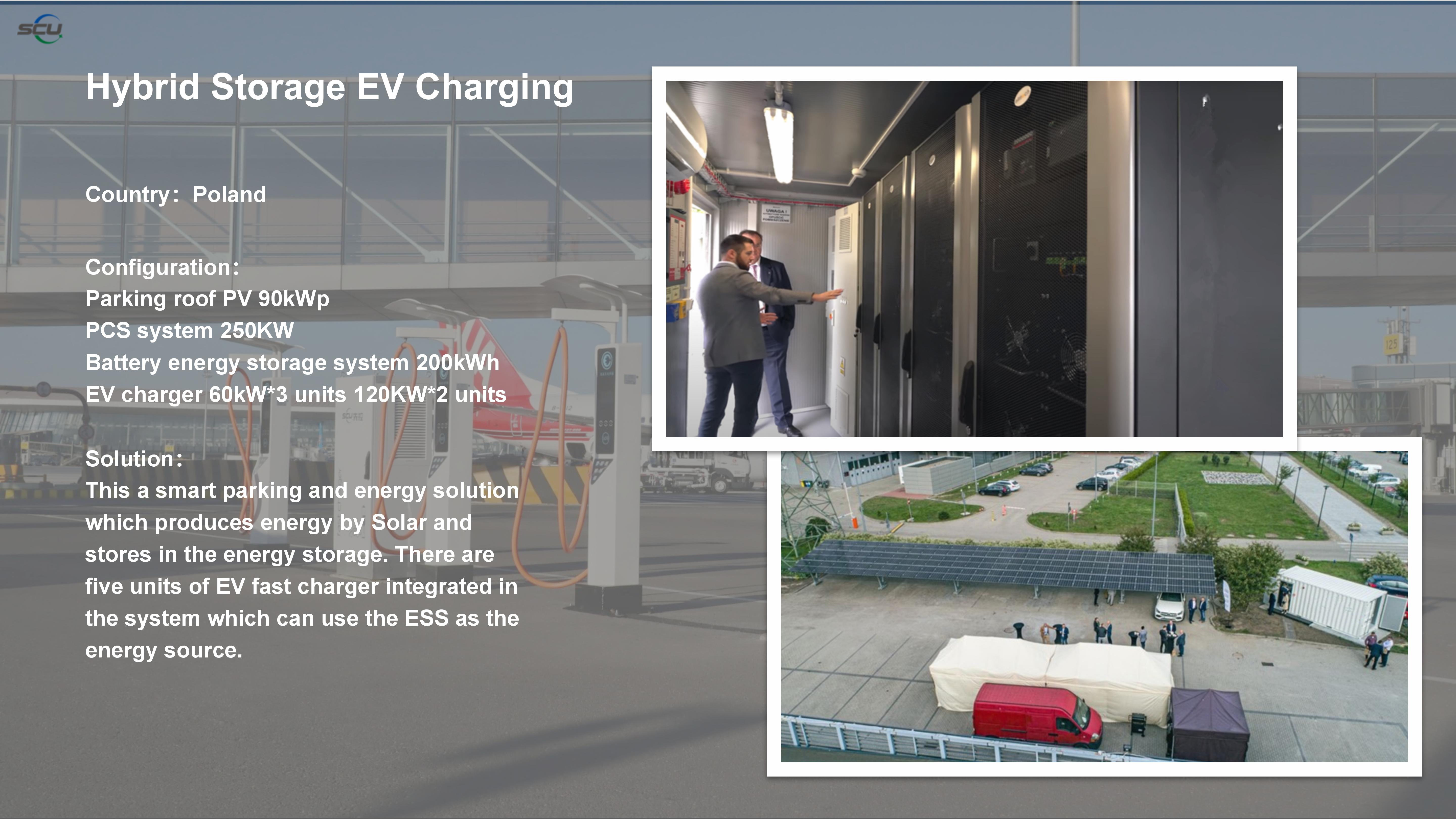

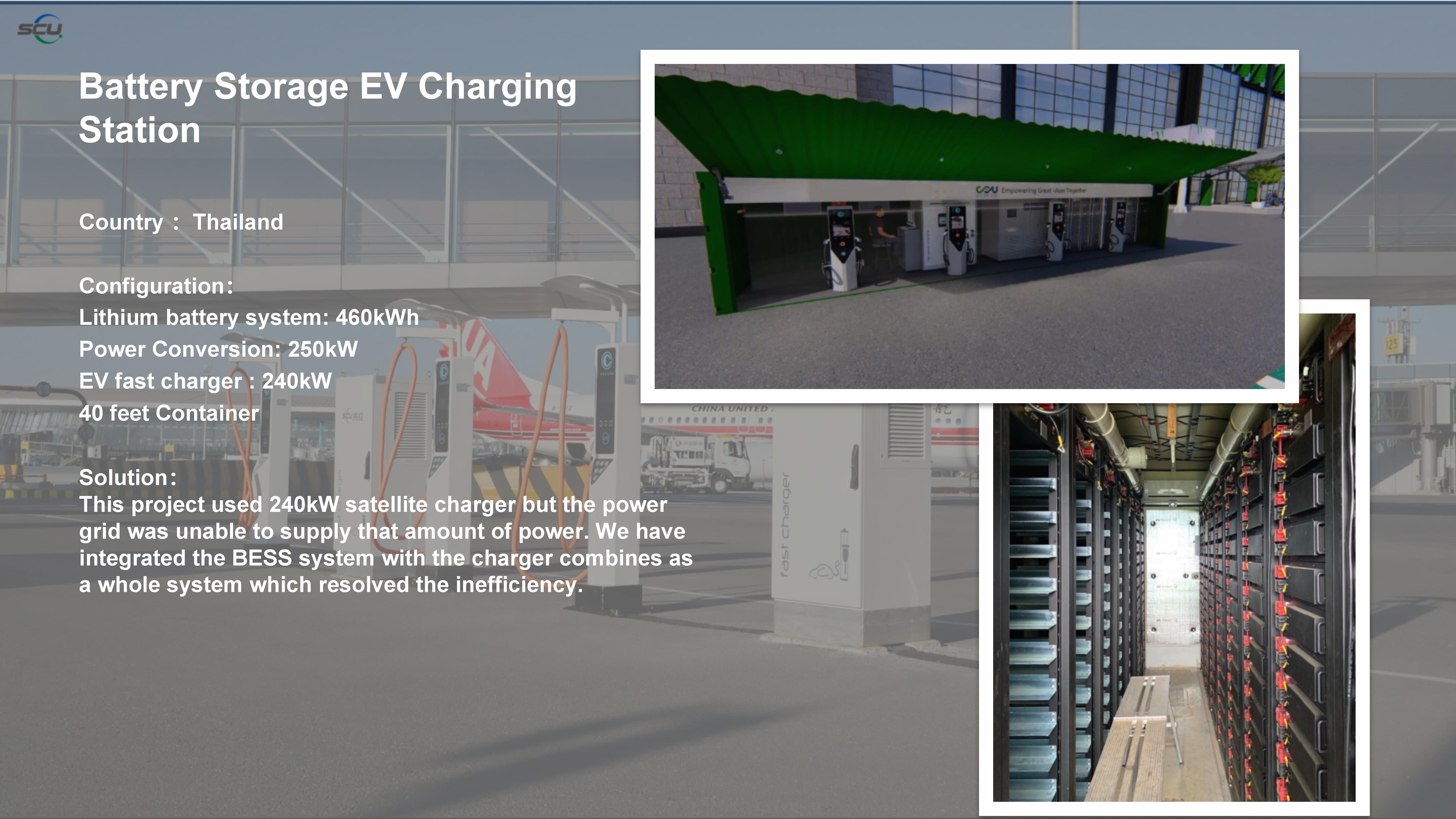

the case
