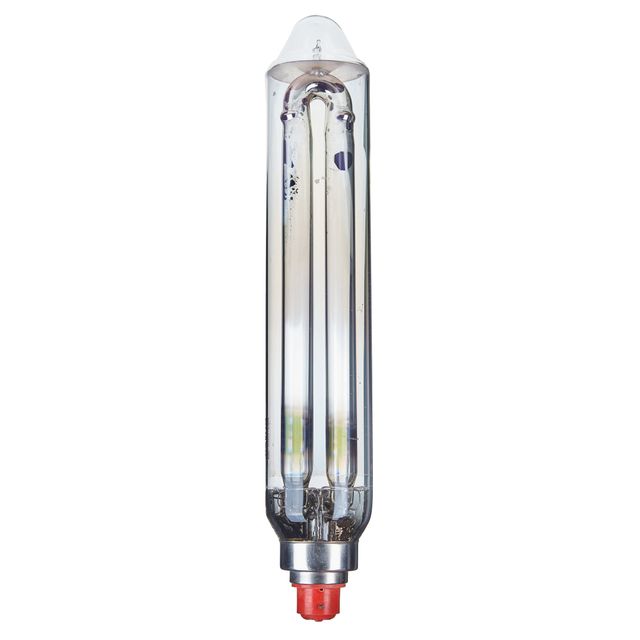

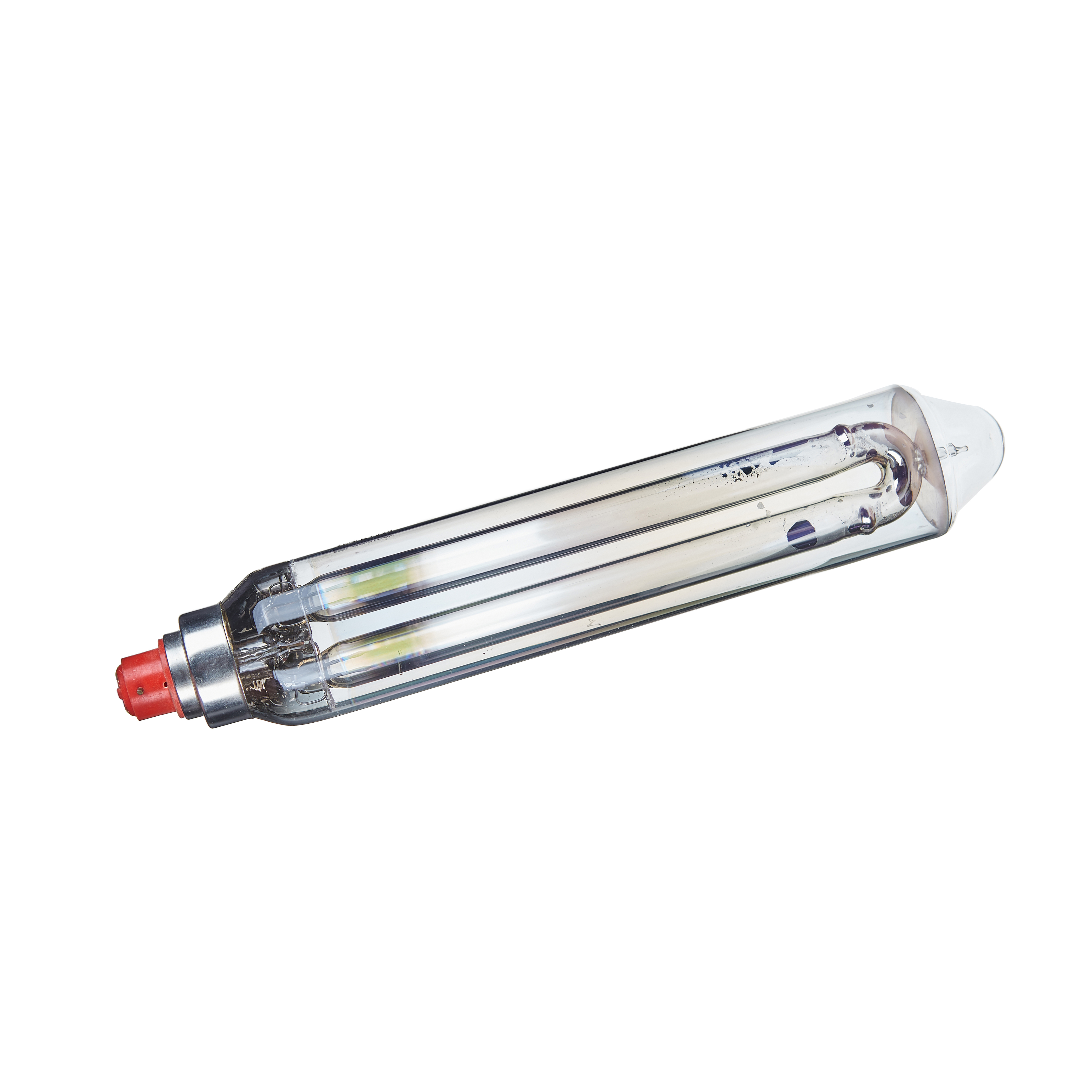

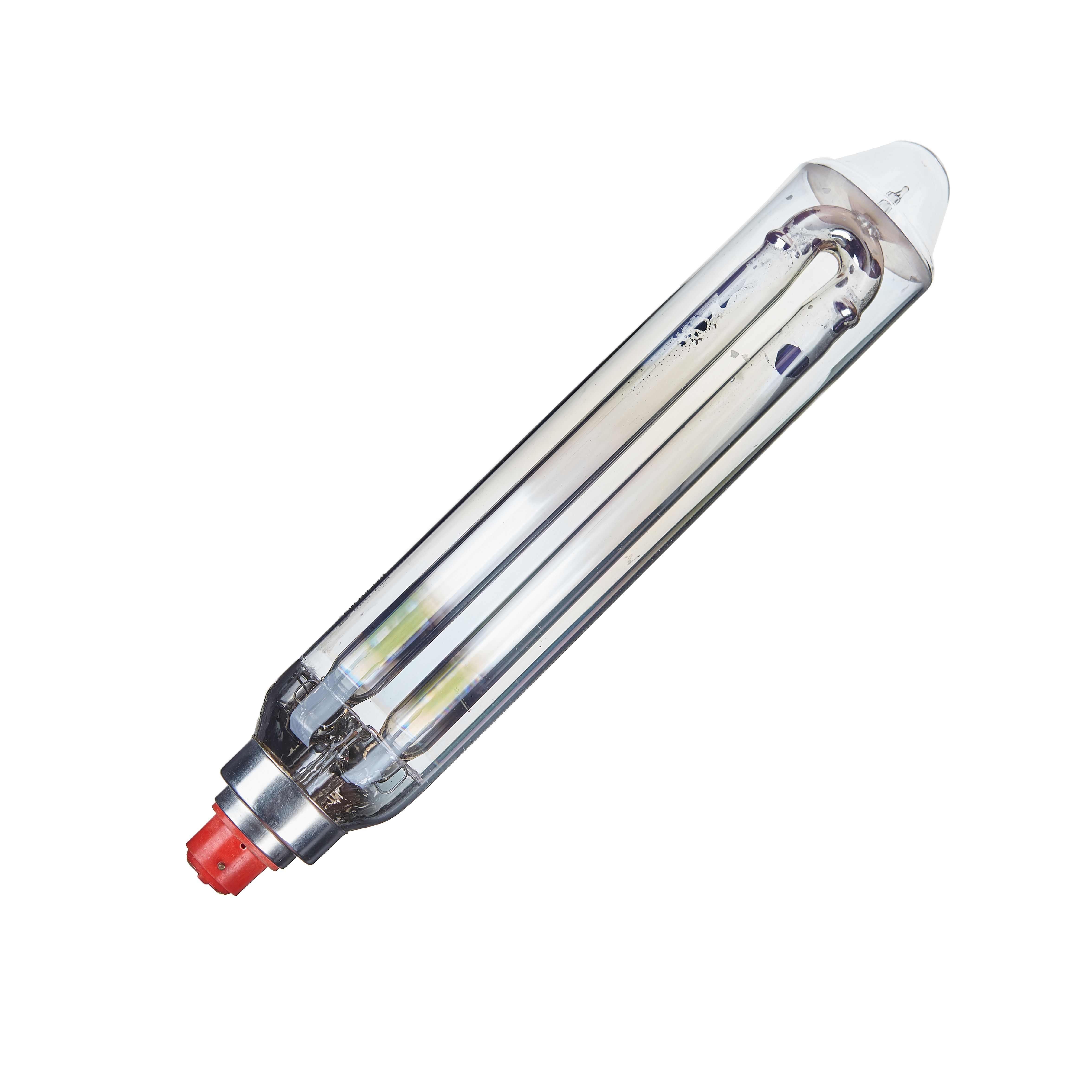

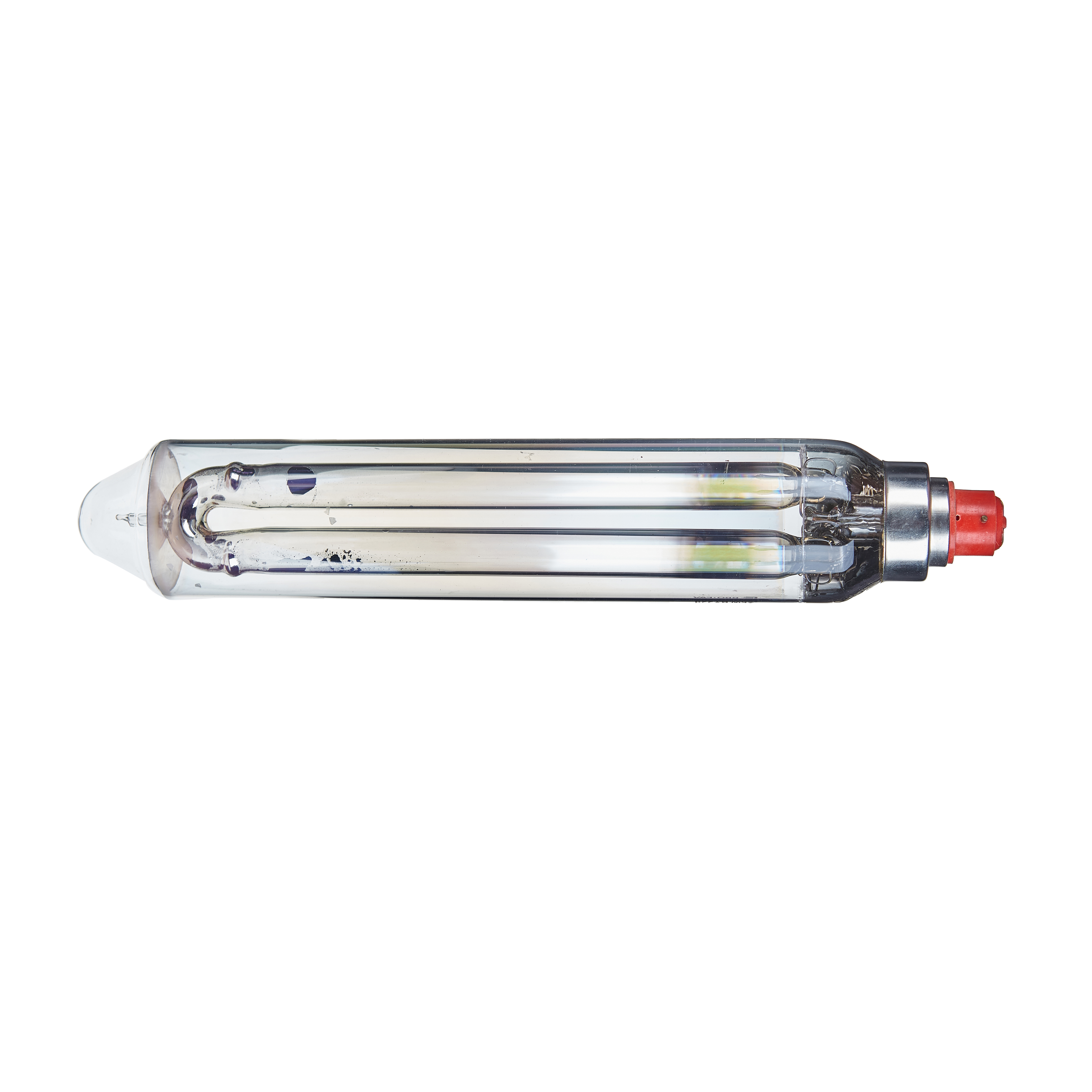

SOX-E lamp Street lighting 36W by 22d low pressure sodium lamp
- $24.40 / 1 - 12 pieces
$18.77 / >=13 pieces - 1 piece
- Suzhou Tonhi Lighting Technology Co., Ltd.
- Jiangsu, China
- Mr Tony Huang
PRODUCT DETAIL
| place of origin; place of origin: | Jiangsu, China | Lamp luminous efficiency (lm/w): | 169 |
| Voltage: | 120V | Packaging Details: | 1 piece in a box 12 pieces in a carton |
| current: | 0.32A | lumen: | 6100 lumens |
| Lighting Solutions Services: | Lighting and Circuit Design | Color rendering index (Ra): | 30 |
| Lifetime (hours): | 12000 | brand: | East China Sea |
| Warranty Period (Years): | 2 years | Bulb Type: | hide |
| application: | Road lighting, railway marshalling yards and crossings, airports, road lighting, railway marshalling yards and crossings, airports | payment terms: | letter of credit, wire transfer |
| Certification: | Chief Executive | Dimmers supported: | Do not |
| product name: | 36W Sox-e Lamp | Working hours (hours): | 12000 |
| Packaging Preview: | Life: | 12000 hours | |
| length: | 425mm | Glass shape: | T53 |
| according to: | BY22d |
Specification
thing | Low pressure sodium lamp |
Lamp luminous efficiency (lm/w) | 169 lumens/watt |
Warranty Period (Years) | 2 years |
Color rendering index (Ra) | 30 |
Dimmer support | Do not |
Lighting Solutions Services | Lighting and Circuit Design |
Life (hours) | 12000 |
place of origin; place of origin | China |
brand | East China Sea |
application | Road lighting, railway marshalling yards and crossings, airports, ports and docks, quarries, foundries and rolling mills for safety and directional lighting |
Bulb Type | hide |
Certification | Chief Executive |
product name | 36W Sox-e Lamp |
lumen | 1800 |
according to | BY22d |
application | Road lighting, railway marshalling yards and crossings, airports |
glass shape | T53 |
length | 425mm |
Product Description
product name | SOX-E 18W BY22d | SOX-E 26W BY22d | SOX 35W BY22d | SOX-E 36W BY22d |
D (maximum) | 53mm | 53mm | 53mm | 53mm |
C (max) | 216mm | 311mm | 311mm | 425mm |
Energy consumption kWh/1000h | 20 kWh | 30 kWh | 40 kWh | 40 kWh |
Energy Efficiency Label (EFL) | a+ | a++ | a+ | a++ |
Lamp current (nominal) | 0.33A | 0.37 A | 0.53 A | 0.32A |
Voltage (nominal) | 57 volts | 69 volts | 70 volts | 120 volts |
Power (rated) (nominal) | 19W/(±3W) | 27W/(±3W) | 37W/(±3W) | 37W/(±3W) |
Operating position | H110 | H110 | H110 | H110 |
Lumen maintenance rate 2000h (nominal) | 95% | 95% | 95% | 95% |
lumen maintenance | 90% | 90% | 90% | 90% |
light effect | 100 lumens/watt | 140 lumens/watt | 129 lumens/watt | 164 lumens/watt |
Luminous flux (nominal) | 1800 lumens | 3700 lumens | 4500 lumens | 6100 lumens |
light bulb shape | T53 | T53 | T53 | T53 |
application

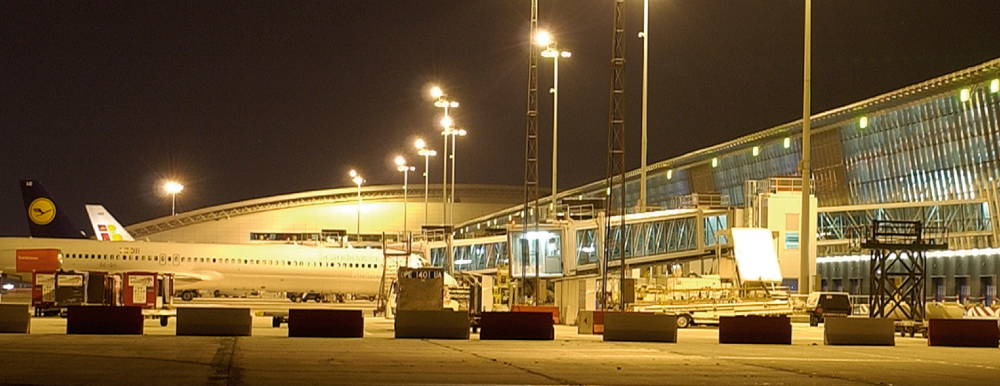

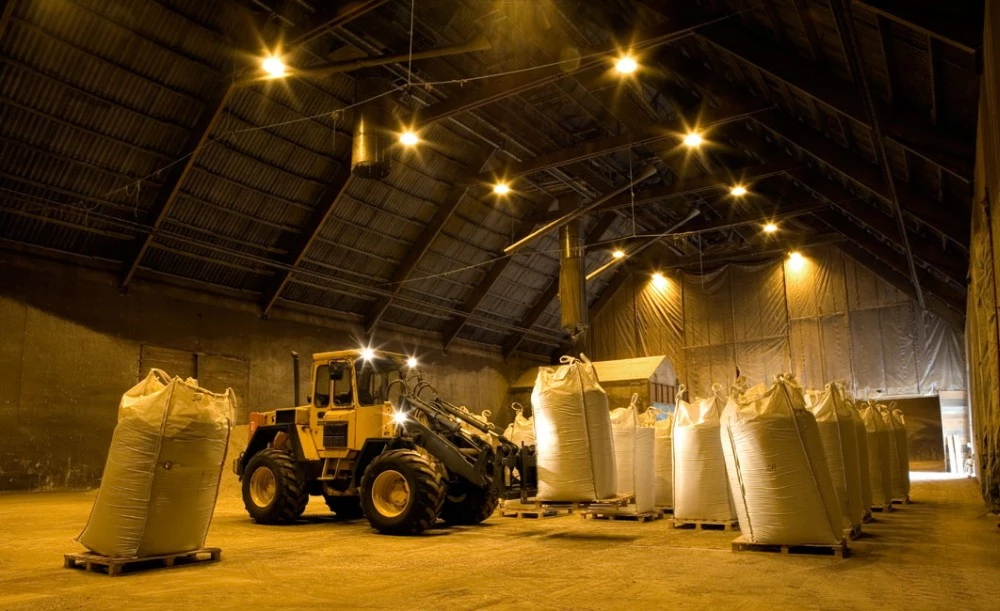

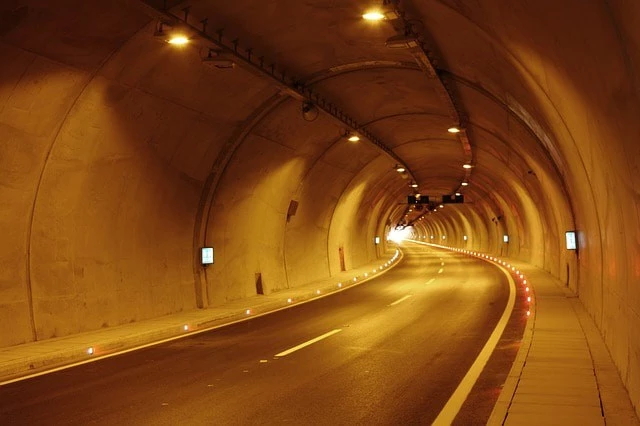

Applications: Road lighting, railway marshalling yards and crossings, airports, ports and docks, quarries, foundries and rolling mills
Security and Directional Lighting
Security and Directional Lighting
Manufacturing Technology
