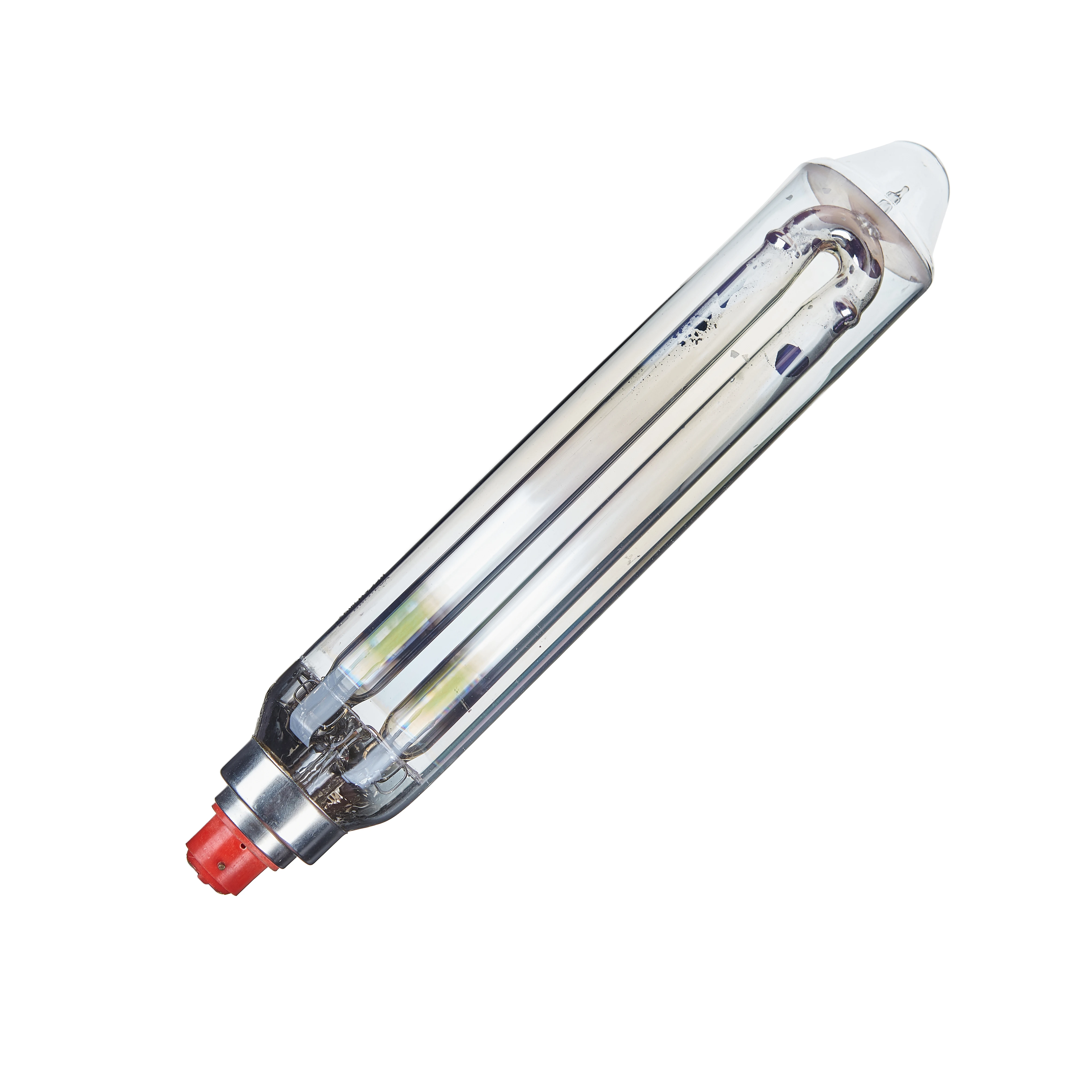

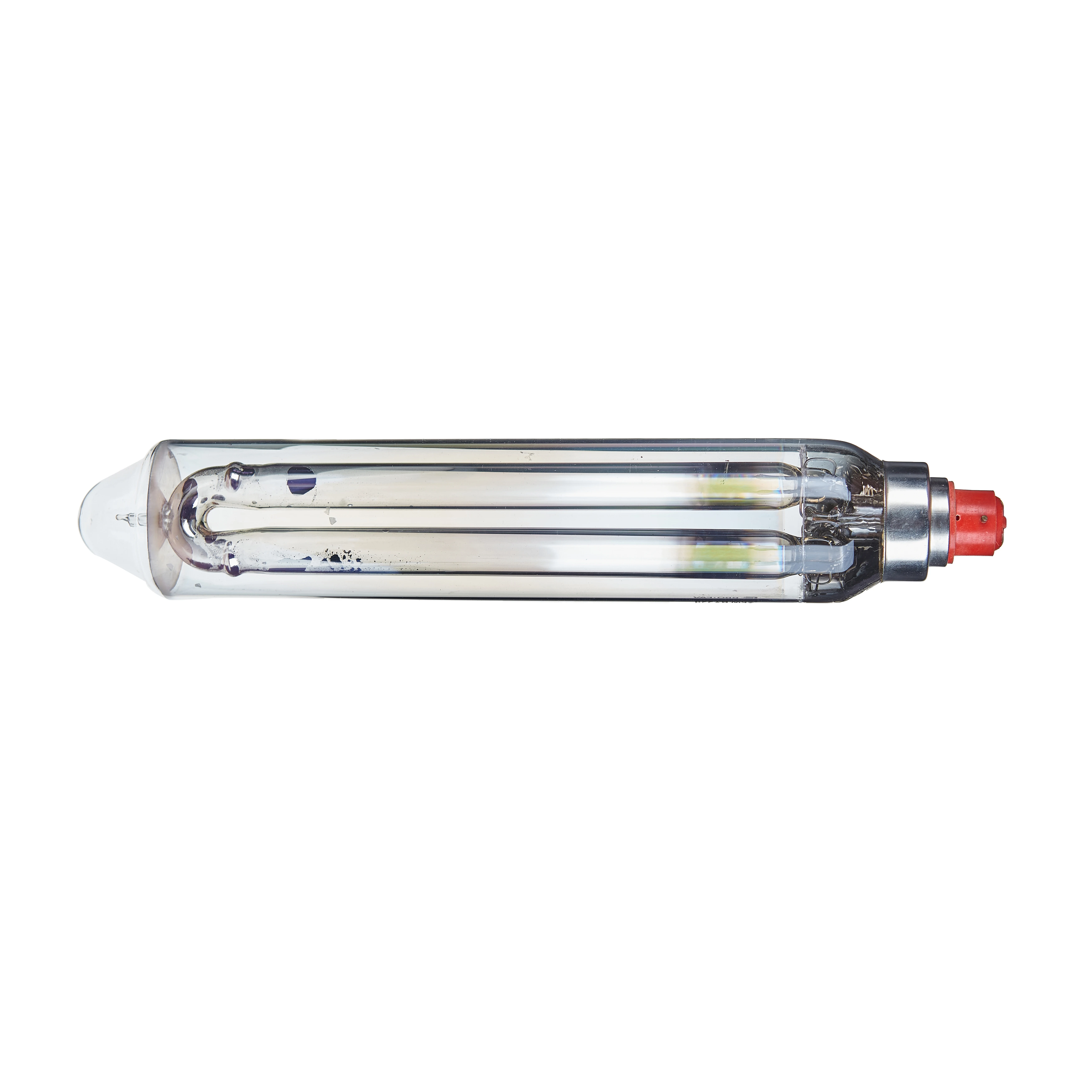

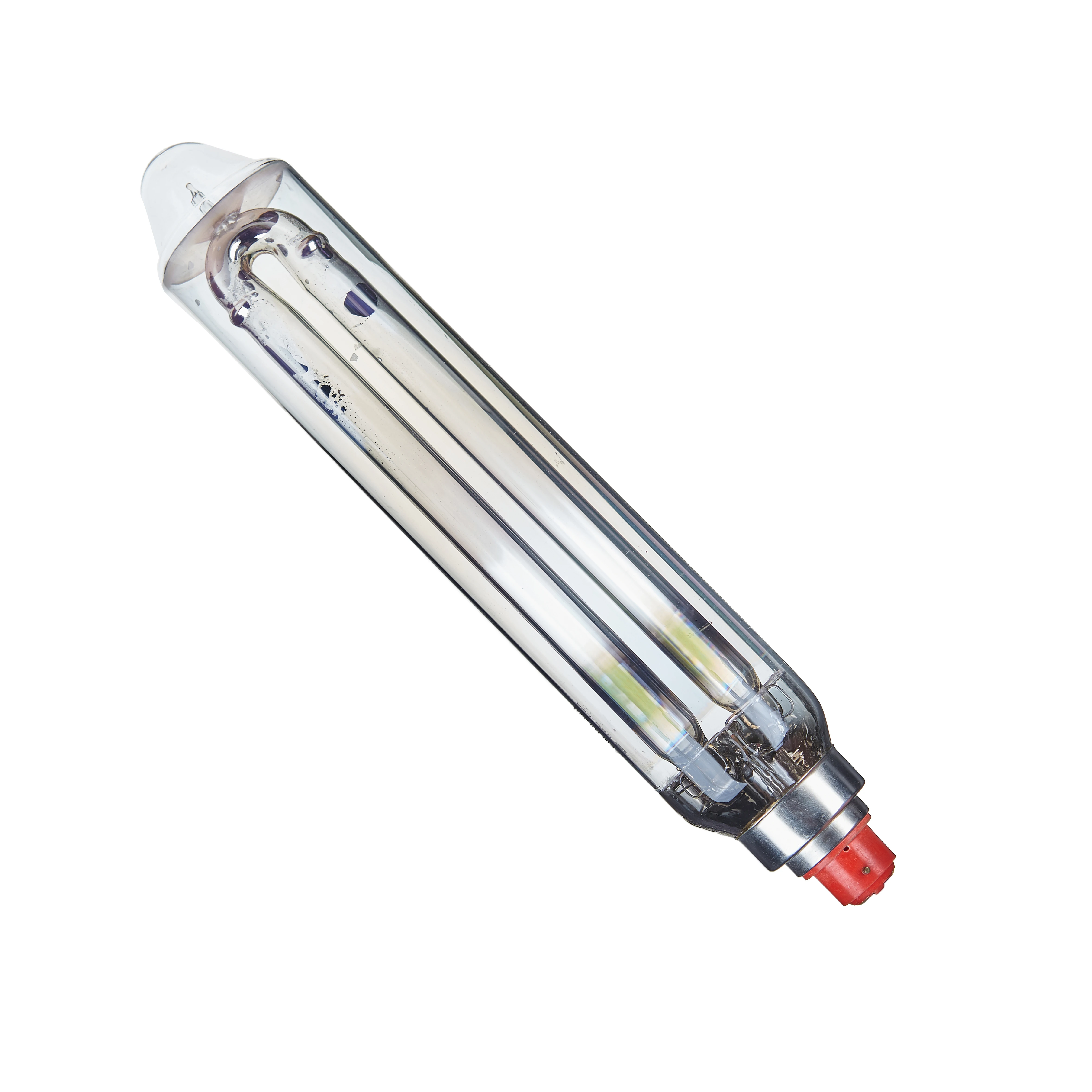

sox lamp SOX-E 36W by22d low pressure sodium lamp
- $19.50 / 10 - 99 pieces
$19.00 / >=100 pieces - 10 pieces
- Suzhou Tonhi Lighting Technology Co., Ltd.
- Jiangsu, China
- Mr Tony Huang
PRODUCT DETAIL
| Packaging Detail: | 1 piece a box 12pcs a carton; | Length: | 311mm; |
| Lifespan (hours): | 12000; | Package Preview: | ; |
| Support Dimmer: | No; | Lamp Luminous Efficiency(lm/w): | 129; |
| Warranty(Year): | 2-Year; | Glass Shape: | T53; |
| Product Name: | 36W SOX-E lamp; | Working Time (hours): | 12000; |
| Bulb Type: | HID; | Color Rendering Index(Ra): | 70; |
| Place of Origin: | Jiangsu, China; | Input Voltage(V): | AC 220V( ± 10%); |
| Lighting solutions service: | Lighting and circuitry design; | Application: | Road lighting, railway marshalling yards and crossings, airports,Road lighting, railway marshalling yards and crossings, airports; |
| LIFE: | 12000; | Brand Name: | TONHI; |
| Certification: | CE; | Color Temperature: | 1800K; |
| Base: | BY22d; | Lumen: | 4550; |
Specification
Setting Information | ||
Item#. | SOX-E 36W | |
Description | 36W Low Pressure Sodium Lamp | |
Wattage(W) | 36W | |
Rated Voltage (v) | 230V | |
Luminous flux(lm) | 4600lm | |
Color Temperature(k) | 1800K | |
Chromogenic index(Ra) | 30 | |
Life(H) | 10000h | |
Glass | T53 | |
Ballast | QSB036M | |
Lamp head model | BY22D | |
Diameter(mm) | 53mm | |
Length(mm) | 425mm | |
Wattage (W) | Glass Shell | Base | Operating Voltage (v) | Luminous Flux(lm) | Max. Diameter (mm) | Max. Length (mm) | Colour Temperature (K) | CRI (rav) | Average Life(h) |
18W | T53 | BY22d | 230V | 1800 lm | 53mm | 216mm | 1800K | 30 | 12000h |
26W | T53 | BY22d | 230V | 3700 lm | 53mm | 311mm | 1800K | 30 | 12000h |
35W | T53 | BY22d | 230V | 4600 lm | 53mm | 311mm | 1800K | 30 | 12000h |
36W | T53 | BY22d | 230V | 6100 lm | 53mm | 425mm | 1800K | 30 | 12000h |
55W | T53 | BY22d | 230V | 7800 lm | 53mm | 425mm | 1800K | 30 | 12000h |
66W | T66 | BY22d | 230V | 11000 lm | 66mm | 525mm | 1800K | 30 | 12000h |
90W | T66 | BY22d | 230V | 13600 lm | 66mm | 525mm | 1800K | 30 | 12000h |
135W | T66 | BY22d | 230V | 22600 lm | 66mm | 765mm | 1800K | 30 | 12000h |
91W | T66 | BY22d | 230V | 17400 lm | 66mm | 765mm | 1800K | 30 | 12000h |
Product Description
1. Using new manufacturing technology to improve light efficiency.
2. The yellow light through fog and strong, the lamps are also suitable for sandy, foggy haze area lighting.
3. High luminous efficiency,long life, more energy saving, reduce operating costs.
4. Low pressure sodium lamp is a kind of energy saving light source with high luminous efficiency, which is of great significance
to the country and area of electric power. Therefore, the solar low voltage sodium lamp system is the best choice for the
application of solar lighting.
2. The yellow light through fog and strong, the lamps are also suitable for sandy, foggy haze area lighting.
3. High luminous efficiency,long life, more energy saving, reduce operating costs.
4. Low pressure sodium lamp is a kind of energy saving light source with high luminous efficiency, which is of great significance
to the country and area of electric power. Therefore, the solar low voltage sodium lamp system is the best choice for the
application of solar lighting.

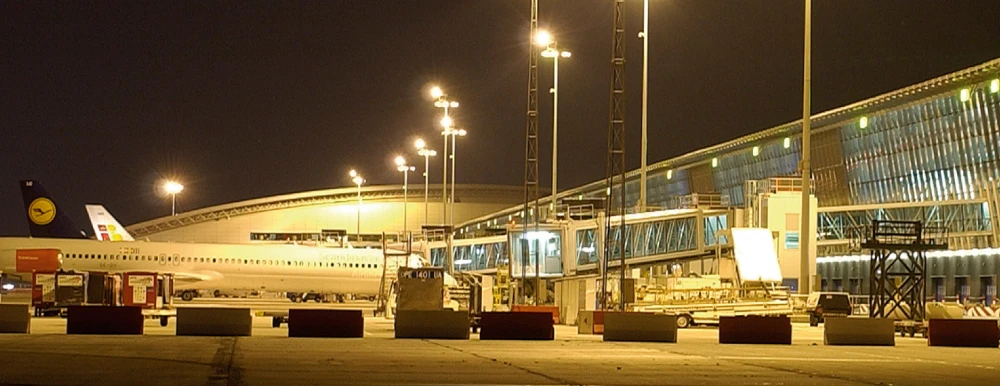

Applications
Applications:Road lighting, railway marshalling yards and crossings, airports, harbours and docks, quarries, foundries and rolling mills
Security and orientation lighting
Security and orientation lighting
Manufacturing Technique
Packing & Delivery
1 piece a box
Company Profile
Suzhou TONHI Lighting Technolohy Co.,ltd. was founded in 2012, Which is a professional in electric lighting source products trading company, concentrating on Research and Development, Sales & Service. The company's headquarter is in Suzhou. After many years of development, which has accumulated a wealth of experience, with high visibility and good reputation, also has a good reputation among the customers.
Our main products are HID series lamps ,which including high pressure mercury lamp, high pressure sodium lamp, metal halide lamp, energy-saving lamp series, Fishing lamp series, LED filament lamp series, LED street light series, other lighting sources, lighting fixture and matched accessories etc.(Including arctube, glass shell, Cap, glass stem, etc.)The mercury lamp, sodium lamp, metal halide lamp are very competitive in the market, exports accounted for 100%, the lamps are widely used for compensating light for greenhouse plants. In recent years, the company has increased the development of overseas markets, the products are mainly exported to Russia, Europe, the North America, Southeast Asia, and other countries and regions. The Products have passed the Europe CE, the United States ETL certification.
"Innovation, change, the constant pursuit of innovation" is our goal. Excellent quality, reasonable price, TONHI will continue to provide more professional, more comprehensive services to customers around the world, working together, sincere cooperation and seek common development, for the sustainable development of human beings, to create a new world wide green lighting. I believe in the near future, TONHI will become China's lighting industry's star.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs about 30days ,which base on the order quantity.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs about 30days ,which base on the order quantity.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
