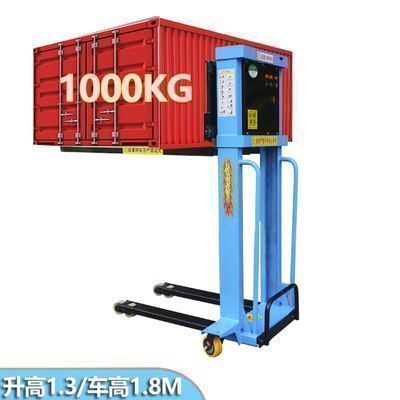

Semi-electric self-adhesive Staver 500 kg 1000 kg 1.3 m 1.6 m Manual Staver

  • $1400.00 / 1 - 99 pieces
    $1350.00 / 100 - 299 pieces
    $1300.00 / 300 - 4999 pieces
    $1290.00 / >=5000 pieces
  • 1 piece
  • Shanghai Yiying Crane Machinery Co., Ltd.
  • Shanghai, China
  • Ms Irene Cao
PRODUCT DETAIL
Lifting height:1.6m-3mDimensions (L*W*H):2100*1000mm (L*W)
Power type:manual hydraulic pumpCore component warranty:1 year
port:ShanghaiMechanical test report:if
Certification:CE certificationLocal service location:not any
Applicable industries:Manual pallet stackerpack:Wooden pallets
Warranty:1 yearOrigin:China Shanghai
Loading capacity:1-3 tonsbrand:Hu Gong
Bearing wheel size:80*60After warranty service:Video technical support, online support
product name:Hugong hydraulic manual stackerHealth status:new
Core components:bearingpayment terms:L/C, Western Union, T/T
Weight (kg):50 kgSteering wheel size:180*50
Video shipment inspection:ifSupply capacity:50000 pieces per month
Wheel Type:Nylon/Polyurethane/RubberPackaging Details:Plywood pallet, or as your request
After-sales service provided:online supportweight:88 kg
Marketing Type:2019 Hot ProductsShowroom location:not any

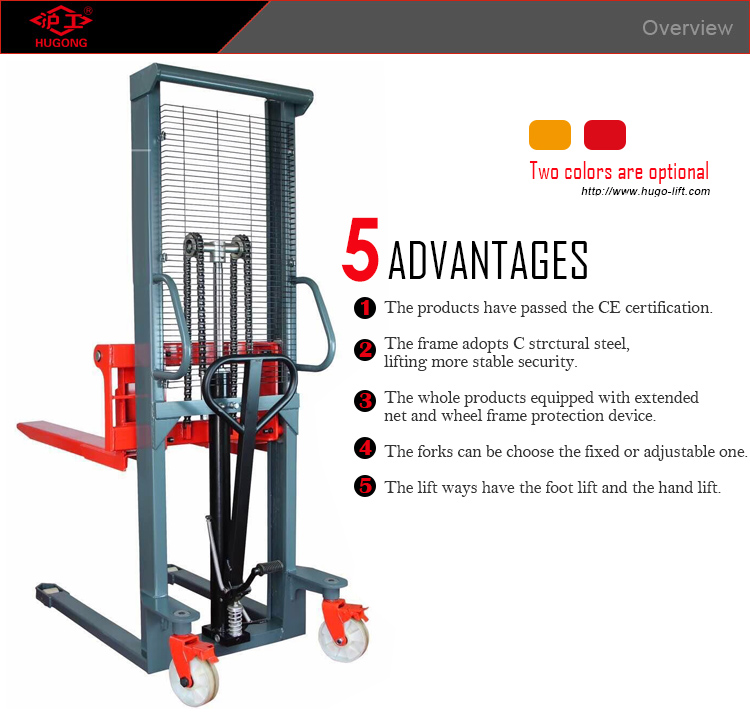

HUGO Top Ten Brands of Forklifts in China 1 Ton 2 Ton 1.6M Manual Pallet Stacker

Product Description



hydraulic manual stacker for sale price



Model unit
Product Category   manual stacker manual stacker manual stacker manual stacker
loading capacity Ton 0.5 1 1.5 2
loading center mm 400 400 400 400
wheel type   nylon nylon nylon nylon
load wheel size mm Ø75×42 Ø80×60 Ø80×60 Ø80×60
steering wheel size mm Ø180×50 Ø180×50 Ø180×50 Ø180×50
Minimum fork drop height mm Post-90s Post-90s Post-90s Post-90s
The maximum lifting height of the fork mm 1600 1600 1600 1600
total fork width mm 220-720 220-940 220-940 260-940
Internal width between forks mm 20-520 20-740 20-740 20-700
Fork size (l/e/s) mm 800/100/53 900/100/30 900/100/30 900/120/30
overall length mm 1284 1375 1430 1430
overall width mm 1980 1980 2080 2080
total height mm 800 1000 1000 1000
Minimum turning radius mm 1250 1400 1400 1400
Pump frequency AT Max.height(laden) Second-rate ≤95 ≤95 ≤110 ≤110
serving weight Kilogram 190 220 250 275

Product Details



Product Details

1) The hydraulic pressure consists of three parts:

Lifting cylinder and control parts, lifting arm and sprocket parts, mast and rear wheel parts.
The lift uses manual or foot-operated hydraulic devices to lift heavy objects, and pushes and pulls heavy objects by hand at a low position.
The oil return valve is installed in the hydraulic unit.
The descending speed is controlled by the pedal to ensure the correct and safe action of the hydraulic system.

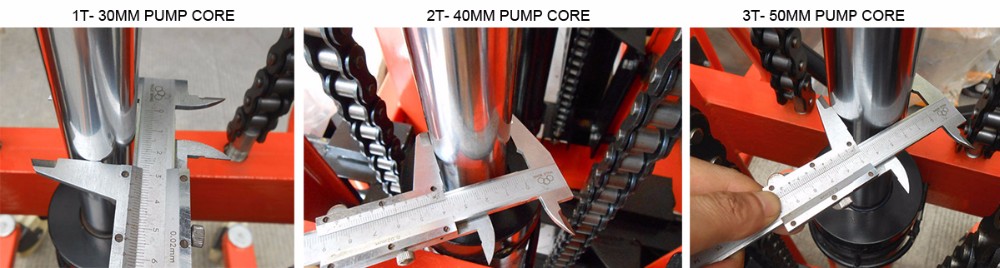

2) Big pump, strong heart

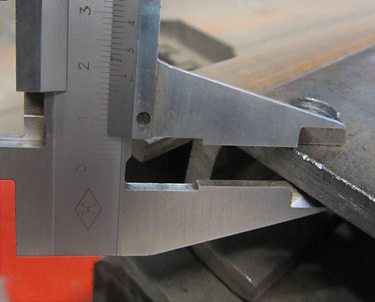

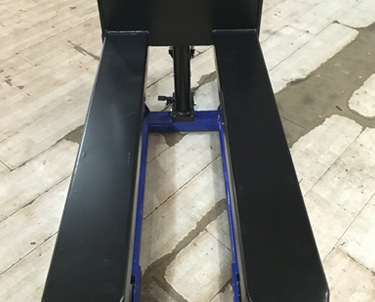

frame thickness

The frame thickness is 8mm.

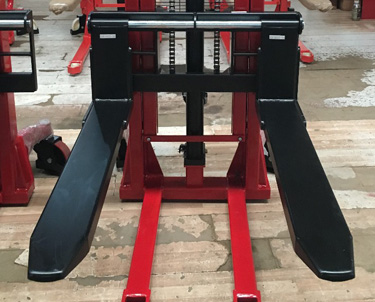

Fork size

A model for most countries.

General size: 330-740mm

It's adjustable forks,

The fork size is adjustable from 330mm to 740mm.

The leg width is 690mm.
Fork size

A model for European countries
General size: 550mm

It is a fixed fork with a fork size of 550mm. The leg width is 490mm.

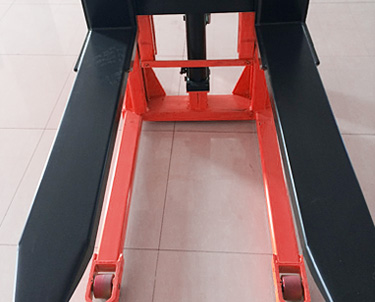

Fork size

special model
General size: 330-830mm


It is an adjustable fork, and the fork size can be adjusted from 330mm to 830mm. It's on the outside of the leg. The leg width is 490mm.



Packaging and Shipping




Package
size
1800(L)*800(W)*2080(D)
weight
200KG-400KG



packaging details

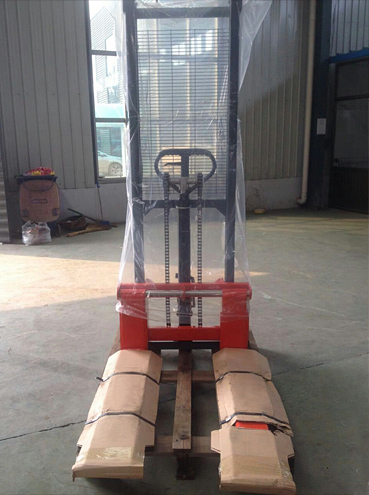

For LCL goods, usually we can pack with bubble film and linen. Wooden pallets are also an option if you only need one or two samples. It's more secure. It only costs a little.

Package
size
1660(L)*760(W)*2030(D)
weight
210KG



packaging details

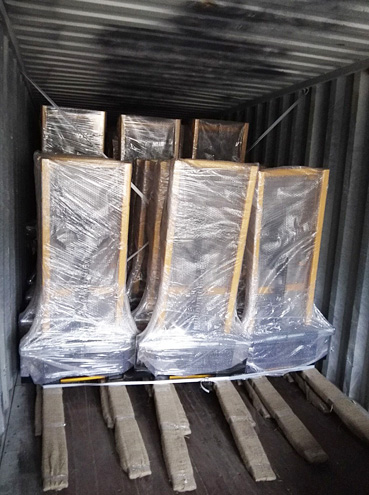

When loading, we can stack them to load more quantity. And each product will be protected from scratches.
And will use a lot of fixed rope to keep it stable.


our products

Product Range:(CLick the blue word for more information)

Electric chain hoist/wire rope hoist/wire rope winch/miniature hoist/pallet truck/hydraulic jack/explosion-proof hoist/stainless steel hoist/lever hoist/chain hoist
