Shale Shaker for Oil Well Drilling Mud Cleaner Oilfield Solid Control Equipment Products Drilling Mud Desander Desilter Machine

PRODUCT DETAIL
Core Components:Motor,Pump,Hydrocyclone,Shaker screen;Vibrating method:Balanced Elliptical;
Voltage:Customized to suit any voltage;Packaging Detail:Wooden Frame;
Warranty:1 Year;Shale Shaker Type:Triple-deck;
Place of Origin:Hebei, China;Payment Terms:L/C,D/P,D/A,T/T;
Port:Tianjin;Showroom Location:None;
Model Number:JLY-FN;Supply Ability:40 Sets per Month Support Ocean shipping;
Marketing Type:Ordinary Product;Application:Oilfield solid control;
Built-in Slurry Pump:Refer to table or customize;Hydrocyclone configuration:Refer to table or customize;
Production Capacity:High;Screen Area of Each Deck:Refer to table or customize;
Dimension(L*W*H):Refer to table or customize,Refer to table or customize;Package Preview:;
Applicable Industries:Construction works ,Energy & Mining,Other,Oil field;Video outgoing-inspection:Provided;
Separating cut point:>30 microns;Capacity:From 44 to 1585 GPM;
Warranty of core components:1 Year;Machinery Test Report:Provided;
Features:High efficient 3-deck shaker screens, desilter;Brand Name:JIN LAI YUAN;
Weight:Refer to table or customize,4.8 KG;Condition:New;

Introductions

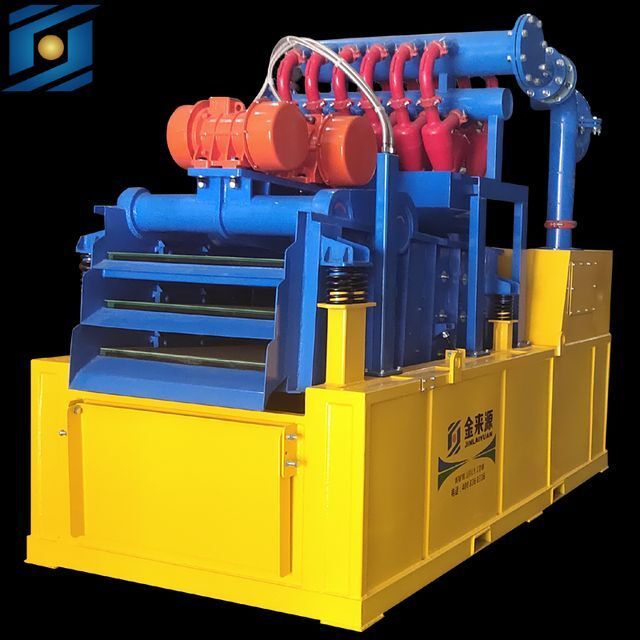

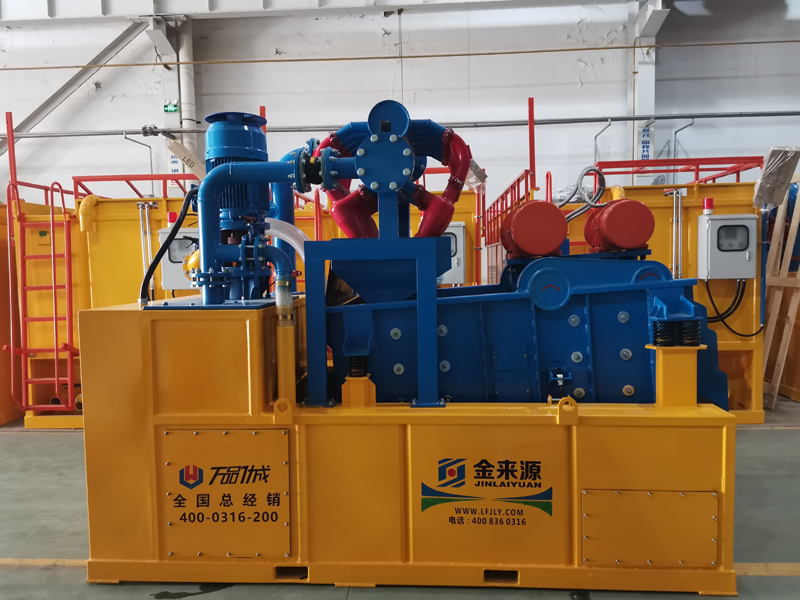

1.       JLY mud cleaner is designed to be a easily operate and cost-effective mud processing equipment with improved combination of hydrocyclones group, shale shaker, slurry pump and control system. It has features such like compact footprint, high efficiency, good working stability, long serving life and so on.

2.       The only mud cleaner design in China adopts 3-deck screens which set up in the most effective screen combination. Through maximum pre processing on screens of 3 decks, more solids in drilling fluid are separated. As a result of it, the burden of hydrocyclones and slurry pump is relieved, then the whole equipment can run more stable.

3.       Solids bigger than 30 microns can be removed from drilling mud just by JLY mud cleaner alone. The drilling mud are left with its highest properties with processing through mud cleaner and able to be put into recycle and reuse, thus avoid damaging mud pump.

4.       With drilling mud pocessing and reuse, results in more than 50% cost savings both on drilling mud expenses and disposal cost. At the meantime, reduce damage to environment.

5.       JLY mud cleaner is the leading brand product, owns more than 50% market share of industry in China. Our clients include Chinese large oil drilling enterprises and national groups.





Features



1.       With the unique design of combining desilter with 3-deck screens, particles bigger than 30 microns in drilling fluid can be removed.

2.       Wide possessing range of mud cleaners for different possessing requirement.

3.       Provide better separating performance with ballanced elliptical motion 3-deck screens.

4.       Less manpower required with automatic cycling in mud cleaner.

5.       Automatically sends warning and cuts off power in case of high voltage, low voltage, lack of phase and wrong phase sequence.

6.       Entire cycling system of mud cleaner keeps running stable and efficient with automatic adjustment of drilling fluid level itself.

7.       Scientifically verified configuration of hydrocyclones group and slurry pump combination assures most appropriate pressure, flow and processing rate combination.

8.       Full function remote control has operators avoid direct contact with hazardous material and save manpower.

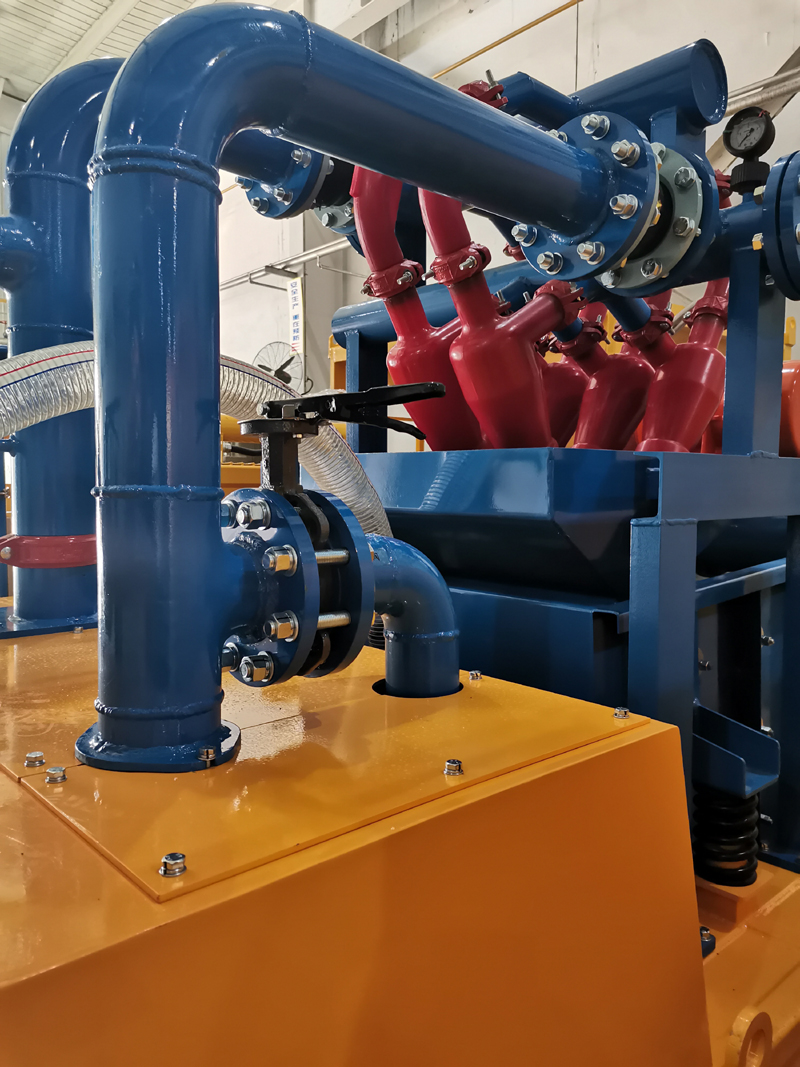

9.       Polyurethane constructed hydrocyclones for long life abrasion resistance.

10.

11.   Equipped with LED light for working at night.

12.   Built-in electric control panel for regular shape and both misoperation and damage avoidance.

13.   Screen locking design avoids screen damage at mud cleaner transition.



JLY-FN-10B/

JLY-FN-10C

 JLY-FN-30B/

JLY-FN-30C

JLY-FN-60B/

JLY-FN-60C

JLY-FN-120D/

JLY-FN-120C

JLY-FN-200D/

JLY-FN-200C

JLY-FN-XXX
Capacity(GPM)  44  132  264  528  881 Up to 1585
Cut Point  >30 microns  >30 microns  >30 microns  >30 microns  >60 microns/>30 microns  >30 microns
Hydrocyclone Type  4"Desilter Cone*1  4"Desilter Cone*3  4"Desilter Cone*6  4"Desilter Cone*12  10"Desander Cone*2/4"Desilter Cone*20 Customized
Weight  750kg/1200kg  2000kg/2100kg  2400kg/2600kg  2950kg/3200kg  4300kg/4800kg Customized
Dimension(L*W*H)

 1560*1050*1450mm/

2500*1950*1800mm

 2760*1550*2160mm  3100*1550*2380mm  3350*1790*2500mm

4100*1800*2450mm/

4100*1800*2700mm

Customized

Shale Shaker Type  Double-deck  Triple-deck   Triple-deck   Triple-deck   Triple-deck  Triple-deck
Vibrating method  Balanced Elliptical  Balanced Elliptical  Balanced Elliptical  Balanced Elliptical  Balanced Elliptical Balanced Elliptical
Built-in Slurry Pump  4kw  7.5kw  11kw  18.5kw  30kw Customized
Screen Area of Each Deck

 Top 250*950mm/

Bottom 300*950mm

 550*1400mm  700*1700mm  900*1900mm  1250*2100mm Customized
