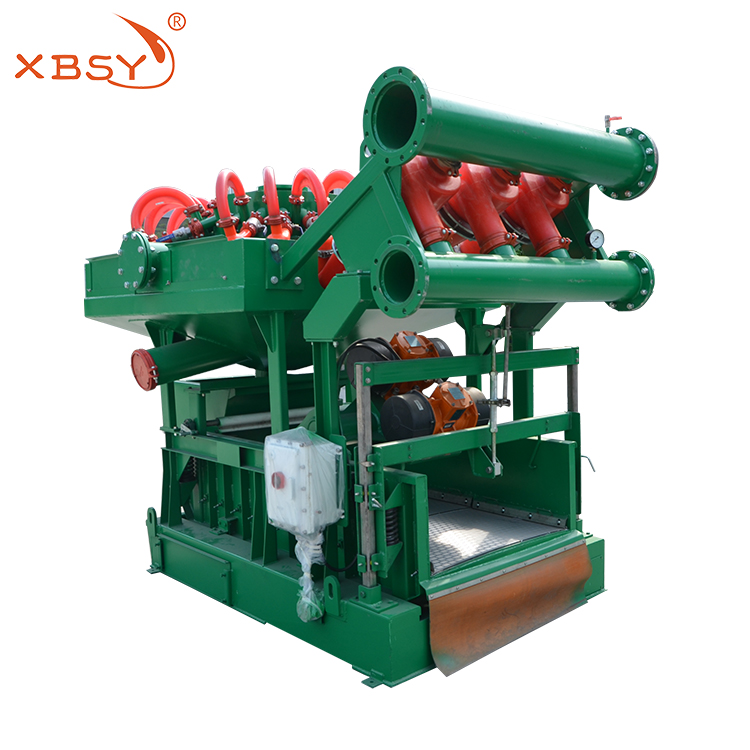

XBSY drilling fluid solid control professional mud cleaner

PRODUCT DETAIL
Descaler diameter:100 or 125mmProduction capacity:Annual output: 500 sets
Supply capacity:50 units per monthPackaging details:Wood/steel box
Warranty:1 yearAfter-sales service provided:Engineers can repair machinery overseas
payment terms:Letter of credit, wire transferDimensions (length*width*height):3065x1920x2670mm
brand:New Best Sourceweight:3000-3100kg
Number of desanders:2 or 3Voltage:380V or 460V
port:Shanghai, Tianjin or othersfeature:high efficiency
Number of descalers:12, 16, 20Health status:new
Desander diameter:250 or 300 mmstrength:2-1.865kW
application:Oilfield mud cleanerCertification:ISO, CE, Det Norske Veritas
Place of origin:Sichuan Province, Chinamodel:Qijie
Delivery details:30 days

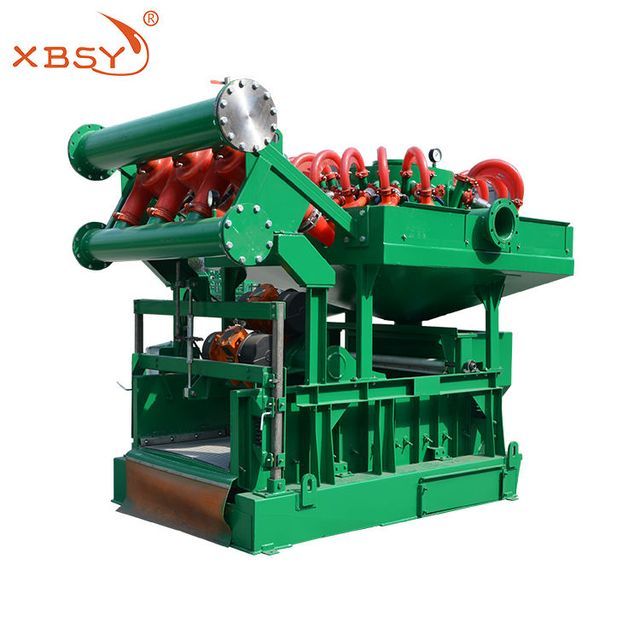

XBSY drilling fluid solid control professional mud cleaner

Product Description



Product specifications:

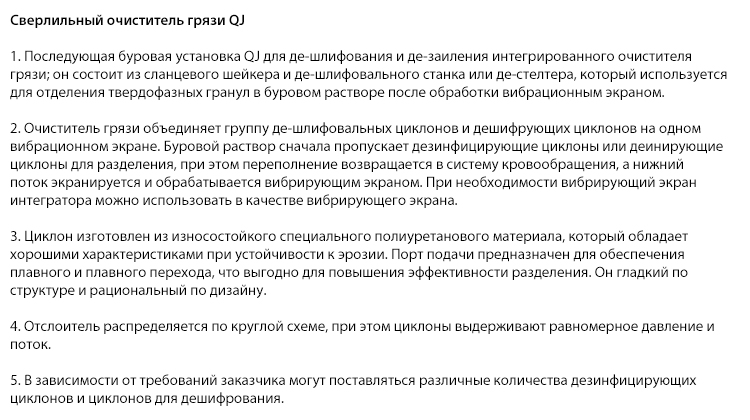

QJ series drilling sand and mud removal integrated cleaning machine, referred to as integrated cleaning machine, is used to separate solid particles in drilling fluid after vibrating screen treatment.

Integrated desander can integrate a set of desander and desilter on one vibrating screen. The drilling fluid is first separated by a desander or filter or filter, the overflow returns to the circulation system, and the underflow is screened and processed by a vibrating screen. If necessary, the vibrating screen of the integrated cleaner can be used as a front-stage vibrating screen.

The cyclone mixer is made of wear-resistant special polyurethane material and has good resistance to fluid erosion. The feed port is designed as a tangential feed with smooth transition, which is beneficial to improving separation efficiency. The structure is smooth and the flow path is reasonable.

The degreasers are distributed in a circle, allowing the cyclone mixer to withstand uniform pressure and flow.

Different quantities of sand removers, silt removers and filter filters can be provided according to customer needs.

"

"



Desander diameter

250 or 300 mm

Number of desanders

2 or 3

Descaler diameter

100 or 125 mm

Number of descalers

12, 16, 20

weight

3000-3100kg

Overall dimensions (length*width*height)

3065*1920*2670mm
