Stainless Steel CR L Luxury 180 Degree SER78 Serenity Series Sliding Shower Door System

  • $3.50 / >=100 sets
  • 100 sets
  • Jietai Hardware Limited
  • Guangdong, China
  • Ms JieTai Hardware
PRODUCT DETAIL
Warranty:1 yearKey words:sliding door system
Certification:ISO9001Install:180°
Project solution ability:Graphic design, overall project solutionOpen style:slide
glass thickness:Suitable for 8-12mm tempered glassbrand:JT hardware
model:SER78MOQ:1 set
design style:modernMaterial:Brass, SS304, SS316
After-sales service:Online technical support, on-site trainingapplication:bathroom
port:JiangmenOrigin:Guangdong, China
pack:Bubble bag + inner box + cartonpayment terms:wire transfer
maximum. Weight to wear:75 kgPackaging Details:1set to 1 box 10 boxes in 1 carton Customizable packaging
Finish:PSS, SSS, PVD, BN, CPPackage preview:
Supply capacity:5000 sets per monthtype:sliding shower door system
Product Description

CR L Deluxe 180 Degree SER78 Serenity Series Sliding Shower Door System

product name 180 degree sliding shower door system
serial number. SER78
Material 304 Stainless Steel, 316 Stainless Steel, Brass
Completed PSS, SSS, MB, brushed brass

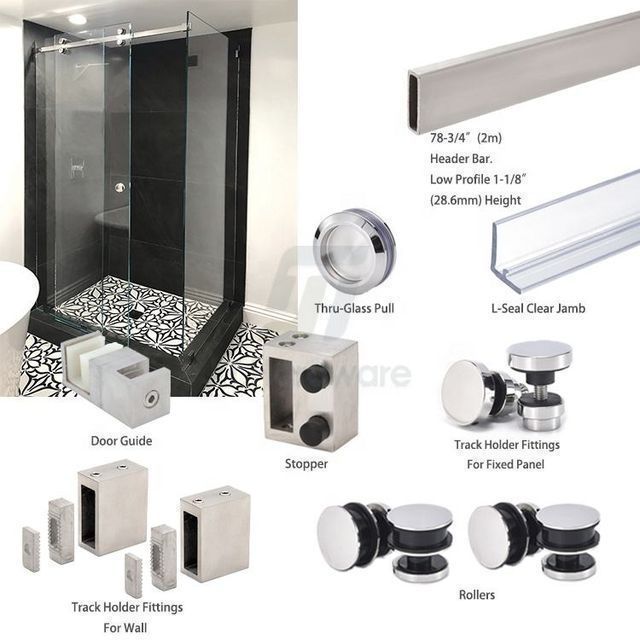

Kit

1 - 78-3/4" (2 m) ram length

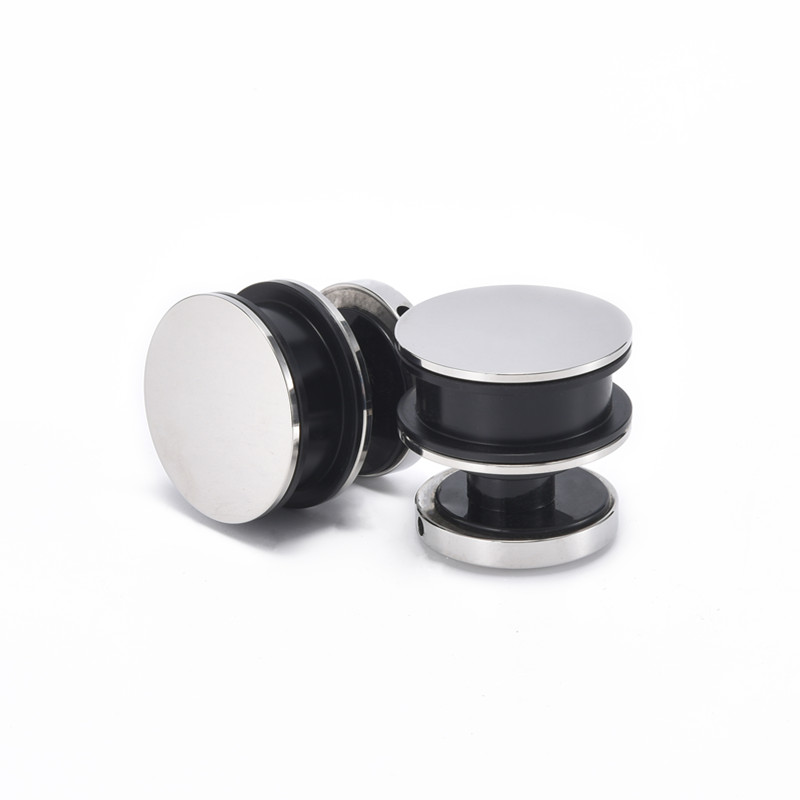

4 - Stainless steel rollers

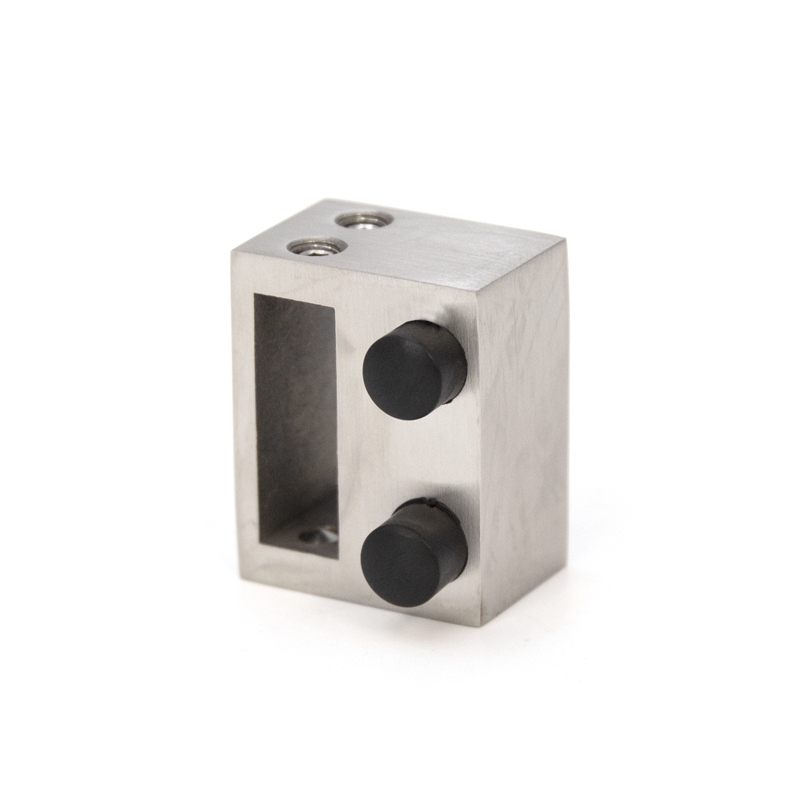

1 - stopper

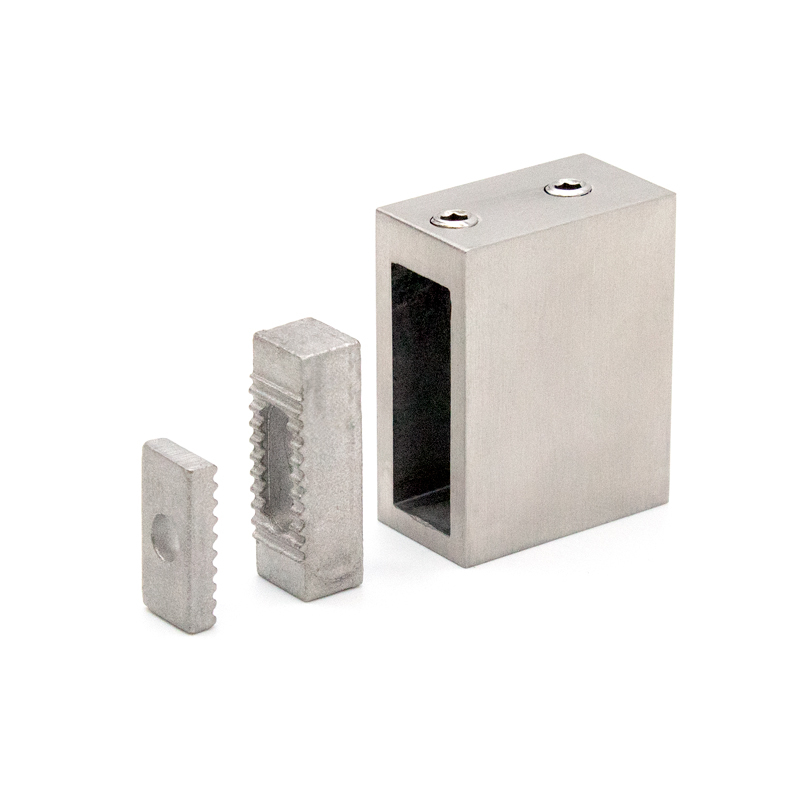

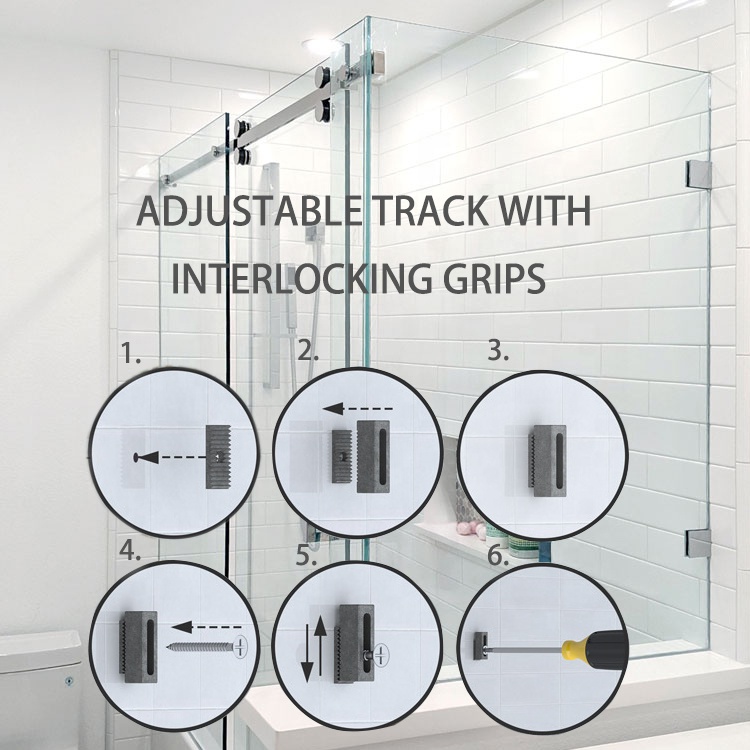

2 - Wall track bracket accessories

2 - Fixed panel

1 - Pull through the glass

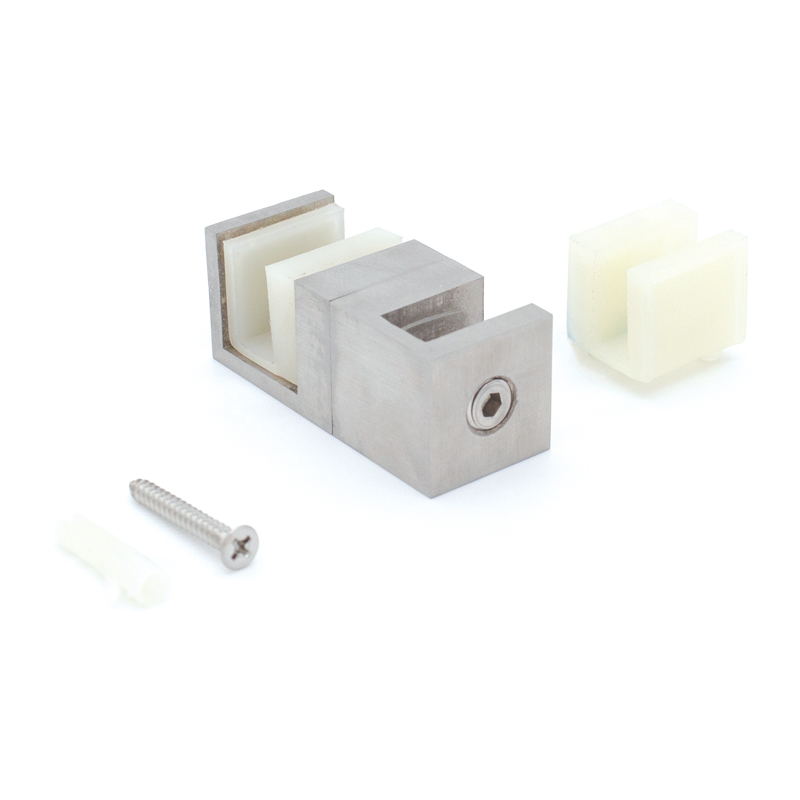

1 - Bottom Guide

1 - 80" (2.03 m) clear L-shaped jamb

glass thickness Suitable for 8-12mm tempered glass
loading weight 75KGS
Warranty

3 year warranty

detailed image

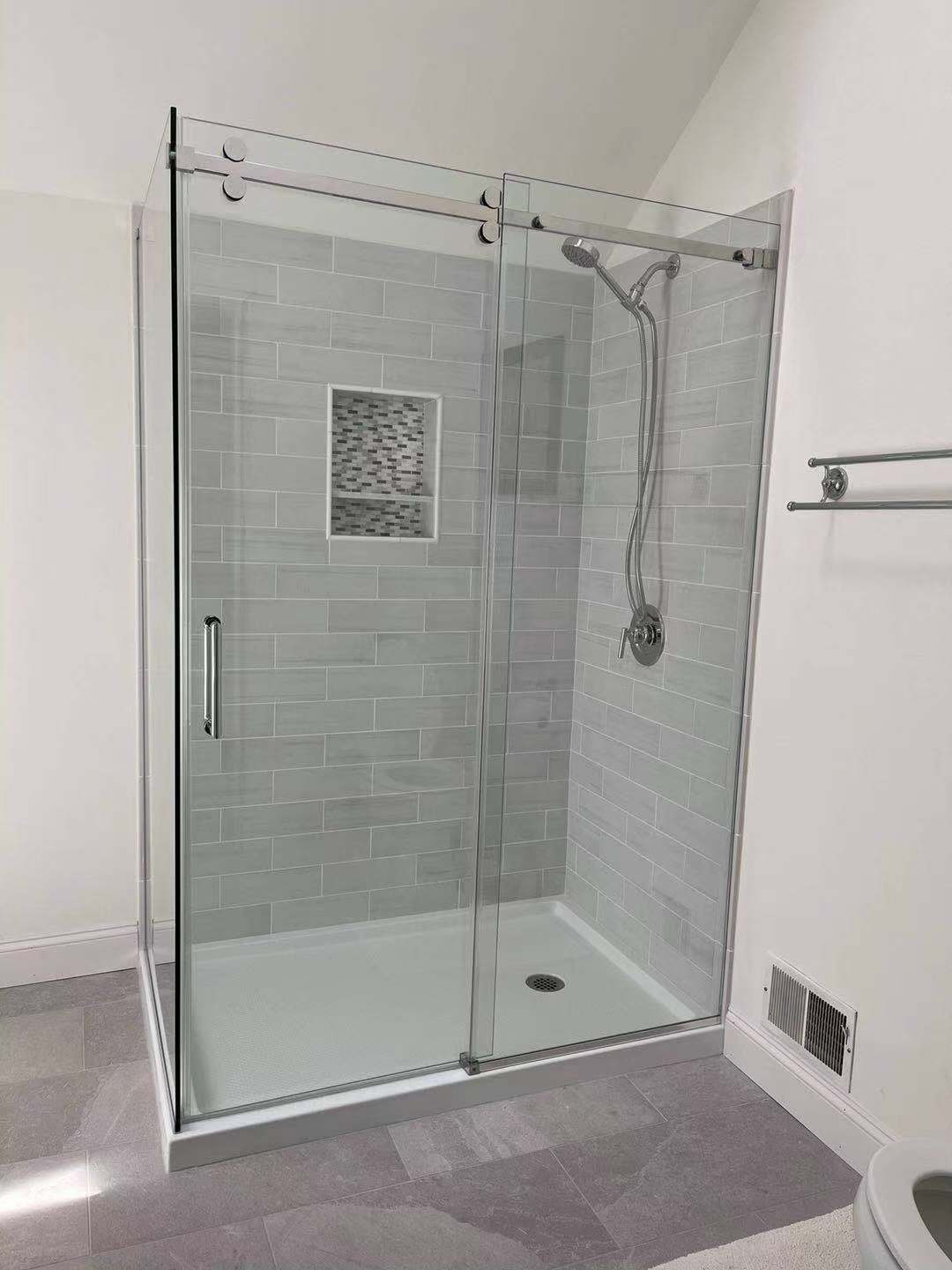

180 Degree SER78 Serenity Frameless Sliding Shower Door System

  • Designed for 3/8" (10mm) tempered glass
  • Sliding panel and fixed panel reversible configuration
  • Round headers and drums
  • Stock Size Kit: 78" wide, field cut to size
  • One standard size fits most applications
  • Precision glass rollers provide a quiet gliding experience
  • Available in three popular architectural finishes

thisSER78 Serenity Series Frameless Sliding Shower Door KitOffers a modern, understated design including a rectangular top bar and round glass rollers. It is designed for use with 3/8" (10mm) or 1/2" (12mm) tempered glass. Each top glass roller requires a 5/8" (16mm) diameter hole in the glass for proper installation. Precision bearings and wheels also provide a quiet sliding experience.

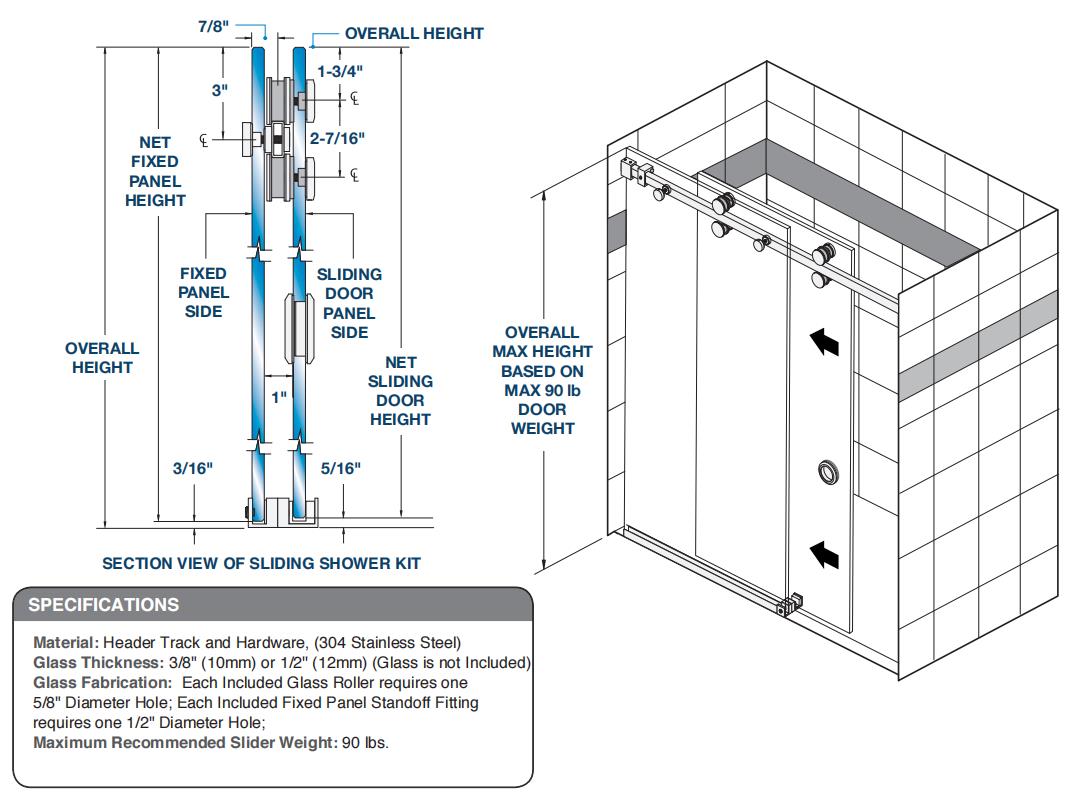

Cutting Instructions / Glass Size





notes:

The overall height is referenced/determined from the top of the curb to the top of the fixed glass panel.



Quick Metal Size Cut Recipe:

Head Rail = Overall Top Width Measurement minus 1-1/16" (27mm)



Quick glass sizing formula to determine web width and height:

Sliding and fixed glass panel width = total width divided by 2, add 7/8"

Fixed glass panel height = total height minus 3/16"

Sliding glass panel height = total height minus 5/16"

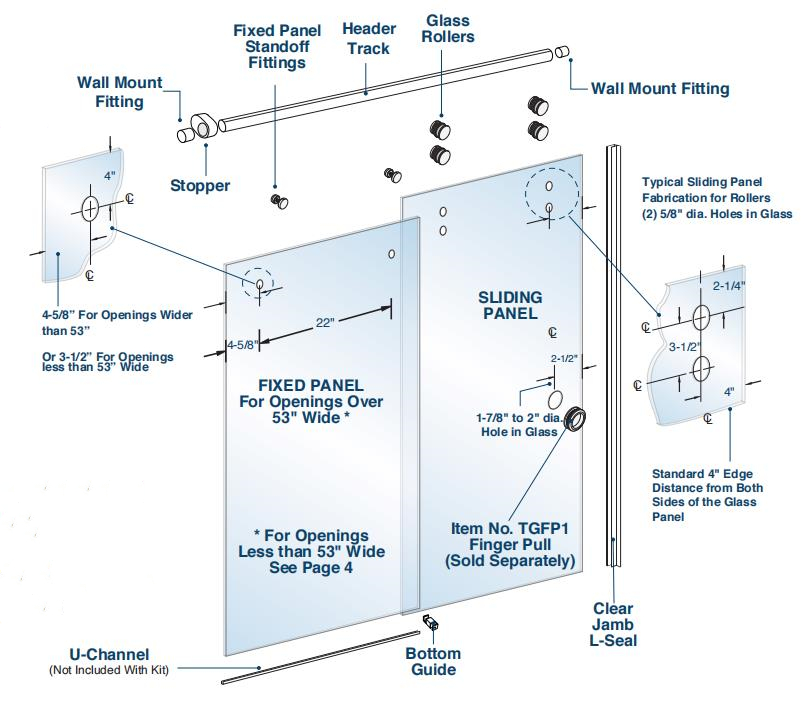

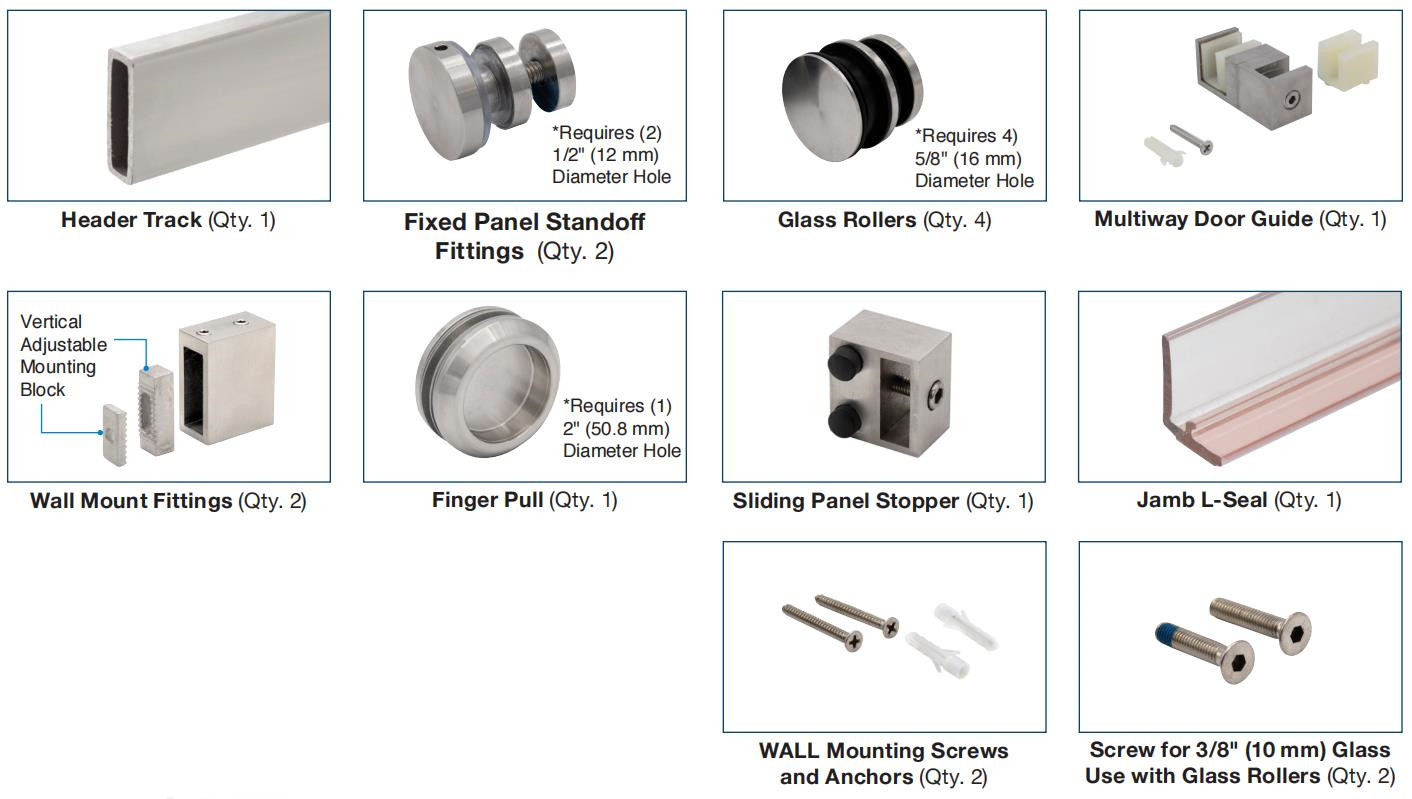

All kits contain the following components

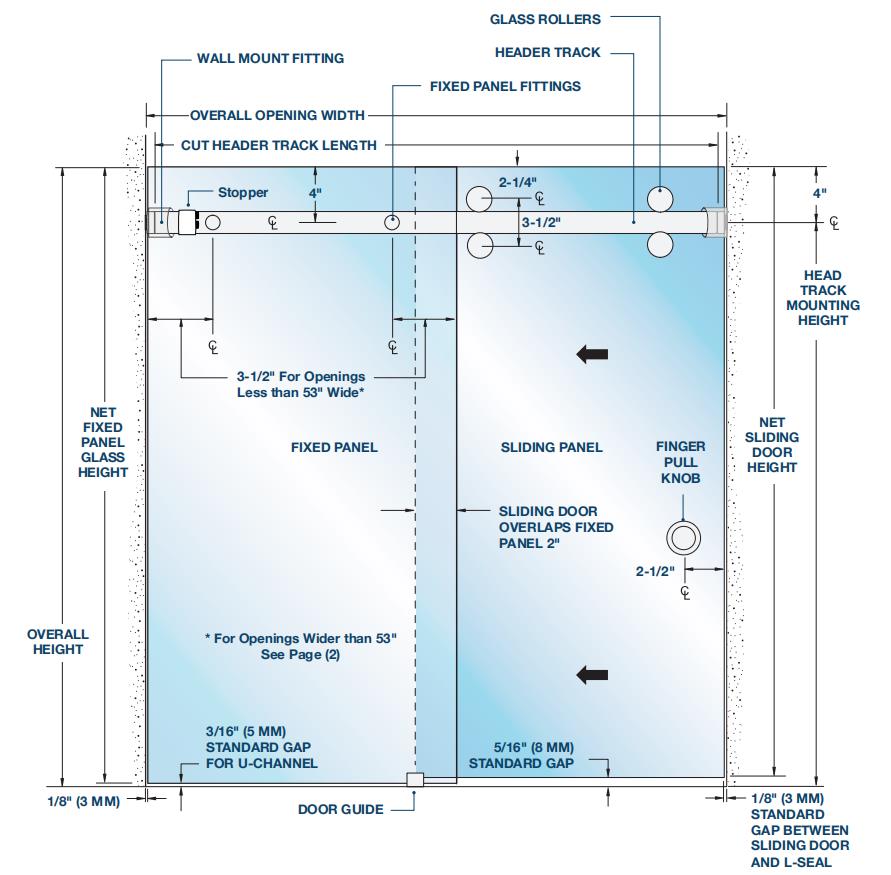

Elevation

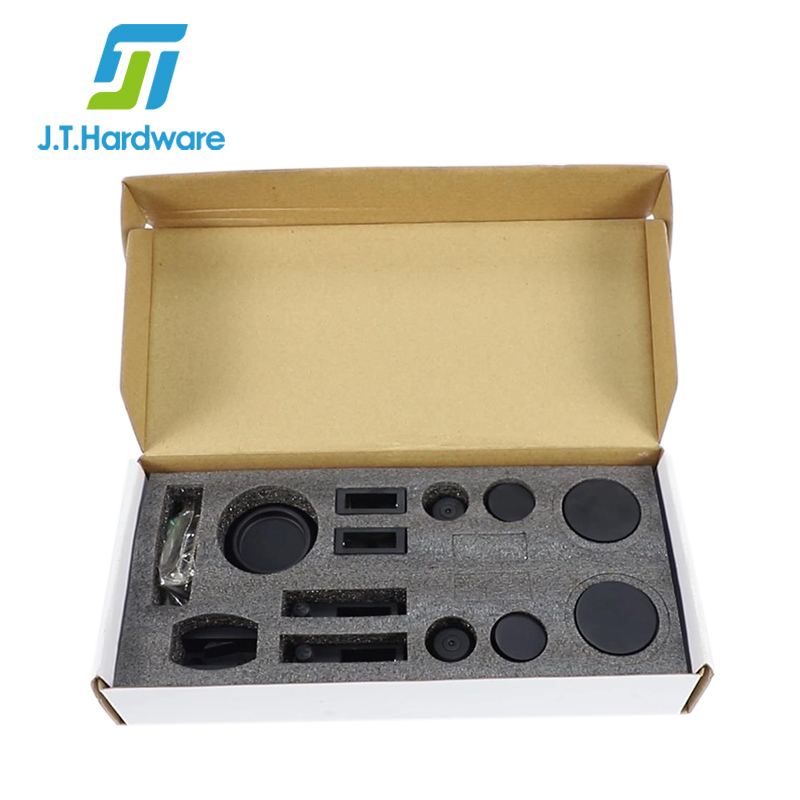

pack







product list

optional finishes
