Steel wheel weld slag trimmer
- $68000.00 /set
- 1 set
- Nantong Zhenhuan Trade Co., Ltd.
- Jiangsu, China
- Mr Franks Cao
| Suitable rim diameter: | 240-600mm; | Suitable max. rim material: | 8mm; |
| Lubricating method: | motorized centralized automatic lubricating; | Port: | Shanghai; |
| Brand Name: | Zhenhuan; | Name: | Steel wheel weld slag trimmer; |
| Suitable max. rim width: | 350mm; | Clamping force: | 10000kg.f; |
| Payment Terms: | L/C,T/T; | Warranty: | 1 Years; |
| Number of planning blades: | 4; | Supply Ability: | 10 Sets per Year; |
| Hydraulic station motor power: | 45kw; | Packaging Detail: | Steel wheel weld slag trimmer will be bare in Plywood box; |
| Production speed: | Production speed; | Place of Origin: | Jiangsu, China; |
Steel wheel weld slag trimmer

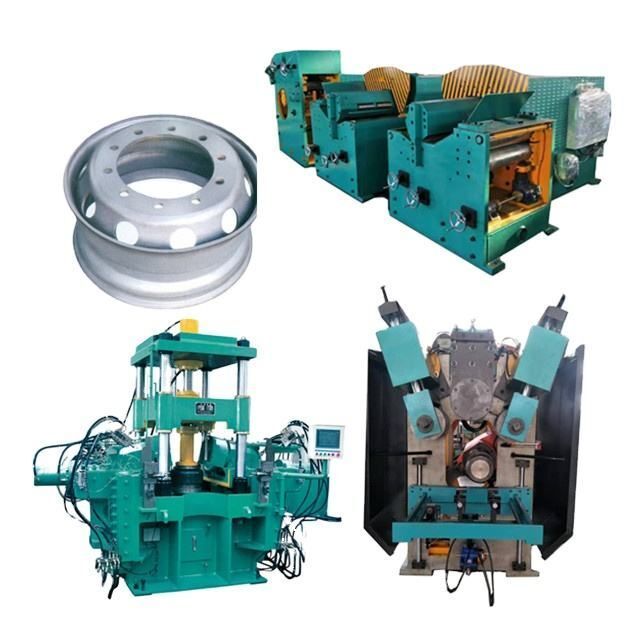

The Steel wheel weld slag trimmer include mainly:
1. Scraping and planing machine
2. Roll flattening machine
3. End cutting machine
Description of Steel wheel weld slag trimmer
wheel rim trimming machine is for trimming welding slags,important machine for making rims.
These three machines are separate, but enjoying same one hydraulic station as power source. Thus saves cost.
Clamping and planing of the planing machine are driven by hydraulic, forces are adjustable.
Clamping of rolling machine is driven by hydraulic; clearance between upper and lower rollers is adjustable.
End cutting machine is adjustable for different rim width.
Main configuration of Steel wheel weld slag trimmer
|
PLC |
Omron from Japan |
|
Touch screen |
Delta from Taiwan |
|
Buttons |
Schneider |
|
Electric control cabinet |
assembling electric box |
|
Sensor |
imported from Japan |
|
Lubricating pump |
BIJUR dry oil pump from USA |
Guarantee of Steel wheel weld slag trimmer : within one year since the date of B/L
We, Nantong Zhenhuan Trade Co., Ltd., are specialized in different kind of machines for more than 10 years. We can provide you not only good quality machine but also good after-sale services.
Kindly please contact us to get more services and more information of Steel wheel weld slag trimmer
Name: Cherie Mao
Mobile: 0086 134 8510 5931
Skype:yuexuanmao
Welcome to our home page: http://zhenhuan.en.alibaba.com/.
