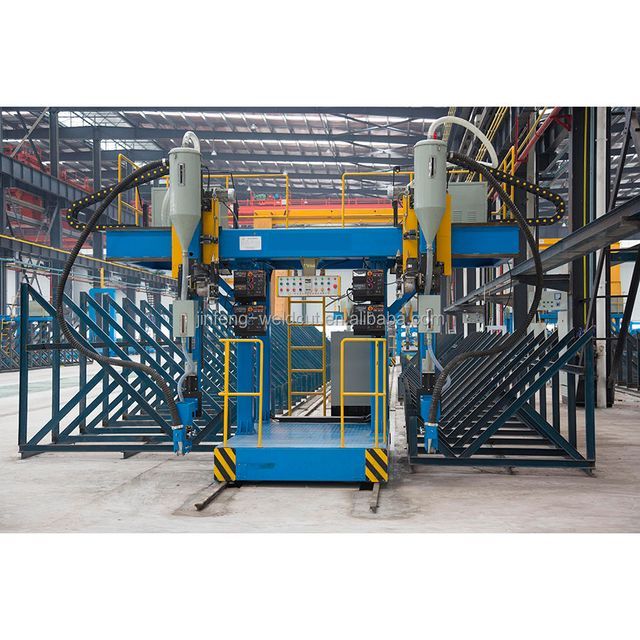

Submerged arc welding machine welding equipment, heavy-duty H-beam I-beam box girder automatic welding machine
- $10000.00 /set
- 1 set
- Ningbo Jinfeng Welding And Cutting Machinery Manufacture Co., Ltd.
- Zhejiang, China
- Ms Tina Liu
| Packaging Details: | Heavy-duty h-beam I-beam box girder automatic submerged arc welding machine welding equipment electric welding machine h-beam welding machine packaging: waterproof membrane and steel tray | Origin: | Zhejiang, China |
| Voltage: | 380V, 415V, 440V, 480V | Automatic welding equipment: | Submerged arc welding machine |
| strength: | 157KW | model: | TMH14 |
| Automatic welding machine: | DC1000 | China Cheap Welding Machines: | MZ1000, MZ1250, China |
| brand: | golden peak | Shipping Details: | 30 days |
| After-sales service provided: | Engineers available to service machinery overseas | Motor type: | AC motor |
| port: | Ningbo/Shanghai | Welded H-beam, I-beam, T-beam size: | Web height 1500mm, 1800mm |
| Welding speed: | 250-750 mm/min | aspect: | 3000x4600x3400mm |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Maximum rapid speed: | 3000mm/min |
| Certification: | ISO9001 certification | H-beam, i-beam, T-beam material: | Q235, Q345, Q355, Q455, St37, St52 |
| Supply capacity: | 40 sets per month | Warranty: | 12 months |
| Welding method: | fillet weld | control: | Frequency |
| Health status: | new | Arc current: | Submerged arc welding machine |
| usage: | h beam,,t bam, i beam welding |
Submerged arc welding machine welding equipment, heavy-duty H-beam I-beam box girder automatic welding machine
Flange width | 200-1000mm | Web height | >200 mm |
H beam length | 4000-20000mm | machine weight | 4.8T |
gauge | 1400 mm | Welding speed: 250-750mm/min (depending on the welding process) | |
high speed | 3000 mm/min | welded | Flat fillet weld |
welding wire | Φ3-Φ5 mm | Flux recovery unit | 100 kg x 1 |
driving mode | dual drive | control method | Frequency conversion stepless speed regulation |
power supply | 380 V/3 PH/50 Hz | machine power | 9 kW not including welder |

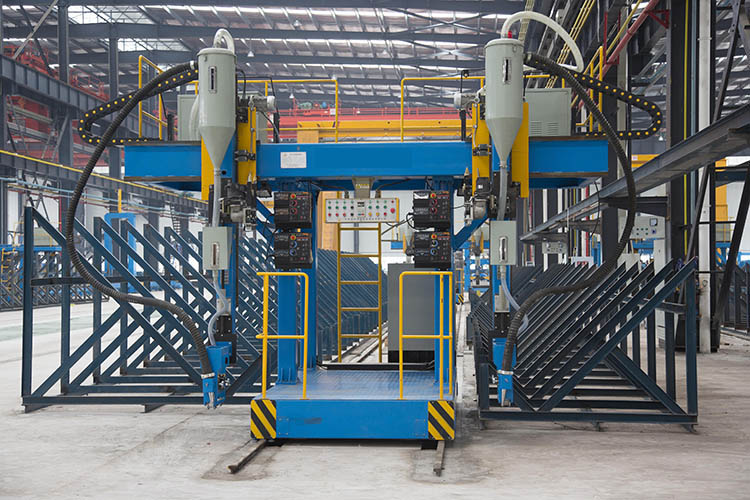

This machine is composed of automatic moving gantry, automatic submerged arc welding machine, solder recovery system, arc striking device and so on. The welding moving speed can be adjusted by frequency conversion speed regulation. Using circuit control can achieve the effect of arc stability; the current adjustment range is large, and the function of automatic pit filling. This machine is suitable for machinery manufacturing, steel structure and other industries. Main features of the product The control part is composed of MZK-3 or NA-3, NA-5 welding machine control box and external control box.

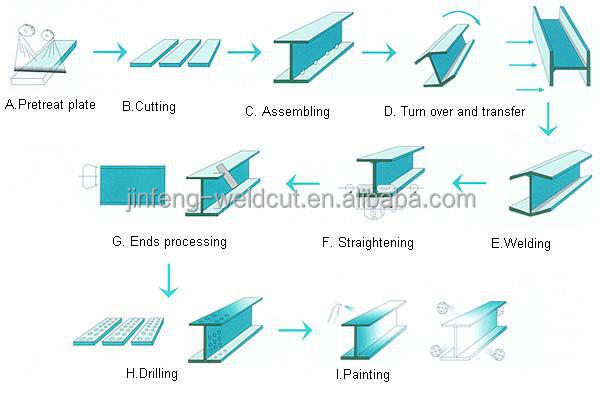

H-beam process for complete production line
