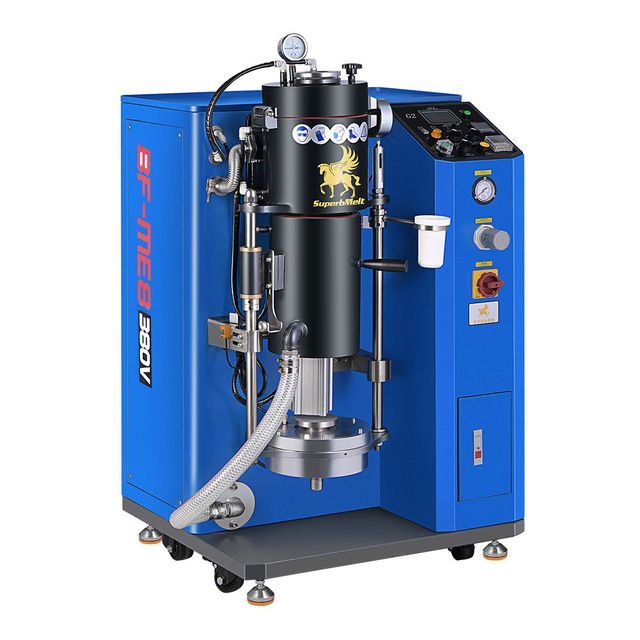

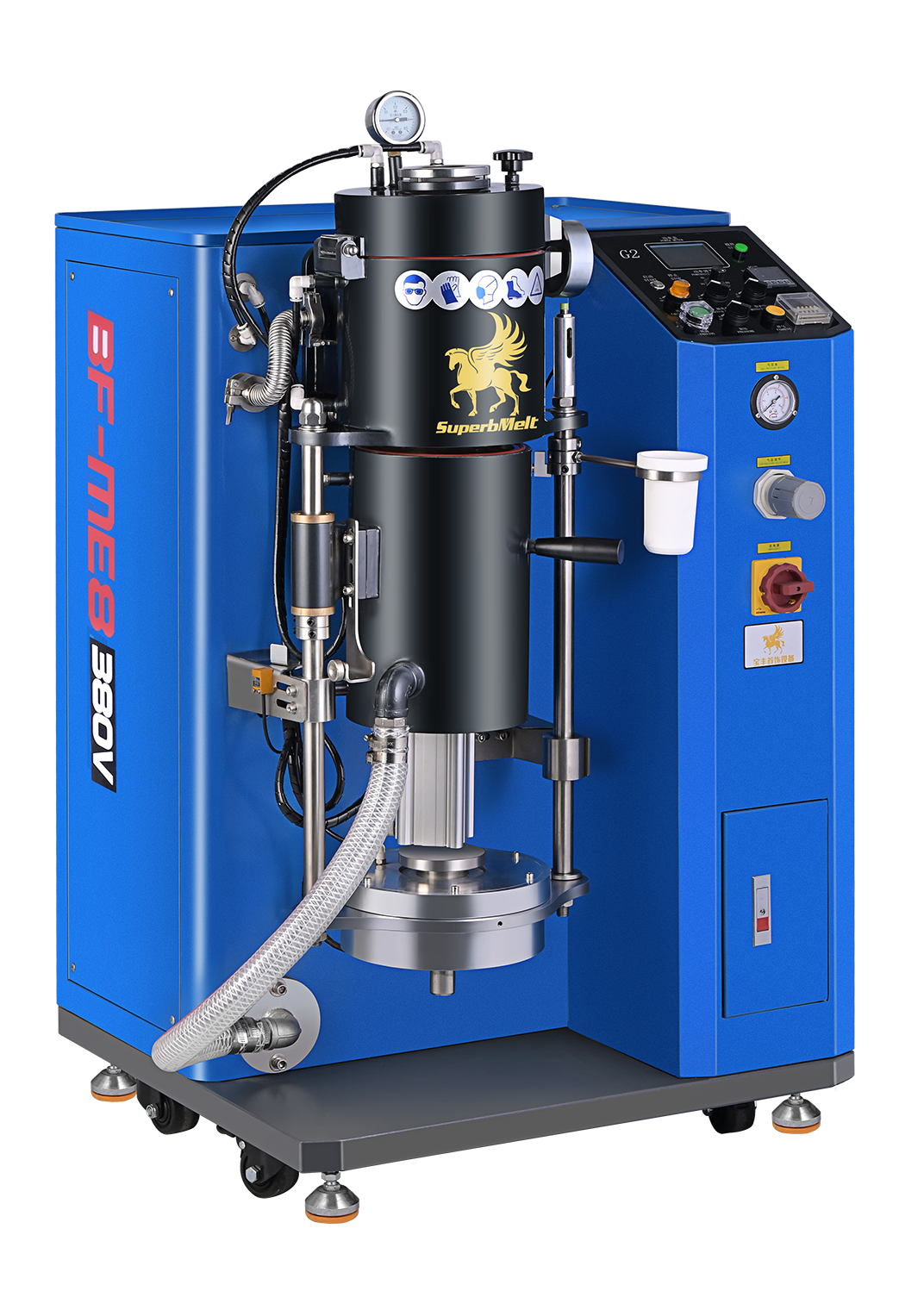

SuperbMelt Gold and Silver Jewelry Casting Vacuum Induction Melting Machine
- $11800.00 /set
- 1 set
- Longgang Superb Electromachinery Co., Ltd.
- Zhejiang, China
- Mr Kelvin Lin
PRODUCT DETAIL
| Package preview: | technical support: | technical support | |
| Supply capacity: | 200 sets per month | Dimensions (L*W*H): | 720x700x1150mm |
| Melting time: | 3-5 minutes | Applicable industries: | jewelry making, metalworking |
| Core component warranty: | 2 years | payment terms: | L/C, T/T |
| Health status: | new | Packaging Details: | Vacuum Die Casting Machine Plywood Box |
| temperature control: | by PID | cool down: | chiller or tap water |
| aspect: | 720x700x1150 mm | greatest pressure: | 2500 hp |
| Metal capacity: | 2-6kg | Maximum temperature: | 1600℃ |
| Weight (kg): | 210 | Marketing Type: | High Quality Jewelry Making Machine |
| Warranty: | 1 year | Video shipment inspection: | if |
| Voltage: | 220V/three-phase 380V | Mechanical test report: | if |
| Showroom location: | India | brand: | super melt |
| port: | Shenzhen | Type of machine: | Jewelry Casting Machine |
| strength: | 8.5kw/15kw/25kw | Applicable metal: | Gold, silver, copper, brass, bronze and their alloys |
| Main selling points: | long lasting | Origin: | Guangdong, China |
| Protective gas: | nitrogen or argon | Core components: | PIDs |
Product Description
model | SPB-DM2 |
energy source | Single-phase 220V/three-phase 380V, 50/60Hz |
strength | 8.5 kW |
casting system | Vacuum Die Casting System |
Applicable metal | Gold, silver, copper, brass, bronze and their alloys |
melting time | 3-5 minutes |
Maximum capacity | 24K Gold: 2.0kg 18K Gold: 1.5kg 925 Silver: 1.0kg |
Maximum Temperature Control Type R | 1600℃ |
maximum. Temperature control k type | 1100°C |
aspect | 720×700×1150mm |
weight | 210 kg |
temperature control | by PID |
put pressure on | maximum. 0.1 MPa |
Protective gas | nitrogen or argon |
vacuum pump | 63 m3/h |
oscillation | Induction heating |
Maximum flask size | D101*H254 mm |
Ultimate vacuum | 10hPa |
temperature accuracy | ±2 degrees Celsius |
Differential pressure casting | yes |
vacuum filter | yes |
Vacuum Leak Detector | yes |
Flask inspection before casting | yes |
Flask and chamber lift | yes |
Fully automatic or semi-automatic design
have a relatively larger space
This product also has a relatively larger space compared to other metal casting machines.
Features

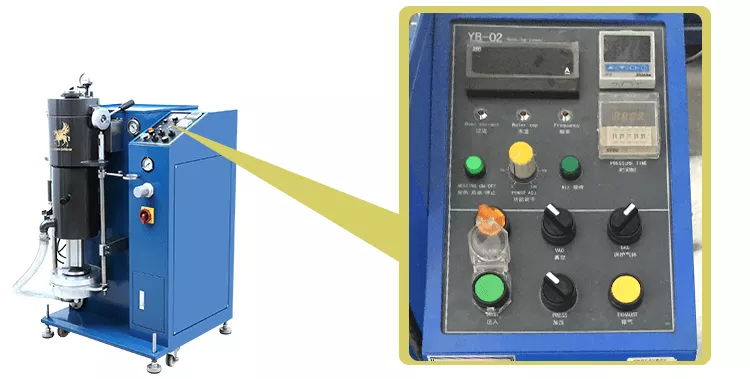

* This product has a built-in proportional-integral-derivative (PID) temperature controller. This will automatically control the entire system temperature once your operating parameters are fully specified.
* The SuperbMelt Jewelry Casting Machine (SPB-DM) is also capable of reaching maximum temperatures
It will soon reach around 1600°C. It also has a temperature tolerance of ±2°C
* The design of this jewelry casting tool also includes a 15Kw induction generator. This generator is capable of melting any precious metal or artwork in 3-5 minutes. thereby increasing your
Overall process efficiency and investment savings due to lost man-hours saved.
* The SuperbMelt Jewelry Casting Machine (SPB-DM) is also capable of reaching maximum temperatures
It will soon reach around 1600°C. It also has a temperature tolerance of ±2°C
* The design of this jewelry casting tool also includes a 15Kw induction generator. This generator is capable of melting any precious metal or artwork in 3-5 minutes. thereby increasing your
Overall process efficiency and investment savings due to lost man-hours saved.
* There are various alarm systems. They signal and automatically stop when the machine comes
A process anomaly of any kind was detected. This feature ensures that your operators and
The machine one.
* Compared with other metal casting machines, this product also has a relatively larger space.
*Using a vacuum pouring machine can guarantee the quality of the final product. Best of all, due to its small and compact design, only relatively little installation space is actually required.
A process anomaly of any kind was detected. This feature ensures that your operators and
The machine one.
* Compared with other metal casting machines, this product also has a relatively larger space.
*Using a vacuum pouring machine can guarantee the quality of the final product. Best of all, due to its small and compact design, only relatively little installation space is actually required.
application

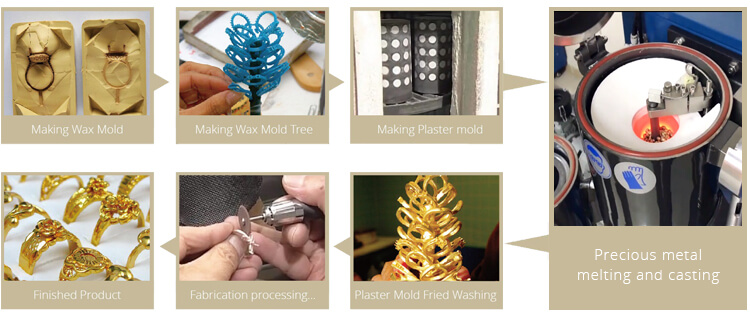

We can provide a one-stop solution for the entire jewelry OEM line!
1. SuperbMelt Jewelry Casting Machine (SPB-DM) can be used to cast any precious metal within the weight range of 1-6kg. valuableMetals such as gold, copper, silver or any other metal artwork can be processed with this product. Vacuum jewelry making machine is the super jewelry casting machine you should choose. It's super fast and energy efficient.

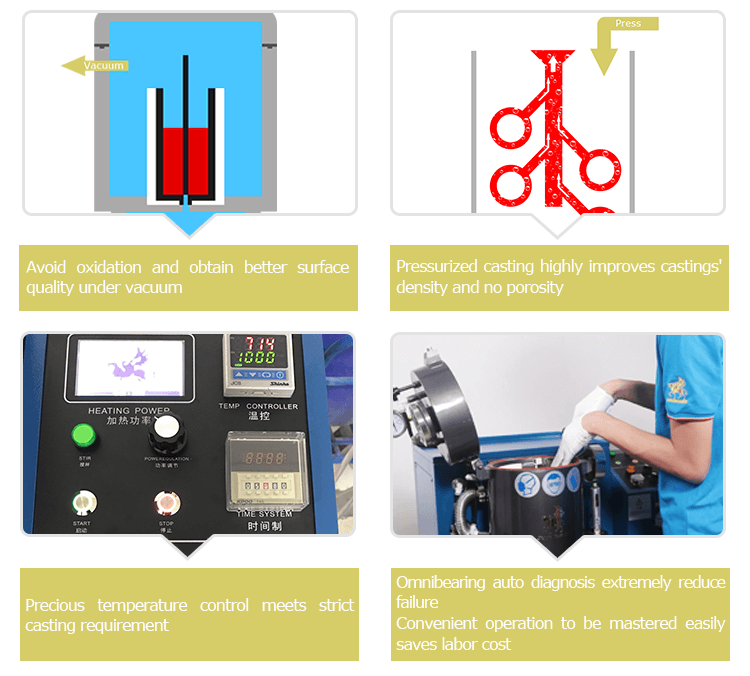

2. The SuperbMelt Jewelry Casting Machine (SPB-DM) ensures that you never have to worry about density, shrinkage or porosity of the final product. The casting machine is equipped with a gas chamber that releases pressurized inert gas. This completely eliminates any form of porosity or shrinkage. The result is an impeccable look and top-notch style for your final work.
Strong induction stirring makes the gold alloy more uniform.
Our advantage
About SuperbMelt
1.Superb is a professional manufacturer and exporter of first-class precious metal melting, casting and forming equipment, which are used in the fields of precious metals, rapid prototyping, jewelry and art sculpture.2. Our mission is to create the most innovative jewelry casting equipment
Manufactured in precious metals for maximum reliability and guaranteed best quality for your daily operations.
3. As a leading precious metal melting and casting solutions provider, providing timely technical support to our manufacturers is an important part of our service. With a strong technical support team of qualified and well-trained (in China) local technicians, we are dedicated to solving any problems you may encounter.
customer photo
Advancing an industry that is struggling with common sense means collaboration, dedication and a workforce built on shared values. Today, we are proud to be a major distributor of melting, casting and forming machinery in more than 30 countries.
exhibition
