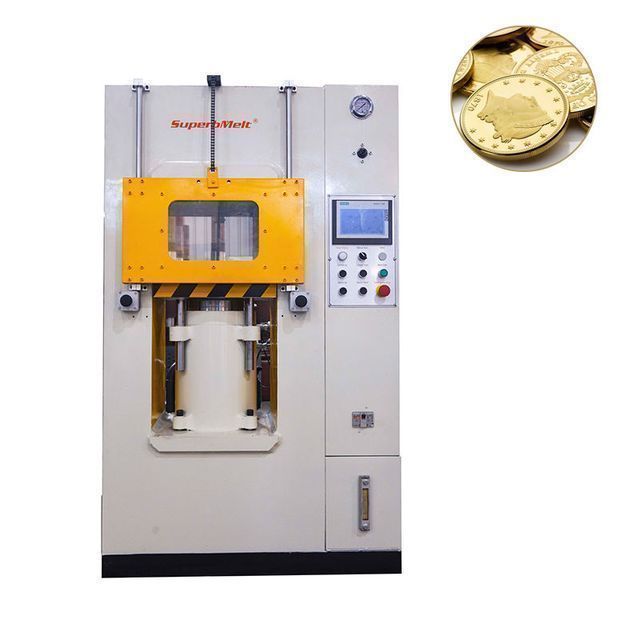

SuperbMelt Souvenir Making LOGO Stamping Coin Minting Machine Hydraulic Machine Coin Slot Machine
- $4700.00 /set
- 1 set
- Longgang Superb Electromachinery Co., Ltd.
- Zhejiang, China
- Mr Kelvin Lin
PRODUCT DETAIL
Mechanical test report: | if | technical support: | technical support |
brand: | super melt | Health status: | new |
Weight (kg): | 1900 | Origin: | Guangdong, China |
Type of machine: | One-stop solution provider | Warranty: | 1 year |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Showroom location: | India |
Core component warranty: | 18 months | Video shipment inspection: | if |
Package preview: | cool down: | chiller or tap water | |
Dimensions (L*W*H): | custom made | Main selling points: | easy to operate |
Applicable industries: | Minting, metalworking | Applicable metal: | Gold, silver, copper, brass, bronze and their alloys |
Melting time: | 3-5 minutes | port: | Shenzhen |
Metal capacity: | 2-6kg | temperature control: | by PID |
Core components: | PLC, motor, water pump | Voltage: | 220V/three-phase 380V, 220V/three-phase 380V |
weight: | 210-250kg | Certification: | ISO9001:2000, EU certification |
Maximum temperature: | 1600℃ | strength: | custom made |
Packaging Details: | Plywood boxes | Supply capacity: | 200 sets per month |
Marketing Type: | New product |

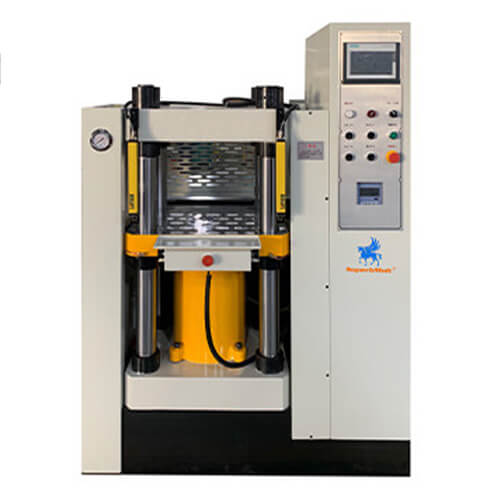

Product Description

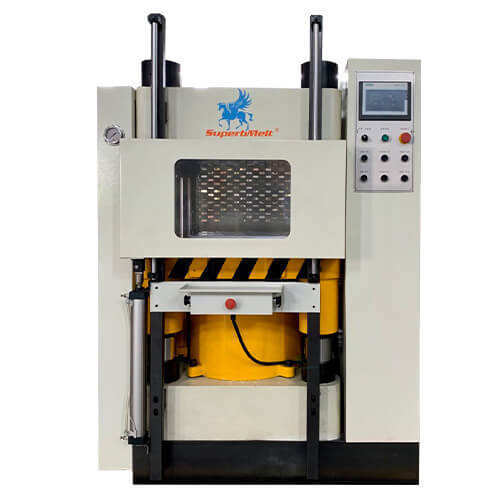

SPB-100TS

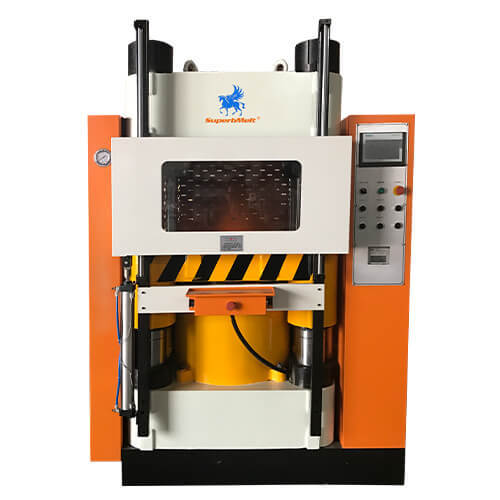

SPB-300TS

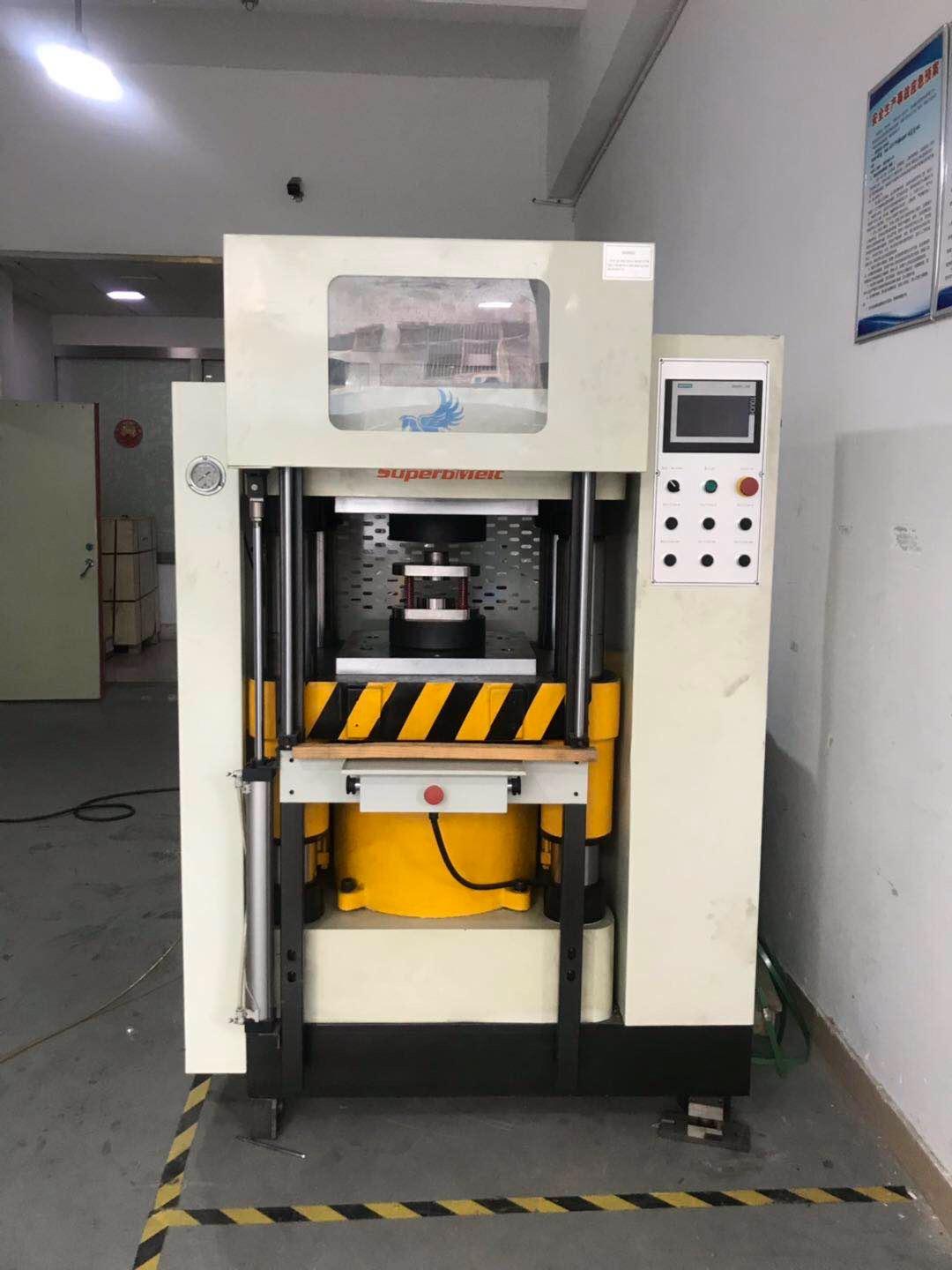

SPB-500TS
thing | unit | SPB-100TS | SPB-300TS | SPB-500TS | ||
Rated Capacity | Ton | 100 | 300 | 500 | ||
maximum. System pressure | MPa | 25 | twenty four | 25 | ||
Mobile workbench travel | mm | 110 | 150 | 150 | ||
Activity table height | mm | 800 | 940 | 850 | ||
open height | mm | 310 | 400 | 450 | ||
Table travel speed | near | mm/s | 160 | 210 | 215 | |
return | mm/s | 145 | 210 | 200 | ||
Mobile table size | Inter-column LR | mm | 430 | 560 | 600 | |
FB rim | mm | 430 | 560 | 560 | ||
Dimensions | revolver | mm | 980 | 1260 | 1480 | |
face book | mm | 1150 | 1340 | 1520 | ||
h | mm | 1930 | 2340 | 2300 | ||
Motor Power | kilowatt | 11 | 16 | twenty three | ||
weight (approximately) | Kilogram | 1500 | 3620 | 6700 |
Simple and safe to use
Parameters and speed can be adjusted on the touch screen, easy to operate.
Ensure safety and easy to know the error, easy to do after-sales service. Due to the automatic alarm and automatic troubleshooting system.
energy saving effect
Although the machine offers high power, it has a compact design. This makes it ideal for small and work spaces with an inexpensive investment. Its compact design may also make it ideal for remote operations and learning
process.
process.
increase productivity
Features
* Servo motor drive system
This product has a servo motor drive system which is perfect for the different speeds and pressures required when pressing gold and silver coins. This feature also ensures smooth machine operation and noise control. Stability is due to the fact that it uses well-known hydraulic components highly optimized for various environments and applications.
* PLC control system
This is an innovative system that gives the machine high reliability because it makes the operation more convenient. This is a feature that traditional hydraulic systems lack and therefore makes this machine worth the investment.
*Simple functionality
The product, while taking care of complex duties, does not depend on highly complex functions to get the job done. Hydraulic coin presses come from experienced manufacturers who understand the importance of user experience, so they keep the functionality as simple and straightforward as possible.
This product has a servo motor drive system which is perfect for the different speeds and pressures required when pressing gold and silver coins. This feature also ensures smooth machine operation and noise control. Stability is due to the fact that it uses well-known hydraulic components highly optimized for various environments and applications.
* PLC control system
This is an innovative system that gives the machine high reliability because it makes the operation more convenient. This is a feature that traditional hydraulic systems lack and therefore makes this machine worth the investment.
*Simple functionality
The product, while taking care of complex duties, does not depend on highly complex functions to get the job done. Hydraulic coin presses come from experienced manufacturers who understand the importance of user experience, so they keep the functionality as simple and straightforward as possible.
* Compact design
Although the machine offers high power, it has a compact design. This makes it ideal for small and work spaces with an inexpensive investment. Its compact design may also make it ideal for remote operations and learning processes. For example, SuperbMelt leverages its compactness to perform various types of production requiring both low and high speed applications.
Although the machine offers high power, it has a compact design. This makes it ideal for small and work spaces with an inexpensive investment. Its compact design may also make it ideal for remote operations and learning processes. For example, SuperbMelt leverages its compactness to perform various types of production requiring both low and high speed applications.
application
1. This hydraulic coin press with a steel body, hydraulically operated, is specially designed for minting gold and silver coins, as well as medals and gold bars. It uses enough force to crush 150 tons of metal. It's best described as an upstroke stamping machine, offering RAM travel speeds and having an extra hydraulic cylinder for the return stroke. This means that by choosing this product, you will save energy and thus reduce your electricity bill.
2. The machine allows you to cast gold and silver metals and bars at a reasonable speed to meet market demands. It is equipped with hydraulic power pack including plunger pump, safety valve, electric control panel panel operated directional control valve and standard hydraulic accessories. For the most suitable features to meet your expectations, consider purchasing this product from a reputable manufacturer such as SuperbMelt.

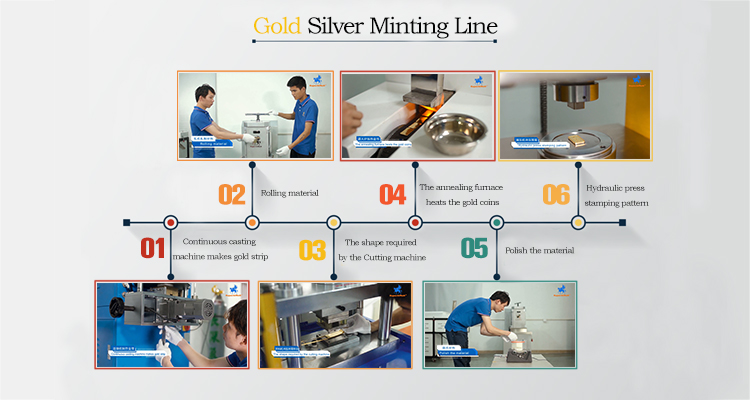

Provide mature gold and silver casting lines
We will focus more on how to make gold and silver coins with the help of a press.
SuperbMelt has always been at the forefront when it comes to creating coins using the best technology. The machine is powerful enough to operate without special skills. Before you invest in this machine, it is vital to consider speaking with one of our dealers so we can help you understand the core features of the machine and how you can benefit from it. Even if you need to know something every now and then, it doesn't take a lot of time to get it done.
SuperbMelt has always been at the forefront when it comes to creating coins using the best technology. The machine is powerful enough to operate without special skills. Before you invest in this machine, it is vital to consider speaking with one of our dealers so we can help you understand the core features of the machine and how you can benefit from it. Even if you need to know something every now and then, it doesn't take a lot of time to get it done.
Our advantage
About SuperbMelt
1.Superb is a professional manufacturer and exporter of first-class precious metal melting, casting and forming equipment, which are used in the fields of precious metals, rapid prototyping, jewelry and art sculpture.2. Our mission is to create the most innovative jewelry casting equipment
Manufactured in precious metals for maximum reliability and guaranteed best quality for your daily operations.
3. As a leading precious metal melting and casting solutions provider, providing timely technical support to our manufacturers is an important part of our service. With a strong technical support team of qualified and well-trained (in China) local technicians, we are dedicated to solving any problems you may encounter.

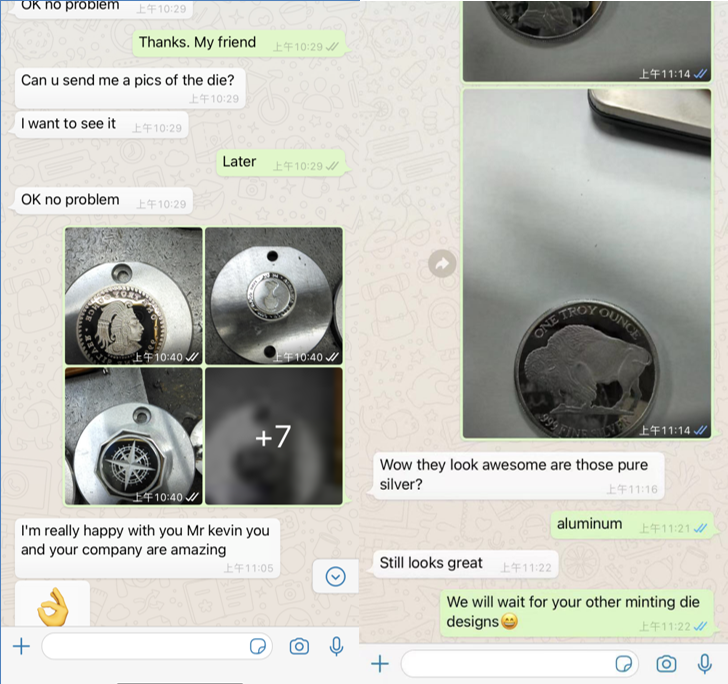

customer photo
Advancing an industry that is struggling with common sense means collaboration, dedication and a workforce built on shared values. Today, we are proud to be a major distributor of melting, casting and forming machinery in more than 30 countries.
