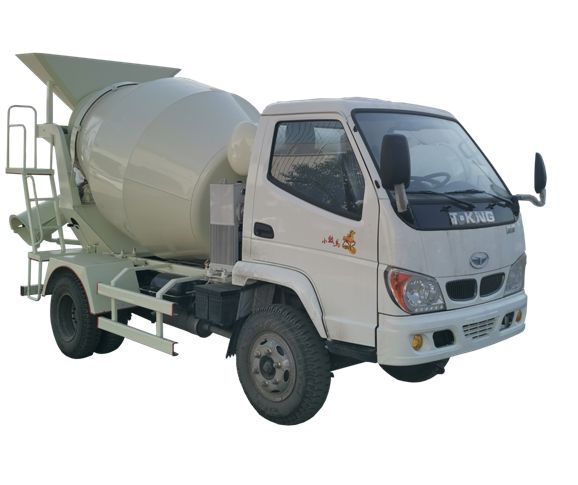

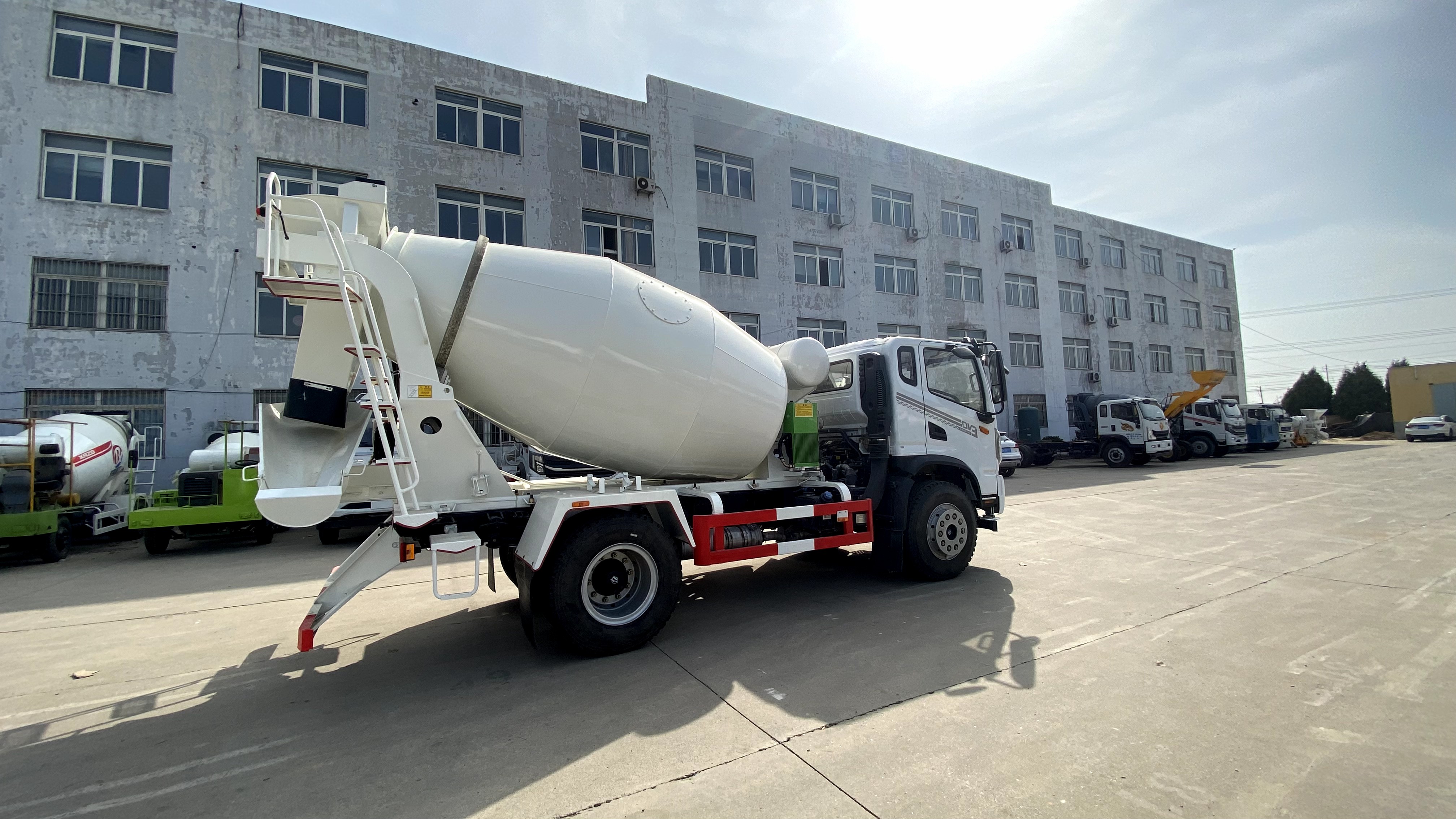

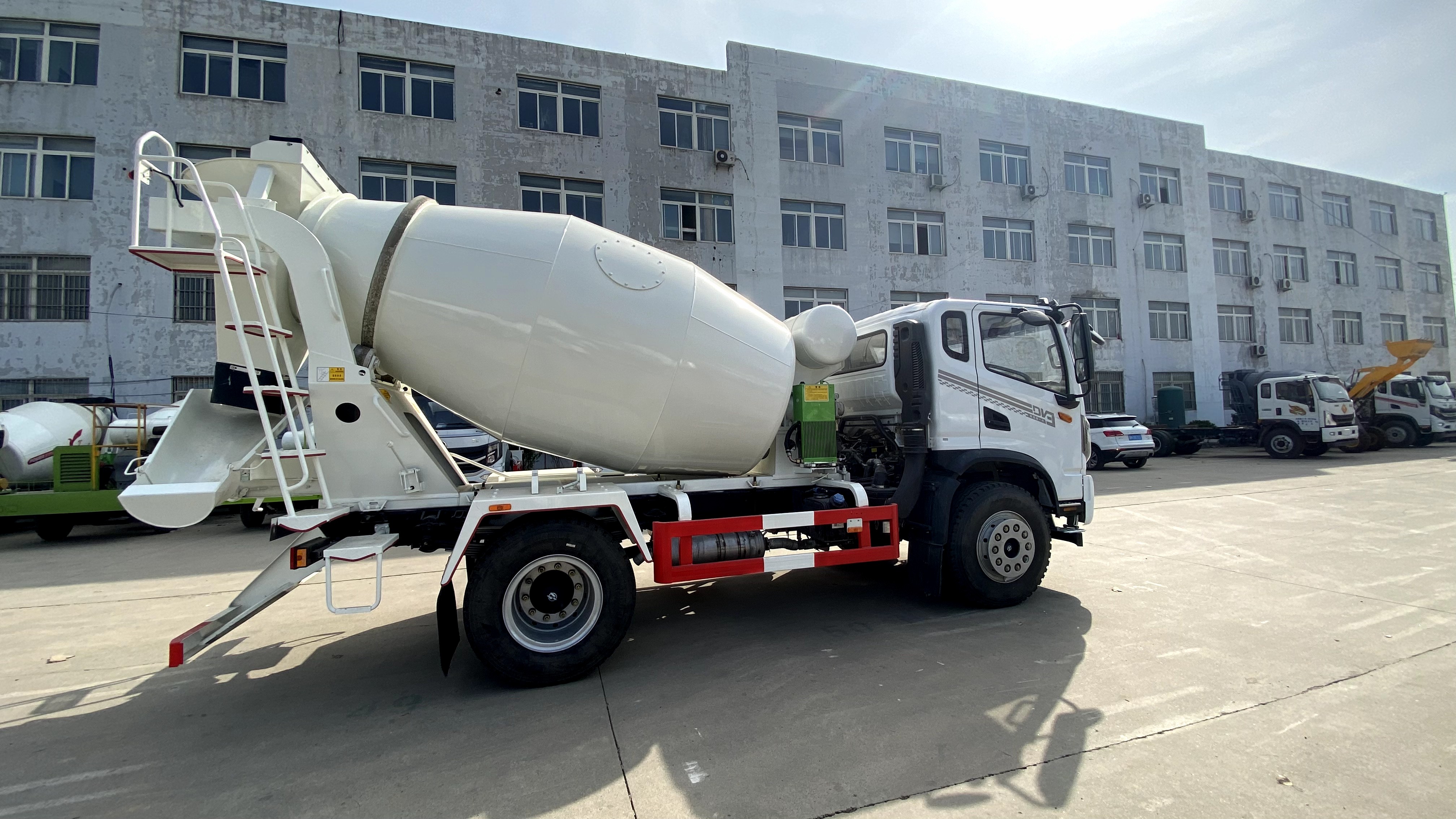

T-king Mini 2.6cbm self-loading concrete truck for sale

PRODUCT DETAIL

port:	Qingdao	Packaging Details:	wooden box
Chassis brand:	T-King	Packaging Preview:
capacity:	2.6CBM	Applicable industries:	construction project
Dimensions (LWH):	550020502700mm	Name:	2.6m3 concrete mixer truck
Unique Selling Points:	High operating efficiency	engine:	Yunnei 4100
application:	building building	Warranty:	1 year
product name:	Concrete mixer truck	color:	customer request
type:	Concrete Truck Drum Mixer	Key words:	cement mixer
Video external inspection:	if	Type of driving:	4x2
payment terms:	Western Union, T/T, MoneyGram	Core Components Warranty:	1 year
Supply capacity:	100 sets per month	weight:	10500kg
brand:	Yuanxing	Health status:	new
strength:	52kW	Core components:	Engines, motors, pumps
place of origin; place of origin:	Shandong China	Marketing Type:	New Products 2020
Showroom location:	not any	Mechanical test report:	if

Product Description

scope

application	T-king Mini 2.6cbm concrete mixer truck	Model	YX-TK26
Card	T-King	Fuel tank capacity	2.6m³
engine	Yunnei 4100	gasoline	diesel engine
strength	52kW	taxi	single
drive form	4X2	steering type	steering wheel
axis	2	steering assist	Hydraulic boost
wheelbase	2650	clutch assist	air assist
brake	air brake	Number of leaf springs	First 9, last 9+5
Parking brake	air brake	Fuel tank capacity	70L
gearbox	WLY10H35	Battery	2-12V-60AH
shift method	manual	Tank and Blade Materials	Q345B-4mm
gear	5 forward 1 backward high and low speed	head	Q345B-6mm
Maximum speed	60 km/h	Hydraulic system	open hydraulic system
rear axle specification	1066	reducer	Branch Wing
Tire specifications	7.50-16LT	hydraulic valve	15 orders
Number of tires	6	Feed rate	≥3m³/min
level ability	25°	export speed	≥1m³/min
Exit height	1200mm	Discharge residual rate	≤0.5%
Fuel tank capacity	4.2m³	Unloading range	180° rotating discharge
Rated stirring volume	2.6m³	In and out operations	Post operation
Minimum turning radius	4.5m	Tank speed	12 turns
Curb weight	3820kg	Fuel tank capacity	180L
total mass	10500kg	hydraulic radiator	18L temperature control self-control aluminum heat exchanger
vehicle size	550020502700(mm)	Rated hydraulic pressure	20MPa
optional	Air conditioning, adding feeding hopper, supporting dry material mixing, installing anti-funnel, feeding and discharging operation, construction machinery license and insurance, etc.

Product workshop

Packaging and Shipping

Packing: wooden case

Shipping: Qingdao Port
