1m3 2m3 2.5m3 3m3 4m3 5m3 6m3 concrete mixer truck price Howo concrete mixer truck
- $11998.00 / 1 - 9 sets
$6998.00 / 10 - 19 sets
$2199.00 / >=20 sets - 1 set
- Zhengzhou Hengyou Machinery Manufacturing Co.,Ltd.
- Henan, China
- Ms You Heng
PRODUCT DETAIL
| application: | construction industry | Marketing Type: | New Products 2022 |
| Name: | concrete mixer truck size | capacity: | 2-25m3 |
| Applicable industries: | Manufacturing, Farms, Construction, Energy & Mining, Others | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Unique Selling Points: | High operating efficiency | Chassis brand: | Howo Heavy Truck |
| Supply capacity: | 500 sets per month | Key words: | Loading Concrete Mxier Truck |
| Video external inspection: | if | Dimensions (L*W*H): | 4690*2050*2320 |
| Type of driving: | 6x4 | brand: | Hengyou |
| strength: | BMT50-250 | Core components: | Gearboxes, motors, pressure vessels, pumps |
| weight: | 2280 kg | Showroom location: | Canada, UK, US, Italy, France, Germany, Australia |
| type: | 4 cylinders | Health status: | new |
| Card: | Sinotruk Howo | place of origin; place of origin: | China |
| port: | Qingdao, Tianjin | Warranty: | 1 year |
| Core parts warranty: | 1 year | Packaging Details: | 1m3 2m3 2.5m3 3m3 4m3 5m3 6m3 concrete truck mixer price Howo concrete truck mixer bare package is suitable for small concrete mixer truck FCL, packed in plywood box, LCL container. |
| feature: | easy to use | Mechanical test report: | if |
| product name: | 4 cubic meters concrete mixer truck |
Product Description
feature:
Stirring volume: 2-10m3/batch Stirring mechanism: Free mechanism, stirring according to the rotating motion of the mixing drum, low fluidity. Machines are usually fixed in place or pulled in close proximity. Specifically designed for mixing slurries, mortars and flexible concrete. Combined with trucks, transporting concrete over long distances Feeding: Using an excavator Unloading: Discharging the concrete mix by reversing the mixing tank
type | 2m³ | 3m³ | 4m³ | 5m³ | 6m³ | 7m³ | 8m³ | 9m³ | 10m³ |
geometric volume | 3.6m³ | 5.2m³ | 6.1m³ | 8.5m³ | 9.6m³ | 10.2m³ | 11.8m³ | 13.2m³ | 15m³ |
Drum diameter | 1.6M | 1.8M | 1.8M | 2.05M | 2.05M | 2.15M | 2.2M | 2.3M | 2.3M |
inclination | 13° | 15° | 15° | 14° | 14° | 16° | 16° | 14° | 14° |
total measurement | 3750*1600*1810 | 4220*1800*2160 | 4610*1800*2215 | 4690*2050*2320 | 5100*2050*2432 | 5180*2150*2510 | 5374*2200*2573 | 5640*2300*2687 | 6120*2300*2742 |
Mounting base size | 760*2750 | 800*3300 | 800*3600 | 800*3900 | 800*4200 | 800*4200 | 860*4530 | 860*4900 | 860*5300 |
spinning speed | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-14r/min | 0-14r/min |
hydraulic oil cooler | 16L | 16L | 16L | 16L | 18L | 18L | 18L | 20L | 20L |
gross weight | 1200KG | 1400KG | 1500KG | 2280KG | 2330KG | 2450KG | 2670KG | 2980KG | 3210KG |

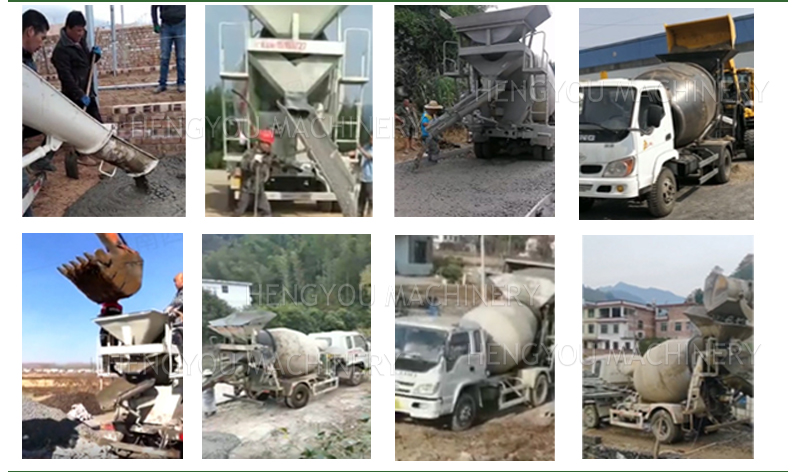

Construction Site

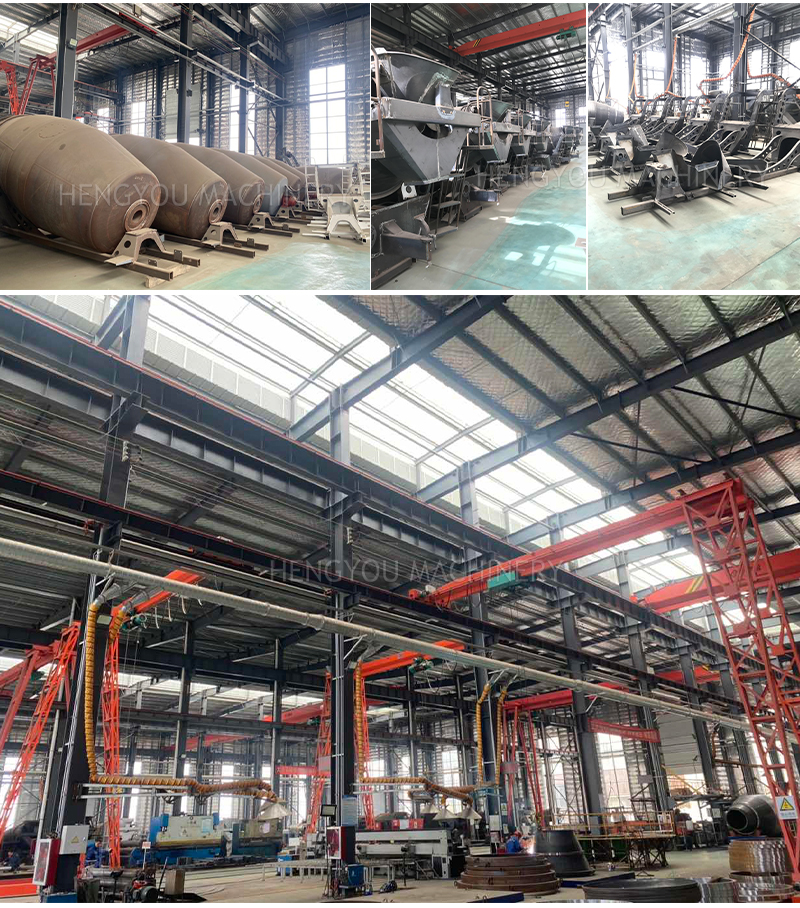

workshop
customer feedback
VIEW MORE
