TCP/IP network channel gate access controller Wiegand 26 34 turn door access control system access controller panel

PRODUCT DETAIL
feature:reliableCertificate:CE certification
payment terms:L/C, Western Union, D/P, D/A, T/T, Money Gram, Credit Cardmodel:AX-S001
usage:security checkworking environment:Temperature: -10℃~+70℃
Material:304 stainless steelbrand:Anxia
Origin:Guangdong, ChinaSuitable:Three roller gate
Warranty:1 yearproduct name:TCP/IP network access controller
application:Three roller gateSupply capacity:5000 pieces per month
color:BlackPackaging Details:Packed in a carton for shipping.
port:Shenzhen Port

TCP/IP network channel gate access controller Wiegand 26 34 turn door access control system access controller panel

Product Description

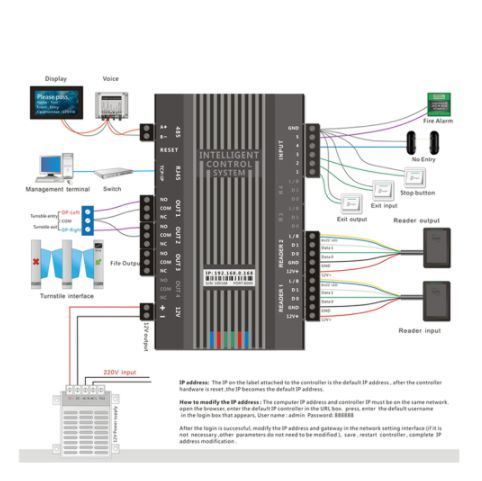

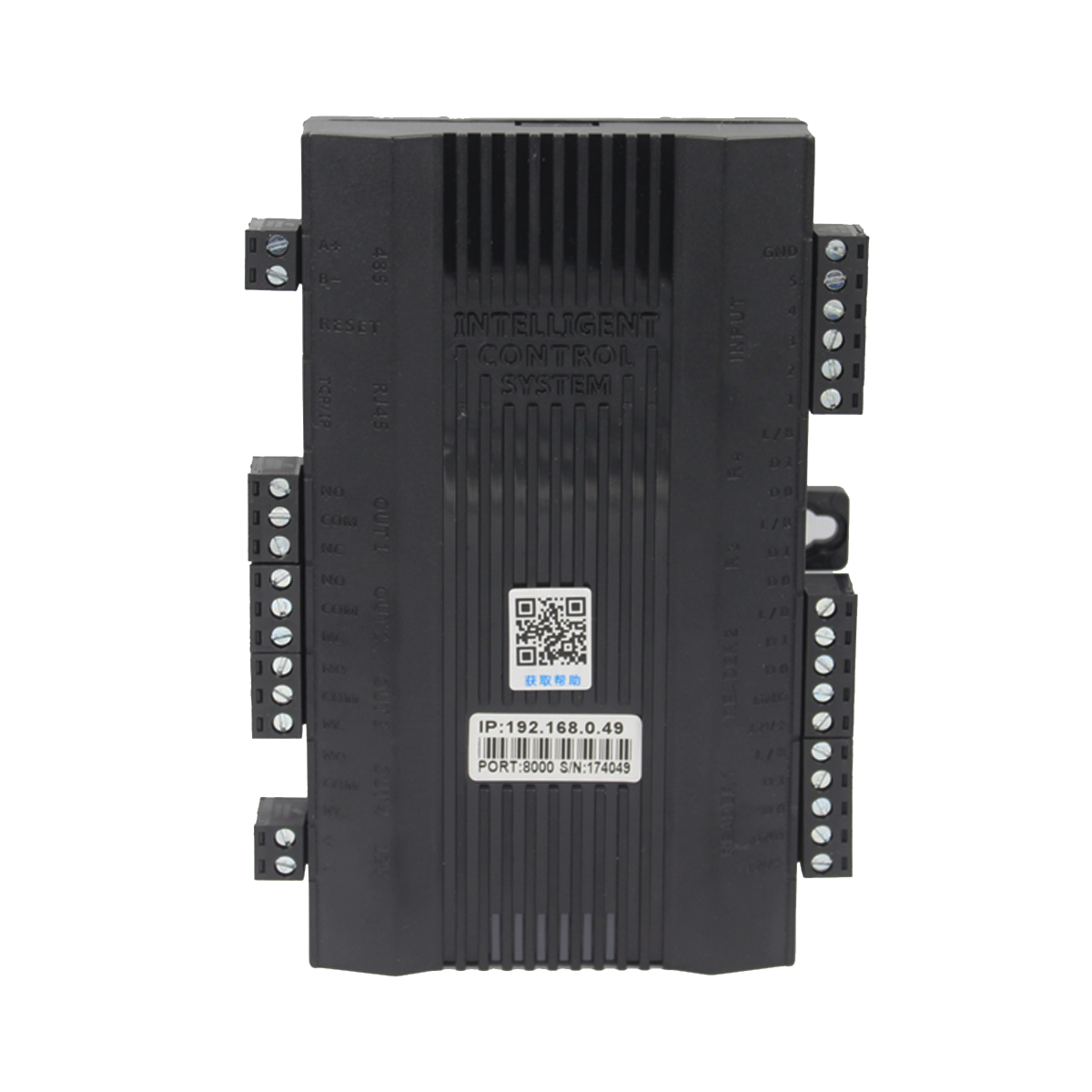

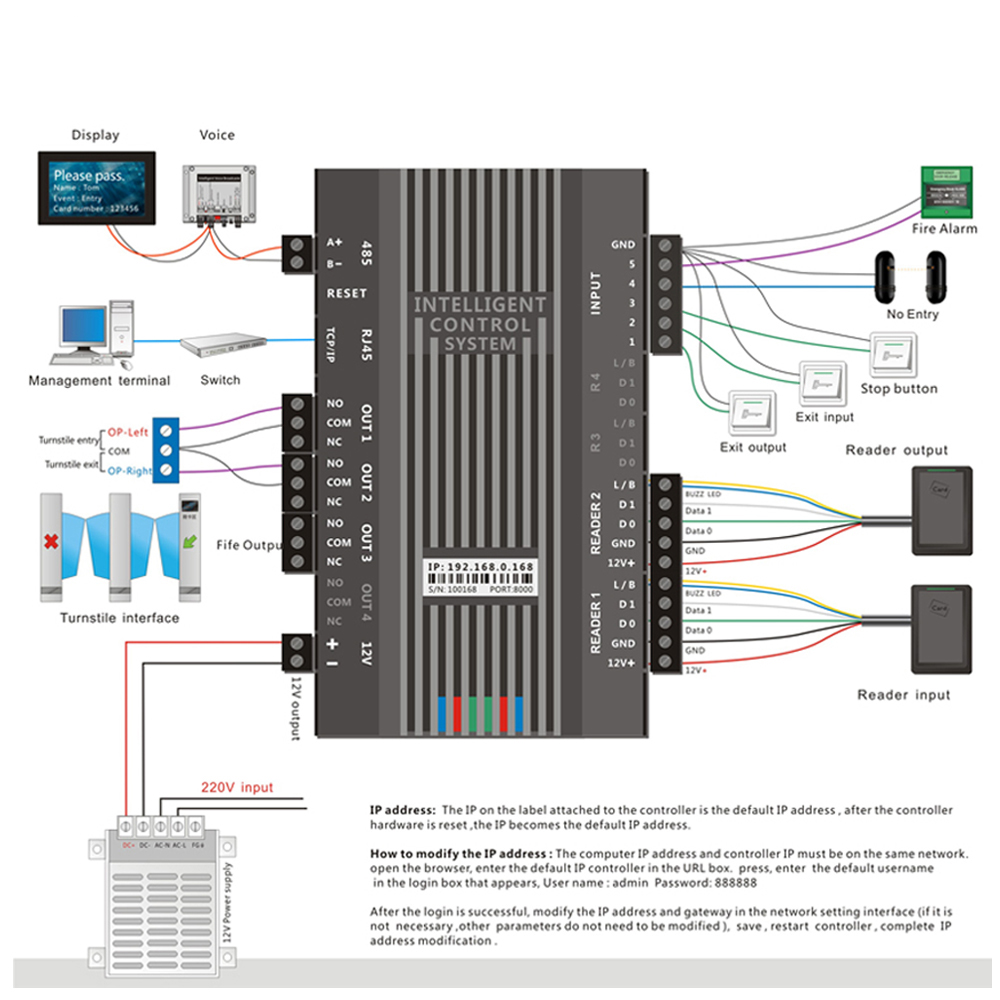

Product Image:



RFID access control software features:

reader 4 WG readers and 4 RS 485 readers
Alarm Output 1 (1-65535 seconds)
Alarm input 1
fire alarm output 1
fire input 1
release button 4
Magnetic door 4
lock output 4

scope:

Card capacity 54000
logging 60000
Alarm capacity 10000

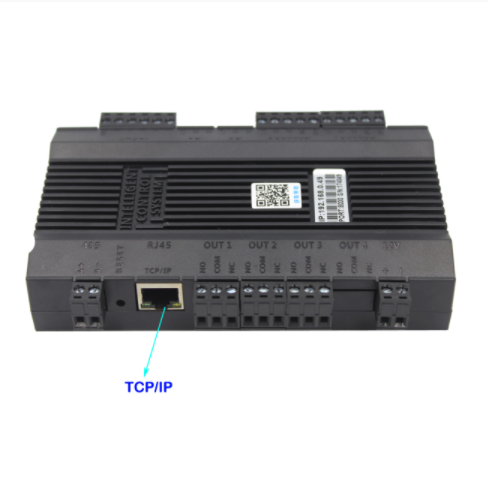

communicate TCP/IP
way of opening the door card

password

card + password

dual card

fist card

software

fire alarm

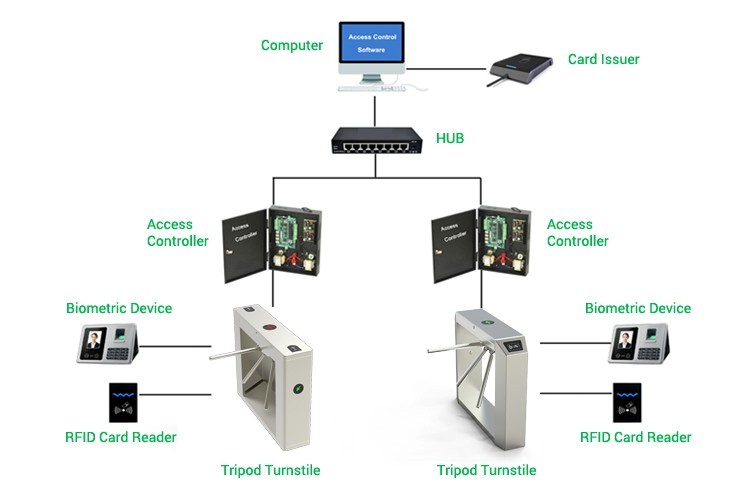

Both RS485 and TCP/IP access controllers are supported. All access controllers are managed by the same software.
At the same time, it supports access control, elevator access control, and locker access control management.
Support 3 languages, customers can add their own languages ​​according to their wishes.
Simple operation, click, double-click, right-click to complete the operation.
Various alarms, card swiping and other real-time monitoring.
Support color indication, use different colors to represent different records.
Support full screen display.
Access, supports both Access and SQL server. The default is access.
Three types of operation authorization: set door user, set user door, set authority group.
Support automatic scheduling (only support SQL)
Support daily records, users can view operation management history records, which is convenient for management and system maintenance.

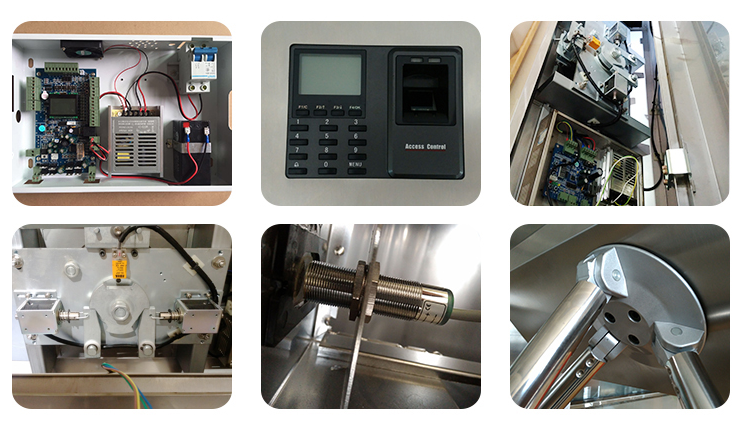

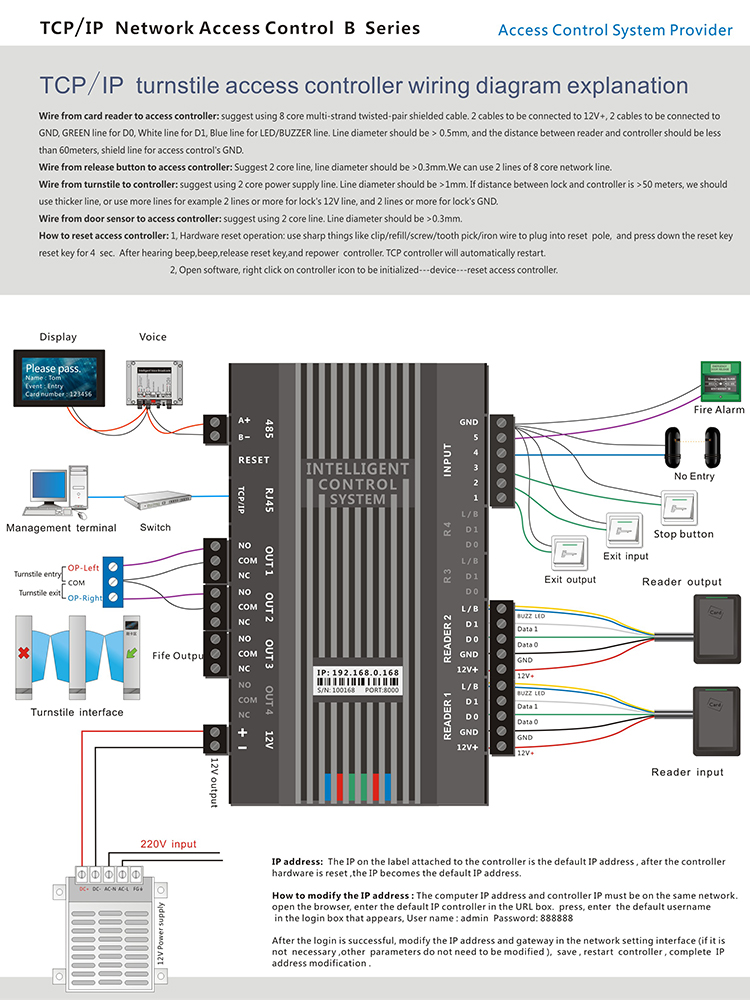

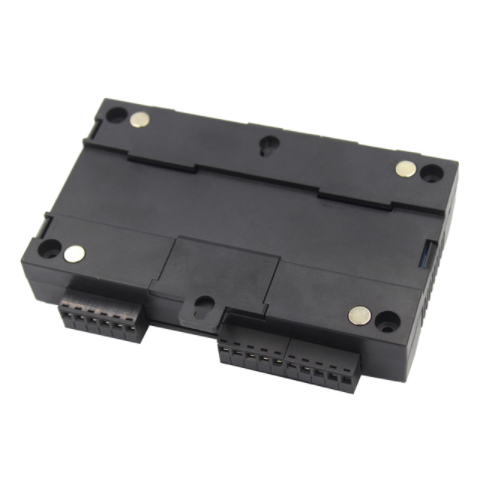

Product Details:
