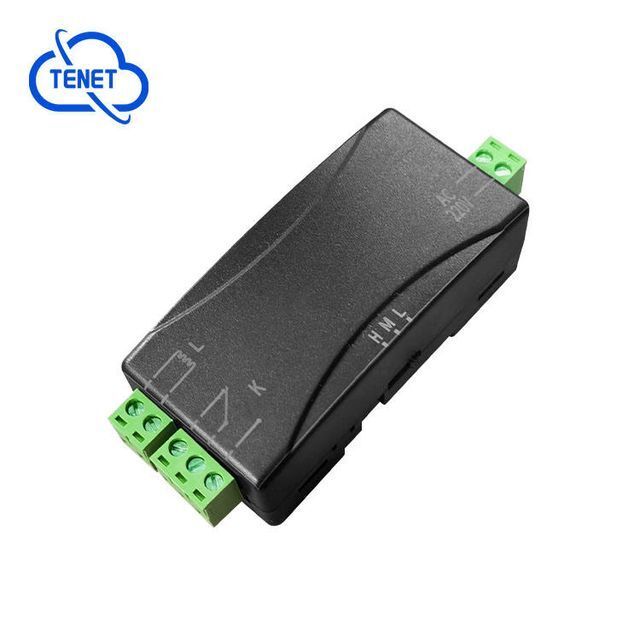

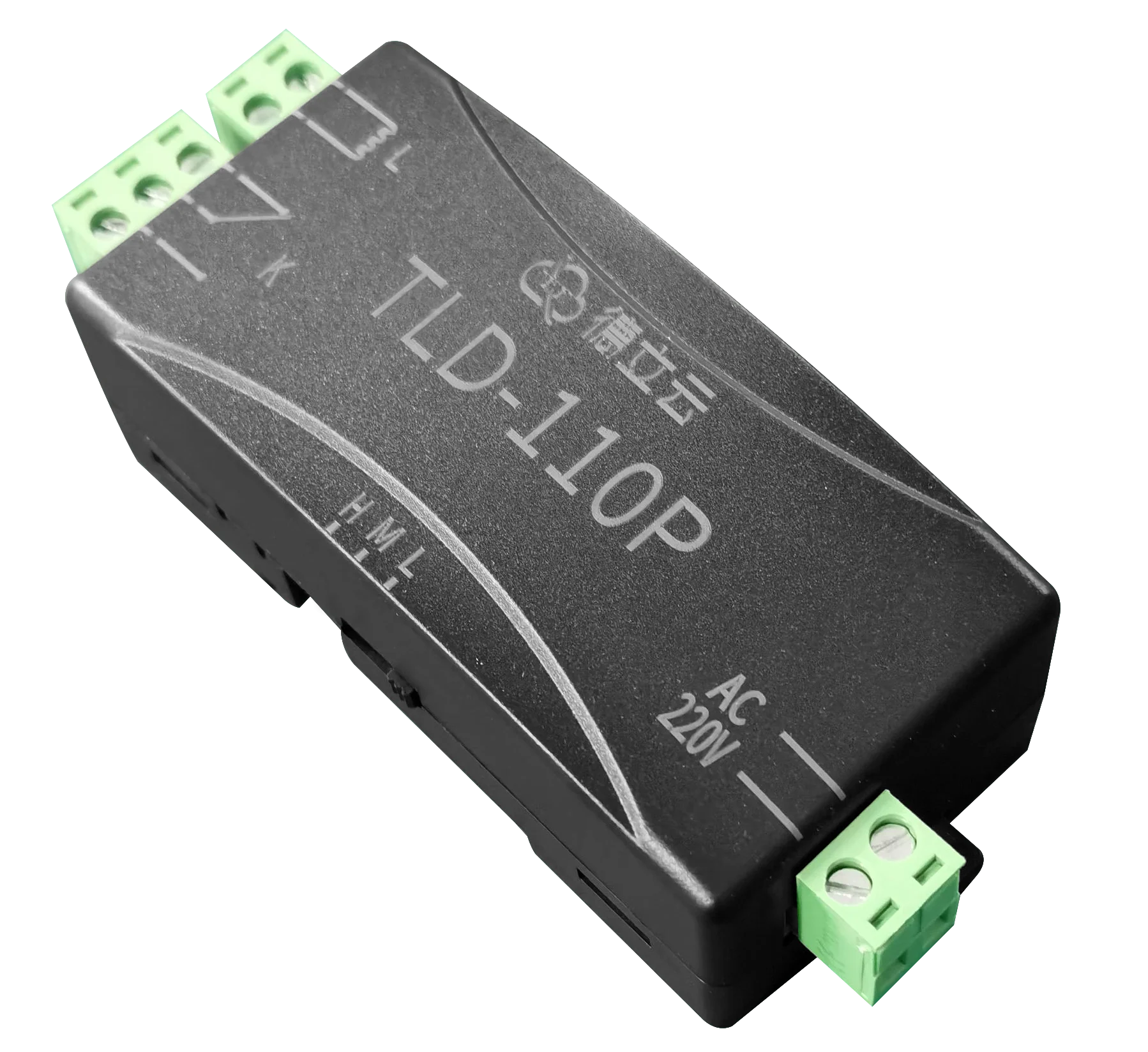

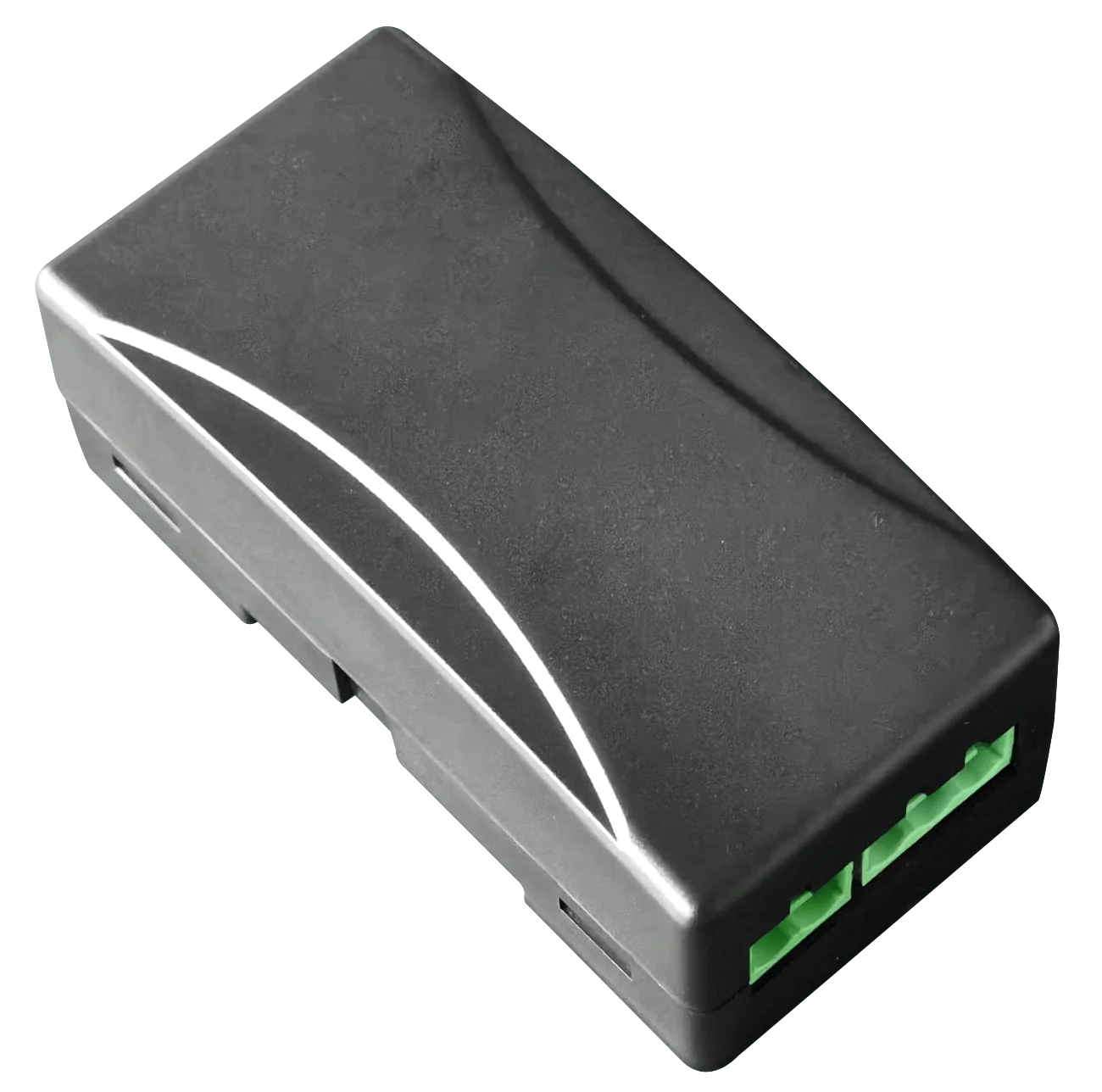

Tenet entrance access system inductive single channel loop detector vehicle coil
- $6.00 / >=2 pieces
- 2 pieces
- Shenzhen Tenet loT Technology Co., Ltd.
- Guangdong, China
- Ms Parking Deliyun
PRODUCT DETAIL
| Model: | 110P; | Brand Name: | Tenet; |
| Coil connection line: | Up to 20 meters, at least 20 twists per meter; | Output relay: | 240V/5 A; |
| Payment Terms: | Western Union,T/T,MoneyGram; | Operating temperature: | -25℃ to +65℃; |
| Product name: | New loop detector; | Model Number: | TLD-110P; |
| Packaging Detail: | Tenet fast car boom gate arm barrier manufacturers; | Reaction time: | 100 milliseconds; |
| Resolution: | 1280 X 720; | Sensitivity: | Three levels adjustable; |
| Place of Origin: | Guangdong, China; | storage temperature: | -40℃ to +80℃; |
| Operating Voltage: | AC 100-260 V; |
Product Description
Tenet entrance access system inductive single channel loop detector vehicle coil
The loop detector is an important part of the parking lot management system. When the vehicle passes through the ground sense, the system analyzes the oscillations generated by the detection circuit to realize the collection of road dynamic traffic data, and the collected data can reflect the vehicle’s performance in real time. Passed and existed.
1.Wide voltage range, suitable for low temperature environment
The traditional loop detector adopts constant voltage of 220 V, which is often too low in cold winter, resulting in too low voltage and can not be used. The loop detector 110p is suitable for wide voltage range of 110 v-220 V, and can easily cope with various environments
2.Technical innovation, high cost performance
Advanced technology innovation, suitable for different voltage, no transformer, reduce hardware costs, cost-effective
Single relay has simple wiring, convenient installation, stable and reliable work.
Specification
item | value |
Model Number | TLD-110P |
Warranty | 1 Year |
Special Features | single channel loop detector |
Operating Voltage | AC 100-260 V |
Output relay | 240V/5 A |
Operating temperature | -25℃ to +65℃ |
storage temperature | -40℃ to +80℃ |
Sensitivity | Three levels adjustable |
Reaction time | 100 milliseconds |
Coil connection line | Up to 20 meters, at least 20 twists per meter |
Application | entrance access system |
