TH50 Portable Welding Drilling Machine / Electric Welding Drilling Machine for Excavators
- $1400.00 / 1 - 2 sets
$1300.00 / >=3 sets - 1 set
- Shanghai Bomar Industrial Co., Ltd.
- Shanghai, China
- Mr Ling Bo
| Showroom location: | Egypt, India, Thailand | brand: | oasis |
| weight: | 100 | Applicable excavator (ton): | 60-470 tons |
| Mechanical test report: | if | Applicable industries: | mechanical repair shop |
| model: | THB 50 | place of origin; place of origin: | China Shanghai |
| Supply capacity: | 500 sets per month | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Video shipment inspection: | if | Warranty: | 1 year |
| Packaging Details: | One on plywood and the rest as drill pipe also pack the plywood | Marketing Type: | New Products 2021 |
| After warranty service: | Video Technical Support | Core components: | Bearings, motors |
| Package preview: | port: | Shanghai |

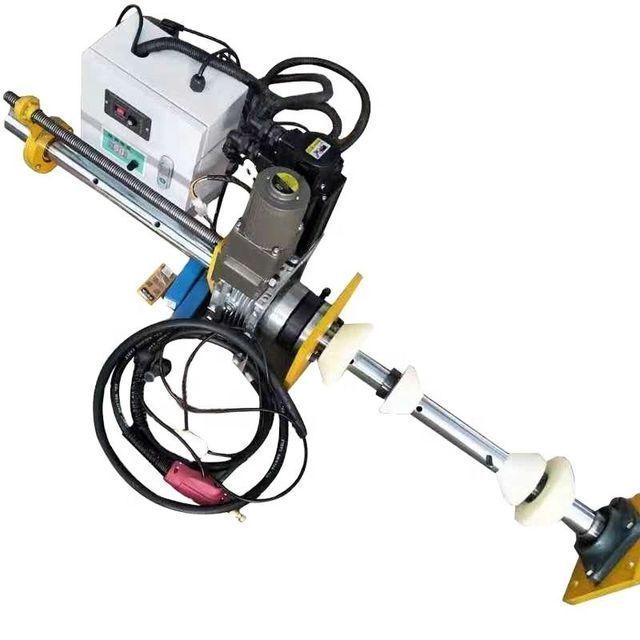

TH50 Portable Welding Drilling Machine / Electric Welding Drilling Machine for Excavators
Boring and welding machine
This machine integrates boring and welding, and is specially used for excavator maintenance
Comes standard with two boring bars
Our machines are dedicated to servicing excavators
You can view the viedo to understand our capabilities
|
Model |
THB 50 |
|
Spindle motor power |
2.3 kW |
|
input tool motor |
1.5kW |
|
electrical |
220 volts |
|
Spindle speed |
0-250/m |
|
Forged size |
45mm |
|
Work area |
Diameter from 55-220mm |
|
Feed stroke |
450mm |
|
Maximum cutting capacity per side |
3mm |
|
Processing roundness |
0.02mm |
|
roughness |
3.2 |
|
installation method |
by welding |
|
Weld hole range |
50-260mm |
|
Welding thickness per side |
2-5mm |
|
Wire type |
1.0 |

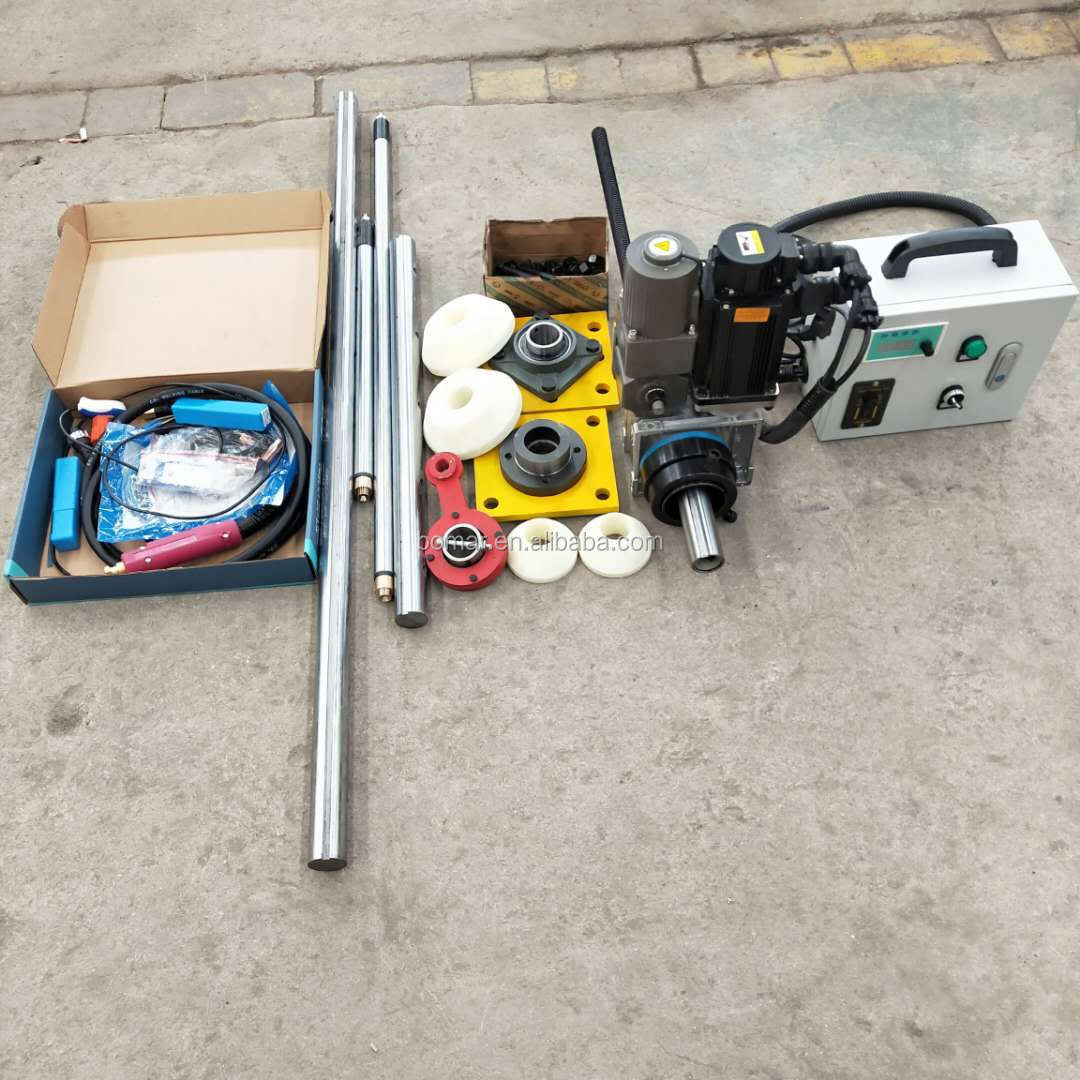

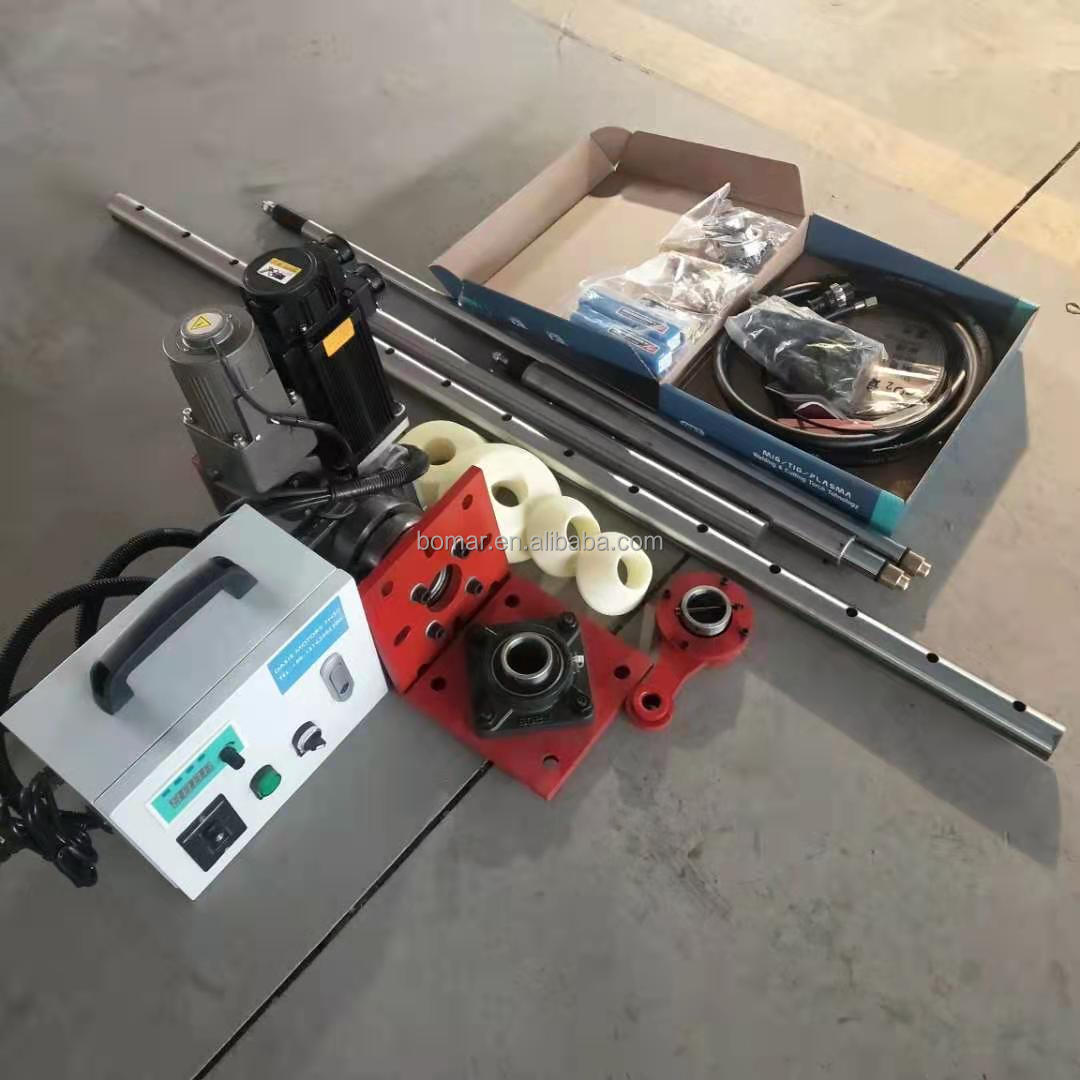

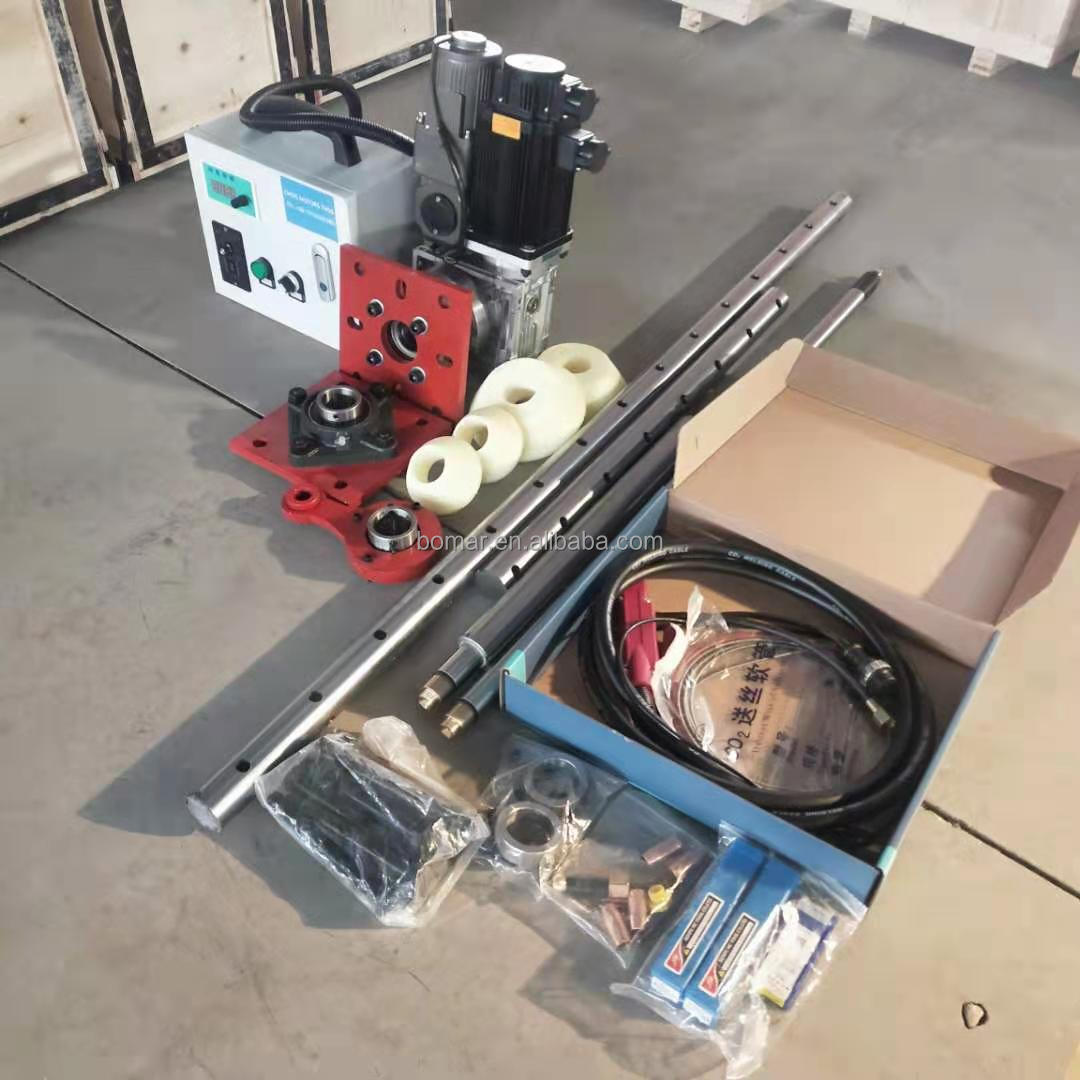

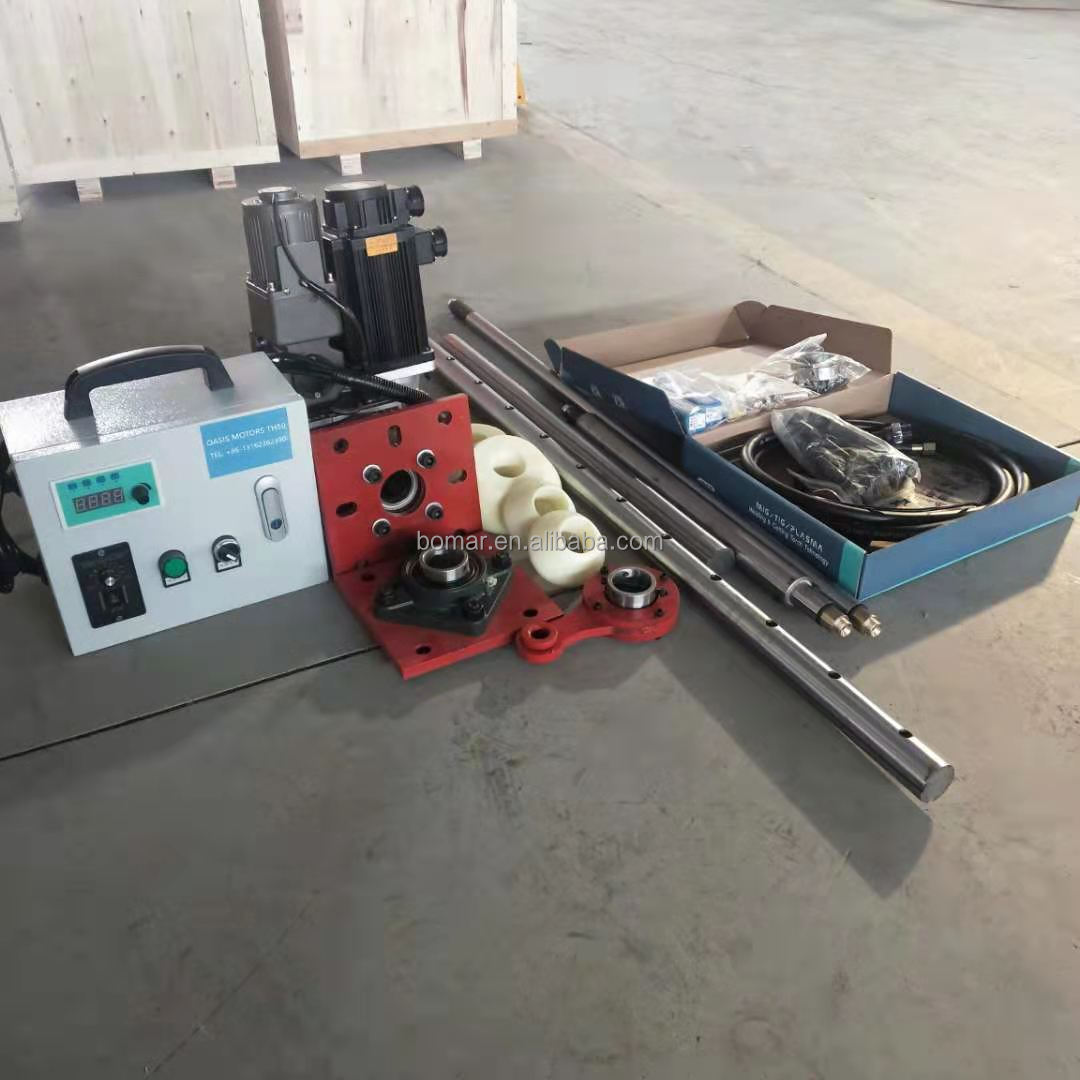

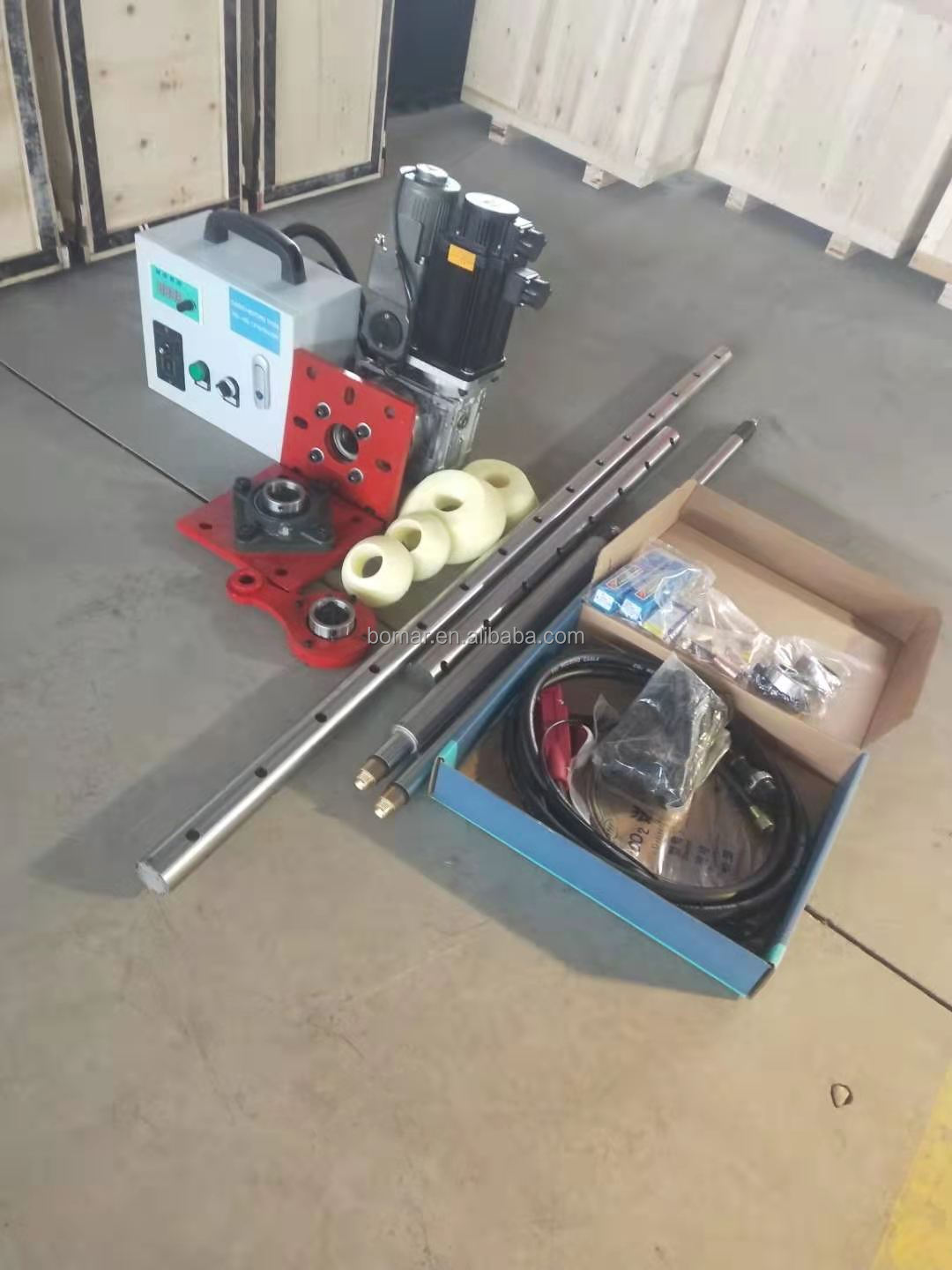

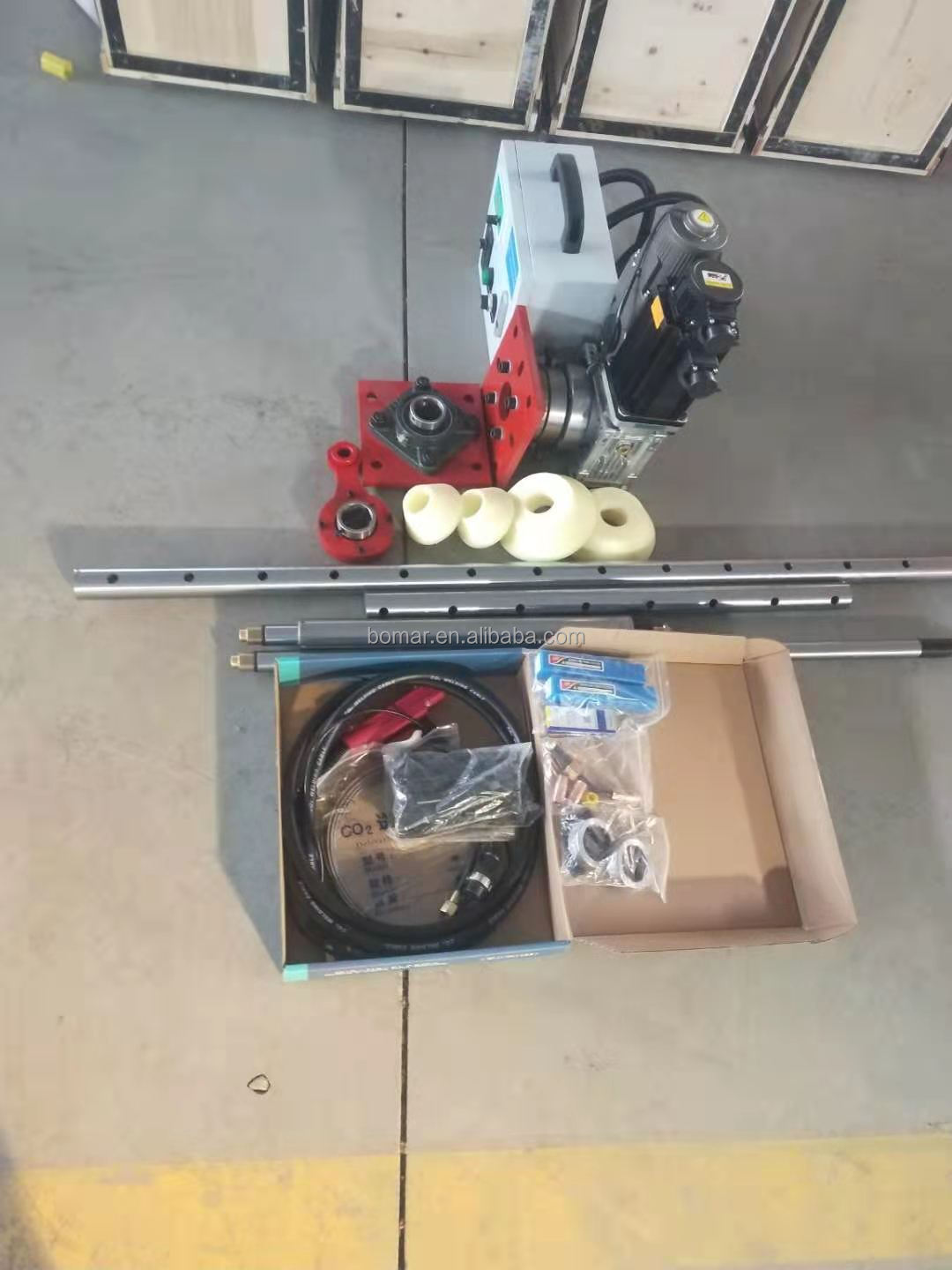

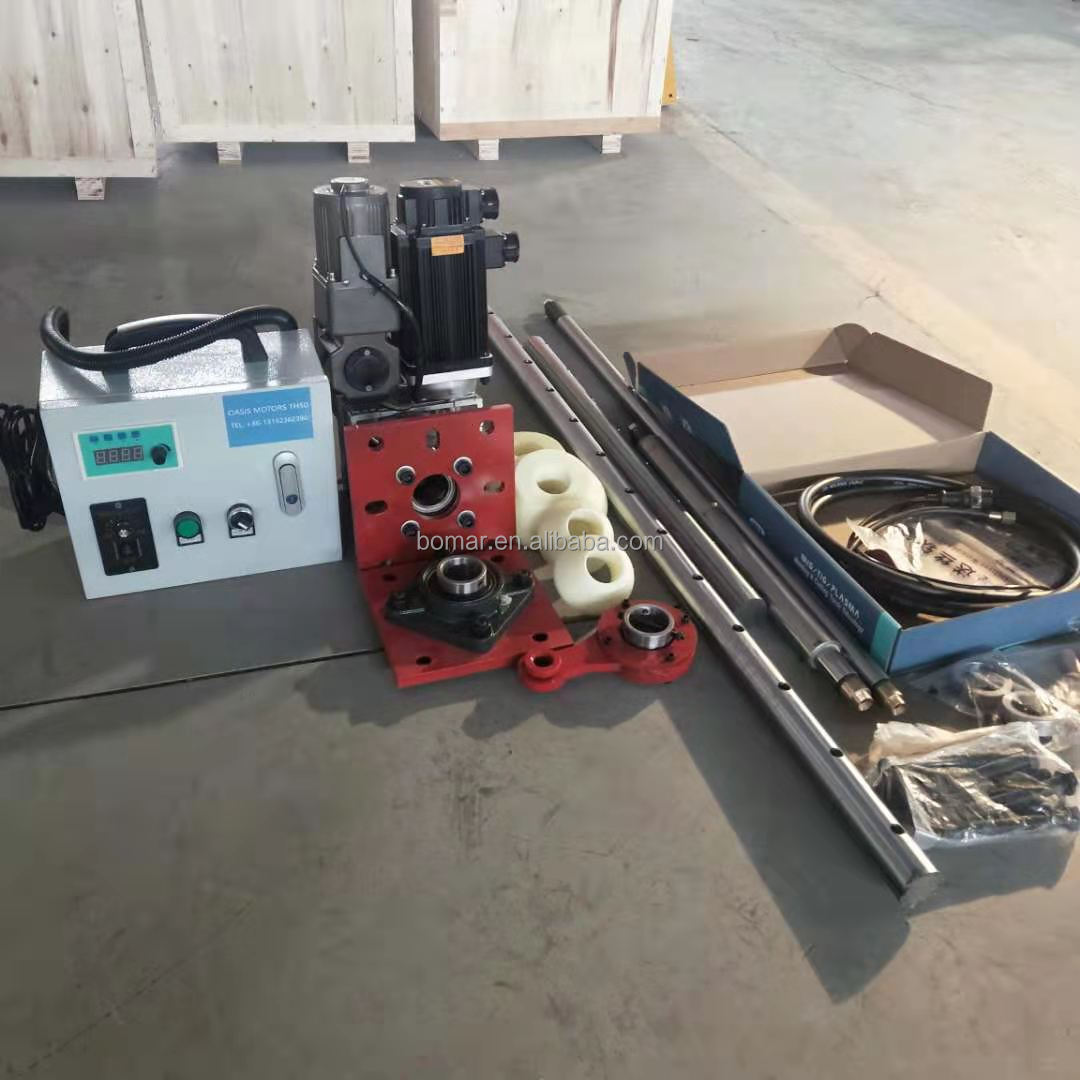

packing list
|
Machine TH50 main body |
1 |
|
control box |
1 |
|
feed screw |
1 |
|
Boring bar |
2 (750mm*1 + 1500mm*1) |
|
Torch rod |
2 (500mm*1+1200mm*1) |
|
support base |
1 |
|
Support bolt |
8 |
|
centering set |
1 |
|
tool |
8 |
|
main welding wire |
1 |
|
Twico |
1 |
|
Torch tip elbow |
1 |
|
Welding tip |
3 |
|
Torch tip clearance |
1 |
