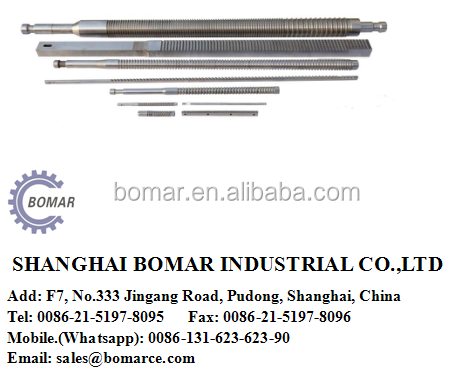

Rectangular spline broaches Straight spline broaches Parallel side internal spline broaches

PRODUCT DETAIL
Customization support:OEM,ODM,OBMmodel:Spline broach
payment terms:L/C, Western Union, T/T, MoneyGramport:China's main ports
type:Spline broachWarranty:3 years
Origin:China ShanghaiCertification:pcoc,Reach,IECEE,scoc,EPA,GS
brand:OEM productionSupply capacity:1000 sets per month
Material:high speed steelPackaging Details:By Express use Plywood cases Spline Broach Manufacturer
Product Description

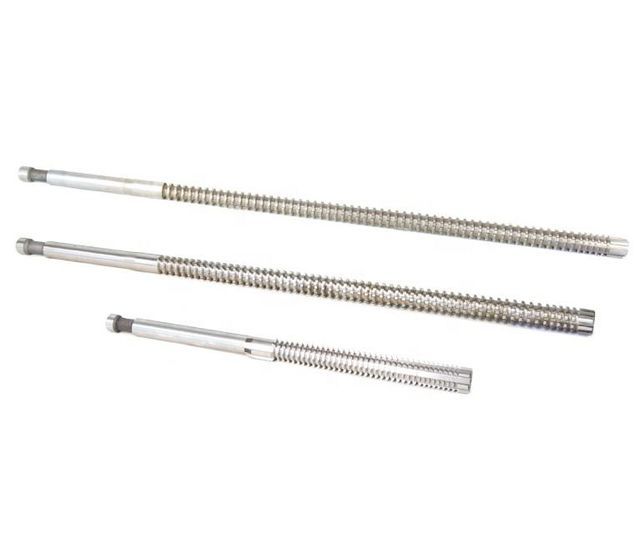

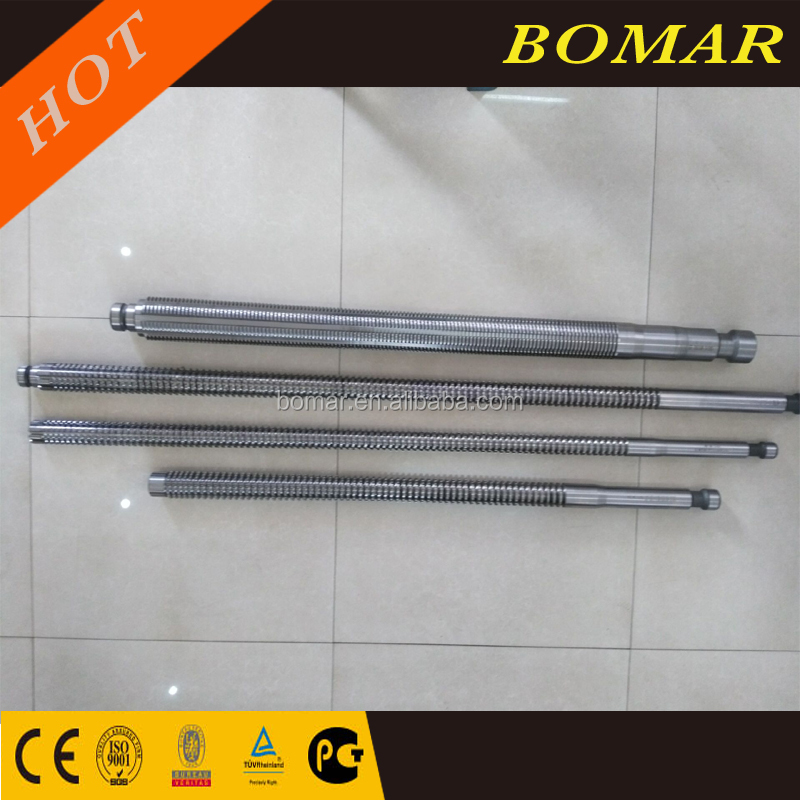

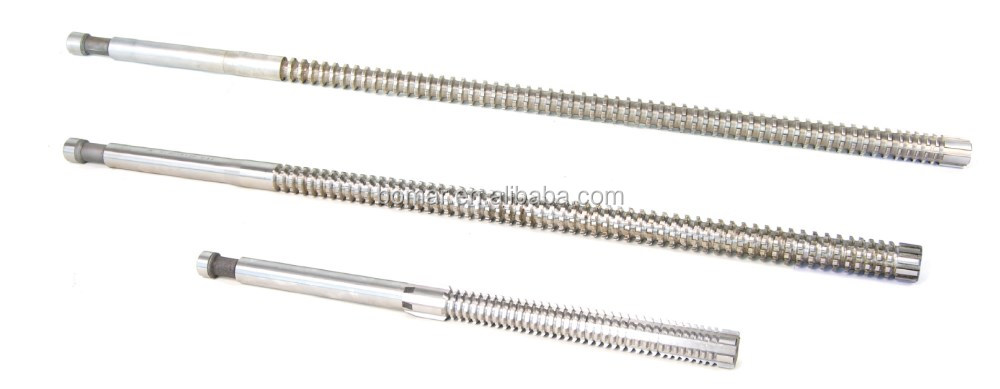

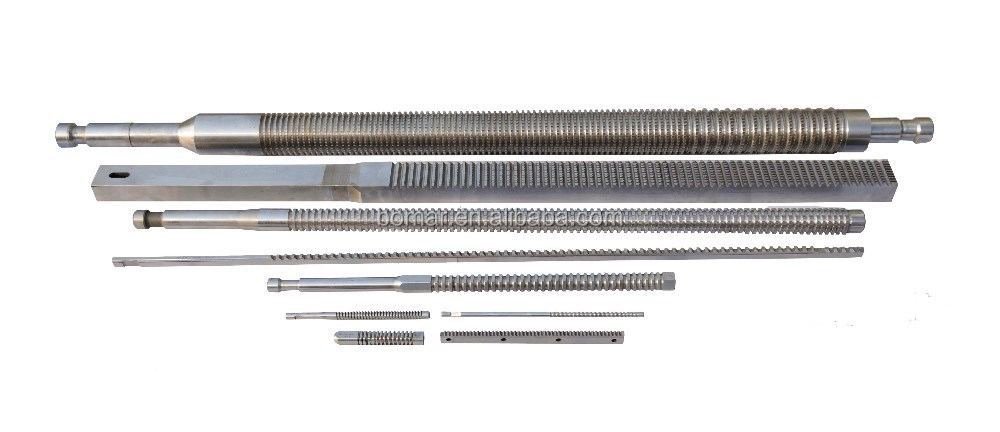

Rectangular spline broaches Straight spline broaches Parallel side internal spline broaches



Give us drawings or details, we do OEM for you



We manufacture spline broaches in Shanghai, China



1. Accuracy: H4, H5, H6, H7
2. PA30 or 40 degrees
3. Module: m1~m5
4. No. Number of teeth: 11~40

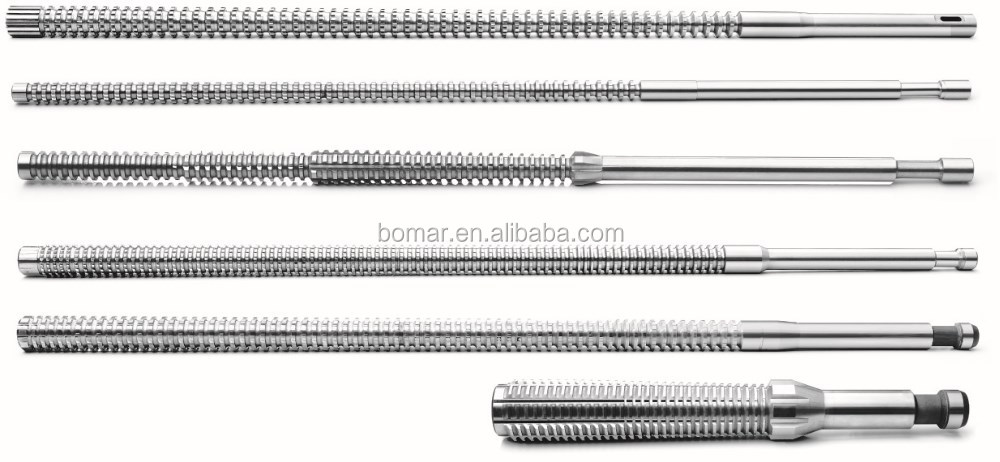

Involute Spline Broaches, Internal Tooth Broaches, Square Broaches








notes:

1. Standard pressure angle 30° involute spline broaches

2. Fine-pitch involute spline broaches with m0.5~m0.8 base circle diameter ≥ 6mm can be customized

3. Standard PA45° involute serrated broaches, m0.5~m2.5 can also be customized.





Material introduction:



A. W6Mo5Cr4V2 (national standard) M2 (ASTM), S6-5-2 (DIN), SKH51 (JIS)
Chemical composition: C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.00, Mo 4.80 V 1.85
Main application: Widely used to make various cutting tools and durable cold working molds



B. W6Mo5Cr4V2Co5 (national standard), M35 (ASTM), 1.3243 (DIN), SKH55 (JIS)
Chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
Main application: Good wear resistance, often used to make high-speed, difficult-to-cut blades



W6Mo5Cr4V2(M2), W9Mo3Cr4V(W9), W18Cr4V(W18), W6Mo5Cr4V2Al(M2Al), W6Mo5Cr4V2Co5(M35), W2Mo9Cr4VCo8(M42), W4Mo3Cr4VSi(4341), W4Mo2Cr4VSi(4241)



our service

1. Good quality and low price

2. Prompt delivery

3. Rich experience

4. Quick supply of spare parts

5. Professional shipping and packing

6. Professional after-sales service



>> professional: Mature technology can prove stable products and bring you a smooth import experience.

>> High efficiency:We can deal with your needs quickly and will provide good follow-up service

>> Experienced: 12Years of export experience can enable us to master customs clearance documents for you in a short period of time
