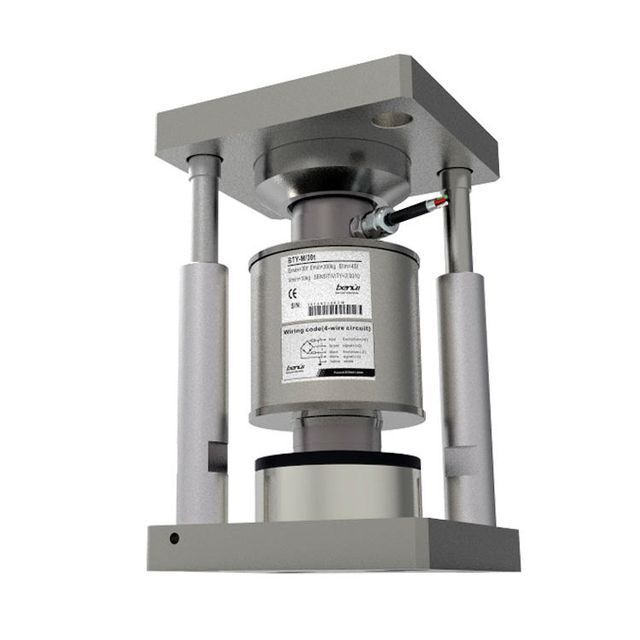

The Best Welded Sealed Load Cell Module For Truck Scale Ring Torsional Load Cell High Accuracy
- $58.00 / 1 - 200 pieces
$50.00 / 201 - 500 pieces
$45.00 / >=501 pieces - 1 piece
- Ningbo Majia Electromechanical Co., Ltd.
- Zhejiang, China
- Mr KEVIN GUO
PRODUCT DETAIL
| Working Temperature Range: | -30°C to 70°C/-20°F to 160°F; | Insultation Resistance: | > 5000MΩ (50V DC); |
| Port: | Ningbo, Hangzhou, Shanghai, Guangzhou, Shenzhen, Lianyungang, Kasher, Erlian; | Usage: | PRESSURE SENSOR; |
| Safe/Ultimate Load: | 150%F.S; | Output Type: | Analog SENSOR; |
| Operating Temperature: | -20~70℃(180℃ optional); | Supply Ability: | 15000 Pieces per Month; |
| Output: | Analog SENSOR; | Full Scale Output: | 2.0mV/V ± 0.1%; |
| Model Number: | BTY-M; | Output Resistance: | 702±2Ω; |
| Creep in 30 minutes: | < ± 0.030%F.S; | Place of Origin: | Ningbo, China; |
| Capacity: | 10,20,30,40,50,60t; | Input Resistance: | 775±10Ω; |
| Voltage - Supply: | 10-12v; | Warranty: | 12 Months; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Protection level: | IP68; |
| Theory: | Convert electrical signal to the force signal; | Brand Name: | BENUI; |
Dimensions (In mm. 1mm = 0.03937 inches)
Specification
Rated Capacity | 10t, 20t,30t,40t, 50t, 60t | Capacidade |
Full Scale Output | 2.0mV/V ± 0.1% | Sensibilidade |
Zero Balance | ± 0.02mV/V | Balanco de zero |
Non-linearity | < ± 0.023%F.S | Nao Linearidade |
Repeatability | < ± 0.030%F.S | Repetibilidade |
Hysteresis Error | < ± 0.030%F.S | Histerese erro |
Creep in 30 minutes | < ± 0.030%F.S | Creep(30 minutos) |
Input Resistance | 775Ω ±10Ω | Impedancia de entrada |
Output Resistance | 702Ω ± 2Ω | Impedancia de saida |
Recommended Excitation | 10V (15V Maximum) | Tensao recomendata de excitacao |
Insulation Resistance | > 5000MΩ (50V DC) | Resistencia de isolamento |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k | Efeito da temp. na sensibilidade |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k | Efeito na temp. no zero |
Working Temperature Range | -30°C to 70°C/-20°F to 160°F | Faixa de temp. operacao |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F | Faixa de temp. homologada |
Safe Overload | 150%F.S | Sobrecarga segura |
Breaking Overload | 300%F.S | Sobrecarga maxima |
Seal Type | Welded sealed | Tipo de sello |
IP Rating | IP68 | Grau de protecao |
Company Profile
NingBo Maken Electric company which focus on designing, producing and selling load cells and auto control system. We Maken have the plant cover 12,000 square meters, equipped with state of art devices for production, testing & calibration. Its working condition is very nice and R&D ability is strong, we Maken with the annual producing capacity more than 500,000 pieces or sets of load cells, and more than 55% are sold abroad.
We Maken has already passed the approval of ISO9001, OIML R60 C3, CE and Anti-explosion, and obtained many patents and certificates on weighing field. Meantime we Maken established the management system like OA and ERP, sales net almost covered all of China and most of major countries in the world.
We Maken is not only producing but also focus on supplying for technical solution and superior service. We Maken steps forward through improve existed old items, develop new products and focus on superior advance products into Modular, digital, intelligent. Especially, we successfully develop first weighing system or load cells connected to mobile phone with functions like remote wireless control, management and updates etc. We strong believe this kind of system and load cells will be become the most popular new generation intelligent product with the development of the mobile phones and applying of 5G service in the near future.
Every features of Maken is the point why you chose our products & service！
