2. Features:

1>.Nigital tube display

2>.Support high level trigger

3>.Emergency stop function

4>.Sleep mode, Wonepress any button

5>.Automatically save parameters

6>.Dual MOS control supports 15A 400W or more

7>.Support reverse connection protection

8>.0.01 seconds to 9999 minutes continuously adjustable

9>. Optocoupler isolation to enhance anti-interference ability

3. Parameters:

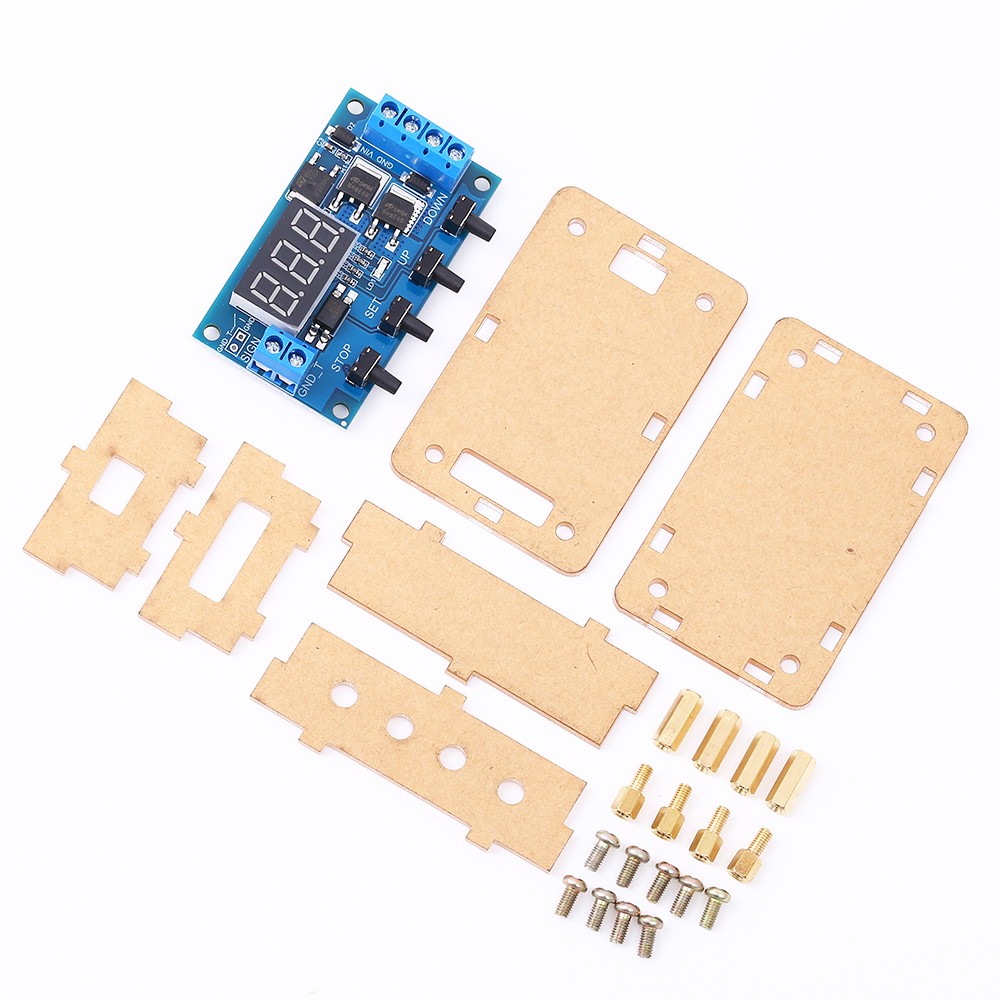

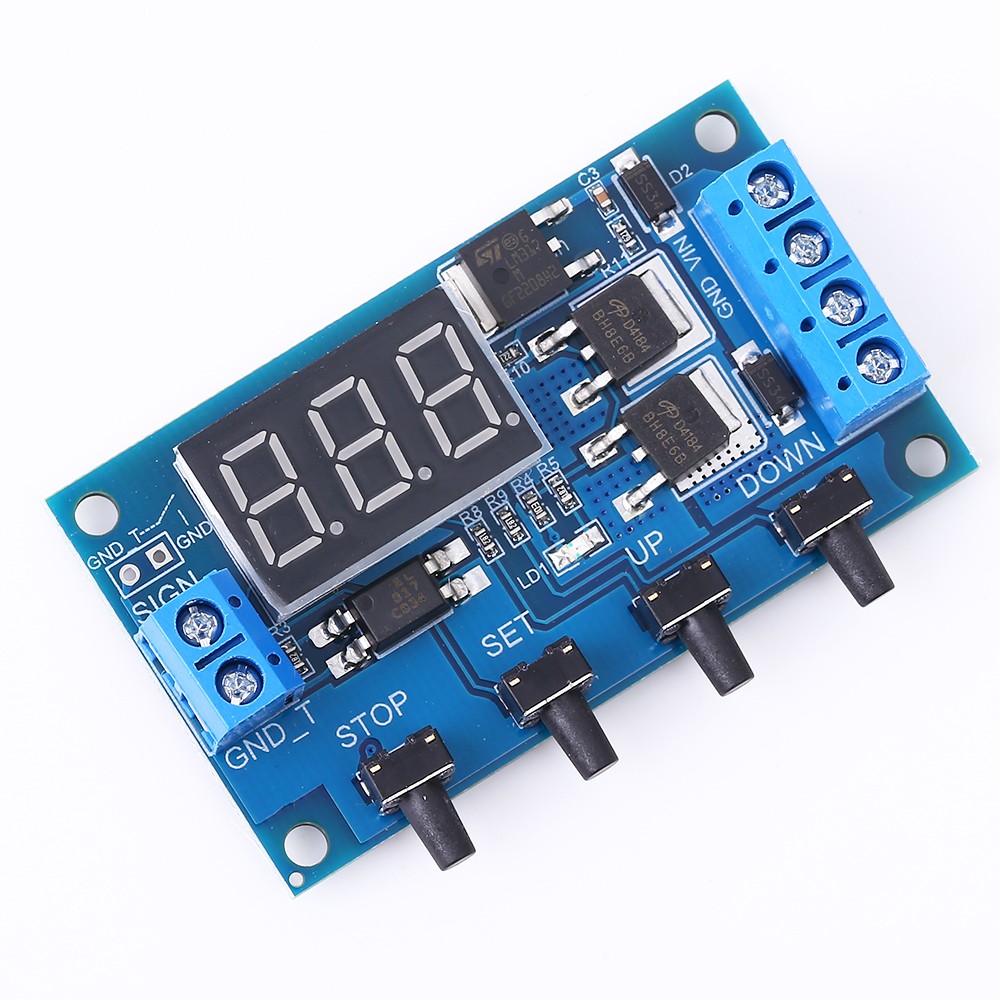

1>. Product name: ZK-J06 delay relay module

2>.Product number: ZK-J06

3>. Working voltage: DC 5V-36V

4>.Control current: 30A (maximum and requires heat dissipation! 15A 400W at normal temperature)

5>.Static current: 15mA

6>.Working current: 50mA

7>.Trigger signal source: high level trigger (3.0V~24V)

8>.Reverse connection protection: Yes

9>.Size: 60*39*14mm
