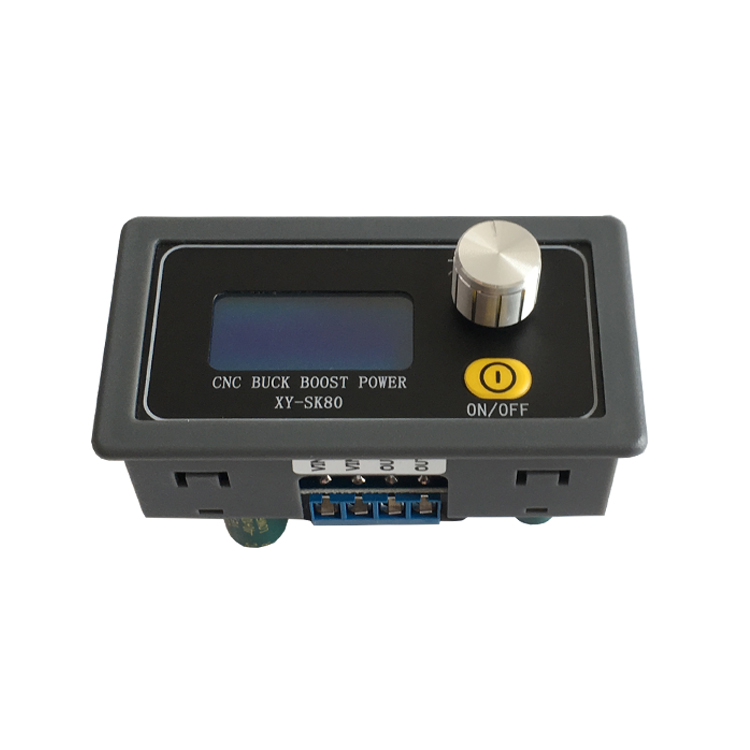

XYSK80 DC DC Buck Boost Converter CC CV 0.6-36V 5A Power Module Adjustable Voltage Regulator Lab Power Variable 5V 12V 24V

Product Highlights:
1. Digital adjustment of voltage and current, convenient and fast, industrial-grade quality, high precision, and can be directly used in engineering projects;
2. Adopt professional power LCD, clear interface, very simple operation, and almost perfect protection mechanism;
3. Hardware protection: input terminal anti-reverse connection protection, reverse connection does not burn; output short circuit protection, short circuit does not burn;
4. Software protection: over-voltage protection (OTP), over-current protection (OCP), over-power protection (OPP), over-temperature protection (OTP), input under-voltage protection (LVP);
5. The default adjustable voltage or constant current value can be set, which can be quickly adjusted in various applications;
6. The voltage and current can be locked to prevent misoperation!
7. Complete materials, stable performance and wide range of uses.
1. Product parameters:
Input voltage: DC6.0V-36V (under 4.7V has under-voltage protection LVP, it is recommended to use an input voltage higher than 7V, when the input voltage is lower than 7V, the output power will be reduced, the lower the input voltage, the lower the output power )
Output voltage: DC0.6V-36V
Output current: 0-5.100A
Output power: 80W under natural heat dissipation
Voltage accuracy: ±0.5%+1 byte, resolution: 0.01V, factory calibration accuracy
Current accuracy: ±0.5%+3 bytes, resolution: 0.001A, factory calibration accuracy
Conversion efficiency: about 88%
Soft start: yes
Input reverse connection protection: yes, reverse connection will not burn
Output backflow prevention: yes, can be directly connected to the battery
Output short-circuit protection: Yes, the output can be directly short-circuited
Temperature Protection (OTP): Yes, 100℃
Working frequency: 180KHZ
