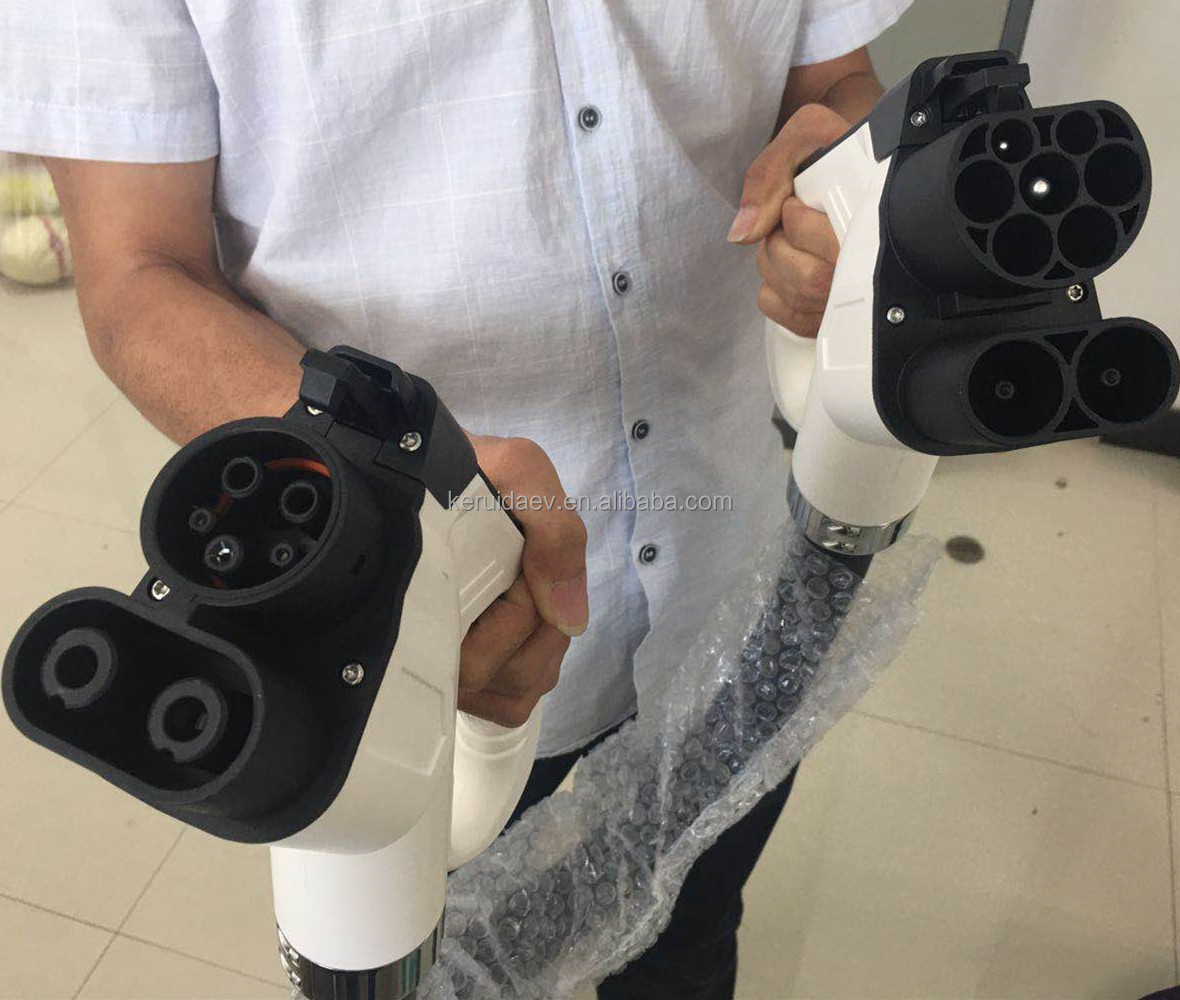

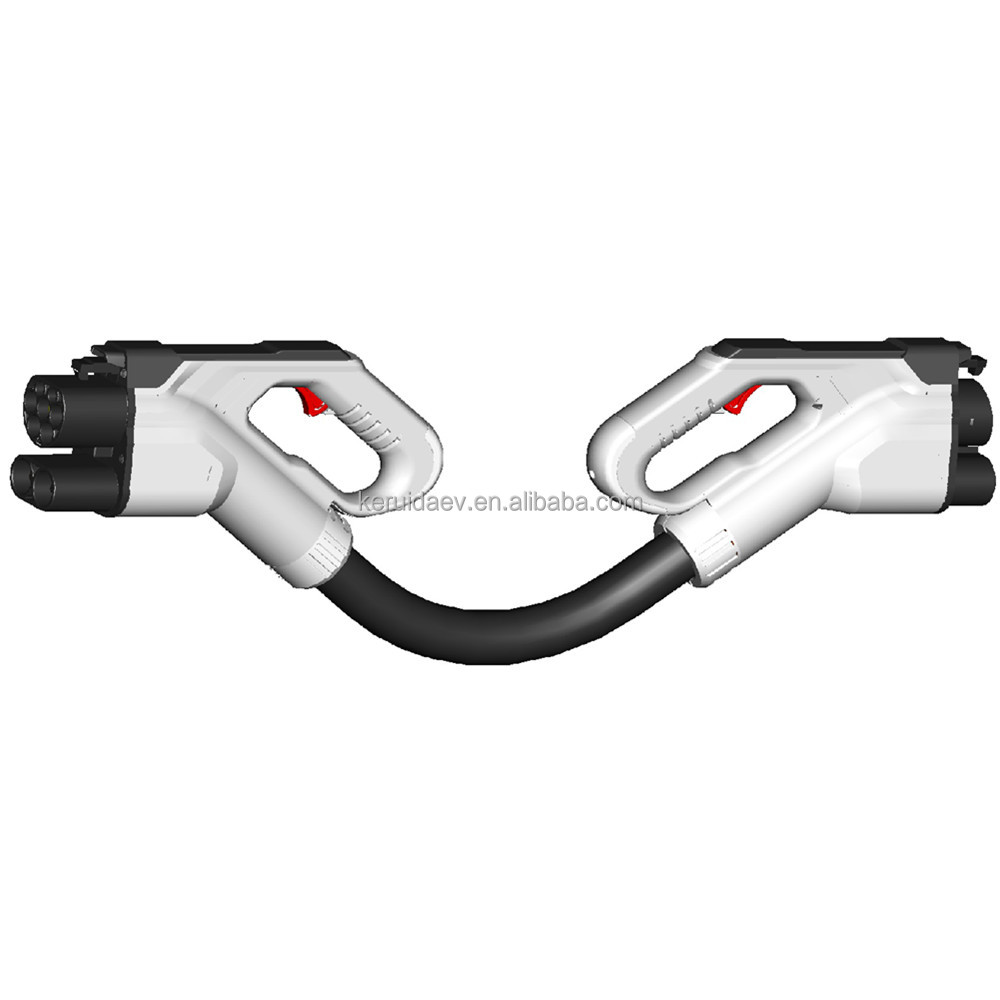

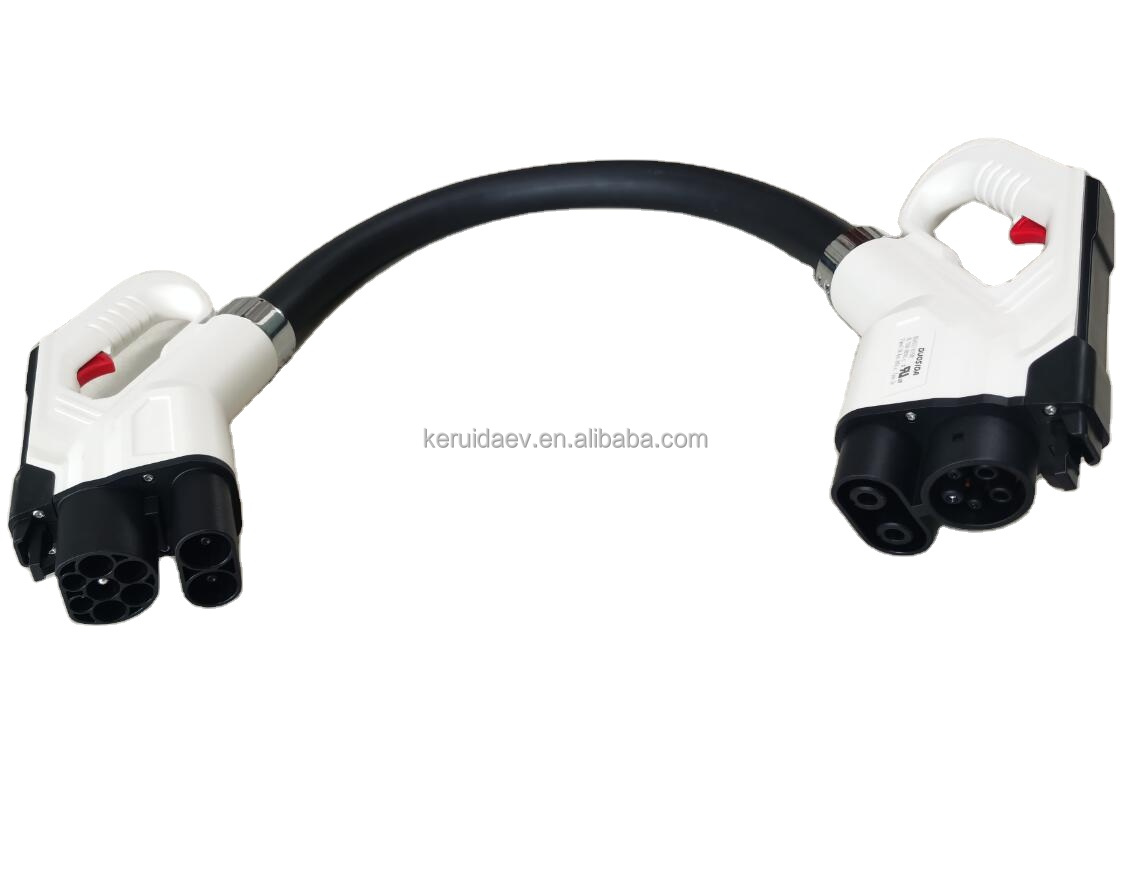

EV Charging Adapters CCS Combo 1 to CCS Combo 2 EV Charging Adapter Duosida 150A 0.3m Cable DC Fast Charger
- $250.00 / 1 - 49 pieces
$240.00 / >=50 pieces - 1 piece
- Keruida New Energy Technology Co., Ltd.
- Jiangsu, China
- Ms Elaine Huang
PRODUCT DETAIL

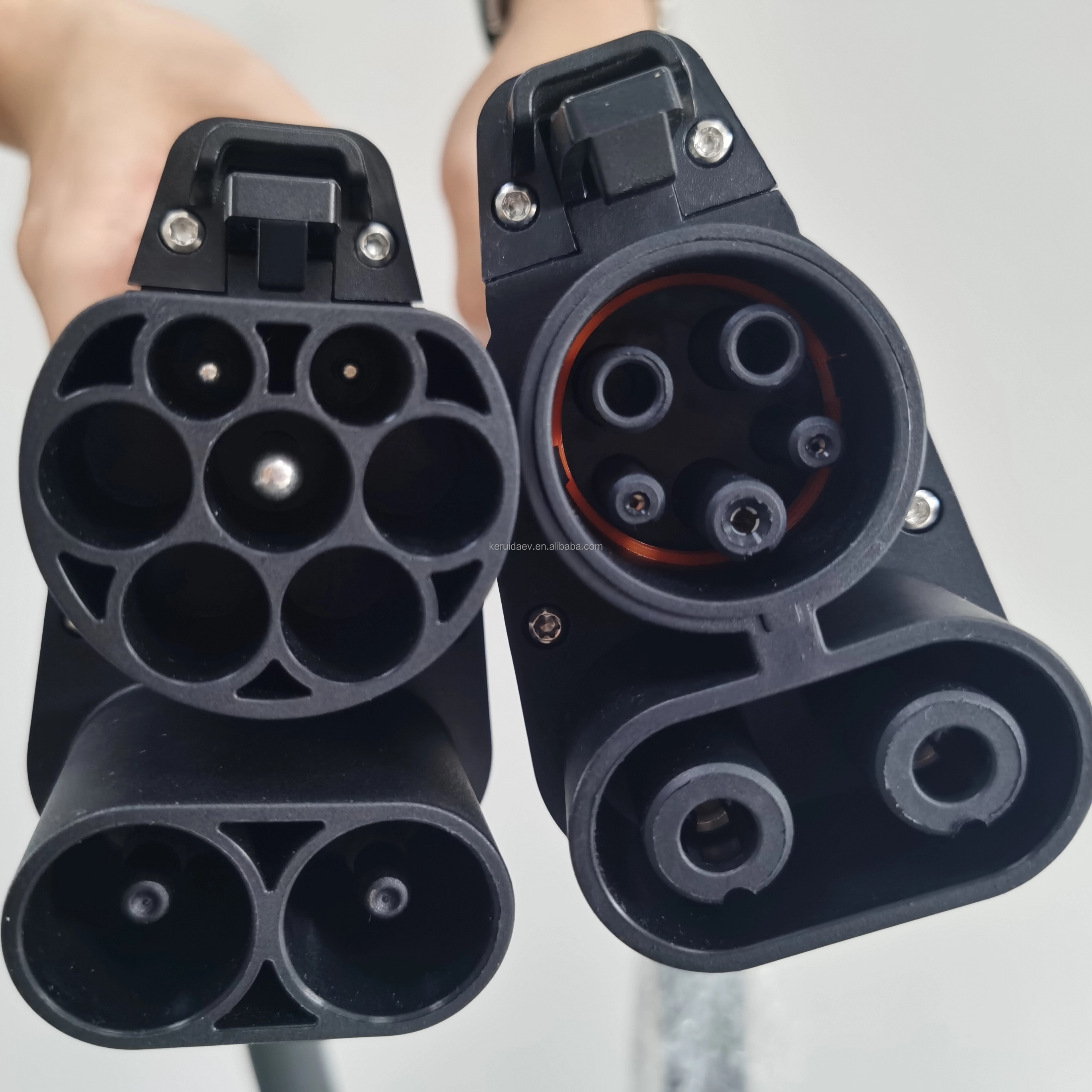

| Connector: | CCS 2 Socket to CCS 1 plug; | Withstand Voltage: | 3200V; |
| Waterproof: | IP65; | Brand Name: | ZENCAR, DUOSIDA; |
| Output Power: | 90kw; | Place of Origin: | Jiangsu, China; |
| Model Number: | CCS Combo 1 to CCS Combo 2 EV Charging Adapter; | Certificate: | TUV - CE - Rohs; |
| Warranty: | 12 Months; | Package Preview: | ; |
| Payment Terms: | Western Union,L/C,T/T,Paypal; | Insulation Resistance: | >2000mΩ( DC1000V ); |
| Cable Length: | 0.3m(Customizable); | Temperature range: | -30°c ~ +50°c; |
| Packaging Detail: | Netural package; | Port: | shanghai; |
| Current: | 150A EV Charging Adapters; | Supply Ability: | 150000 Pieces per Year; |
EV Charging Adapters CCS Combo 1 to CCS Combo 2 EV Charging Adapter Duosida 150A 0.3m Cable DC Fast Charger
Specification
Item | Specification |
Place of Origin | Jiangsu, China |
Company Nature | Manufacturer, trading company |
Model Number | Duosida CCS 2 Socket to CCS 1 plug with Cable |
Brand Name | ZENCAR, DUOSIDA |
Warranty | 12 months |
Cable Length | 0.3m (customized) |
Connector | CCS 2 Socket to CCS 1 plug |
Current | 150A |
Max Output Power | 90KW |
Voltage | 850-1000V |
Certification | CE, TUV |
Withstand Voltage | 3200V |
Waterproof | IP65 |
Operating Temperature | -30°c ~ +50°c |

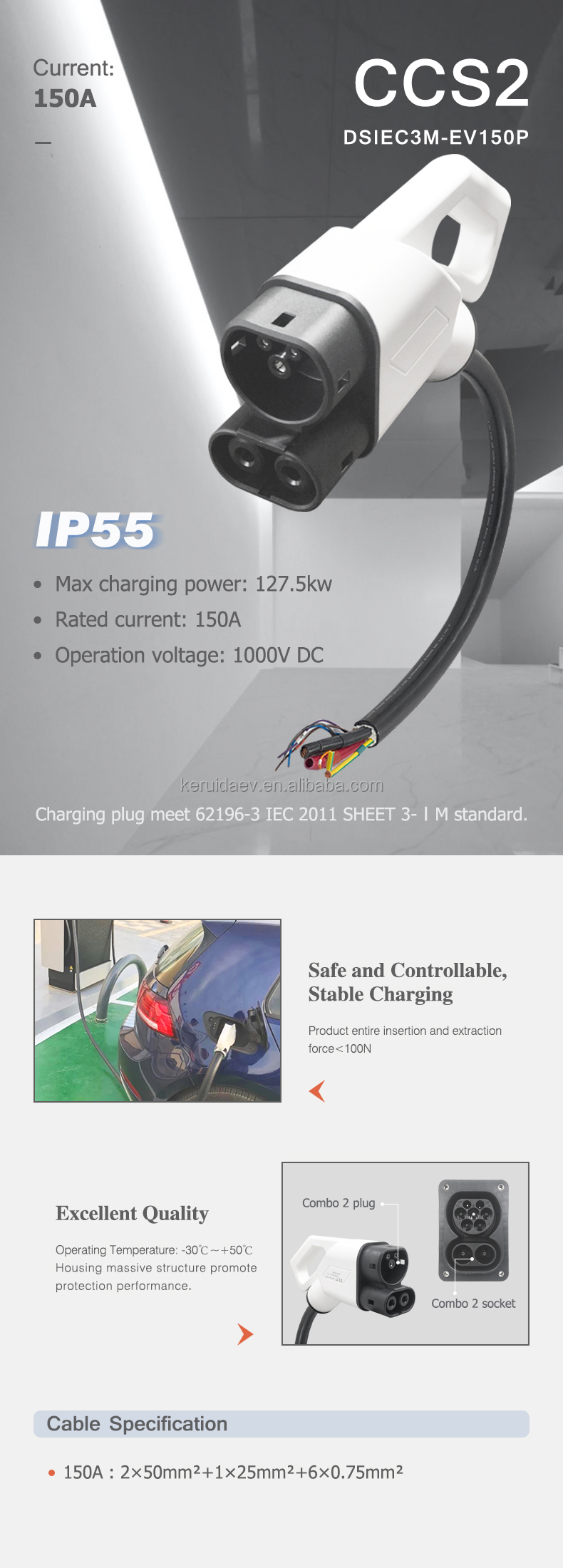

Product Description
Product Parameters
Product Parameters
Feature:
1. Charging plug meet 62196-3 IEC 2014 SHEET 3-IIIB standard
2. Housing massive structure promote protection performance
3. Product entire insertion and extraction force<100N
4. Protection class IP65
5. Max charging power: 90KW
Mechanical properties:
1. Mechanical life: no-load plug in/pull out > 1000 times
2. Impat of external force: can afford 1m drop and 2t vehicle run over pressure
Environmental performance:
1. Operating Temperature: -30ºC~+50ºC
Applied Materials:
1. Case Material: Thermoplastic, flame retardant grade UL94V-0
2. Contact bush: Copper alloy, silver plating
Electrical performance:
1. Rated current: 150A
2. Operation voltage: 600V DC
3. Insulation resistance: >2000mΩ( DC1000V )
4. Terminal temperature rise: <50K
5. Withstand Voltage: 3200V
6. Contact Resistance: 0.5mΩMax
Feature:
1. Charging plug meet 62196-3 IEC 2014 SHEET 3-IIIB standard
2. Housing massive structure promote protection performance
3. Product entire insertion and extraction force<100N
4. Protection class IP65
5. Max charging power: 90KW
Mechanical properties:
1. Mechanical life: no-load plug in/pull out > 1000 times
2. Impat of external force: can afford 1m drop and 2t vehicle run over pressure
Environmental performance:
1. Operating Temperature: -30ºC~+50ºC
Applied Materials:
1. Case Material: Thermoplastic, flame retardant grade UL94V-0
2. Contact bush: Copper alloy, silver plating
Electrical performance:
1. Rated current: 150A
2. Operation voltage: 600V DC
3. Insulation resistance: >2000mΩ( DC1000V )
4. Terminal temperature rise: <50K
5. Withstand Voltage: 3200V
6. Contact Resistance: 0.5mΩMax

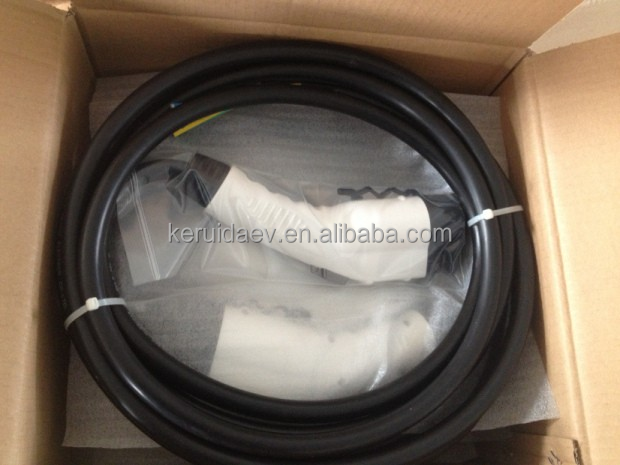

Packing & Delivery

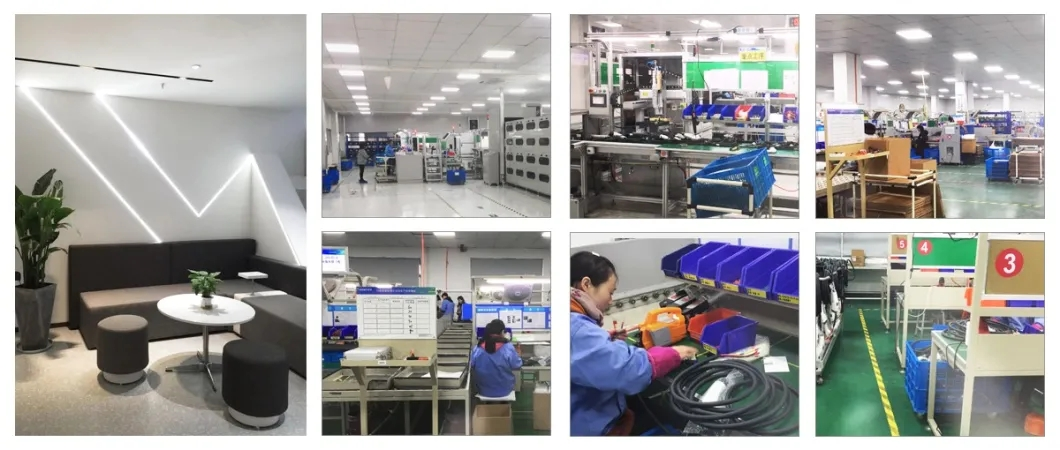

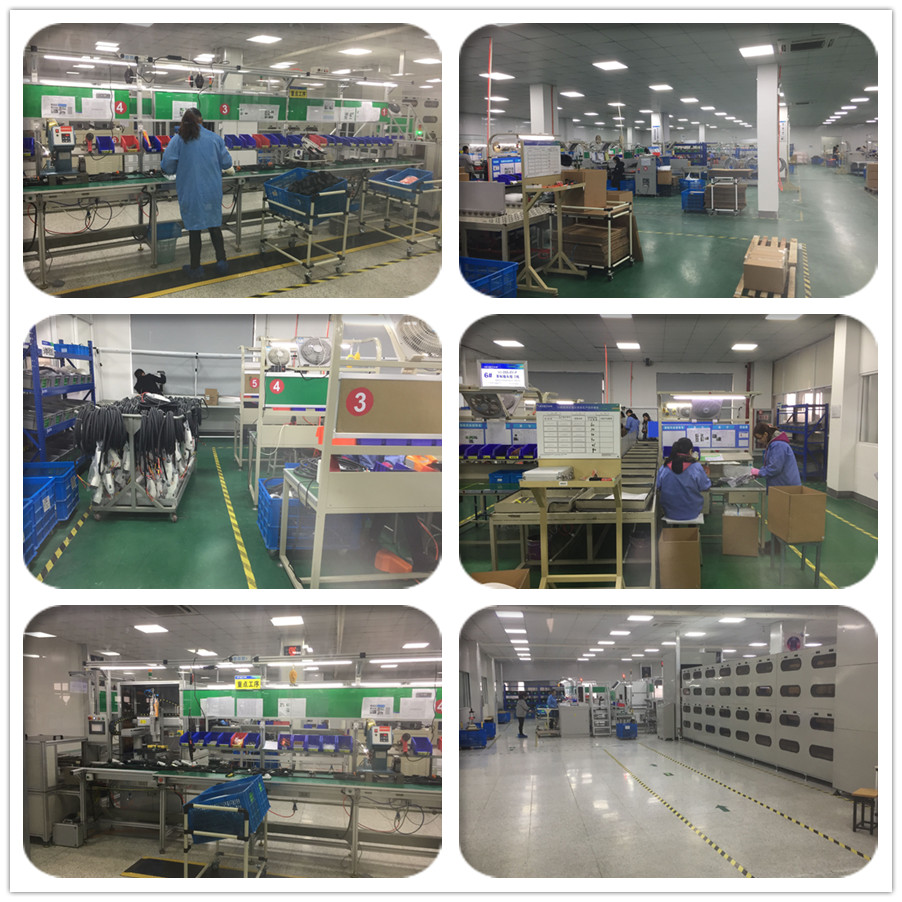

Company Profile
Why choose us
100% Product quality protection
100% On-time shipment
100% Payment protection
Related Products
TUV IEC 62752 Type B AC30mA DC6mA
16A 11KW Wall charger
Support Wifi +Rfid
TUV IEC 62752 Type B AC30mA DC6mA
32A 22KW Wall charger
Support Wifi +Rfid
Type 1 J1772 Adapter for Tesla
16A 32A 40A
Tesla Super Charger to Type 1 J1772
TUV IEC 62196 Type 2 to Type 2
16A 3.7KW/11KW
32A 7.4KW/22KW
CE IEC 61851 Type A AC 30mA
10A-40A Adjustable
Zencar Portable + Nema 14-50
CE IEC 61851 Type A AC 30mA
6A-16A/32A Adjustable, 3Phase
Zencar Portable 11KW/22KW
FAQ
Q1. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU, DDP.
Q2. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: EXW, FOB, CFR, CIF, DDU, DDP.
Q2. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Any other question, please click "Send", we will reply to you within 24 hours.
