Top sale structure high quality mechanical wire mesh for EPS 3D panels

PRODUCT DETAIL
Project Solving Ability:3D model designpayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
Warranty:1 year, 1 yeardesign style:contemporary
port:QingdaoAfter-sale service:Online technical support, on-site installation, on-site training, on-site inspection, free spare parts, return and exchange, other
model:3dthickness:50-200mm
Certification:ISO9001After-sales service provided:Engineers can repair machinery overseas
brand:3D panelPanel Material:non-metal
application:building, hotelsize:Customize as you like
usage:Building insulationproduct material:EPS
place of origin; place of origin:China
Product Description

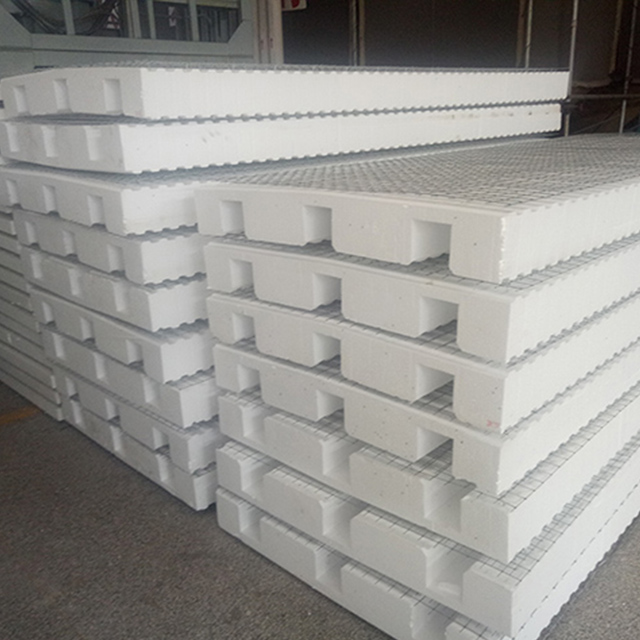

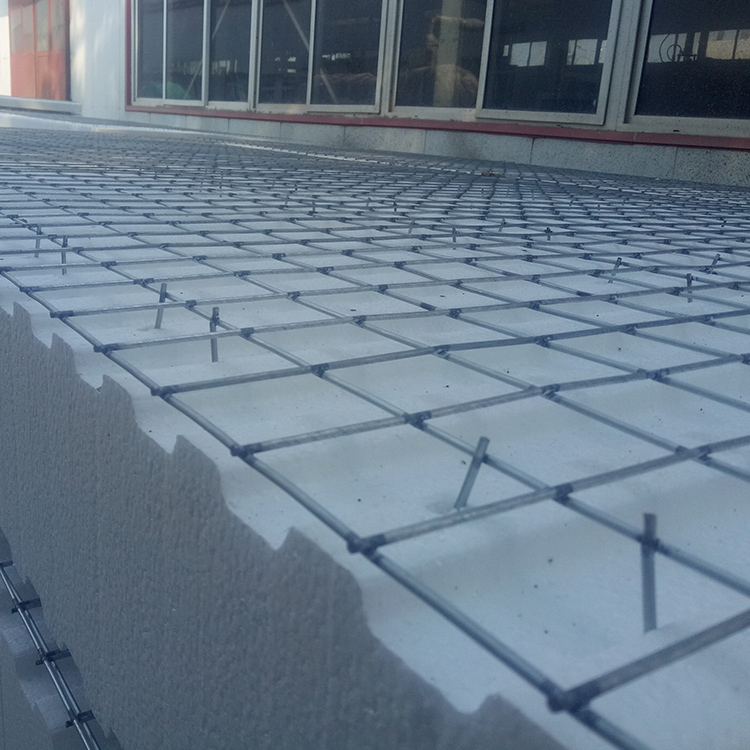

3D EPS Wall Panel Construction System

3D wall panel is a new type of building wall material. It can replace the light wall to become a variety of main walls, non-main walls, boundaries, etc.
3D mesh is a three-dimensional mesh, which is widely used in European and American building systems to replace wood frame walls, metal or prefabricated panels, and has the characteristics of flexible structure, simple construction, improved efficiency, and labor saving. Park wall arch corner , The curved wall adopts this product, which has the characteristics of simple construction and beautiful appearance. The lining insulation material has the characteristics of strong thermal insulation and small footprint, which makes the indoor space more labor-saving and time-saving, and the wall structure is complete. fire china professional 3d board eps sandwich panel hot sale





advantage

-Energy efficient
One of the most attractive aspects of this product is that it is an energy-efficient material for structural facades.

- Environmental friendly
As our cities grow, a greener and more economical approach to building is needed.

-save costs
The 3D panel building system is an exceptional building product that easily meets the challenges of high energy costs in operating a home or commercial building.

- Safe and convenient
3D panels not only allow families to have an energy-efficient home, but also give them a safe home against even the most violent nature attack.



Fully automatic EPS 3D panel production line for panel 3D production



3D Panel Size Chart

EPS core board thickness (MM)

density

Wire mesh diameter (MM)

Diagonal Diameter(MM)

Screen mesh size (MM)

50

15

2

2.2

50X50

80

15

2

2.2

50X50

100

15

2

2.5

50X50

120

15

2

2.5

50X50

150

15

2

2.5

50X50

180

15

2.2

3

50X50

200

15

2.2

3

50X50

We can customize the core type (EPS or rock wool), wire mesh diameter (2.0-4.0MM) diagonal diameter (2.2-3.0MM), wire mesh mesh size (50x50, 75x75, 100x100MM) according to customer requirements



Hot Sale New Material MGO Magnesium Oxide Firewall Board

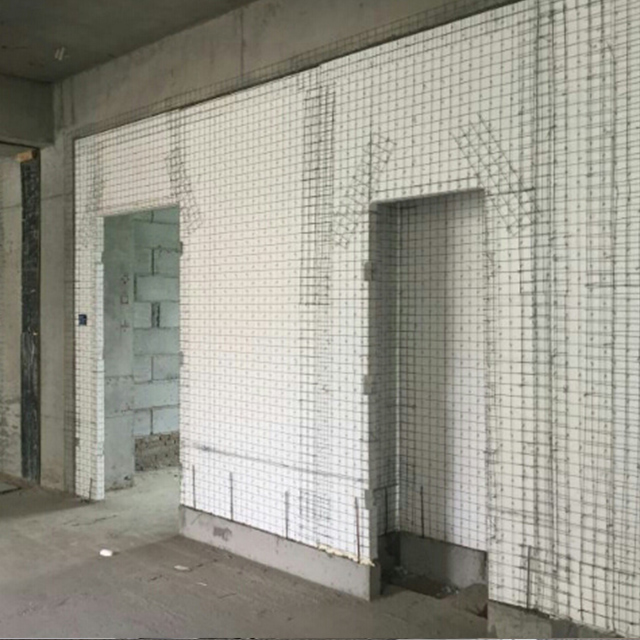

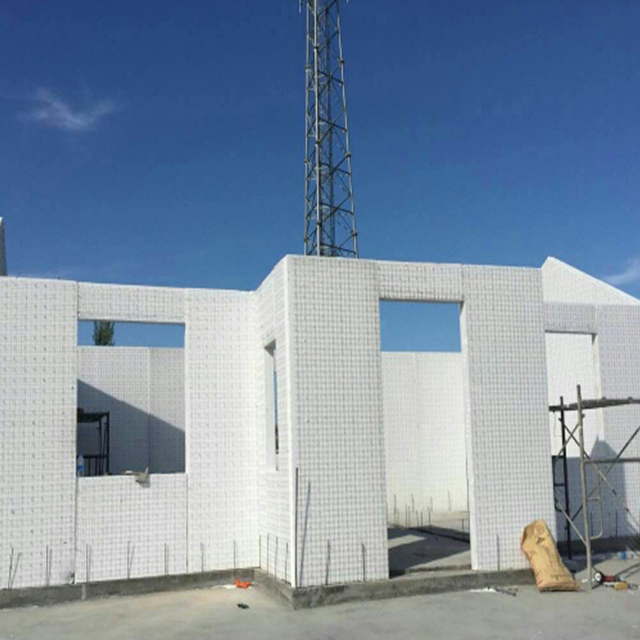

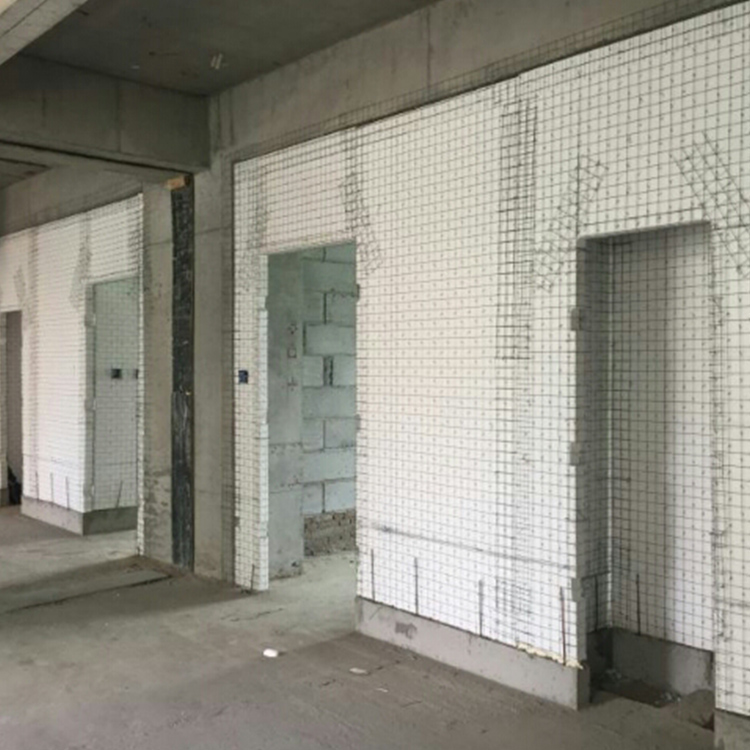

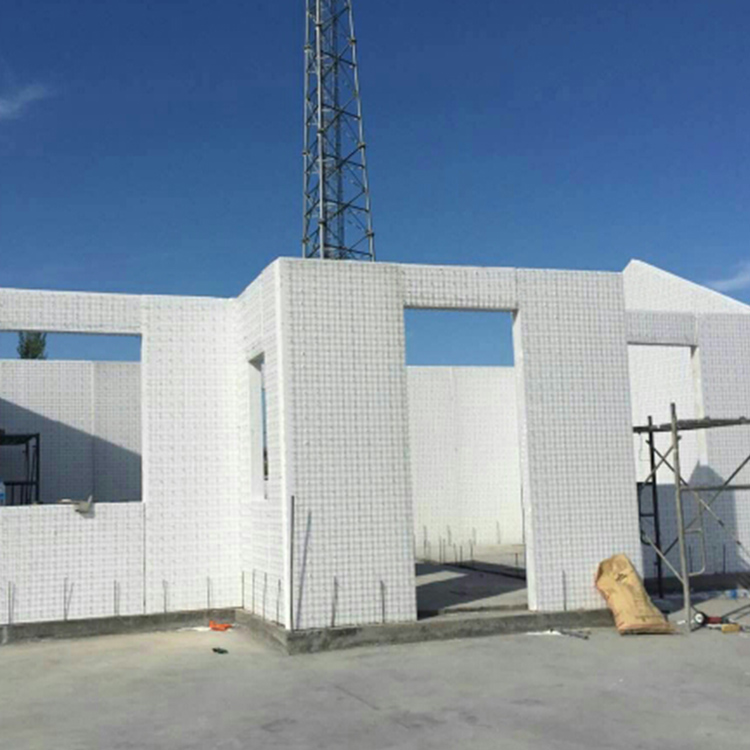

3d wall panel use

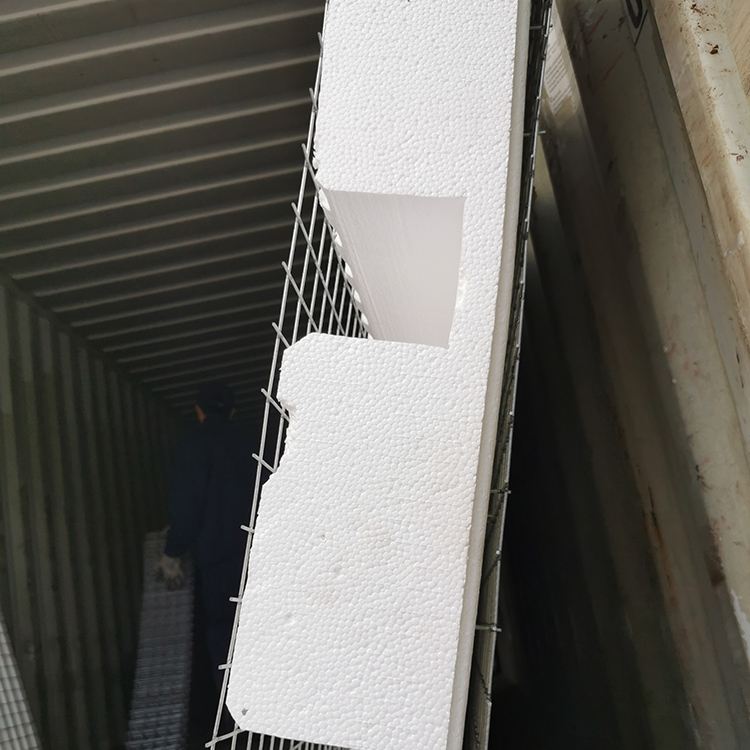

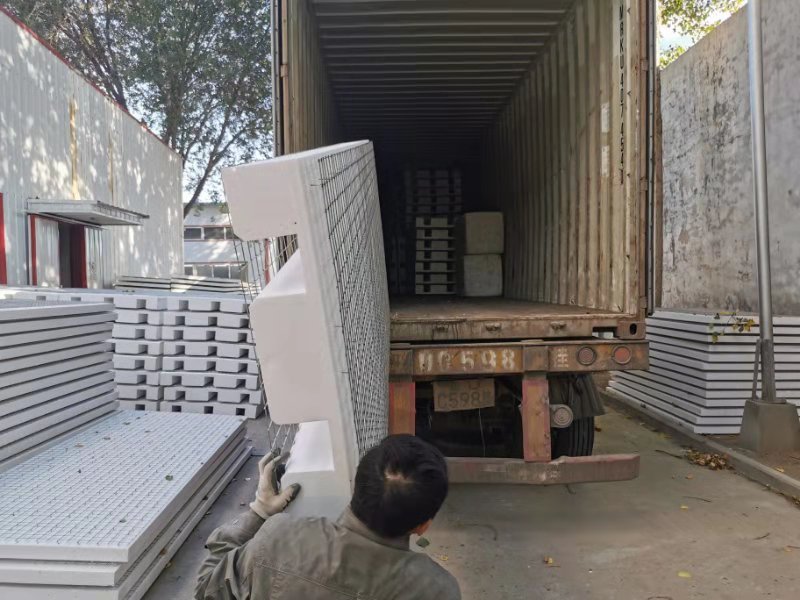

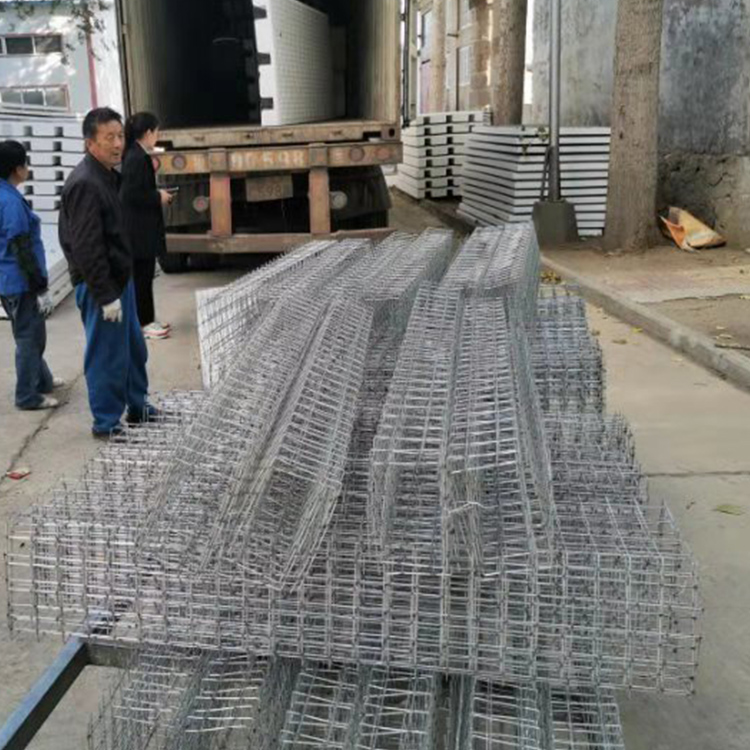

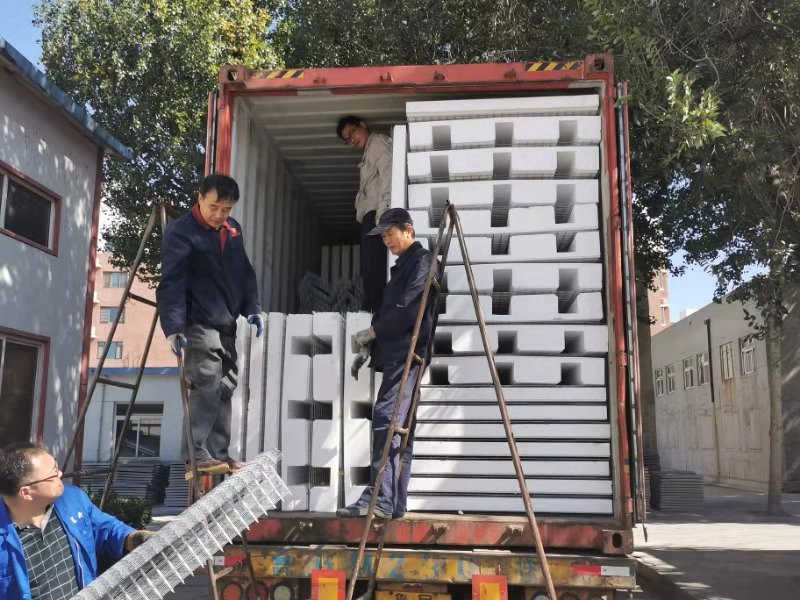

Packaging and Shipping





Average feature

1) The electric welding machine welds the horizontal and vertical lines into a steel mesh.
Mesh width: 1200mm. Grid size: 50*50mm or 50*100mm.
2) The PLC control system automatically tensions, welds and cuts the steel wire.
3) The horizontal steel wire adopts an integrated straightening and cutting system, which runs smoothly and has high precision.
4) The automatic alarm device is easy to operate and maintain.
