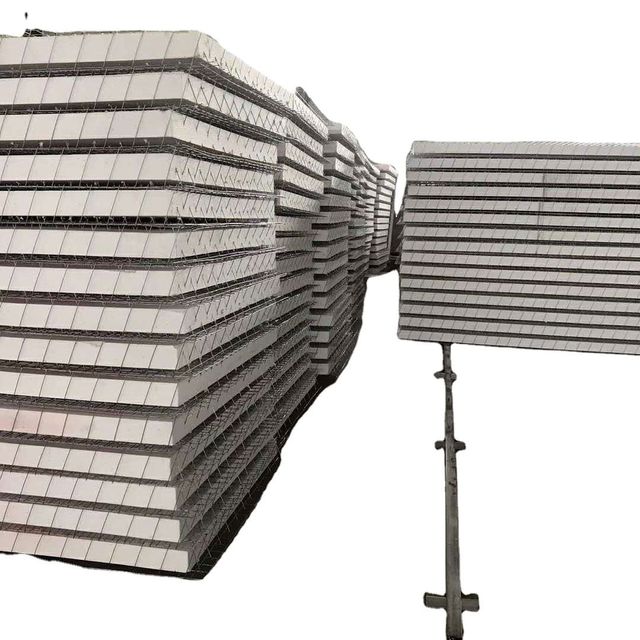

high strength evg 3d eps steel mesh wall panel
- $2.00 / >=10 square meters
- 10 square meters
- Hebei Dunqiang Hardware Mesh Co., Ltd.
- Hebei, China
- Mr Vincent Han
| Supply capacity: | 1000 square meters per day | model: | HD01 |
| After-sale service: | other | Packaging Preview: | |
| port: | Tianjin | Project Solving Ability: | other |
| application: | building, hotel | Packaging Details: | 3d eps panel packed in steel pallet |
| length: | according to your requirements | width: | according to your requirements |
| Warranty: | 1 year | Grid size: | 50mm or as your request |
| design style: | contemporary | Drawing guide: | Have |
| Panel Material: | non-metal | Wire diameter: | 2mm-5mm |
| Fireproof: | Yes | Material: | Q235 |
| brand: | HD-1 | Truss line: | 2mm to 5mm |
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | thickness: | 50mm to 200mm |
| place of origin; place of origin: | Hebei china |
Why choose us?
3P.
Professional designer of 3d eps panel.
3d eps panel professional manufacturer.
Professional construction team of 3d eps panels.
We are different from all other suppliers.
Don't hesitate to contact me for more details.
WeChat & Phone: +8613081008353
3D wall panel is a new type of building wall material. It can replace the light wall to become a variety of main walls, non-main walls, boundaries, etc.
3D mesh is a three-dimensional mesh, which is widely used in European and American building systems to replace wood frame walls, metal or prefabricated panels, and has the characteristics of flexible structure, simple construction, improved efficiency, and labor saving. Park wall arch corner , The curved wall adopts this product, which has the characteristics of simple construction and beautiful appearance. The lining insulation material has the characteristics of strong thermal insulation and small footprint, which makes the indoor space more labor-saving and time-saving, and the wall structure is complete. Fireproof China professional 3d board eps sandwich panel hot sale.
3d eps panel specifications:
The 3D wire panel is a spatial structure composed of the following items: (For specifications, please see 3D panel specifications)
1.Material: Galvanized or cold drawn low carbon wire
2. Mesh diameter: 1.8-2.5mm, 2.5-3.5mm
3. Mesh size: 50*50mm-200*200mm
4. Surface treatment: galvanized or non-galvanized
5. Maximum length of panel: 5000mm
6. Panel width: 1200mm or as your request
7. Truss wire: 1.8-2.5mm, 2.5-3.5mm galvanized or non-galvanized
8. EPS insulated core wire: 30-150mm or according to customer requirements
Main features of eps 3d panel:
1) The electric welding machine welds the horizontal and vertical lines into a steel mesh.
2) The PLC control system automatically tensions, welds and cuts the steel wire.
3) The horizontal steel wire adopts an integrated straightening and cutting system, and the operation is stable
and high precision.
4) The automatic alarm device is easy to operate and maintain.

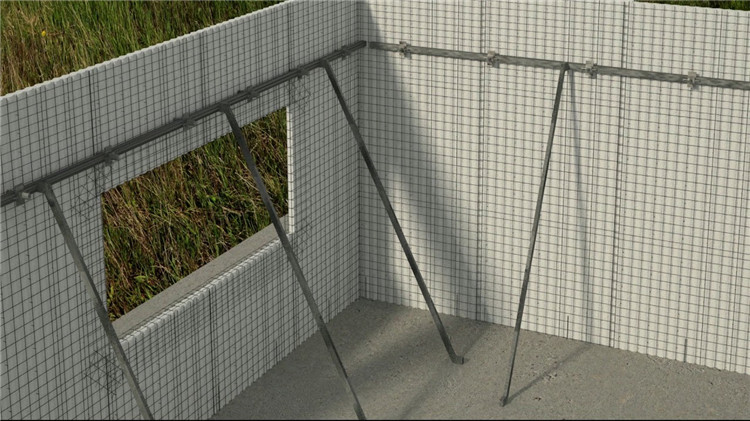

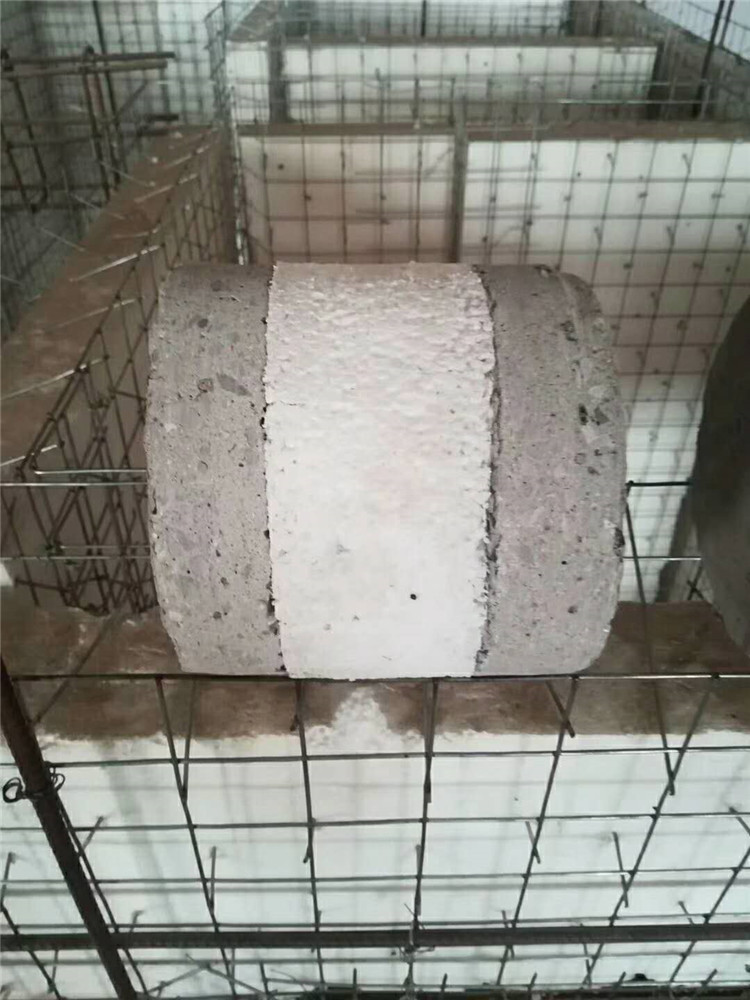

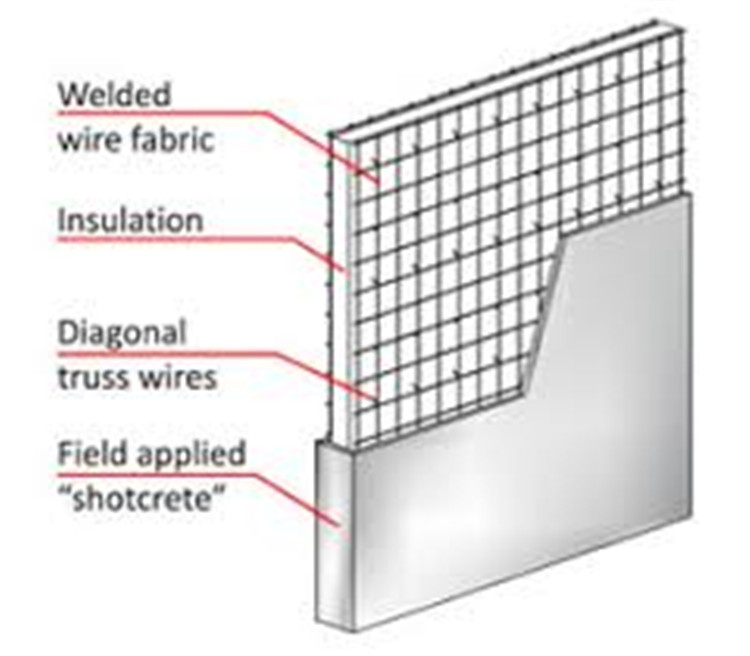

Components of an installed panel include:
1. Foam core for insulation.
2. Internal and external wire mesh.
3. Steel wire cross piece welded truss.
4. Spray concrete on both sides (“shotcrete”).
3D EPS wire mesh panel advantages:
3D wire panels offer advantages in energy consumption, thermal protection, thermal insulation, comfort, simplicity, construction speed and cost, strength and durability. It does not require lifting equipment and the counterweight plate can be installed manually.
3d wire mesh board is also called two-layer double-layer welded mesh board, and two pieces of welded mesh board are connected together by welding.

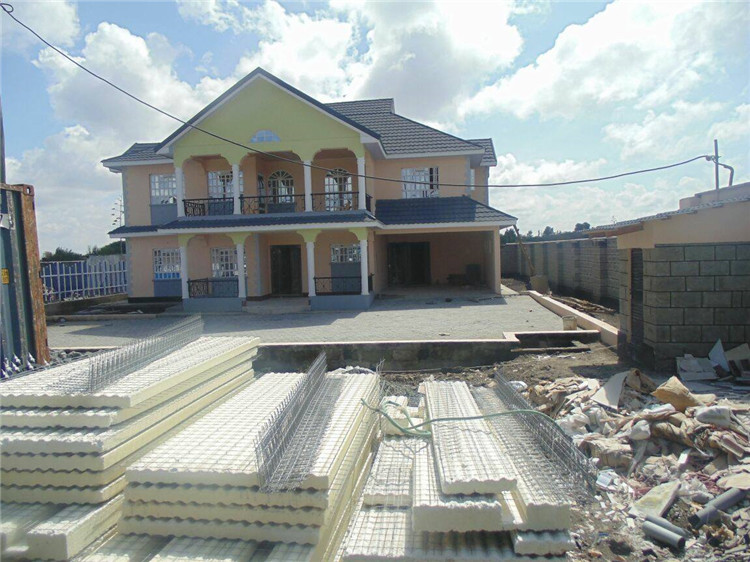

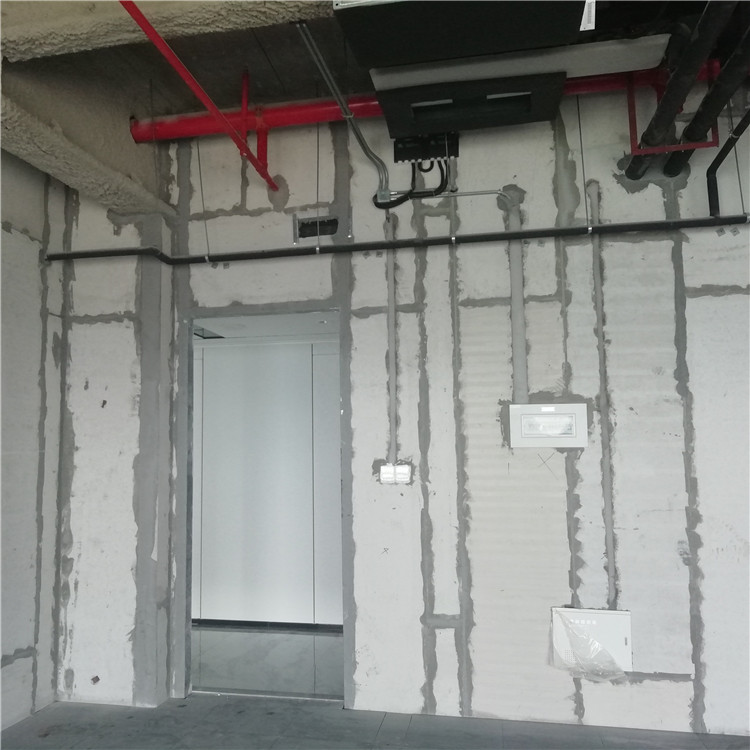

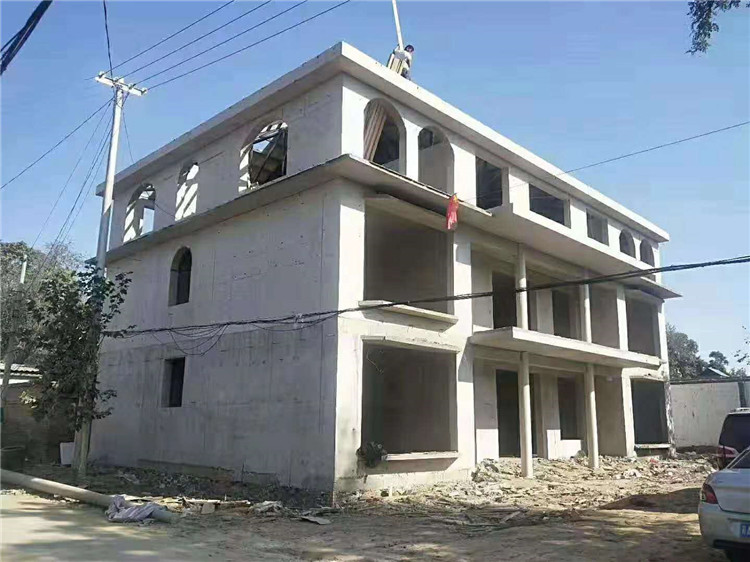

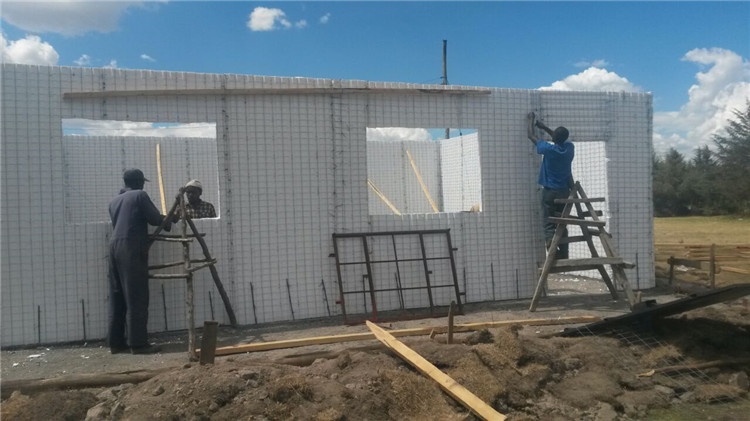

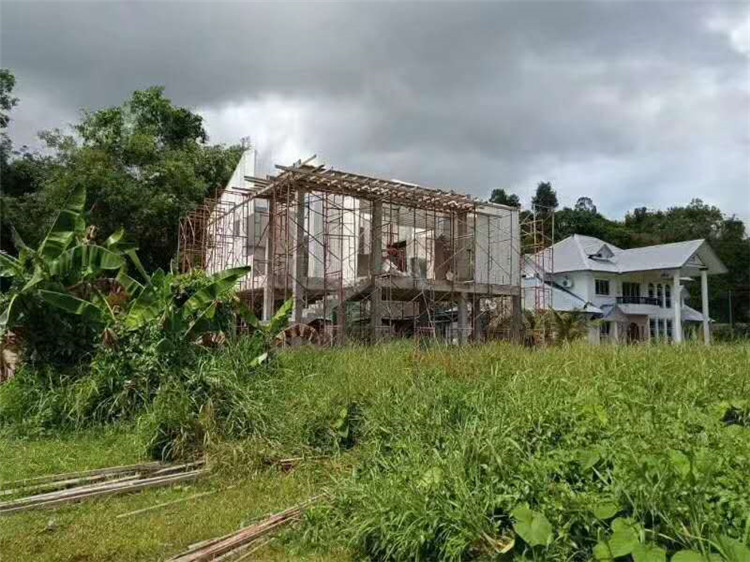

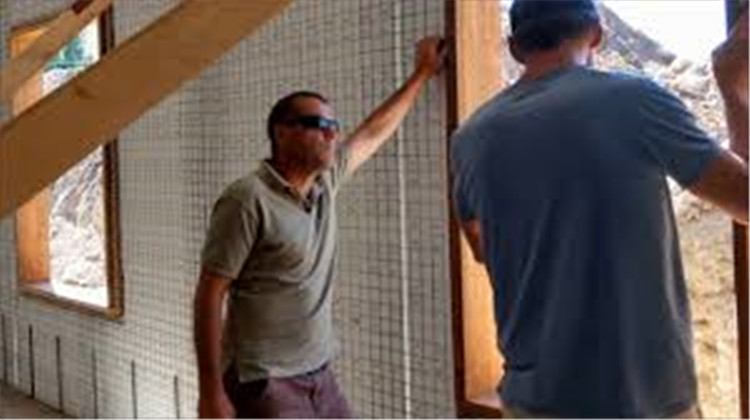

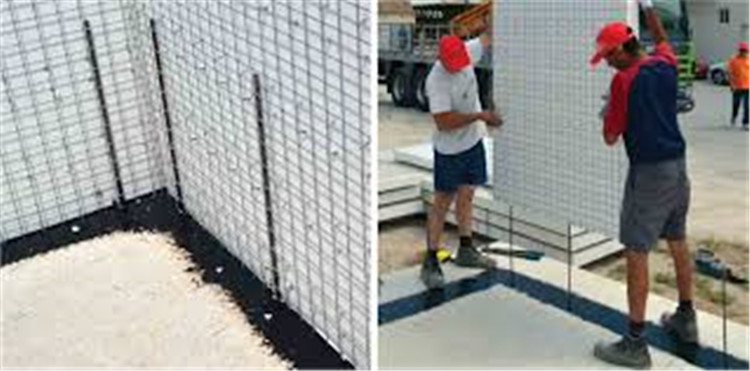

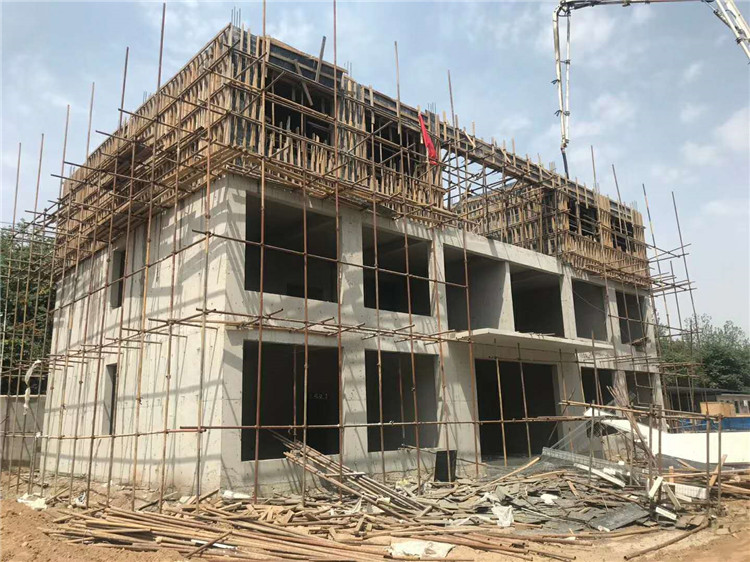

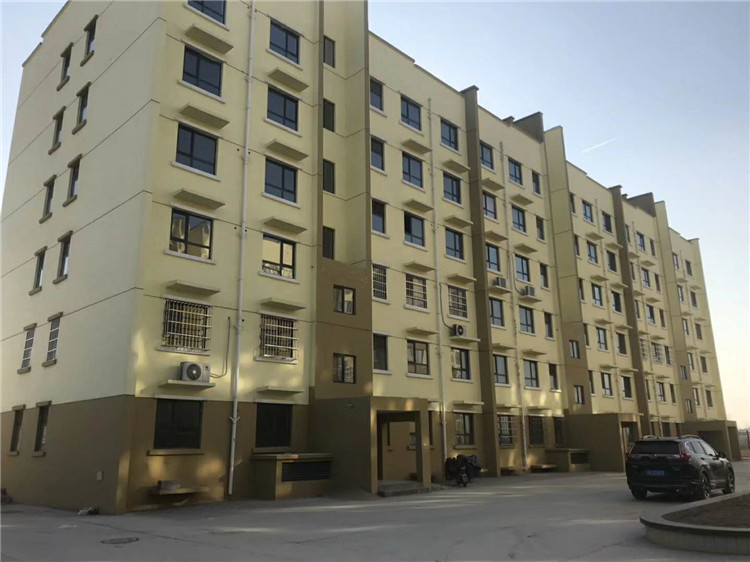

Some of our 3d eps panel projects for your reference:
If you want to know more about the project, please contact me directly.

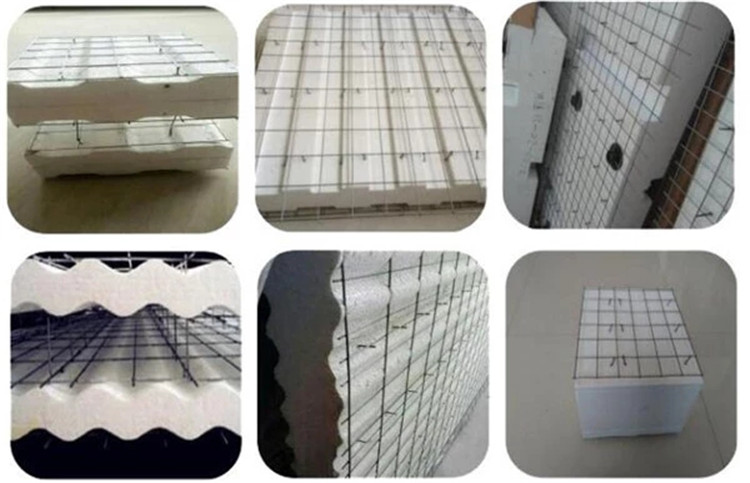

Some types of 3d eps panels:
We also accept customer's design.

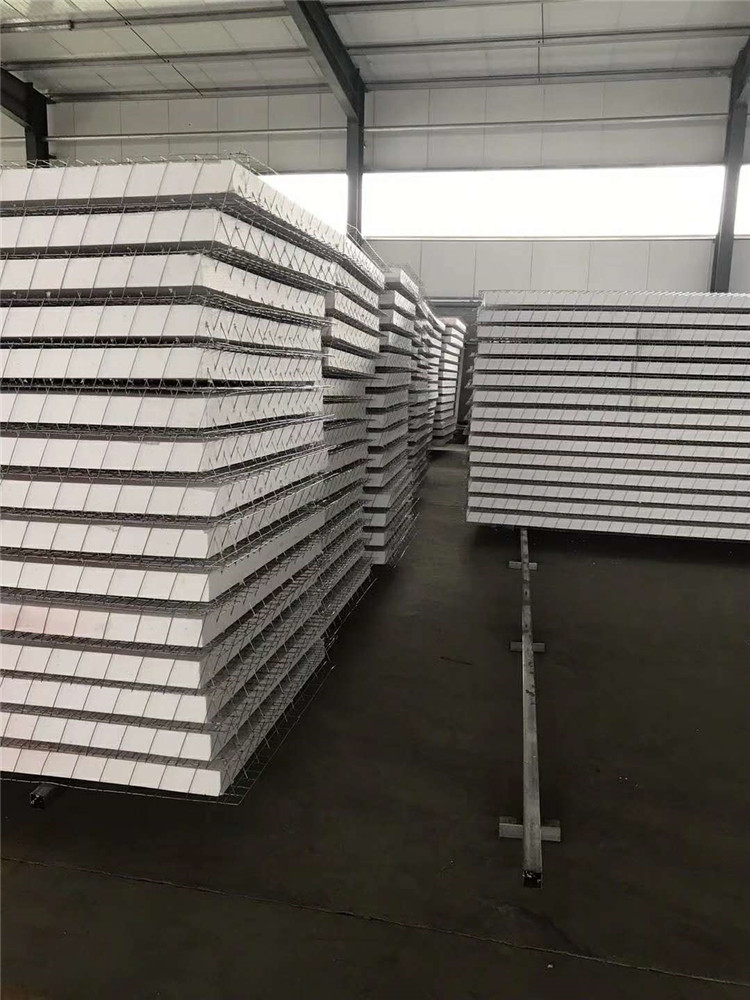

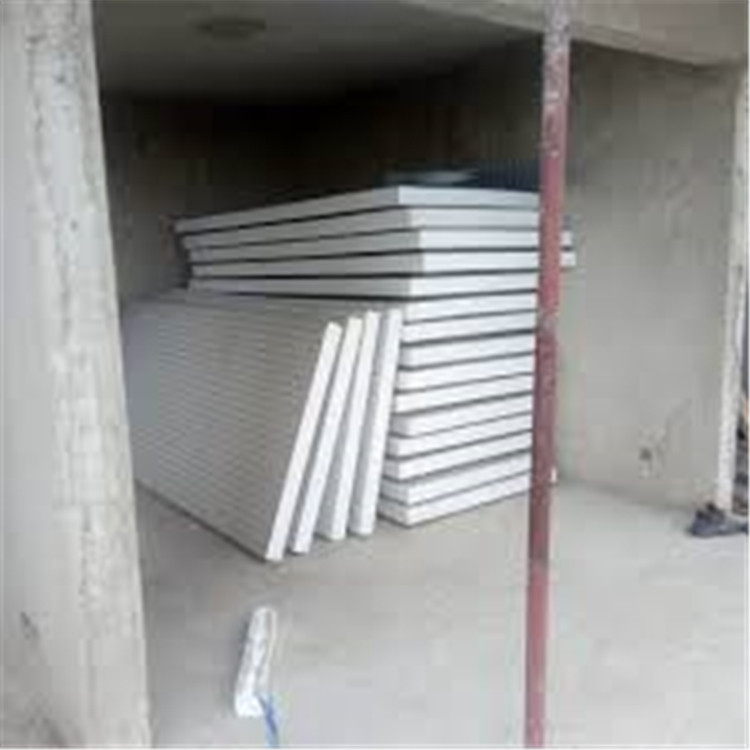

For normal sizes, we have enough stock for you.
Packing: 20 3d eps panels packed in a steel tray.
Shipping: 7-15 days.
