Tower Internals Liquid Distributor
- $100.00 /set
- 1 set
- Pingxiang Nanxiang Chemical Packing Co., Ltd.
- Jiangxi, China
- Ms Jenny Liu
PRODUCT DETAIL
product name: | liquid dispenser | After Warranty Service: | Video technical support, online support |
Health status: | new | Main selling points: | liquid distribution |
Supply capacity: | 500 sets per week | Marketing Type: | normal product |
Spare Part Type: | Packed column internals | MOQ: | 1 set |
Warranty: | 1 year | Applicable industries: | retail, construction, packed columns |
After-sales service provided: | Video technical support, online support | Certificate: | ISO9001:2015 |
payment terms: | L/C, T/T, Western Union, MoneyGram | Material: | Stainless steel |
Showroom location: | not any | brand: | Nanxiang |
usage: | tower interior | Origin: | Jiangxi, China |
Key words: | Tank Liquid Distributor | Local service locations: | not any |
Packaging Details: | Wooden case or as customized. | Mechanical test report: | not available |
Video outbound inspection: | if | port: | Shanghai/Ningbo |
Product Description

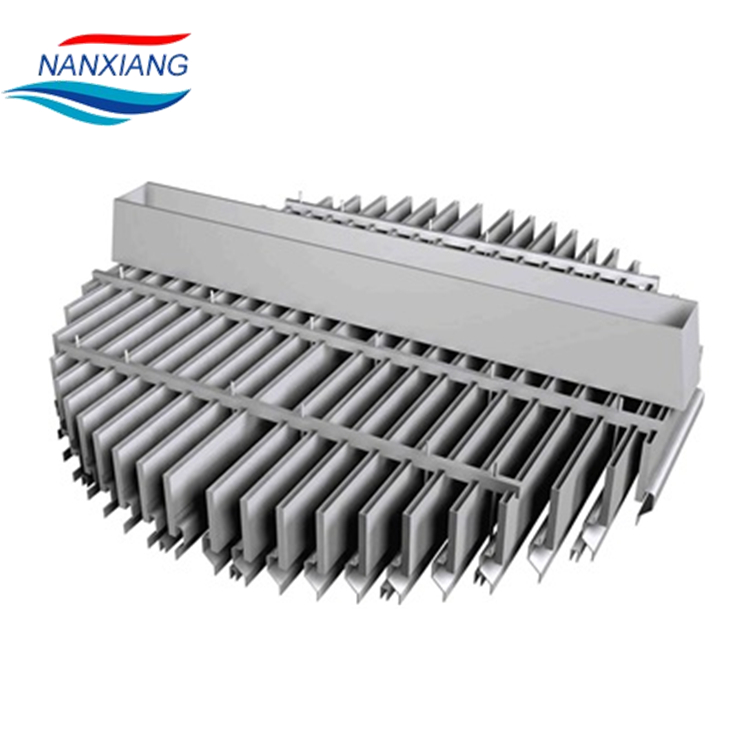

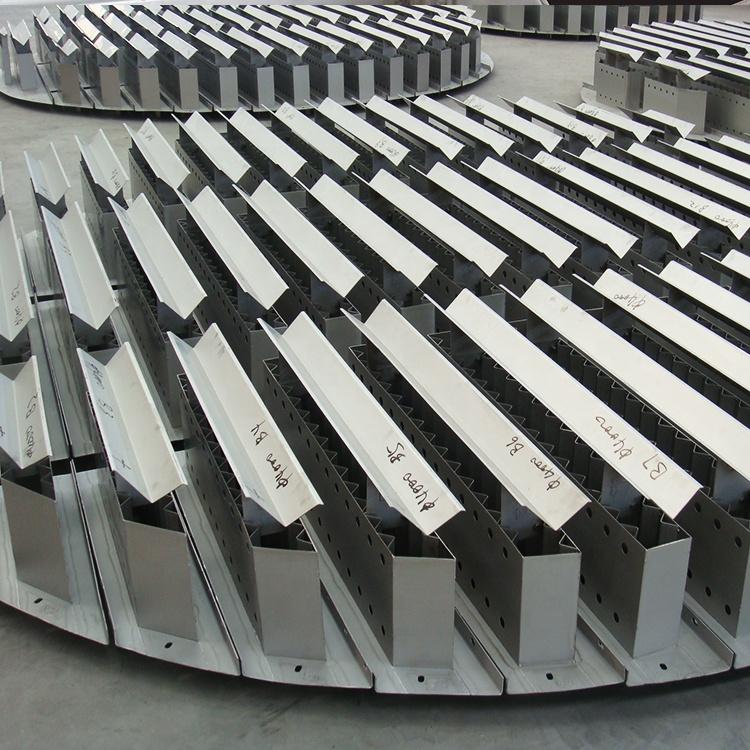

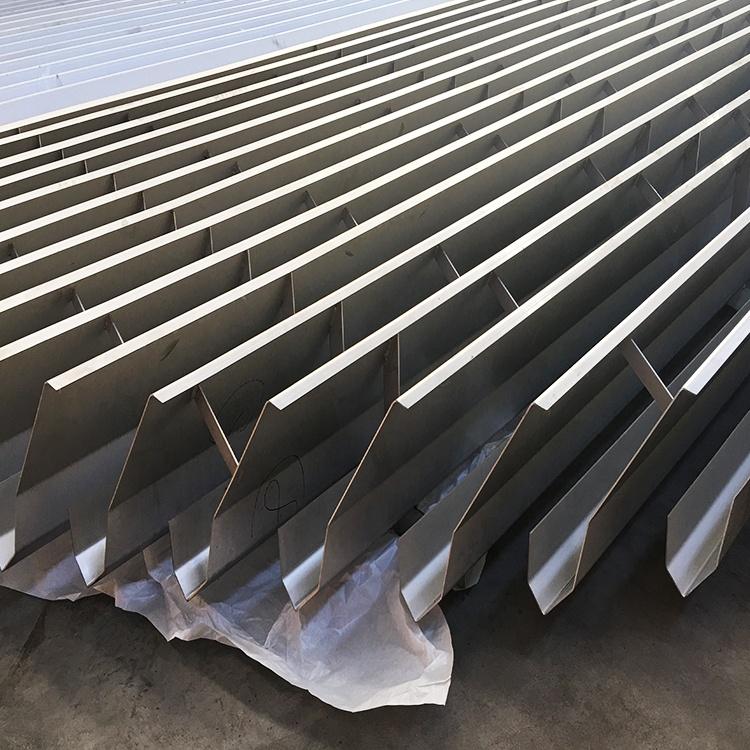

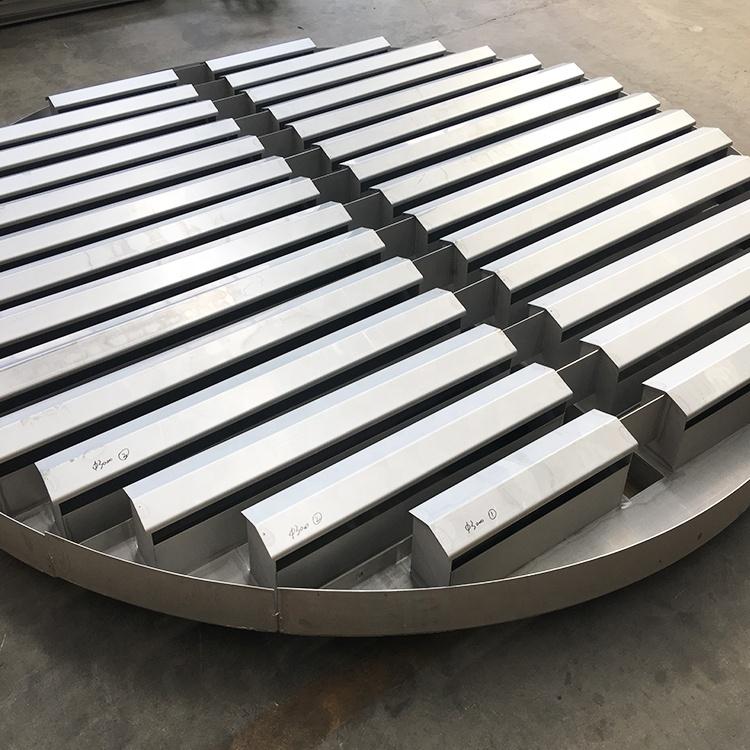

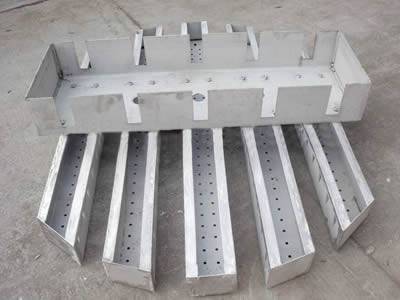

slot distributor
A trough distributor consists of a long tunnel called a trough and one or more compartmentalized boxes for delivering liquid to the trough. The distribution box helps control the tank feed rate and ensures a proportional distribution of liquid. The space between the slots allows steam to pass through. The number and position of the parting boxes depends on the column diameter. The orifice can be located in the wall or in the bottom of the tank. When the orifice is located on the wall, guide tubes are provided on the wall to guide the flow of liquid.
Trough distributors are usually placed on ledges/support rings. Can also be hung on beams. Advantages of Separation
The housing has no joints and therefore provides an excellent liquid tight seal. A redistributor is not provided in this model.
Trough distributors are usually placed on ledges/support rings. Can also be hung on beams. Advantages of Separation
The housing has no joints and therefore provides an excellent liquid tight seal. A redistributor is not provided in this model.
main feature:
1. Change the liquid dispenser from multiple points to infinite points. There is an impressive improvement in distribution uniformity. Realize line distribution and area distribution.
2. Leak-proof design.
3. Simple structure, low footprint, light weight, easy installation.
1. Change the liquid dispenser from multiple points to infinite points. There is an impressive improvement in distribution uniformity. Realize line distribution and area distribution.
2. Leak-proof design.
3. Simple structure, low footprint, light weight, easy installation.

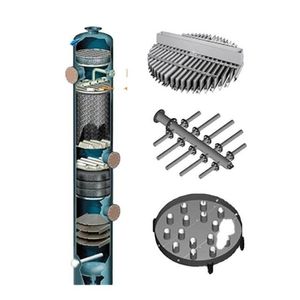

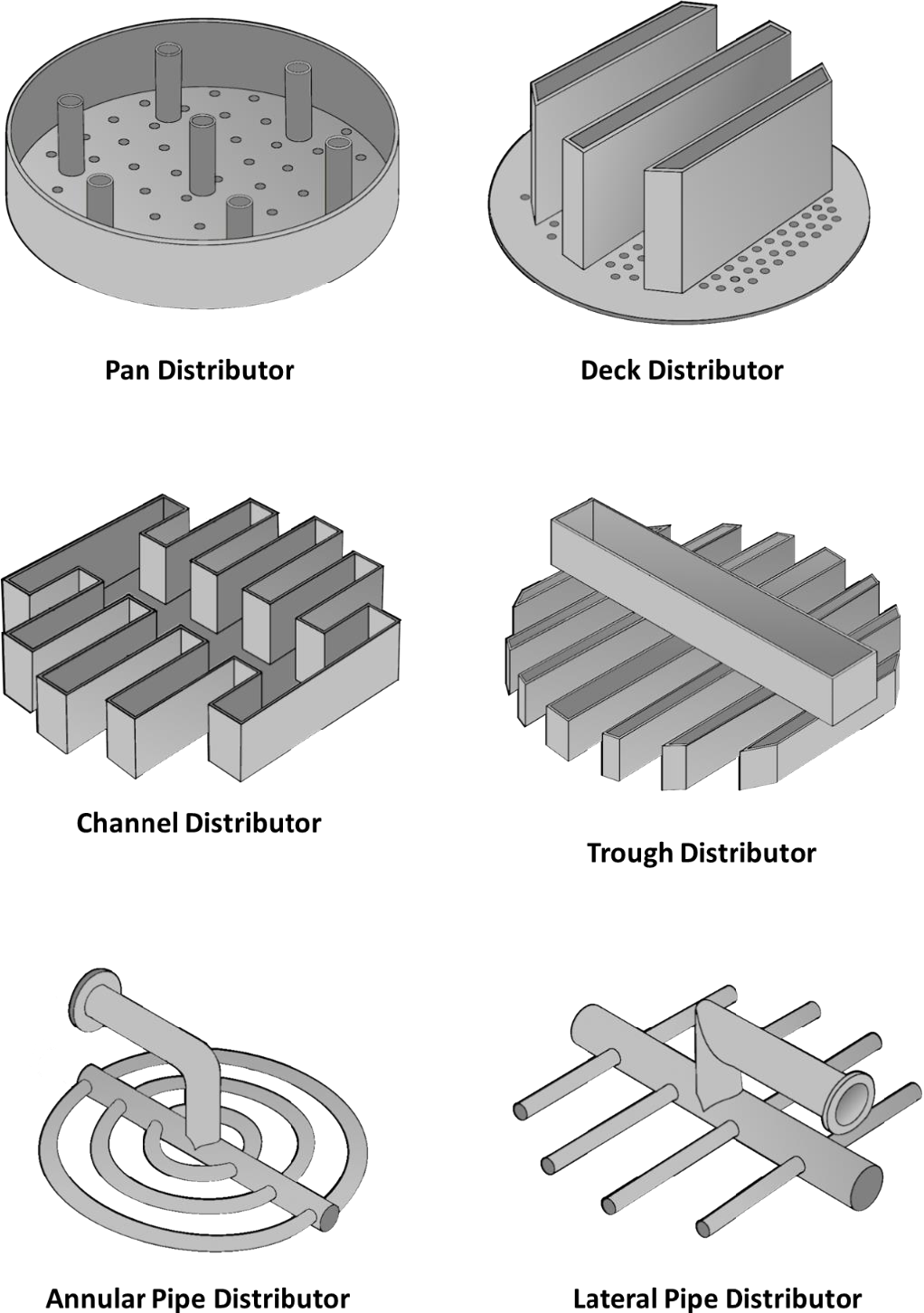

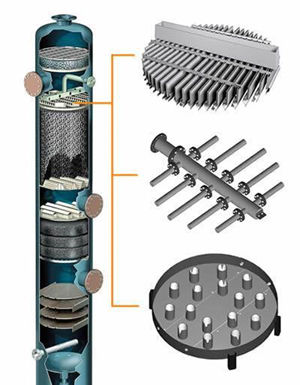

What types of liquid dispensers are available?
There are many types of liquid dispensers according to different standards and conditions of use. Overall, it comes in four types.
* Nozzle.Hemispherical nozzles distribute liquid evenly over a bed of random or structured packing. There are many small holes of 3 to 10 mm on the nozzle. Suitable for smaller packed towers with a diameter less than 600mm.
* Perforated pipe dispenser.Single or double rows of perforated tubes distribute liquid evenly over the packed bed through the perforations under the tubes. Widely used in medium liquid tower, vacuum distillation tower, wire mesh structured packing tower. It can be made into trapezoid and ring shape.
* Via dealer.There are two types of through-type and through-disc type, which are widely used in heavy liquids, gas loads, high-viscosity liquids and liquids containing suspended solids.

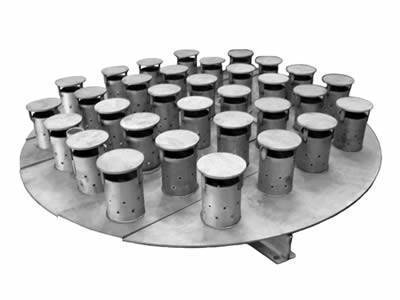

* Orifice plate dispenser.It can be divided into orifice plate type and disc type. Liquid will flow down through the perforations or overflow from the annular space between the dispenser and container. Suitable for small diameter towers below 800mm.
There are many types of liquid dispensers according to different standards and conditions of use. Overall, it comes in four types.
* Nozzle.Hemispherical nozzles distribute liquid evenly over a bed of random or structured packing. There are many small holes of 3 to 10 mm on the nozzle. Suitable for smaller packed towers with a diameter less than 600mm.
* Perforated pipe dispenser.Single or double rows of perforated tubes distribute liquid evenly over the packed bed through the perforations under the tubes. Widely used in medium liquid tower, vacuum distillation tower, wire mesh structured packing tower. It can be made into trapezoid and ring shape.
* Via dealer.There are two types of through-type and through-disc type, which are widely used in heavy liquids, gas loads, high-viscosity liquids and liquids containing suspended solids.
* Orifice plate dispenser.It can be divided into orifice plate type and disc type. Liquid will flow down through the perforations or overflow from the annular space between the dispenser and container. Suitable for small diameter towers below 800mm.

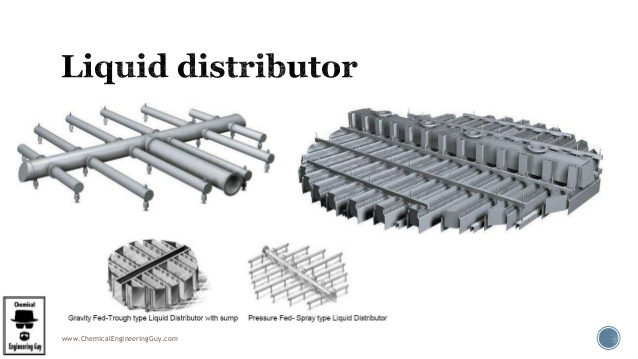

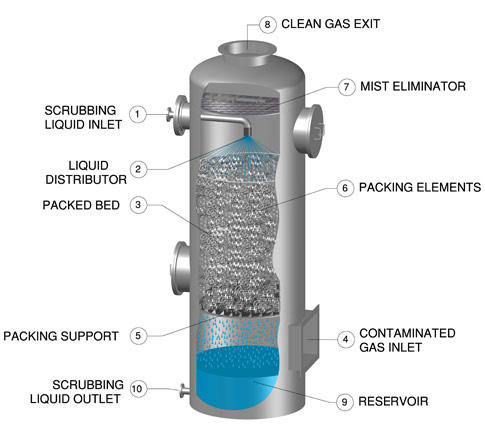

LD-01: Liquid distributor ensures uniform liquid distribution and high mass transfer efficiency.

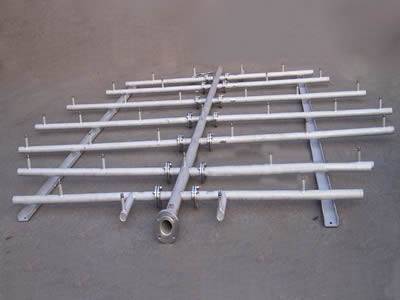

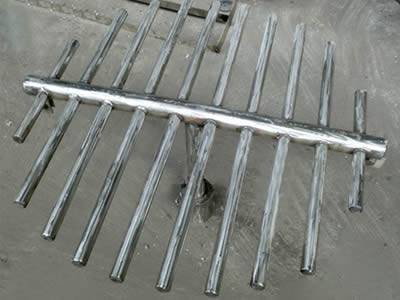

LD-02: Perforated tube liquid dispenser.
LD-03: Straight-through liquid dispenser.
LD-04: Nozzle Liquid Dispenser.
LD-05: Perforated orifice plate liquid distributor.
detailed picture
Product packaging
giant bag
carton
Woven bag
