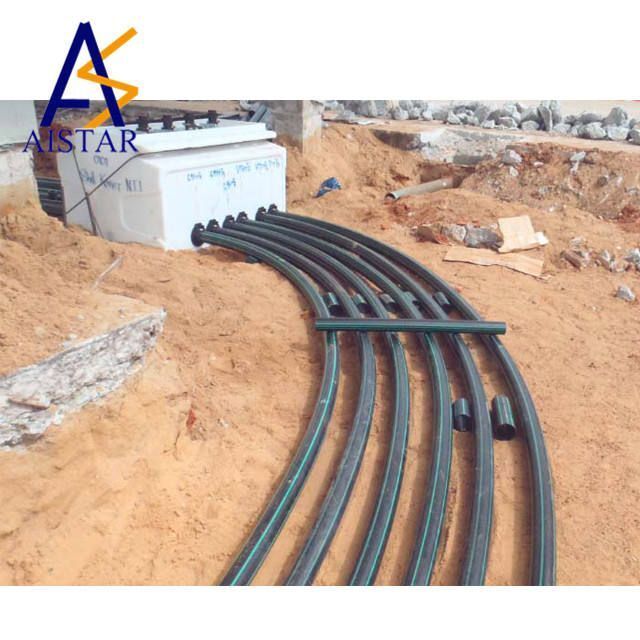

Underground UPP PIpe for filling station

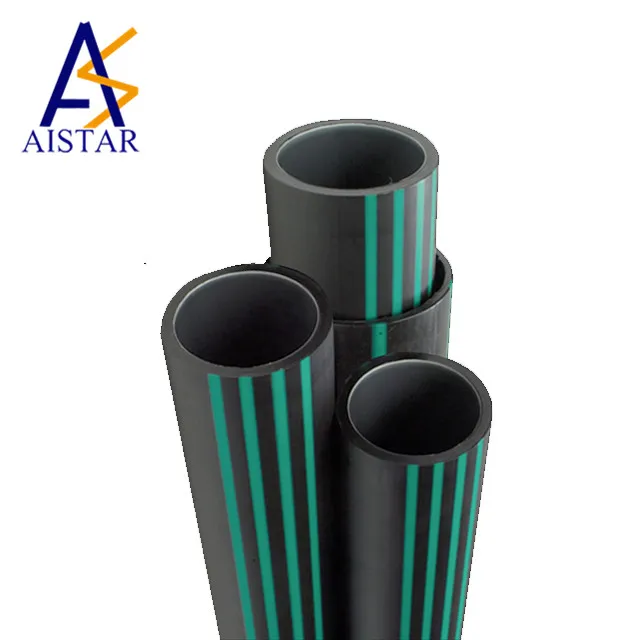

Petrol Pipe

1. Impermeable layer is made from pure EVOH without any modification for the best separation impact. This impermeable layer can be used together with all kinds of oil, ethanol mixture and additive, it's ensured to be appropriate for all of types of fuel in the world.

2.  The proper five-layer structure makes the layers can be pasted in each other

3.  Resistor of conducting shell is less than 10⁴

4.  Non-corroding, service life is long, It's able to bear various chemical mediators, no electrochemical corrosion.

5.  It's burst pressure exceeds 40 standard atmospheric oressure, ten times of working pressure, so that higher safety can be kept.

6.  Working temperature range from -40  to 50 , with excellent capability.

7.  Lightweight, covenient for transport and installation.

Gas station composite oil pipeline application range:

   1. Rod pump well: It is suitable for pole shaft eccentric wear, corrosion, and waxing serious wells. It is especially suitable for horizontal wells, directional wells, oil wells with large well inclination, wellbore, and high failure rate of rods and tubes.

   2. It can be used continuously in the old oil pipe with the remaining wall thickness not less than 50% of the original wall thickness.

   3. Water injection well: It is suitable for water injection wells with serious scaling and corrosion.

   4. Corrosive gas wells: Suitable for gas wells containing H2S and CO2.

   5. Offshore oil and gas wells and high-yield wells on land: greatly extend the life of the column, reduce the loss of production, and reduce the overall maintenance cost.

   6, can improve the efficiency of the artificial lift system, can be used as a power saving measure.

   7. All kinds of flat and thick oil pipes of various calibers and lengths can be made into inner lining oil pipes.

Compared with traditional steel pipes, special gas pipelines for gas stations have the following advantages:

1. Long service life. Conventional pipes are generally treated with anti-corrosion treatment before being buried. Even in neutral non-corrosive soils, the average service life is only 10 years. Due to its stable nature, the composite pipe can be service-free for 50 years and basically meets the design limit of the gas station.

2. Safe antistatic properties. The inner surface of the dedicated oil pipeline of the gas station is smooth, the hydraulic linear coefficient is good, the liquid flow state in the pipeline can reduce the generation of static charge, and the composite pipe is multi-layer design, and the conductive layer is independently designed to have electrostatic conductivity and can effectively prevent static electricity accumulation. Discharge, fully meet the construction standards (body resistivity is less than 108 Ω.m, surface resistivity is less than 1010 Ω).

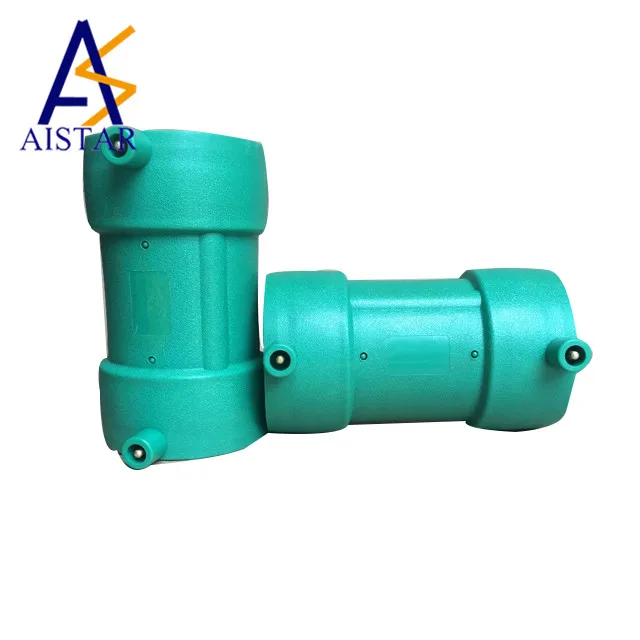

3. Installation and construction are safe and efficient. The safety conditions required for the construction of gas station pipelines are high, especially in the reconstruction and maintenance of gas stations, which may involve the welding construction of residual flammable and explosive oil products and oil and gas. The composite pipe generally adopts the custom connection elbow and pipe fittings, and adopts the principle of hot melt or bonding to avoid the open fire operation in the traditional process. For the laying of seamless steel pipe, it is necessary to strengthen the pipeline for corrosion protection and to bury it in the trench. The construction time of a gas station should be within 10-12 days on average. The composite pipe does not need anti-corrosion treatment, and can be directly buried, and the average construction period is only 3-5 days.

4. Corrosion resistant. Gas station dedicated oil pipelines are extremely resistant to corrosion and never rust. Because the oil pipelines of gas stations are mostly buried pipelines, the traditional steel pipeline process is limited by the soil acidity and alkalinity and the chemical composition of the soil. It is necessary to carry out multiple anti-corrosion measures to bury the pipeline. Due to its special chemical materials, composite pipes do not electrochemically react themselves, and it is difficult to ionize and react with other chemical components in the soil. It has high chemical stability and excellent corrosion resistance to acid and alkali solutions. In areas with strong soil corrosivity and high humidity, it has obvious advantages of corrosion resistance and corrosion compared with steel pipes.

5. Large pressure bearing capacity and strong toughness. The special oil pipelines for gas stations are generally designed as multi-layer structures. The chemical molecular connections are used to connect different pipeline layers, so that the multi-layer pipelines become a solid whole, eliminating the risk of leakage and swelling caused by the separation between layers. The ability is higher than seamless steel pipe. The maximum working pressure can reach 4.0MPa, and the negative pressure can reach 0.1MPa, which fully meets the requirements of the maximum working pressure of non-metallic composite pipe specified in the construction standard of not less than 0.35MPa.

6. Convenient transportation. The special oil pipeline of the gas station can reach one tenth of the weight of the steel pipe, and because of its good flexibility and curvature, it can be packaged and transported, and the pipe transportation is not limited by the processing length, which greatly facilitates the cargo logistics of materials. transport.
