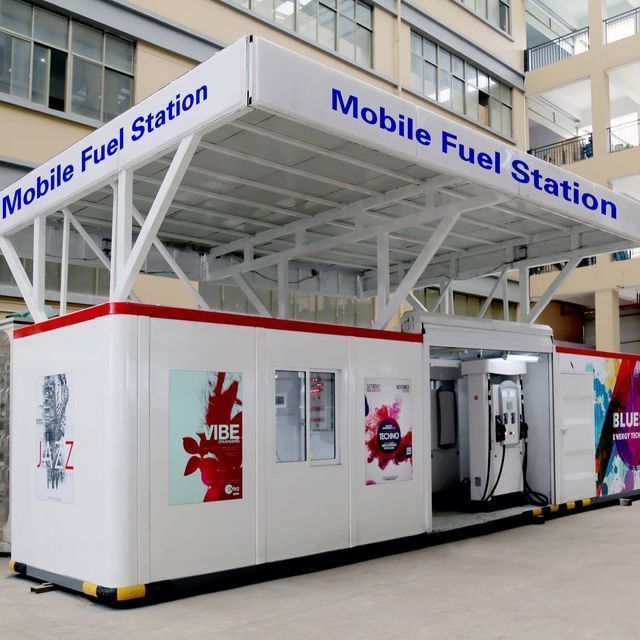

Portable fuel station with 30m3 fuel tank

PRODUCT DETAIL
port:Ningbopayment terms:L/C, Western Union, T/T
Packaging Details:wrapped in filmMaterial:Carbon steel
Certification:ISO9001 CE PCECSupply capacity:50 sets per month
After-sales service provided:Engineers available to service machinery overseasbrand:blue sky
Origin:ChinaAfter warranty service:Video Technical Support Online Support Spare Parts
Local service location:Philippines Nigeria Saudi Arabia Morocco

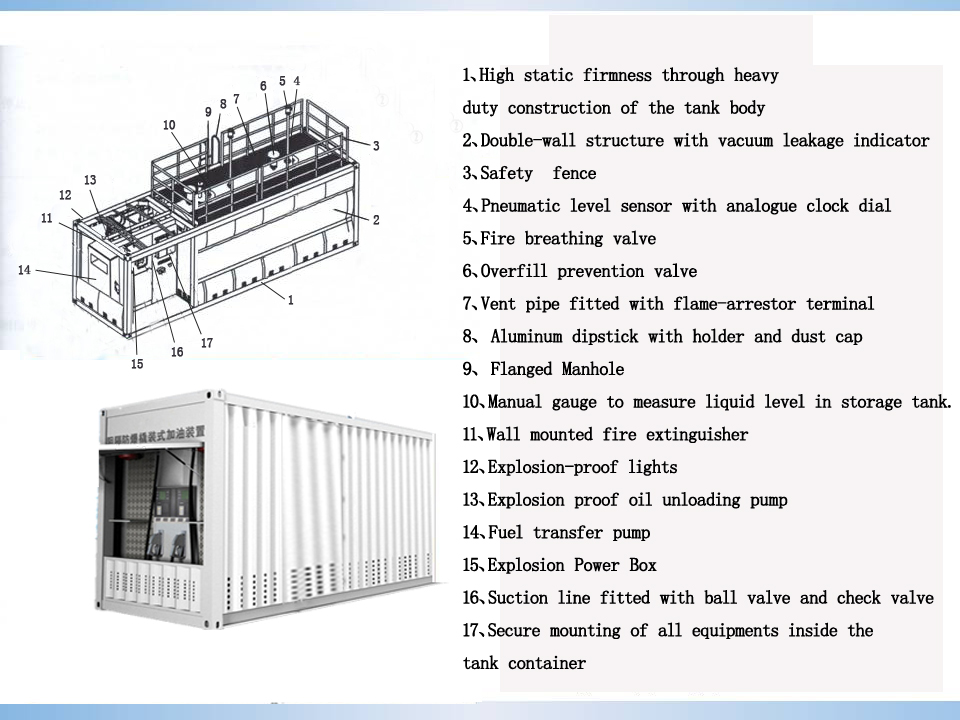

Technical parameters Skid-mounted gas station



No.

thing

Specification

Comment

1

design standards

GB/T16563-1996

ISO1496-3



2

External

Box

40 feet

3

tank type

cylinder type



4

Maximum capacity (cubic meter)

30

single position

5

Dimensions (mm)

12192*2438*2591

length*width*height

6

Weight (kg)

curb weight (kg)

6400



7

Loading weight (kg)

30000

Water load at 20°C

8

Working temperature (℃)

-19~70



9

Working pressure (Mpa)

0.09



10

Tank material

National standard Q345B

Carbon steel

11

Thickness (mm)

5



12

End shield(mm)

5

Flange flat head

13



Exterior wall thickness

2



14

External wall head

2



15

Reinforcing ring(mm)

5

single position



16

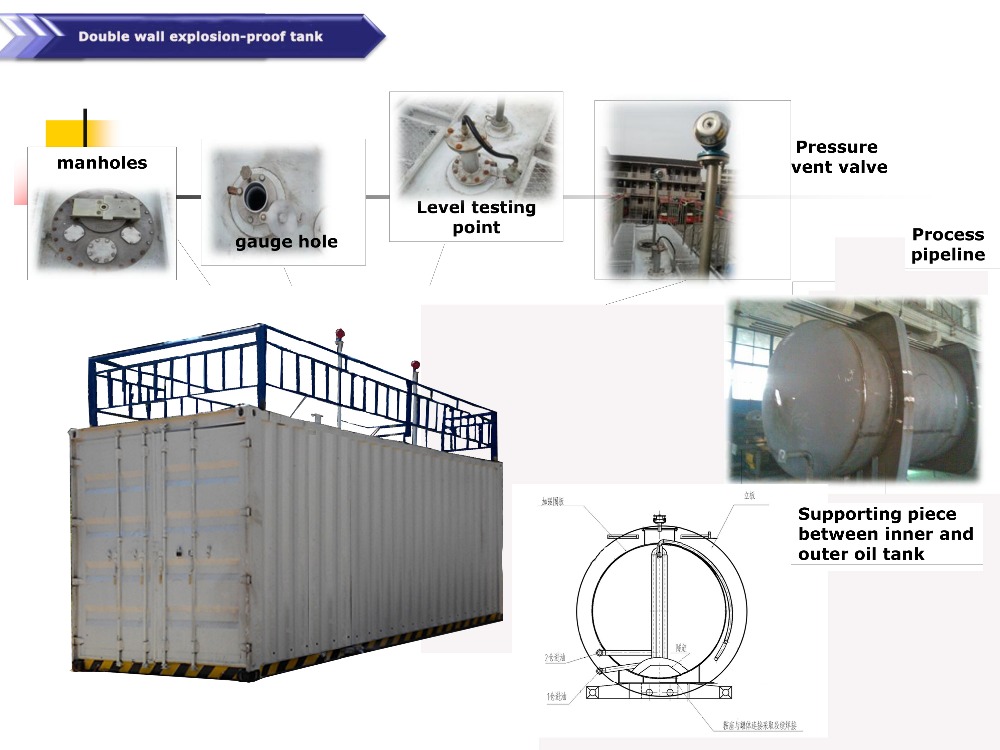

Composite manhole

DN500

Prevent spillage and explosion, built-in 1 safety valve

17

Drain valve

DN50

2

18

Protection frame(mm)

800*750*150

2

19

Ultrasonic electronic measuring instrument

NE-10

2

20

Leak detector

WT-LLD

1

twenty one

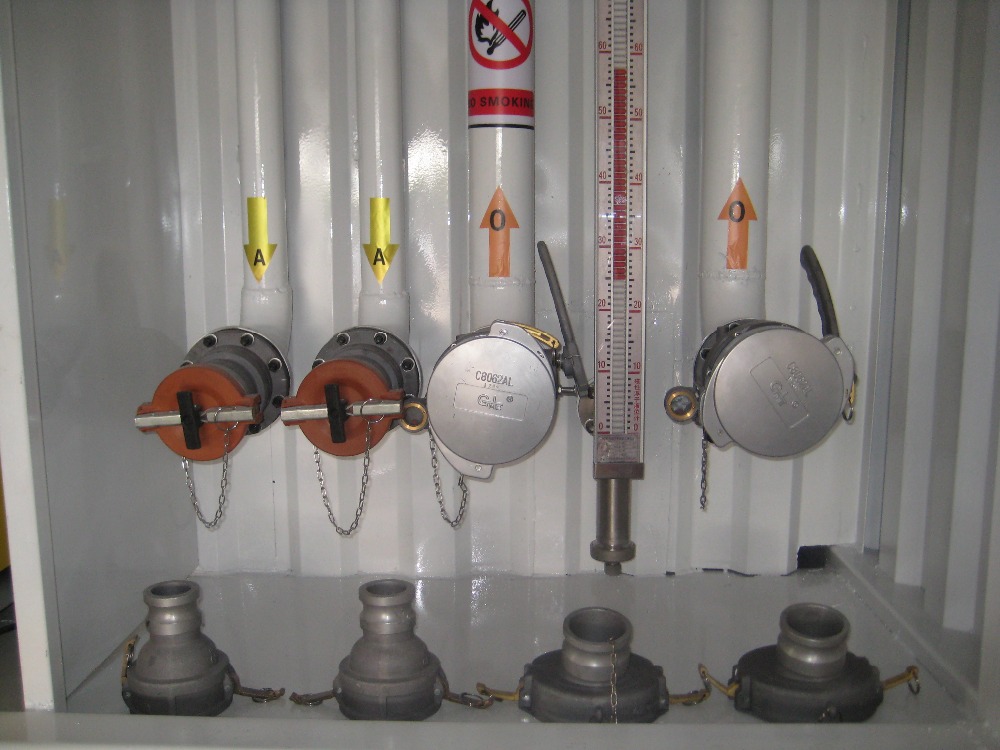

Oil inlet joint

DN100

API 1

twenty two

Inlet pump

DN80

150 l/min

twenty three

Three-way valve

DN80



twenty four

Oil inlet valve

DN80

2

25

Oil outlet valve

DN40

2

26

tanker

RT-HY222

50 l/min

27

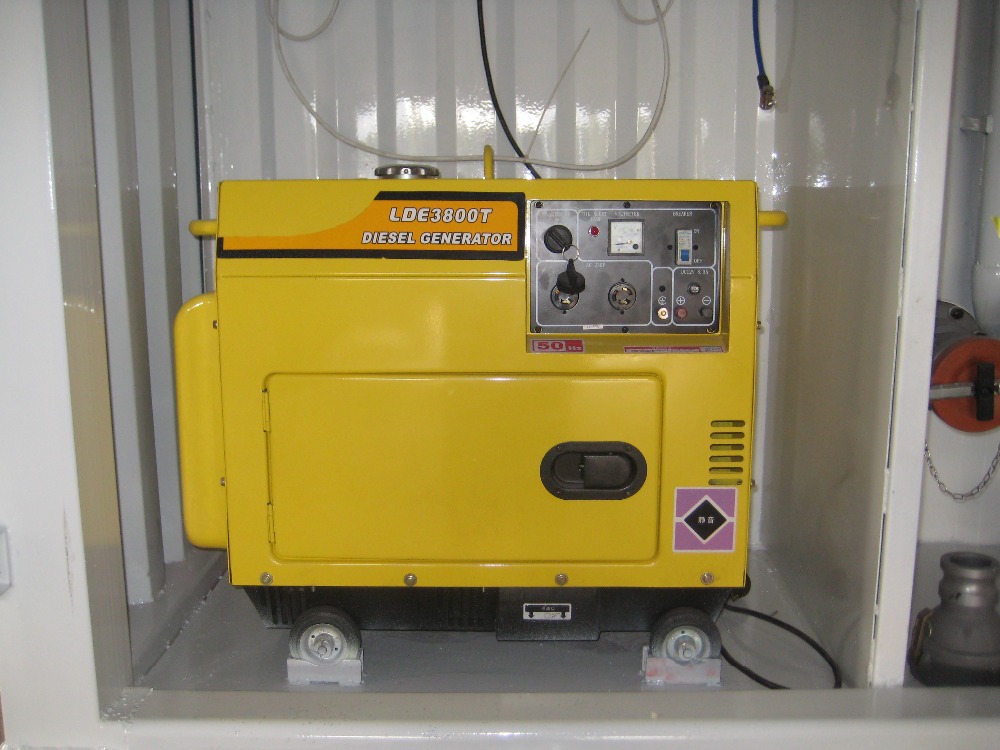

dynamo

KDE15T3N (12KW)



28

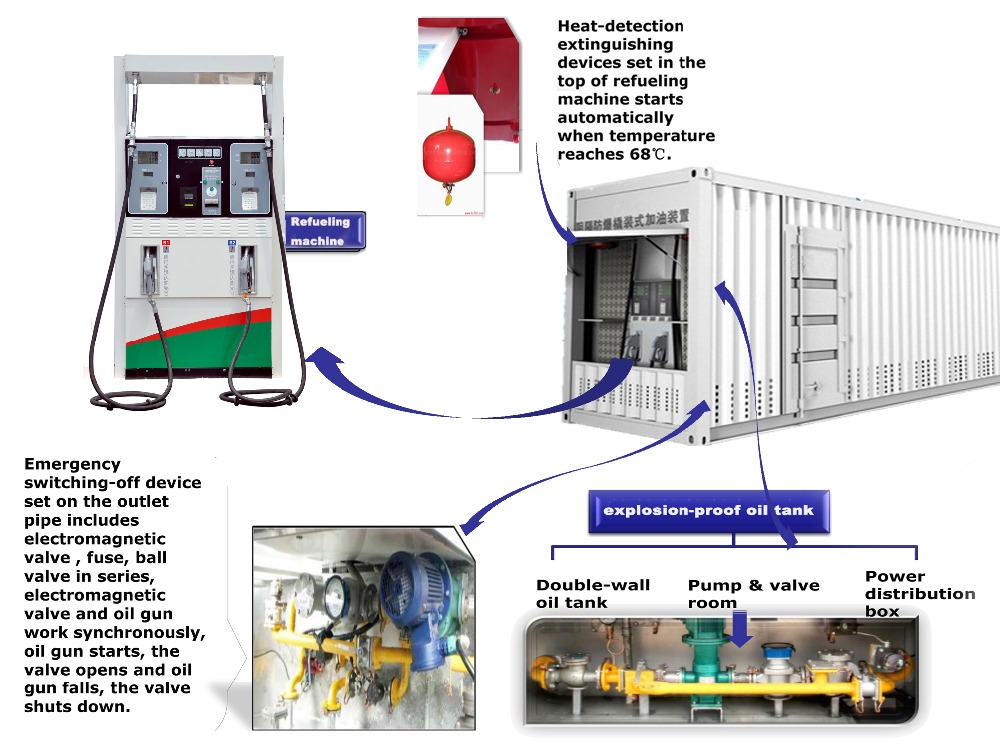

Explosion-proof electric control box

PLC-2



29

ground bolt

CFY03



30

Tank door (pair)

1



31

Vents



2

32

Step (mm)

W=400





32

dry powder fire extinguisher

4KG

2
