VRF central air conditioner controller zigbee/TuYA WIFI port with voice temperature mobile phone remote control switch

Price:$85.00 / 10 - 999 pieces
$82.00 / >=1000 pieces
Min. Order:10 pieces
Supplier:Shenzhen Sailingnuo Technology Co., Ltd.
Region:Guangdong, China
Contact:Mr hu ouyang

PRODUCT DETAIL

application:	Smart Home Automation	WeChat/WhatsApp:	008613536872506
design:	flip	Package preview:
Key words:	smart light bulb	color:	white
Function:	application control	feature:	Wifi
Supply capacity:	10000 pieces per day	Company Name:	Shenzhen Sailingnuo Technology Co., Ltd.

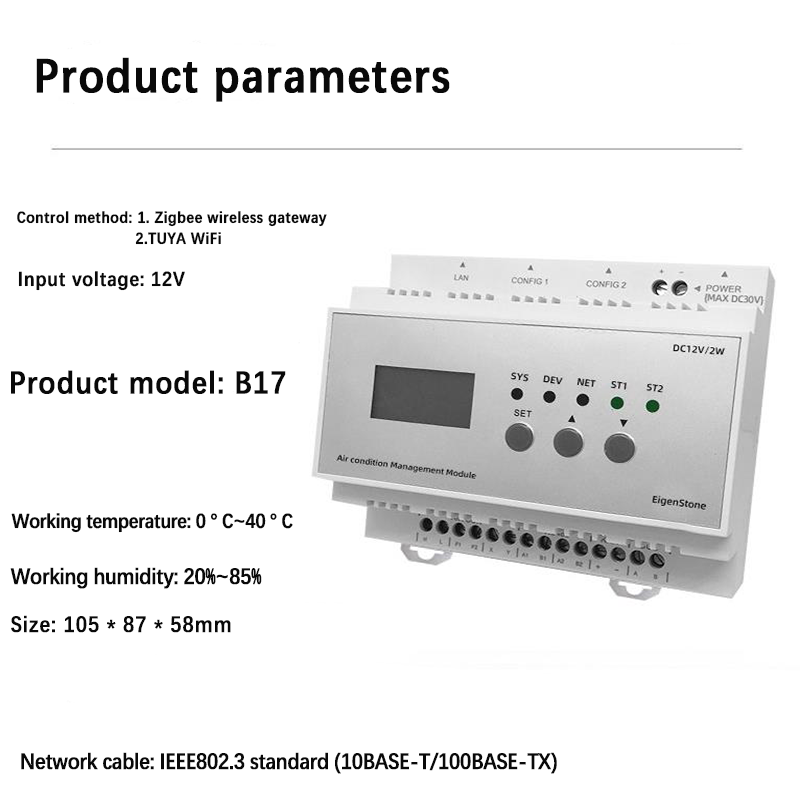

model:	B17	Screen Resolution:	640x480
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Origin:	China
Packaging Details:	carton	port:	Shenzhen
Display type:	organic light emitting diode	camera:	< 3MP
unit price:	$108	Screen:	4.0-4.9"
product name:	VRF Central Air Conditioning Controller	use:	common
compatible:	Compatible	application:	graffiti
brand:	Serino	operating system:	windows phone

Before installation, please turn off the air conditioner and do not run it with electricity.

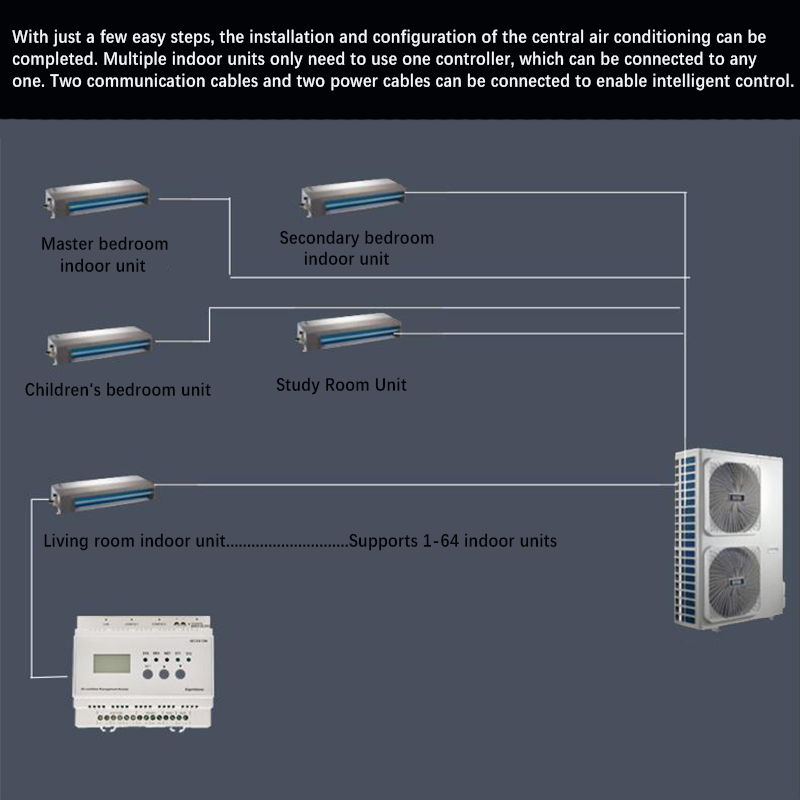

The gateway can be connected to both internal and external machines, and it is recommended to connect to the internal machine closest to the router.

1. Open the inspection door of the air conditioner internal unit, and place the centralized control gateway on the ceiling, keeping away from the internal unit to avoid condensation from the air conditioner dripping onto the gateway.

2. Remove the side cover of the indoor unit, first remove a few screws, and then remove the cover.

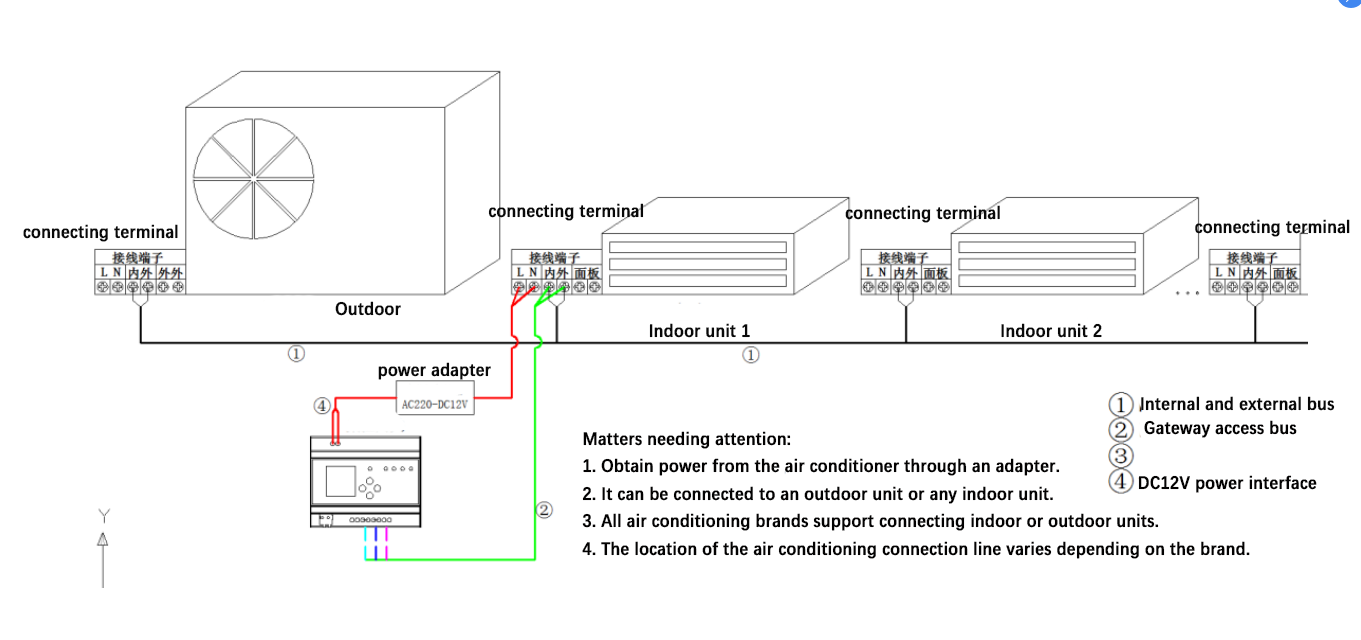

3. Connect the plug end (input end) of the power adapter to the AC L and N of the indoor unit (regardless of zero fire), do not connect to other devices

location, because the gateway needs to be turned on and off at the same time as the air conditioner. Plug the round end of the adapter output into the gateway.

4. Connect the centralized control gateway to the internal centralized control terminal, as follows:

air conditioner brand	Wiring	address setting	Connections
DaikinDK	Connect the gateway F1/F2 to the internal and external terminals F1/F2, positive or negative.	unnecessary	2 lines
HitachiHT	The gateway F1/F2 is connected to the internal and external terminals 1/2, regardless of positive and negative.	unnecessary	2 lines
ToshibaTS	The gateway F1/F2 is connected to the internal and external terminals U1/U2, regardless of positive or negative.	unnecessary	2 lines
mitsubishi M H	Mitsubishi MH connects the gateway G1/G2 to the internal and external terminals A/B, regardless of positive or negative.	unnecessary	2 lines
Gree ElectricGeneral Electric Company	Gree connects the gateway H1/H2 to the internal and external terminals D1/D2 to distinguish between positive and negative.	unnecessary	2 lines
beautiful Medical PhD	Connect the gateway G1/G2 to the internal and external terminals P/Q, positive or negative.	unnecessary	2 lines
Haier he	Connect the gateway F1/F2 to the internal and external terminals P/Q respectively, regardless of positive or negative.	unnecessary	2 lines
Matsushita polystyrene	The gateway F1/F2 is connected to the internal and external terminals U1/U2, regardless of positive or negative.	unnecessary	2 lines
Trane TR	Trang TR connects gateway G1/G2 to internal and external terminals P/Q, either positive or negative.	unnecessary	2 lines
McQuay Wechat business	Connect the gateway G1/G2 to the external terminal Apc/Bpc, regardless of positive or negative.	unnecessary	2 lines
Samsung SS	Connect the gateway G1/G2 to the internal and external terminals F1/F2 respectively, regardless of positive or negative.	unnecessary	2 lines
Fujitsu acronym	The gateway G1/G2 is connected to the original gateway terminal A/B, regardless of positive or negative.	unnecessary	2 lines
auxiliaryax	Connect the gateway G1/G2 to the internal and external terminals A/B, regardless of positive or negative.	unnecessary	2 lines
LG	LG will connect the gateway G1/G2 to the outdoor unit CENA/CENB, no matter it is positive or negative.	unnecessary	2 lines
Hisense HS	Hisense HS connects the gateway F1/F2 to the internal and external terminals 1/2, regardless of positive or negative.	unnecessary	2 lines
Zhi Gao computer animation	Connect the gateway G1/G2 to the internal and external terminals P/Q, positive or negative.	unnecessary	2 lines
Bosch bachelor	Connect the gateway G1/G2 to the internal and external terminals P/Q, positive or negative.	unnecessary	2 lines
Gree fourth generation GS	Connect the gateway G1/G2 to the internal and external terminals A/B, regardless of positive or negative.	unnecessary	2 lines

If you need a complete manual, please contact the customer to request.
