Verizon JZQ400 cylindrical gear reducer gearbox complete for conveyor

PRODUCT DETAIL
transmission:insectInput speed:1000 rpm
Tooth surface hardness:Hard tooth surfaceblue or green:cast iron housing
Gear Type:Cylindrical gear reducerOrigin:Jiangsu, China
port:ShanghaiInstallation form:horizontal
brand:Verizonoutput speed:800~100000N.m
Product Keywords:marine gearboxOutput torque:800~100000N.m
payment terms:L/C, T/T, Western UnionSupply capacity:10000 pieces per month
Packaging Details:wooden box
Product Description
Verizon JZQ400 cylindrical gear reducer gearbox complete for conveyor

Overview of JZQ (ZQ) reducer:
ZQ reducers are mainly used in lifting, mining, general chemical, textile, light industry and other industries. The application requirements are as follows:
1. The gear transmission speed of the reducer shall not exceed 10 m/s;
2. The speed of the high-speed shaft of the reducer shall not exceed 1500 rpm;
3. The reducer is used for positive and negative rotation;
4. The working environment temperature of the reducer is 40°C to +40°C

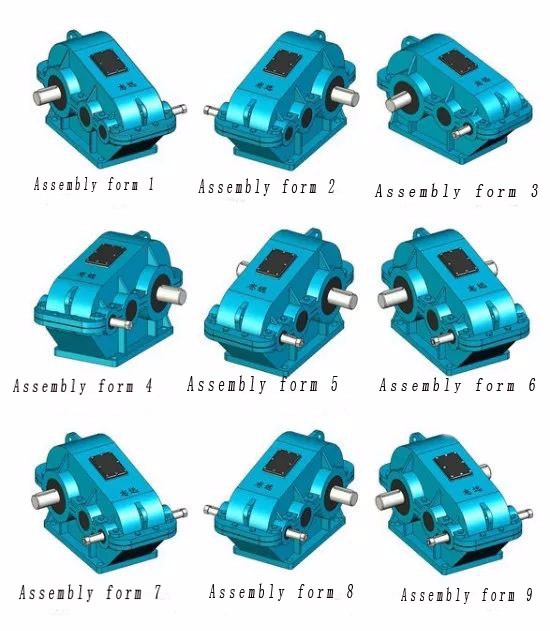

5. The reducer has nine transmission ratios, nine configuration types and three low-speed shaft end types.
6. The transmission ratios of this type of reducer are: 48.57, 40.17, 31.5, 23.34, 20.49, 15.75, 12.64, 10.35, 8.23.

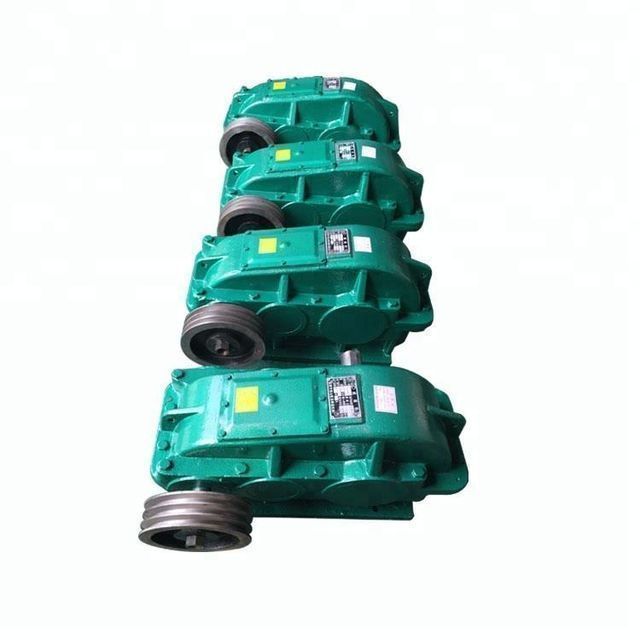

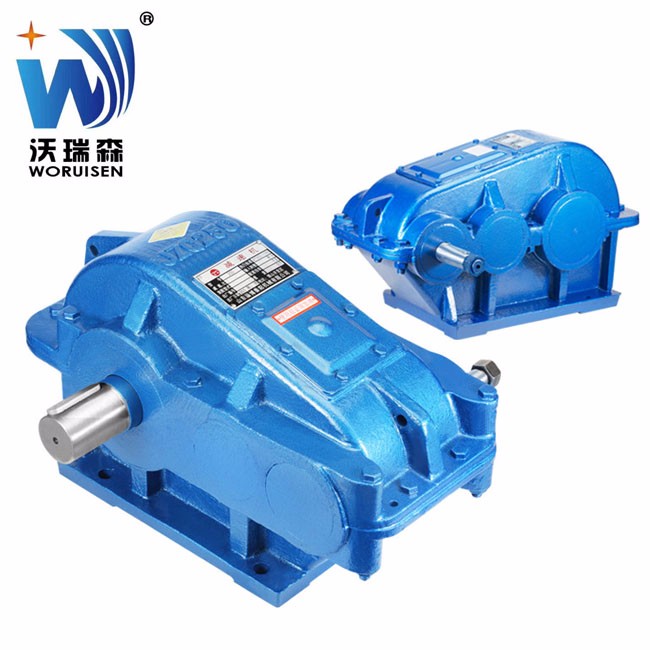

product

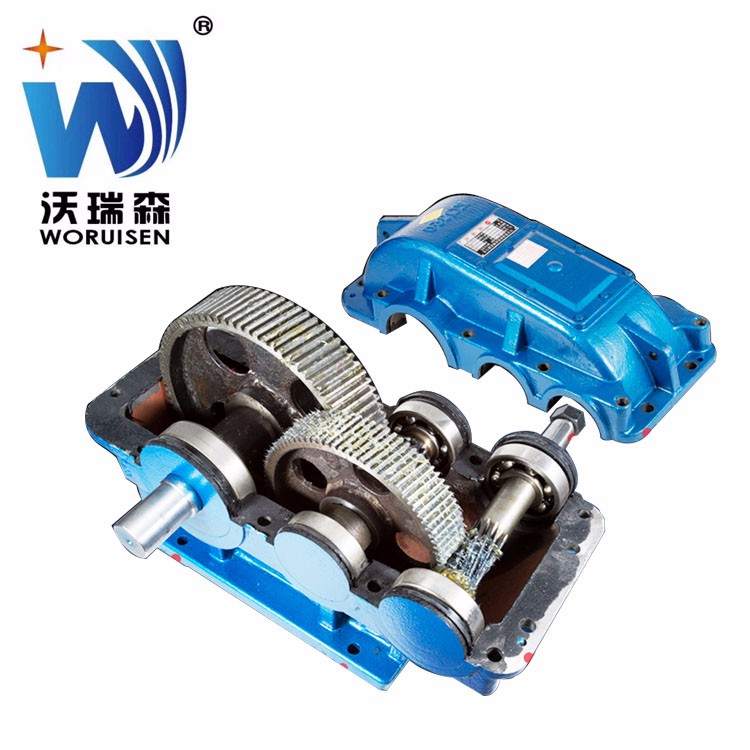

internal structure
assembled from
