Wanxin ZLY high torque parallel transmission gearbox

PRODUCT DETAIL
rated power:1.1kw---5000kwOrigin:Shandong China
color:According to your requestsmodel:ZLY series reducer
port:Qingdao/Shanghaiturn around:normal or inverted
Output torque:450n.m---480000n.mpayment terms:L/C, T/T, Western Union
Gear ratio:6.3~20Supply capacity:Manufacture of 1,000 Wanxin gearboxes per month
output speed:38~240rpmPackaging Details:ZLY gearbox in plastic bag + PE foam + wooden case + metal watch strap
brand:Wan Xintransmission:Spiral
Input speed:600~1500 rpmIndustry restrictions:Not subject to industry restrictions
Reducer output shaft:high strength alloy steelShell material:cast iron
Quality Control System:ISO9001-2008
Product Description



Wanxin ZDY series gear box hard tooth surface reducer



Features

The hard tooth surface reducer gear is made of high-strength low-carbon alloy steel through carburizing and quenching to make high-grade gears. The tooth surface has high hardness, CNC grinding technology, high precision, good contact, high transmission efficiency, stable operation, and low noise; small size , light weight, long service life, high bearing capacity; easy disassembly and inspection, easy installation.

  • Center distance, center height, drive number take precedence over using the priority numbering system.
  • Gear parameters and structure are optimally designed by computer.
  • The gears are made of high-strength low-carbon alloy steel through carburizing, quenching and grinding. The hardness of the tooth surface is high, and the gear precision reaches the international standard level 6.
  • High transmission efficiency and low noise.

scope of application

  • The speed of the high-speed shaft is not greater than 1500 rpm;
  • The peripheral speed of the gear is not greater than 20 m/s;
  • The working environment temperature is -40°C-45°C, if it is lower than 0°C, the lubricating oil should be preheated to 0°C before starting.



Specification
Item nameWanxin ZLY series gear box hard tooth surface reducer
model.ZLY series
MaterialHousing/cast iron
Gear/20CrMoTi; Shaft/High Strength Alloy Steel
input speed600~1500 rpm
output speed38~240rpm
ratio6.3-20
input power1.1~5000kw
service factor/
pole2 poles

Mamax allowable torque

450n.m---480000n.m

QC

system

ISO9001-2008;CE;IQNet

Package

Plastic bag+PE foam+wooden box+metal strap
deliver goods

15-30 days after order

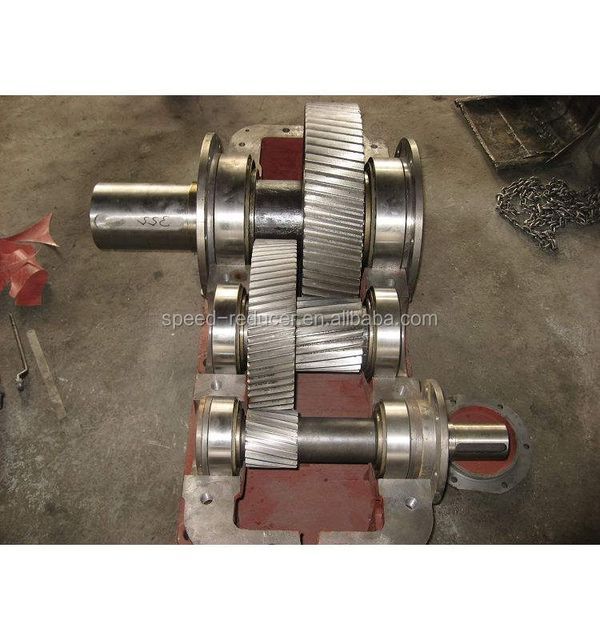

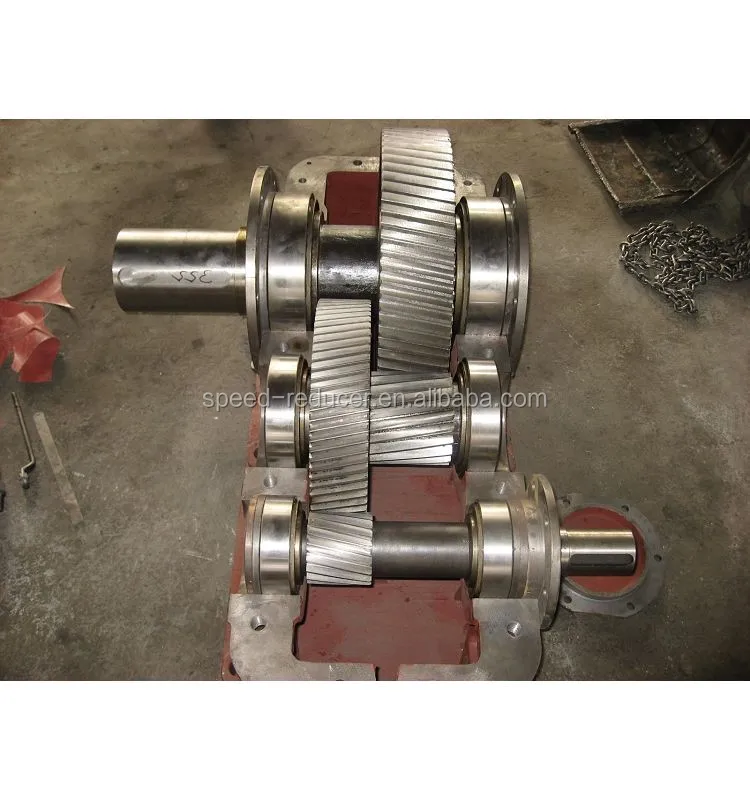

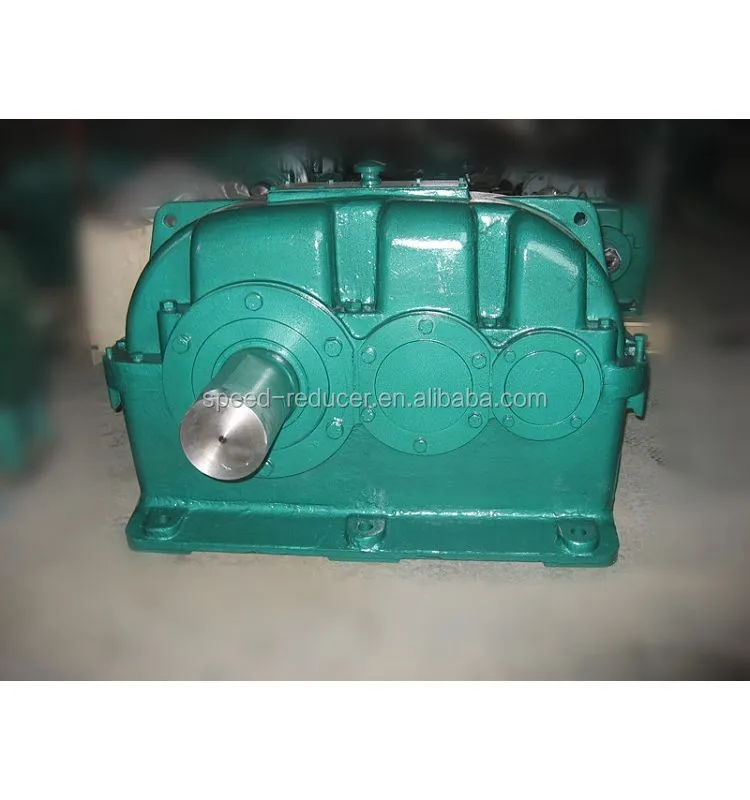

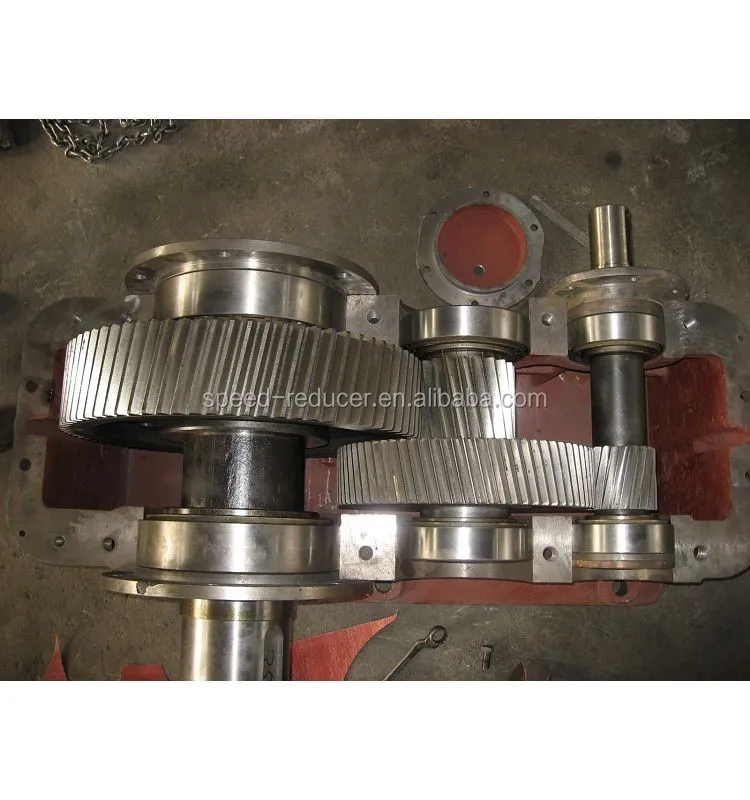

image display





Packaging and Shipping

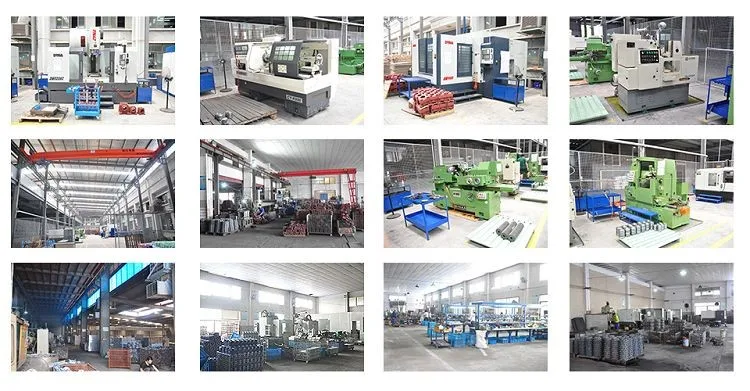

Factory Tour

Wanxin reducer has always been committed to the research, design and production of deceleration (variable speed) mechanical transmission. It is a designated enterprise of the Ministry of Machinery Industry and has passed the ISO9001 international quality system certification.
