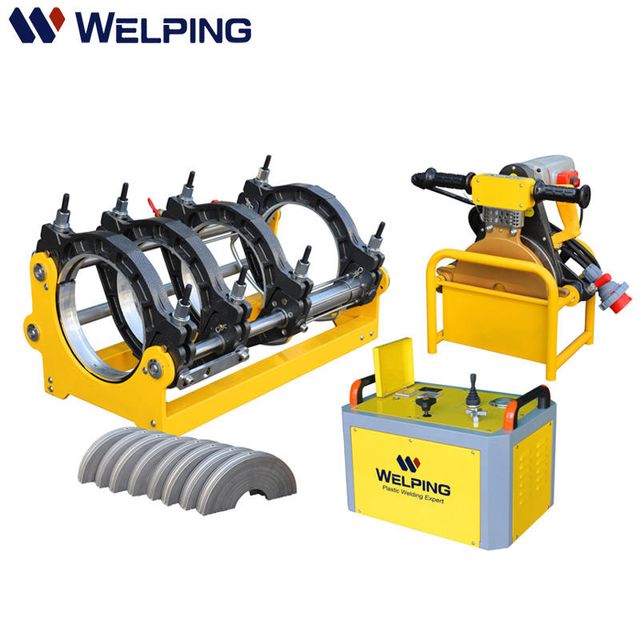

Welping China Factory 250mm Hydraulic PE Plastic Pipe Butt Fusion Welding Hdpe Pipe Welding Machine
- $1080.00 / 1 - 9 sets
$990.00 / >=10 sets - 1 set
- Hangzhou Welping Machinery Equipment Co., Ltd.
- Zhejiang, China
- Mr Yan Pan
PRODUCT DETAIL
Drive mode: | hydraulic | usage: | Butt welded pipe welding |
Health status: | new | Minimum order quantity: | no limit |
Packaging Details: | Two plywood boxes: Frame base: 930*580*560mm Hydraulic unit/planer and heating plate: 740*590*630mm | payment terms: | L/C,Western Union,T/T |
Video external inspection: | if | Input voltage: | 220V |
Warranty: | unavailable | Core components: | Engines, Transmissions, Motors, Pumps |
Applicable materials: | HDPE, PE, PPR, PP, PVDF | pack: | wooden box |
brand: | welding | current: | 50Hz |
Marketing Type: | New Products 2021 | Main selling point: | easy to operate |
place of origin; place of origin: | Zhejiang, China | aspect: | 90-250mm |
spare parts: | usable | color: | yellow/red |
Packaging Preview: | Power (kW): | 5.05KW | |
Weight (kg): | 145kg | volume: | 0.58 cubic meters |
Showroom location: | Turkey, Pakistan, India, Russia, Sri Lanka, Bangladesh, Kazakhstan | port: | Shanghai |
Custom Items: | logo, plug, color | Mechanical test report: | if |
Applicable industries: | Building materials store, food and beverage factory, farm, construction engineering, energy and mining, water pipeline, municipal engineering, sewage pipeline, gas pipeline, civil engineering | Supply capacity: | 20000 sets/year |
HS code: | 8515809090 | Rental time: | 7-15 days |
Core Components Warranty: | 1.5 years |

Product Description

Model | WP250A |
maximum temperature | 270℃ |
temperature deviation | ±5°C |
set temperature | 220~270°C |
pressure range | 0-6.3Mpa |
Applicable | PE PPR PB PVDF |
Welding range | 63 - 250 mm |
Input voltage | 220V, 50Hz |
total power | 4.15kW |
Heating plate power | 2.3kW |
Planer power | 1.1kw |
Hydraulic unit power | 0.75kw |
gross weight | 121 kg |
total volume | 0.58 cubic meters |

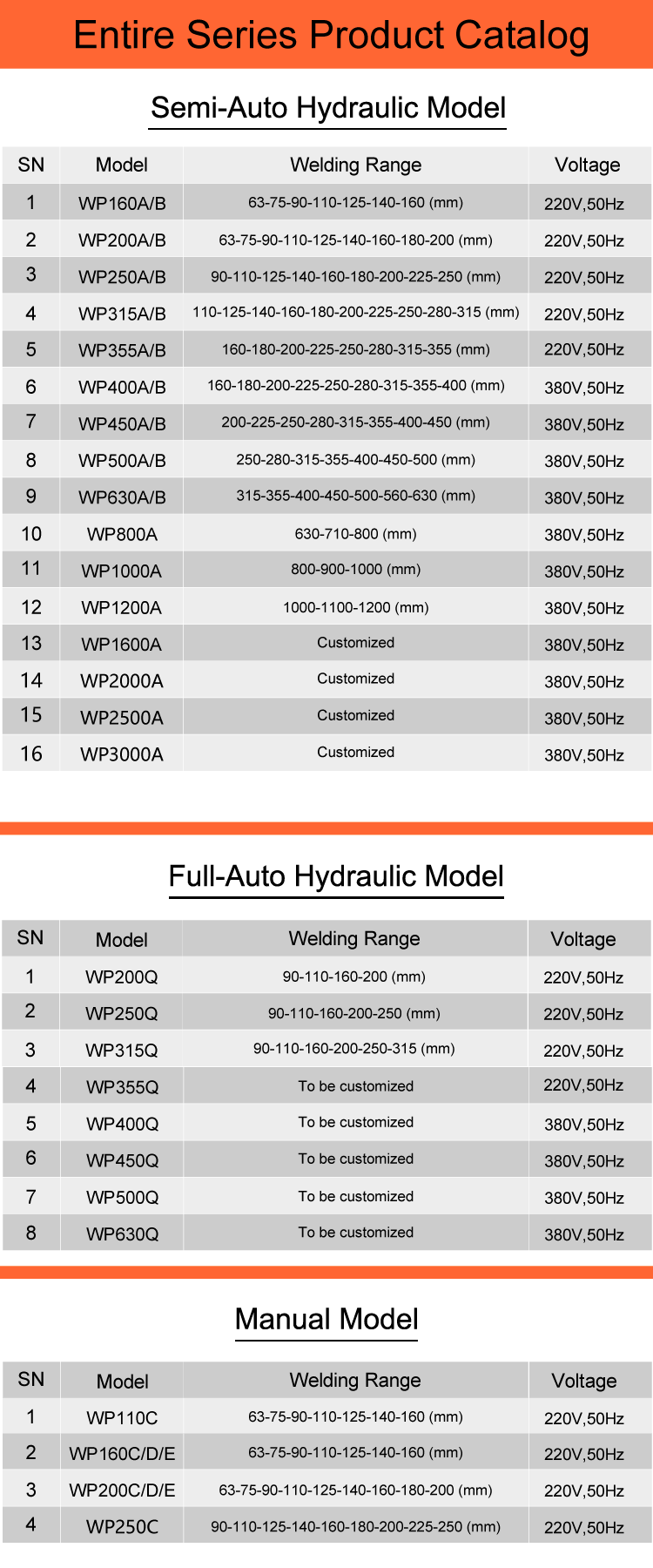

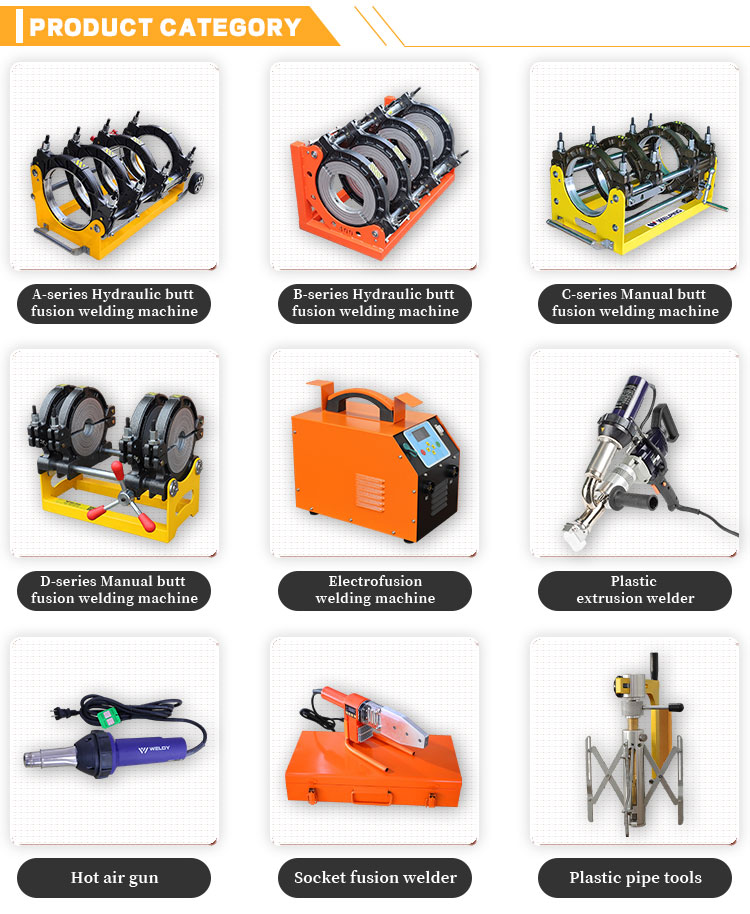

product category



Company Profile

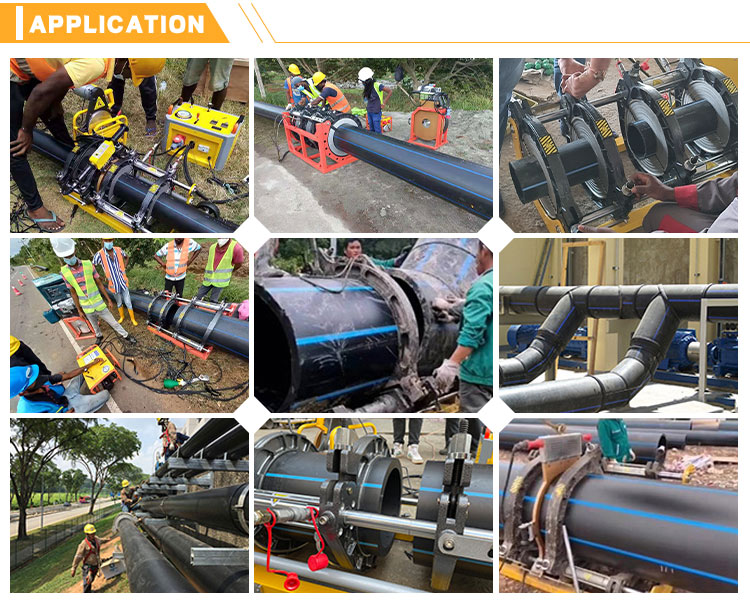

application
