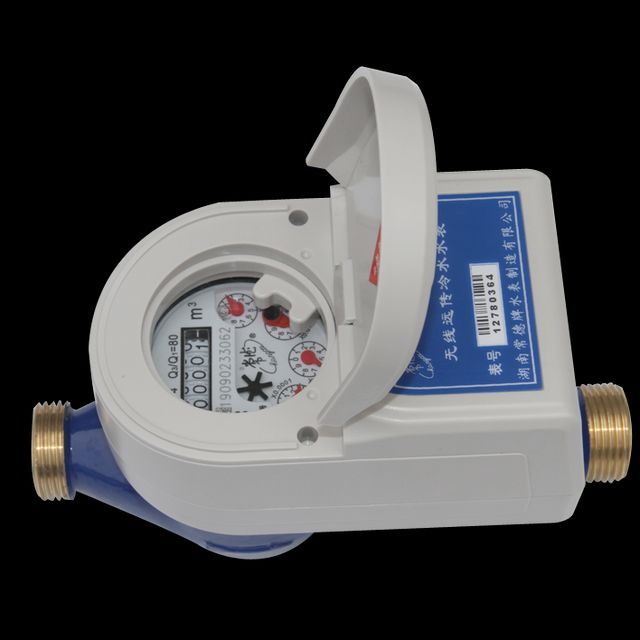

Wireless Remote LoRawan Water Meter

PRODUCT DETAIL
model:LXSW-15,20,25,32,type:Remote water meter, multi-nozzle water meter

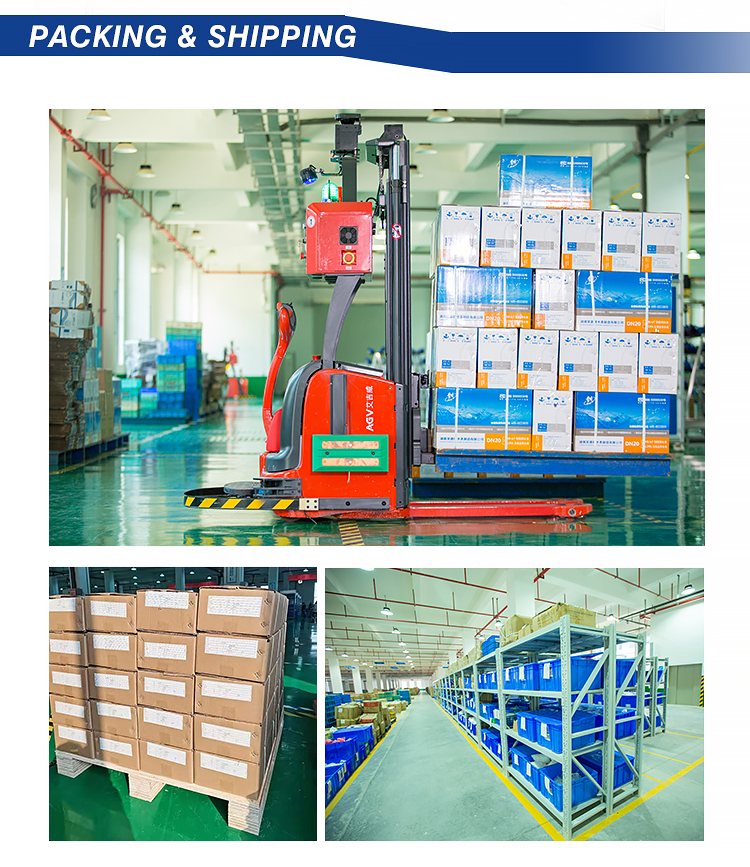

Packaging Details:One piece per carton, 10 pieces per outer carton.Warranty:2 years
product name:Smart water meter wireless remote meter reading water meterMaterial:cast iron, brass
Certification:ISO4064brand:Changde
standard:ISO 4064Customization support:OEM production
Water pressure:1Mpa (1.6MPawater temperature:40 C (hot water meter: 90 C)
Single package size:52.5X20.5X23.5 cmCertificate:ISO4064ISO9001:2008
Origin:ChinaGross weight per piece:16.000 kg
size:DN15mm~DN50mm (1/2''-2'')Sales unit:single product

Wireless Remote Water Meter

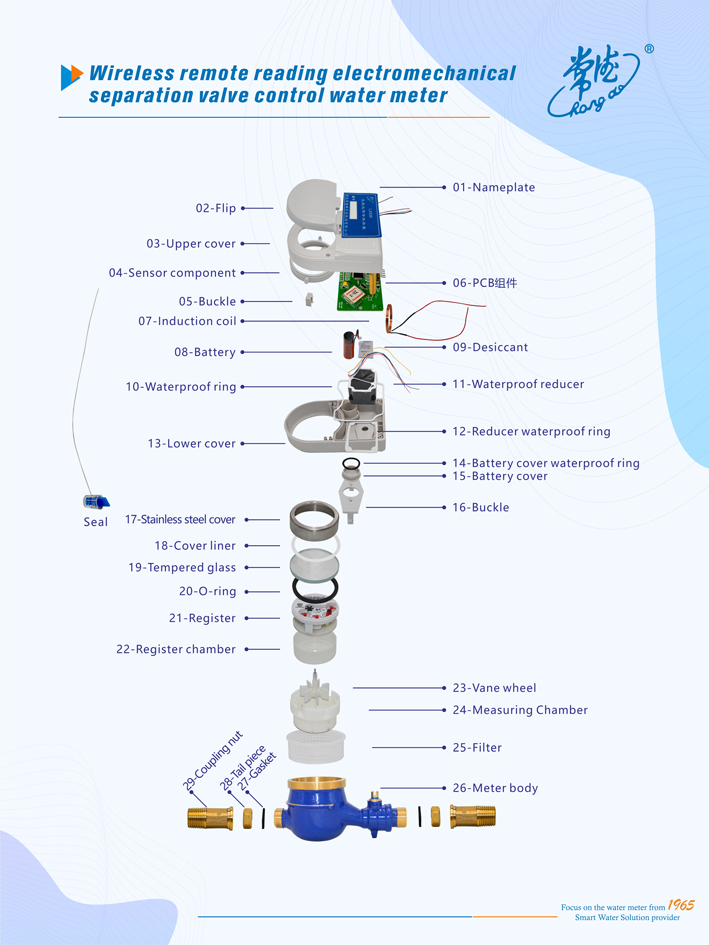

Electromechanical separation, easy maintenance.

Adopt wireless radio frequency technology, integrate micro-power multi-channel embedded wireless module, realize wireless data transmission of each part. The water quantity can realize remote measurement and storage, copy control, and can automatically detect information such as battery status and operating status, and support tiered prices. The construction difficulty is small, the cost is saved, the operation is simple, and the maintenance is convenient.

Features:

1. Low power consumption Lora Wan wireless communication technology, long transmission distance and strong penetrating power.

2. The wireless module and the surface split structure, plug and play, convenient for on-site modification and maintenance.

3. The water meter adopts the double protection and maintenance of integral structure sealing and glue sealing, which can completely reach the IP68 waterproof level and completely solve the waterproof and moisture-proof problem.

4. Adopt wireless single-wake-up single-copy mechanism, which is more energy-saving and power-saving.

5. Adopt wireless wake-up single-read mechanism to save power.

6. When the battery voltage of the remote water meter is low or the sensor is faulty, the fault alarm can be uploaded to the meter reading platform.

7. The wireless remote valve-controlled water meter adopts a wet rotor copper shell base meter, and the wireless remote non-valve-controlled water meter adopts a high-sensitivity wet rotor ductile iron shell meter, and the starting flow rate is ≤2L/H.

8. The wireless remote control valve controls the remote water meter and the remote switch valve;

9. The wireless concentrator can load 1000 water meters, and supports remote upgrade function;

10. Support multi-level relay, large-capacity lithium battery built-in special repeater, the instrument can also be set as a relay, for outdoor wireless communication blind spot meter reading.



The main technical parameters

Diameter (DN) mm

15

20

25

overload flow

(Q4) cubic meters per hour

3.125

5

7.785

normal traffic

(Q3) cubic meter/hour

2.5

4

6.3

Transition velocity

(Q2) cubic meters per hour

0.05/0.04

0.08/0.064

0.126/0.1

minute flow rate

(Q1) cubic meter/hour

0.032/0.025

0.05/0.04

0.078/0.063

Measuring range (Q3/Q1)

80/100

measurement level

level 2

working frequency

470-510Mhz

work pressure

≤1 MPa

pressure loss

≤0.063MPa

Operating temperature

cold water

(T30):0.1℃~30℃

hot water

(T90):0.1℃~90℃

Flow Profile Sensitivity Levels

U10,D5

Climatic and Mechanical Environmental Safety

Class B

Electromagnetic Compatibility Level

E1

Quiescent Current



≤25uA

Operating Voltage

3.6V lithium battery

waterproof level

IP68
