Wireless Remote Meter Reading Lora/ LoRaWAN/ NB-IoT Smart Water Meter
- $39.00 / 1 - 9999 pieces
$36.00 / >=10000 pieces - 1 piece
- Henan Zhuozheng Electronic Technology Co., Ltd.
- Henan, China
- Ms zhuozheng Amy
application: | Water meter installation | brand: | Zhuo Zheng |
Custom Support: | OEM, ODM, OBM | port: | Qingdao/Qinghuangdao/Dalian/Shanghai/Shenzhen etc. |
place of origin; place of origin: | Henan, China | Warranty: | 2 years |
frequency band: | 470-923 | caliber: | 15/20/25/30/40mm |
product name: | smart water meter | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
model: | W001 | Battery Life: | 8 years |
Supply capacity: | 5000 smart water meters per day | Key words: | water meter |
type: | Multi-jet water meters, electromagnetic water meters, ultrasonic water meters, prepaid water meters | Packaging Details: | Smart water meter carton |
Communication range: | 5 km | valve: | Control valve |
power supply: | 3.6V Lithium | Packaging Preview: | |
Certificate: | International Organization for Standardization |

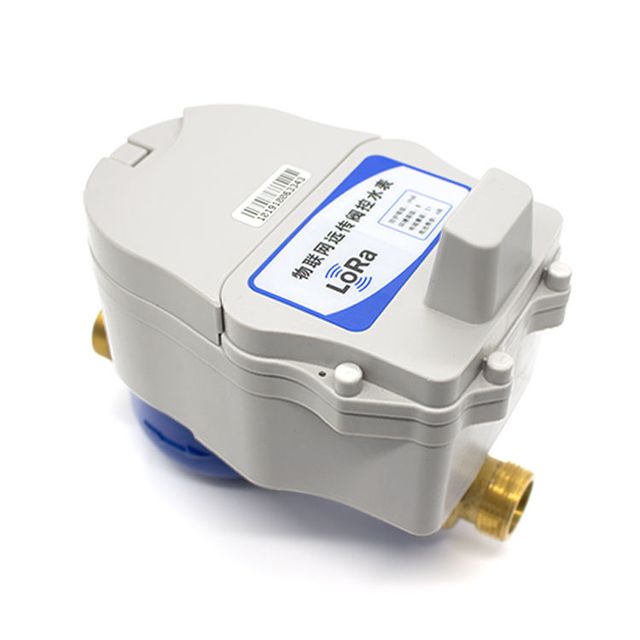

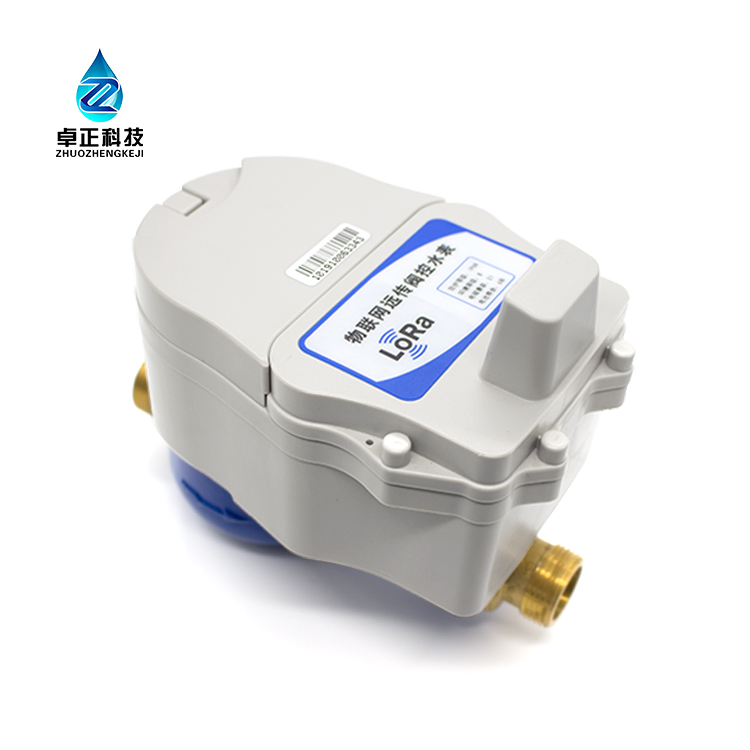

Wireless Remote Meter Reading Lora Smart Water Meter

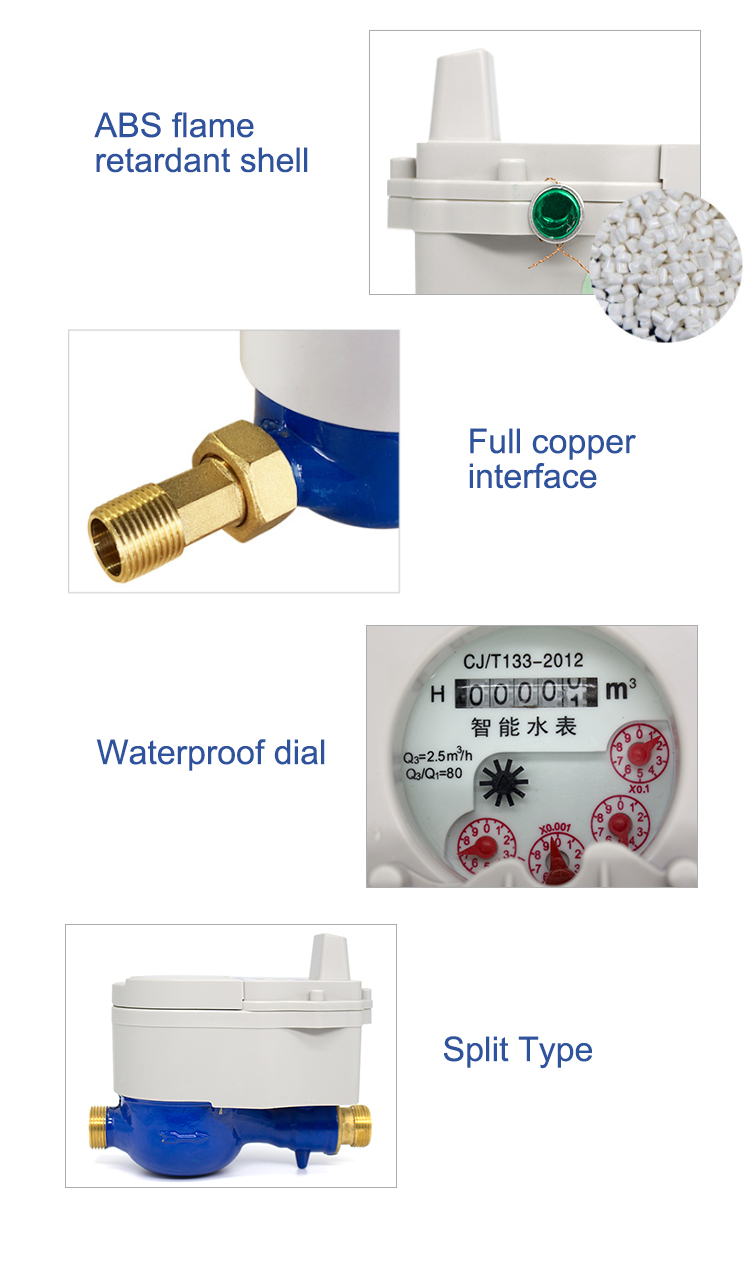

Smart Water Meter Product Details
This smart water meter adds a wireless module and has a routing function. It is simple to build and install, and the networking process is automatically completed, which solves the complex wiring construction problem. The valve control function is added to solve the problems of malicious arrears of water bills and difficulty in charging, and realize the functions of real-time valve monitoring, remote switching and prepayment.
The main technical parameters:
Model DN | Flow range | the third quater | fourth quarter | Q2 | the first season | Minimum reading | highest reading | |
Q3/Q1 | Q2 / Q1 | m3/hour | cubic meter | |||||
15 | 80 | 1.6 | 2.5 | 3.125 | 0.05 | 0.03125 | 0.0001 | 999999 |
20 | 80 | 1.6 | 4.0 | 5.0 | 0.08 | 0.05 | 0.0001 | 999999 |
25 | 80 | 1.6 | 6.3 | 7.875 |
0.126 |
0.07875 | 0.0001 | 999999 |

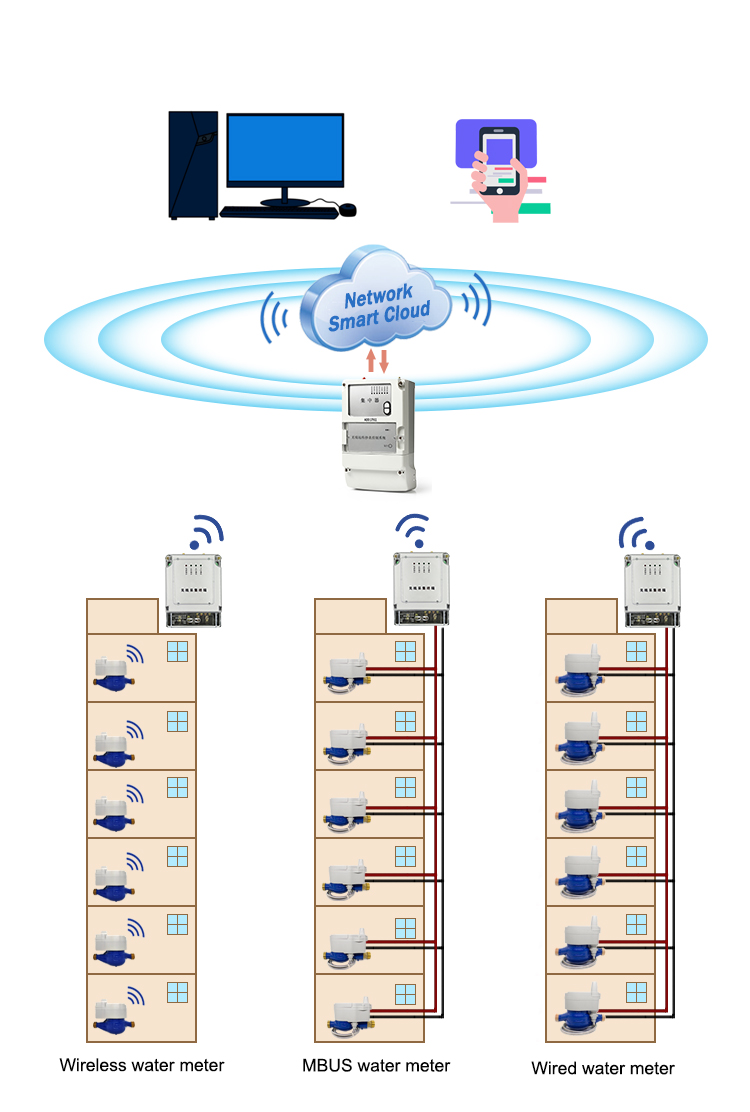

Smart water meter reading solution
The three-level architecture solution is suitable for areas with dense users. One concentrator can collect data from 20,000 Chinese suppliers' wireless intelligent remote meter reading Lora water meters, which significantly saves installation costs.

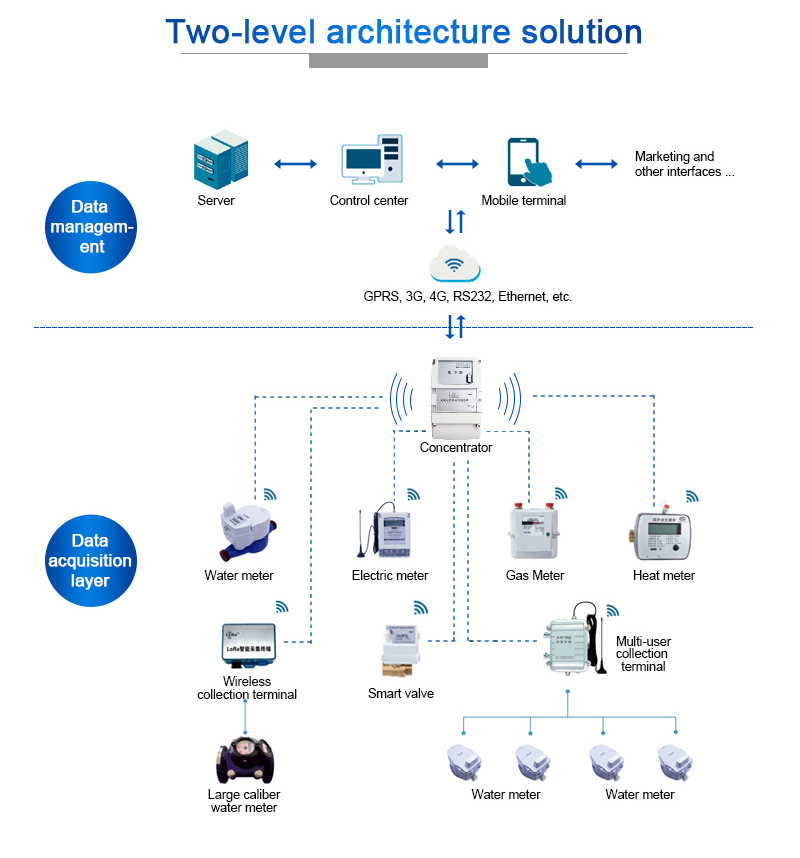

The two-level architecture scheme is suitable for areas with fewer users. One concentrator can collect data from 1000 meters, which greatly saves the cost of the collector.
working environmentsmart water meter
Flow range | Q1~Q3 (Q4 short-time workers do not change the error) |
ambient temperature | 5℃~55℃ |
environment humidity | (0~93)%RH |
water temperature | Cold water meter 1℃~40℃, hot China supplier wireless intelligent remote meter reading Lora water meter 0.1℃~90℃ |
water pressure | 0.03MPa~1MPa (1.6MPa short-term work without leakage, no damage) |
pressure loss | ≤0.063MPa |
Straight pipe length | The front Chinese supplier's wireless intelligent remote reading Lora water meter is 10 times that of DN, and the latter Chinese supplier's wireless intelligent remote reading Lora water meter is 5 times that of DN |
flow direction | Should be in the same direction as the arrow on the body |
also
Sampling method: There are various methods such as reed switch, magnetoresistance, Hall, non-magnetic, photoelectric direct reading and so on for you to choose.
How water is charged: We can design solutions and develop products according to the actual situation in your country and your specific needs.
Smart Water Meter Certification
contact us
Click here for an exampleabout us
We are in Zhengzhou City, Henan Province, North China.
Two hours by air from Guangzhou to our factory.
90 minutes by plane from Shanghai.
We pick you up directly at Xinzheng International Airport.
exhibition
Packaging and Shipping of Smart Water Meters
Selling
FAQ
1. Are you a manufacturer of a trading company?
We are 100% manufacturer.
2. Where is your factory?
Our factory is located in Zhengzhou City, Henan Province with convenient transportation. It is only 1 hour drive from Xinzheng International Airport (IATA: CGO).
3. What are your strengths?
We provide a complete solution of smart wireless remote reading Lora water meter, a Chinese supplier of wireless smart remote reading. We can also design products according to your individual needs.
4. What is your delivery time?
We have enough production capacity, so we can adjust the delivery time according to customer needs.
5. Can we customize our own brand or logo?
Yes, OEM service is available.
