XD001 3-30m Pneumatic Telescopic Mast
- $300.00 /piece
- 1 piece
- Nanjing Xuedian Lighting Co., Ltd.
- Jiangsu, China
- Ms sunny liu
PRODUCT DETAIL
| Surface treatment: | Anodizing; | Place of Origin: | China; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Supply Ability: | 1000 Pieces per Month; |
| Lifting Type: | Pneumatic; | fixed: | tripod/fixed; |
| Brand Name: | XUEDIAN; | Max. Payload: | 20-200 kgs; |
| Closed height: | 1.4-3 m; | Extended height: | 3 -30m; |
| brand: | xuedian; | Port: | Shanghai port, China; |
| Model Number: | T3-90-1400-3000; | Package Preview: | ; |
| Max. WindLoad: | 120km/h; | Working Pressure: | 0.25Mpa; |
| Packaging Detail: | wooden cases; | Material: | Aluminium Alloy6063B; |
About us
NJXD Mast
Our company specializes in manufacturing and sales of telescopic antenna, manual telescopic mast, electric telescopic mast, vehicle mounted emergency telescopic monitoring systems and portable telescopic lamp products, the products have passed ISO9001: 2000 international quality system certification.
Product Introduction

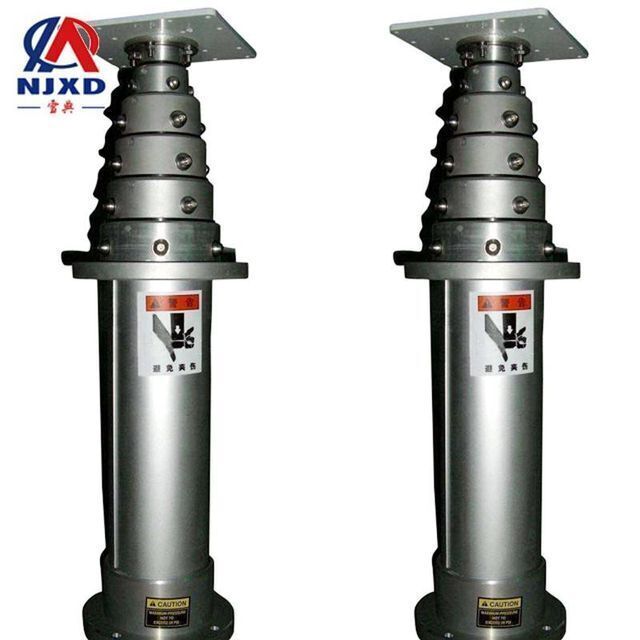

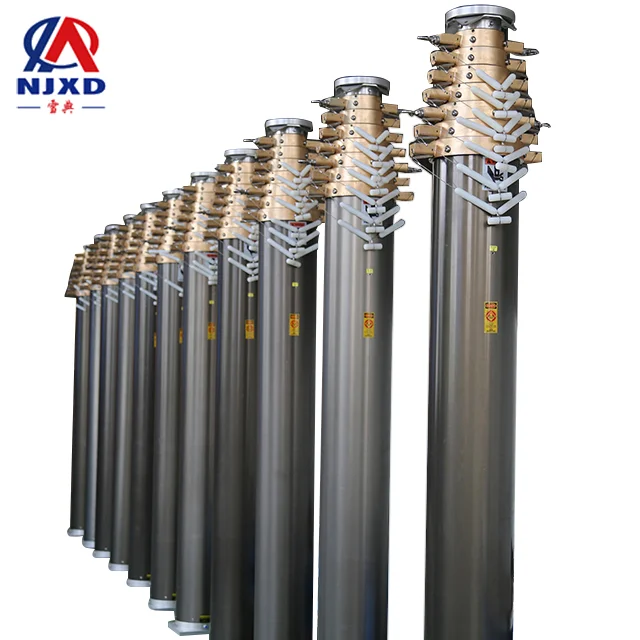

The common telescopic mast is a multi-section telescopic rod with cylinder as the independently developed by our company. The product has its features multi-section simultaneous expansion and contraction, high load, high adaptability, low failure rate and low sloshing rate.
In terms of working principle and technical characteristics, this mast is equivalent to a multi-section cylinder, when using, the air is pumped into and out of the cylinder to achieve the ascending and descending motion of each cylinder.
Specification
Model | T3-110-1600-4000 | T4-110-1900-6000 | T5-110-2000-8000 | T5-110-2350-10000 | T7-150-2600-12000 | T7-215-3100-15000 | T8-215-3300-18000 | ||||||
Extended Height(m) | 4 | 6 | 8 | 10 | 12 | 15 | 18 | ||||||
Retracted Height(m) | 1.6 | 1.9 | 2 | 2.35 | 2.6 | 3.1 | 3.3 | ||||||
OD.(mm) | 118 | 118 | 118 | 118 | 160 | 229 | 229 | ||||||
ID.(mm) | 82 | 66 | 51 | 51 | 51 | 98 | 82 | ||||||
Section | 3 | 4 | 5 | 5 | 7 | 7 | 8 | ||||||
Payload(kg) | 100 | 70 | 30 | 100 | |||||||||
Lifting Time | 2-3M/min | ||||||||||||
Mast Weight(kg) | 14 | 22 | 28 | 39 | 66 | 155 | 260 | ||||||

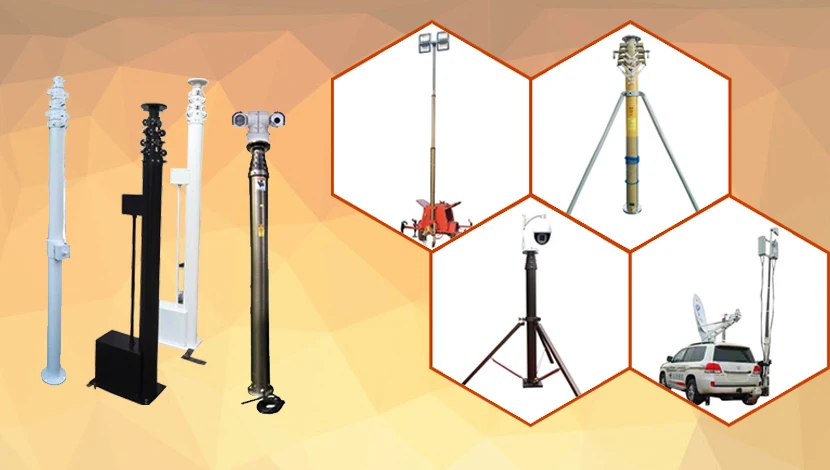

Application
Lighting

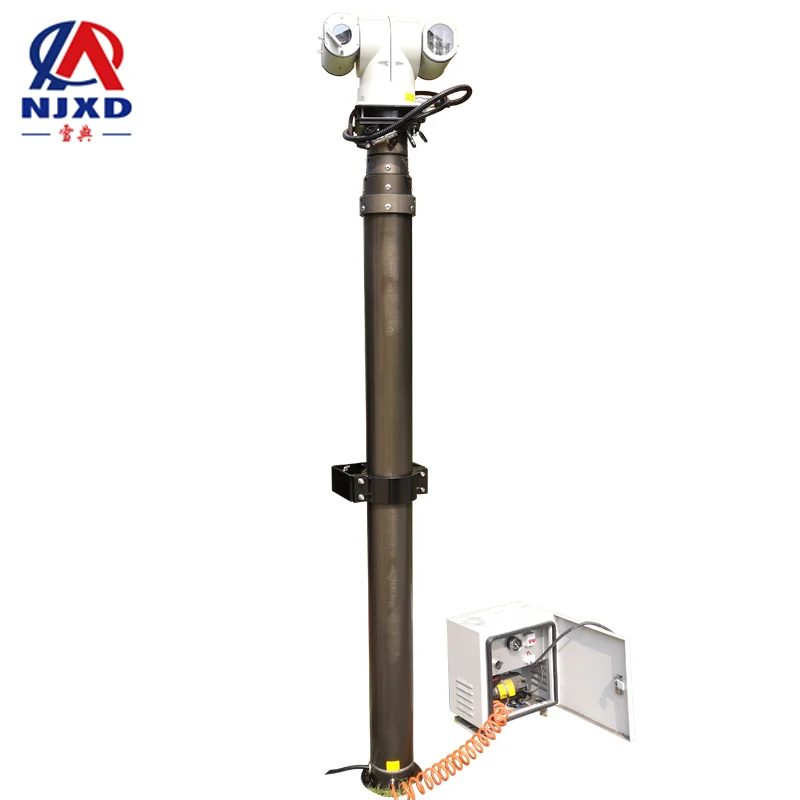

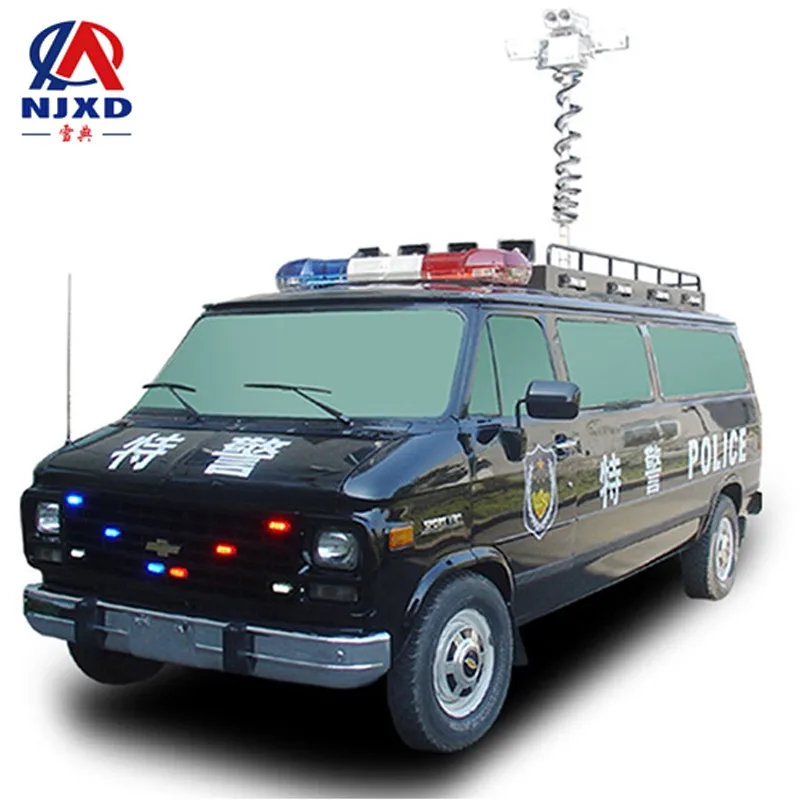

Camera

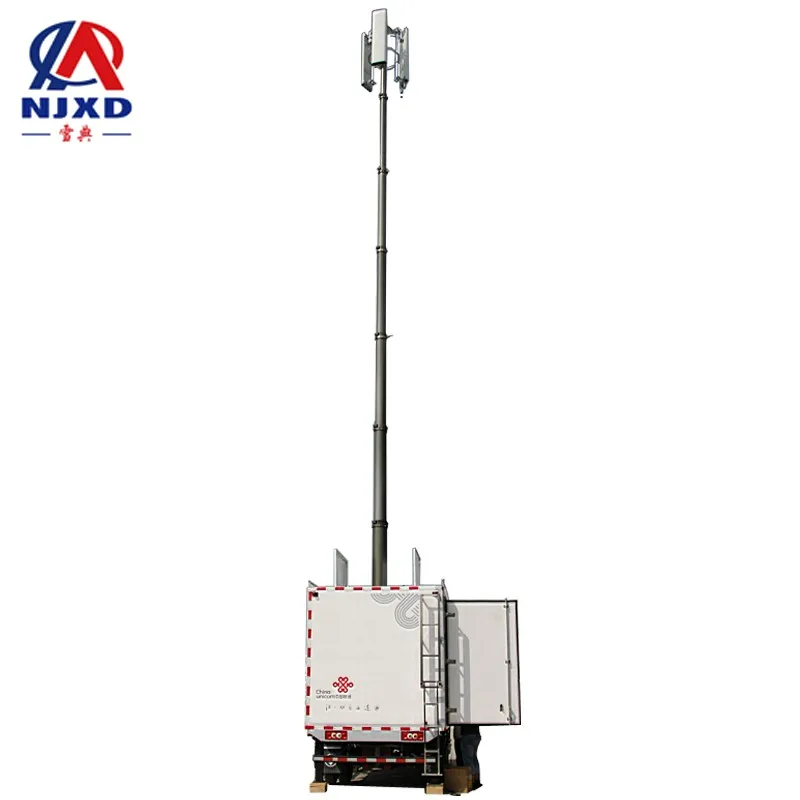

Antenna
Lightning Rod

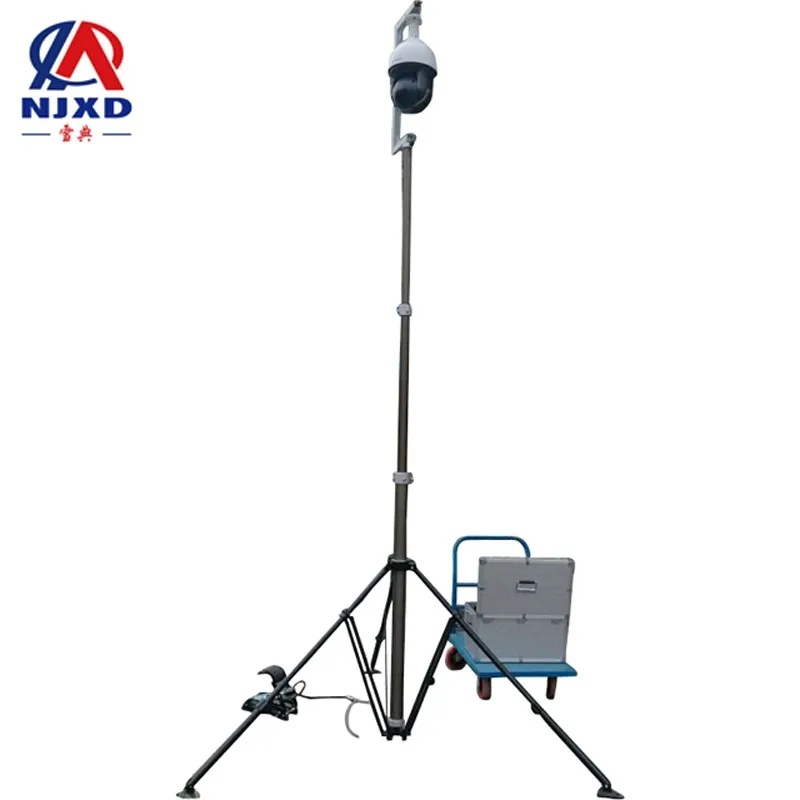

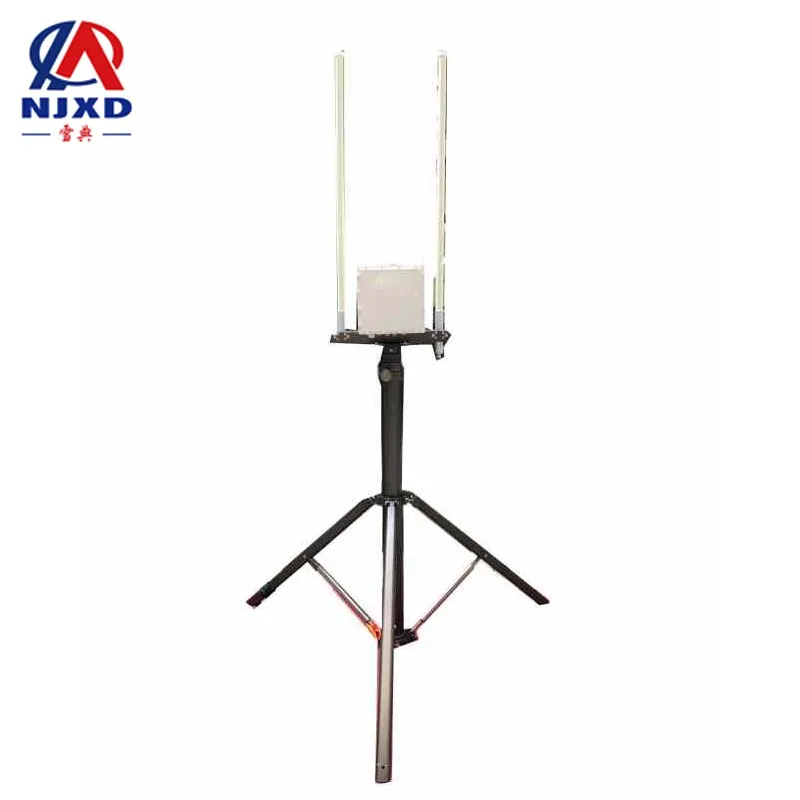

Portable Tripod

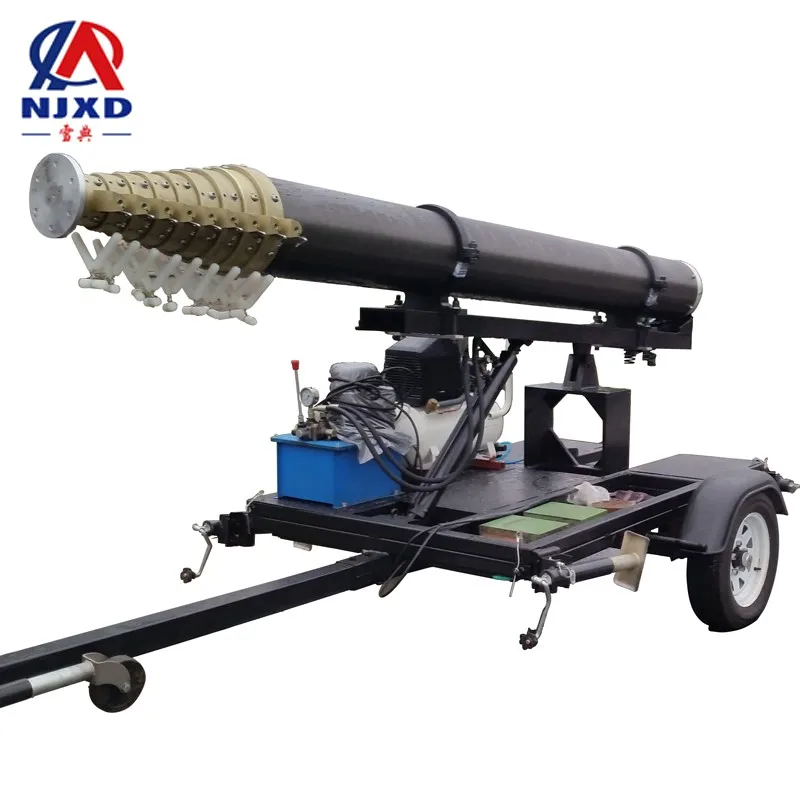

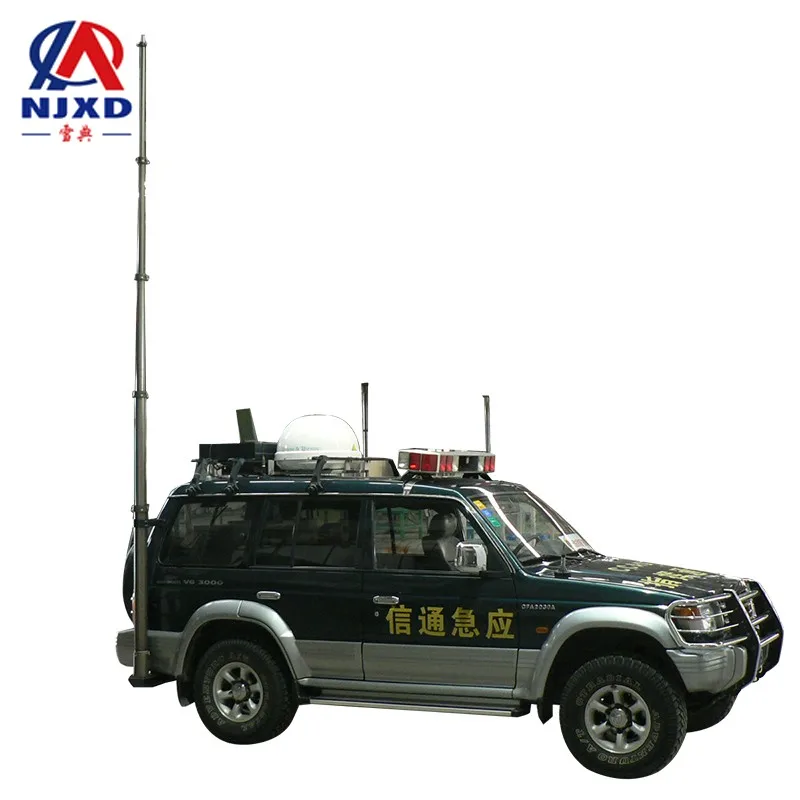

Trailer
Related Preducts
Certification
FAQ
Q1: Price Term
A1: FOB
Q2: MOQ:
A2: 1 set for customized
Q3: Payment Term
A3: T/T
Q4: Delivery:
A4: Goods will be ready for shipment within 20 workdays after receiving deposit for 30 sets.
Q5: How can i get a price of needed pole?
A5: Please give the exactly dimensions such as tensile strength, height, thickness, material, top and bottom diameter. We can according to your specification and give you a similar price. You can also send us a drawing, and we give you the price according to it.
Q6: Package
A6: Wooden cases
