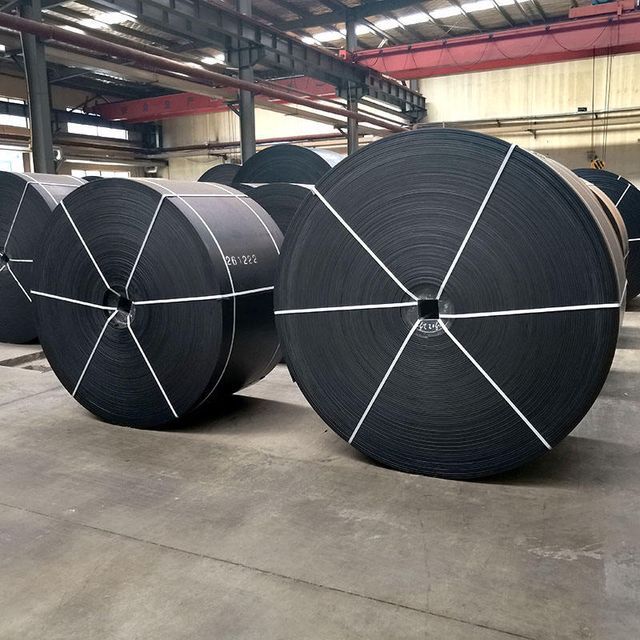

endless conveyor belt eb200 rubber fabric conveyor belt ep polyester rubber conveyor belt
- $4.50 / 1 - 99 meters
$3.50 / 100 - 499 meters
$2.50 / >=500 meters - 1 meter
- Hangzhou Hengtuo Machinery Technology Co., Ltd.
- Zhejiang, China
- Mr Victory Han
PRODUCT DETAIL
| Belt Width: | 300mm-3200mm | Origin: | Zhejiang, China |
| application: | Mines, ports, power plants, cement, steel, metallurgy, coal | standard: | DIN, JIS, AS, GB, RMA |
| port: | Qingdao, Shenzhen, Ningbo, Tianjin, Guangzhou, Shanghai | product name: | rubber conveyor belt |
| Rubber grade: | 10MPA 12MPA 15MPA 17MPA 25MPA | Supply capacity: | 8000 meters per day |
| type: | CC, NN, EP, ST | feature: | high strength |
| Package preview: | model: | CC/NN/EP/ST | |
| thickness: | 4mm-30mm | brand: | Hengtuo/Yuandu |
| payment terms: | L/C, D/P, D/A, T/T | Material: | Nylon, EE, EP, cotton canvas |
| tensile strength: | 500-3000N/mm | Packaging Details: | -- Rubber EP conveyor belt can be up to 500m per roll --- Wear-resistant conveyor belt can be packed in boxes --- A 20" container can hold 6--8 rolls of DIN-Y conveyor belt --- A 40" container can be Loading 8--10 Rolls Stone Crusher Conveyor Belt --- Internally packed on a 30cm diameter round rubber core with square holes 12cm x 12cm. --- The outer layer is packed with a layer of waterproof PP cloth --- Rubber conveyor belt can be customized packing |
| Processing services: | to cut |

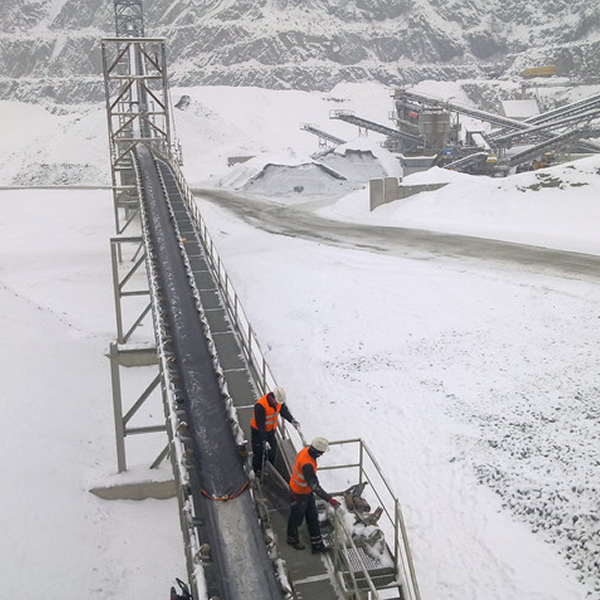

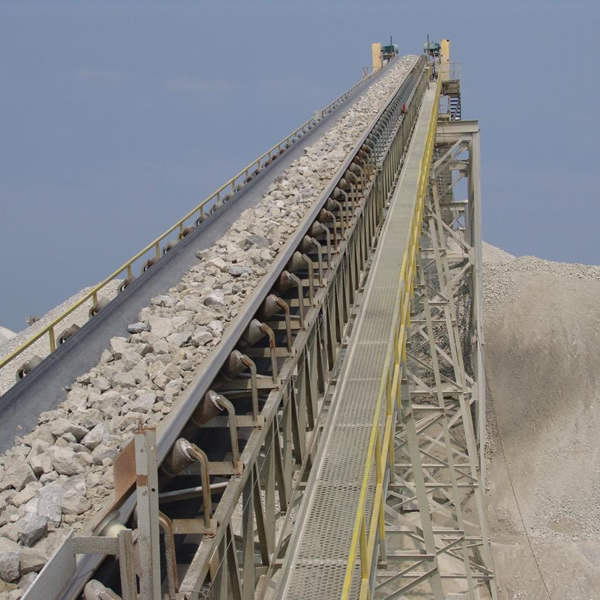

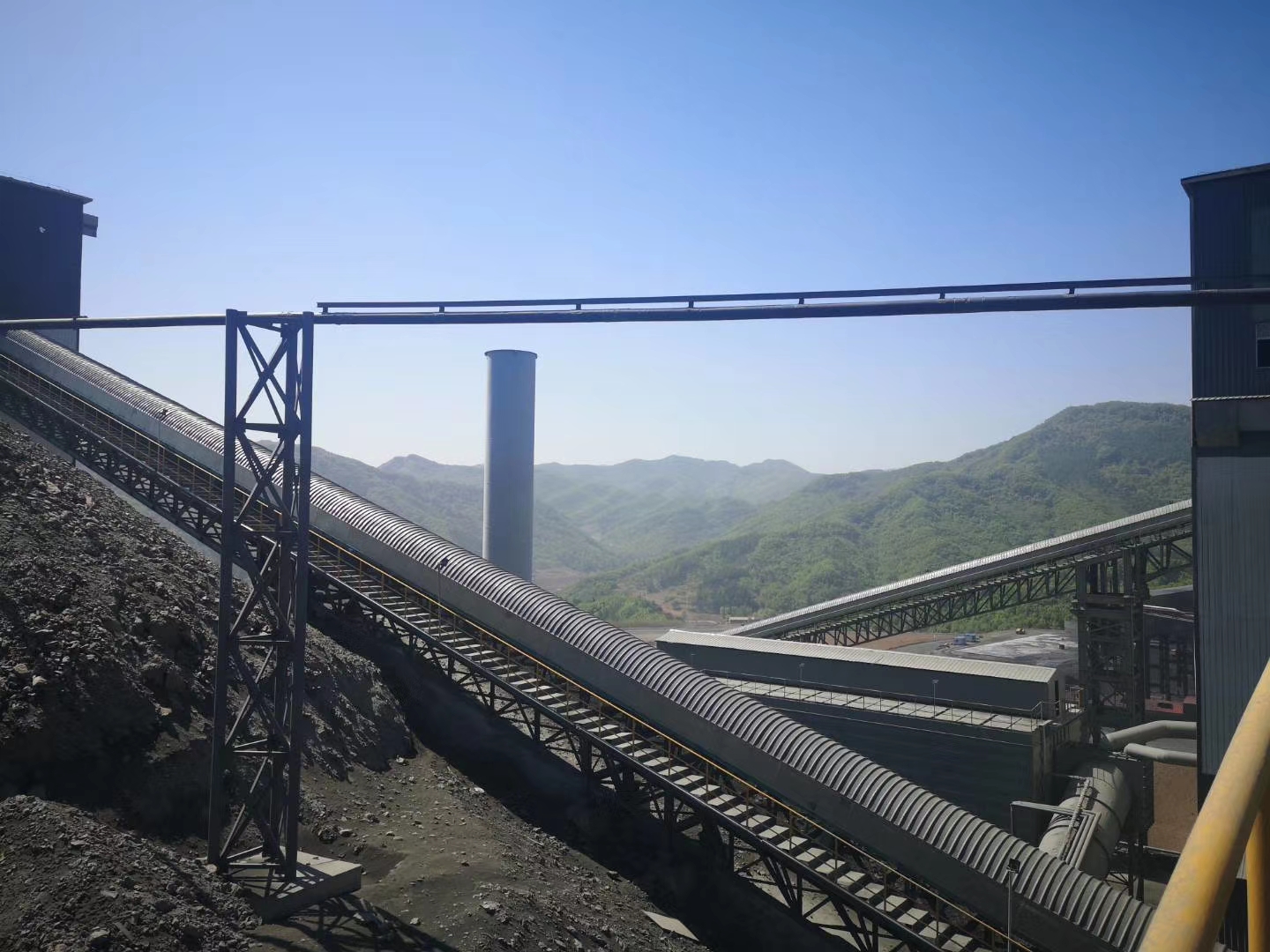

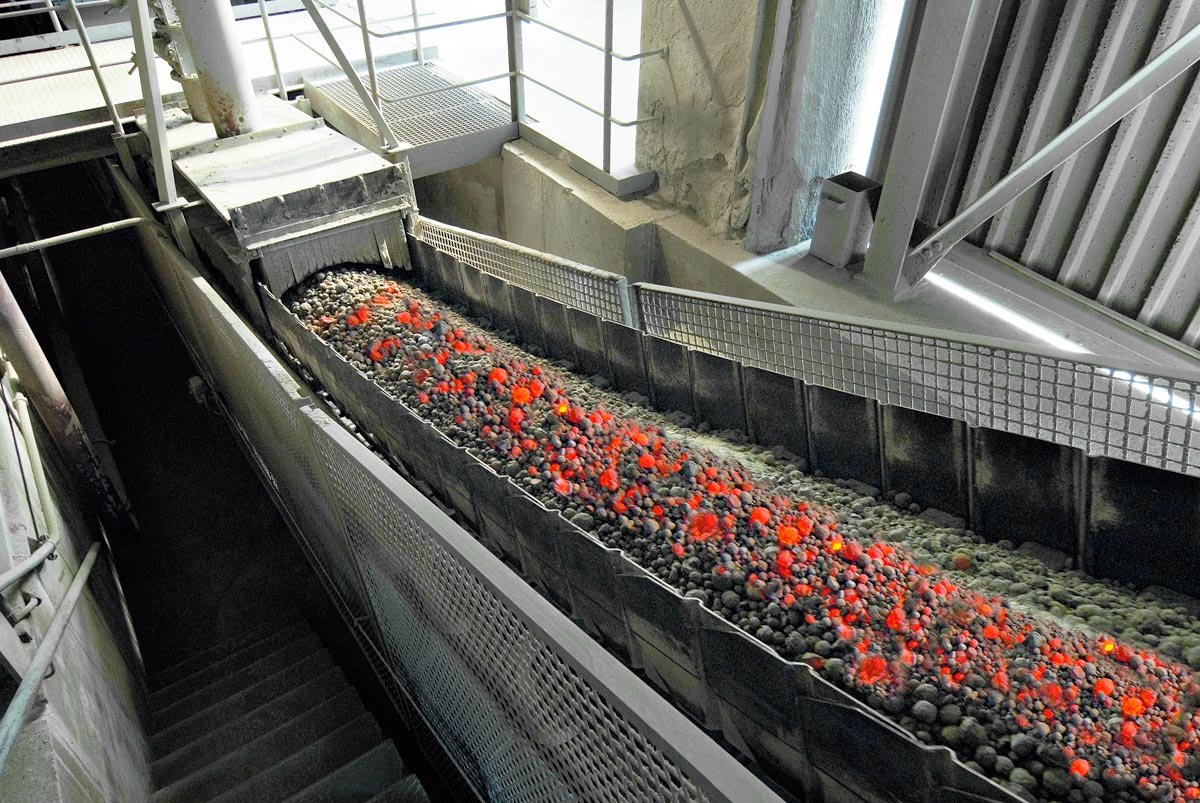

application
Product Description
The company produces high-quality and stable conveyor belts, and the product performance meets the requirementsDIN,return authorization,as,JIS,bacheloretc. Can be developed and produced according to customer requirements.
Products are widely used iniron and steel,mining,coal,cement,electricity,portandChemicall Industry.

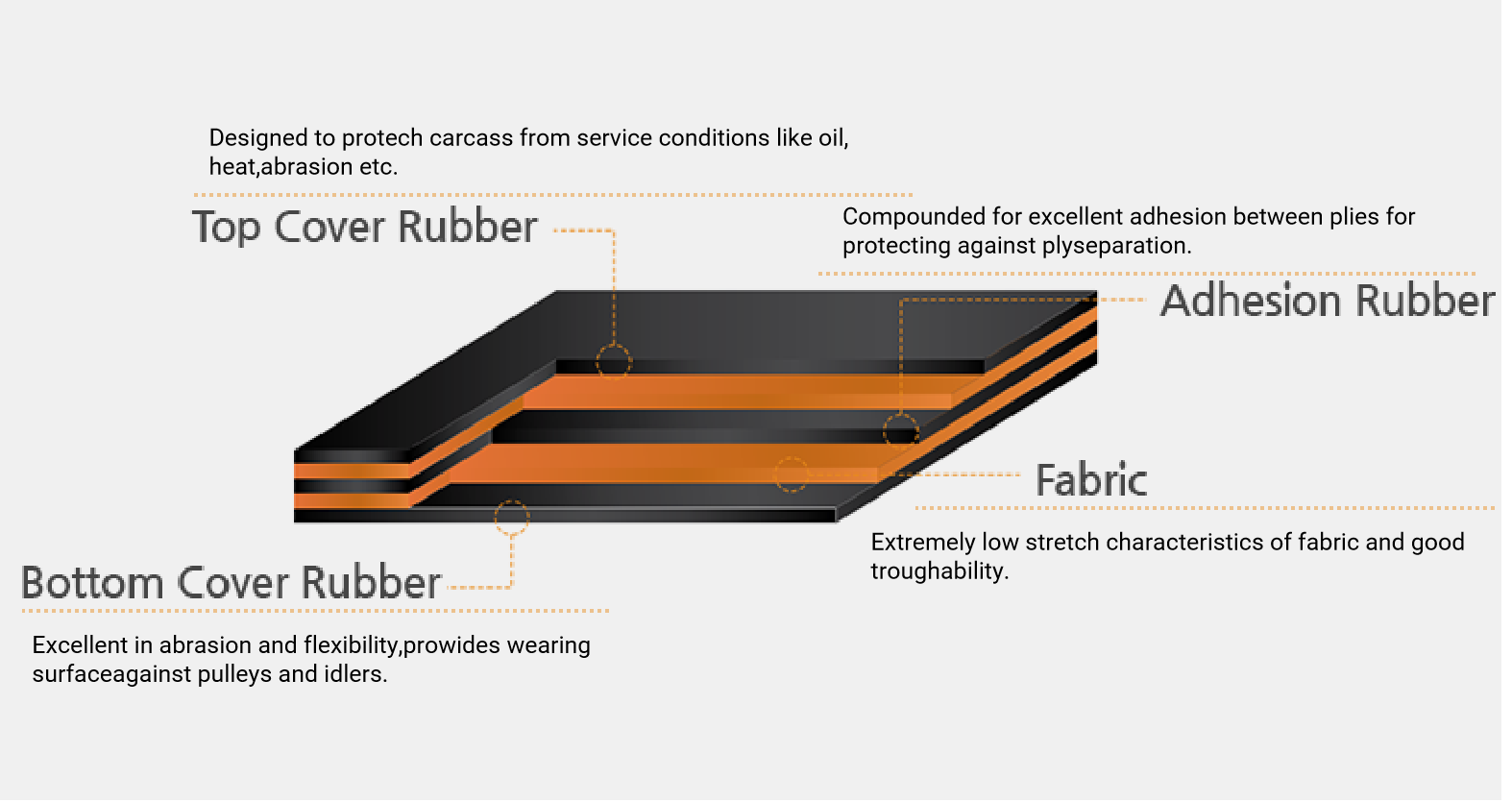

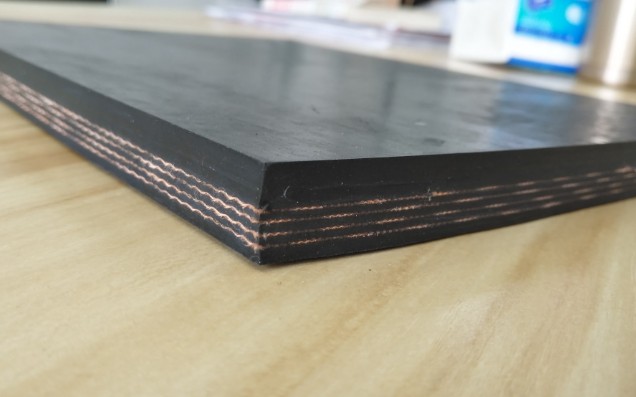

The design of the fabric core conveyor belt can be applied to material conveying in various fields. The structure includescover glue,skeleton layerandCore glue
Specification
Cover glue grade | 8MPA, 10MPA, 12MPA, 15MPA 18MPA, 20MPA, 24MPA, 26MPA | DIN-X, Y, W RMA-1, RMA-2 | |||||
Belt width (mm) | 300,400,500,600.650,700,800,1000,1200 1400,1500,1800,2000,2200,2500 | 18",20",24",30",36",40",42" 48",60",72",78",86",94" | |||||
tensile strength | EP315/3,EP400/3,EP500/3,EP600/3 EP400/4, EP500/4, EP600/4 EP500/5, EP1000/5, EP1250/5 EP600/6, EP1200/6 | 330PIW, 440PIW | |||||

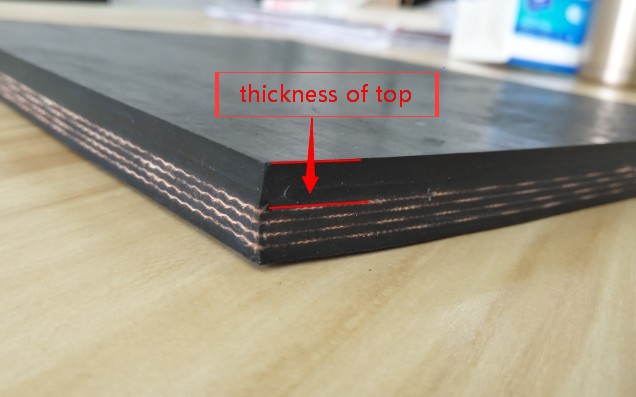

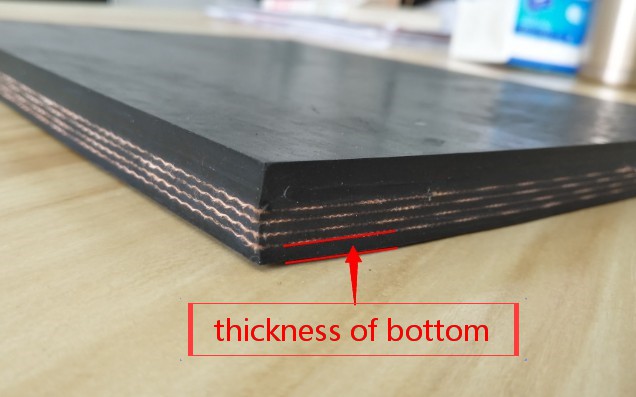

Top + Bottom Thickness | 3+1.5, 4+2, 4+1.5, 4+3, 5+1.5, | 3/16"+1/16", 1/4"+1/16" | |||||
Belt thickness | 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 15mm, 20mm, 25mm | ||||||
belt length | 10m, 20m, 50m, 100m, 200m, 250m, 300m, 500m | ||||||
Banded type | Molded (sealed) edges or cut edges | ||||||
