heatpress logo Large format sublimation heat press

PRODUCT DETAIL
Dimensions (L*W*H):111X93X59CMPrinting area:60X80CM/80X100CM
application:T-shirts, mouse pads, phone cases...Certification:CE ISO9001
time limit:0-999stemperature range:0-399°C (up to 750°F)
Supply capacity:20000 sets of heat press machine logo large format sublimation heat press machine per monthColors and Pages:Polychromatic
type:Hot Presscolor:Large Format Sublimation Heat Press
Auto grade:manualAfter-sales service provided:Online support, free spare parts, overseas third-party support
Type of machine:Manual operationWarranty:6 months
port:Shanghai or Chinese portusage:fabric printer, label printer, paper printer, other
Health status:newPackaging Details:heatpress logo large format sublimation heat press machine each machine comes with 1 carton with foam, instruction manual, cable/plug, some models come with extra fuse
Key words:Heat Press User Manualplace of origin; place of origin:Anhui, China
Plate type:Flatbed printerVoltage:110V/220V
Heating plate type:aluminumweight:125KGS /260KGS
payment terms:L/C,T/T,Western UnionApplicable industries:Clothing stores, machinery repair shops, household goods, printing shops, advertising agencies
model:QX-AA3-Cbrand:Hengxing
Product Description

Product Description

The design of the heat press machine, the heat press logo is greatly sublimated and heat pressed, and the heating is uniform. The work surface is specially treated to print sublimation heat transfer items.

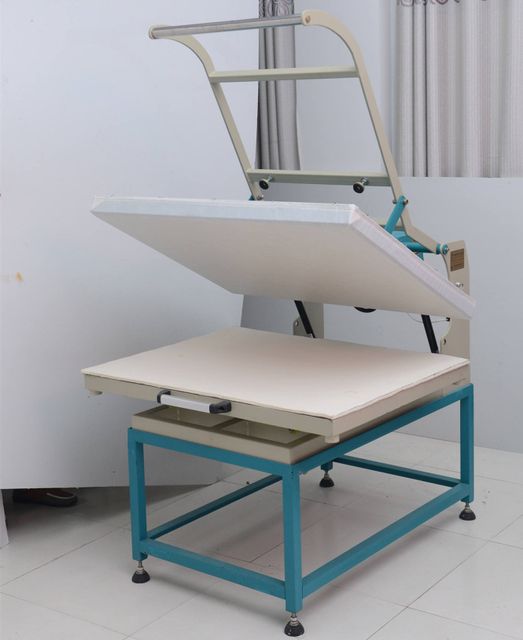

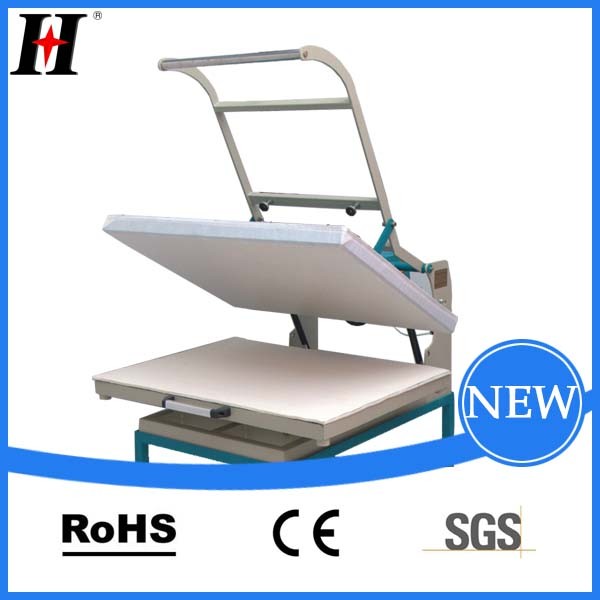

heatpress logo Large format sublimation heat press
1. Printing area (cm)
60X80
80X100
2. Voltage (v)
110/220
3. Power (kw)
4.5
5.2
4. Temperature range (°C)
0-999
5. Time range (seconds)
0-399
6. Weight (kg)
125
260
7. Packing size (cm)
111X93X59
119X111X49
8. Apply
T-shirts, mouse pads, phone cases, stones, pillows, puzzles, frames, etc.
9. Warranty
one year

main feature

important

Particleboard Heat Press The newly designed machine always uses an aluminum plate as a heating pad, which is almost horizontally die-cut for even heating and low wear rate. And the old design always used iron plate, which is very different from aluminum plate

1. Thickness of aluminum heating plate: other 6-7mm, ours is 8-9mm (the higher the thickness of the heating plate, the more uniform the heating, the better the effect)

2. The material of our machine is also thicker than others, so the weight will be heavier


3. Computer desk: Resistors and capacitors used for other purposes are prone to leakage and voltage reduction, and have a short lifespan, which is a potential safety hazard. We use a step-down transformer to be more durable and safer.


4. The first technology: our hot cup machine can be empty to heat, others can't


The most important thing is that we are the top three heat press machines in China, you are welcome to visit in the future! ! ! !

detailed image

Mechanical Parts

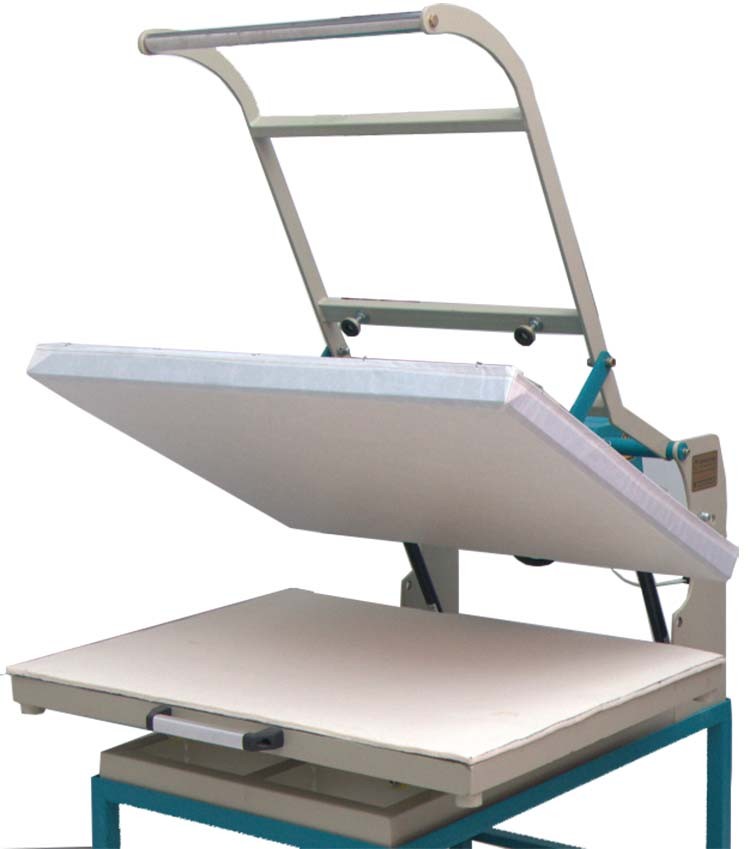

Name: heatpress logo large format sublimation heat press machine
Brand: Hengxing

Original: China

Si County Hengxing Screen Printing Heat Transfer Machinery Co., Ltd.

(sublimation printer t-shirt printing machine, sublimation machine, heat press machine)

main feature


1) Electronically controlled temperature and time

2) Smooth surface, high strength, good hot pressing effect

3) Easy to clean

Si County Hengxing Screen Printing Heat Transfer Machinery Co., Ltd.

(sublimation printer t-shirt printing machine, sublimation machine, heat press machine)

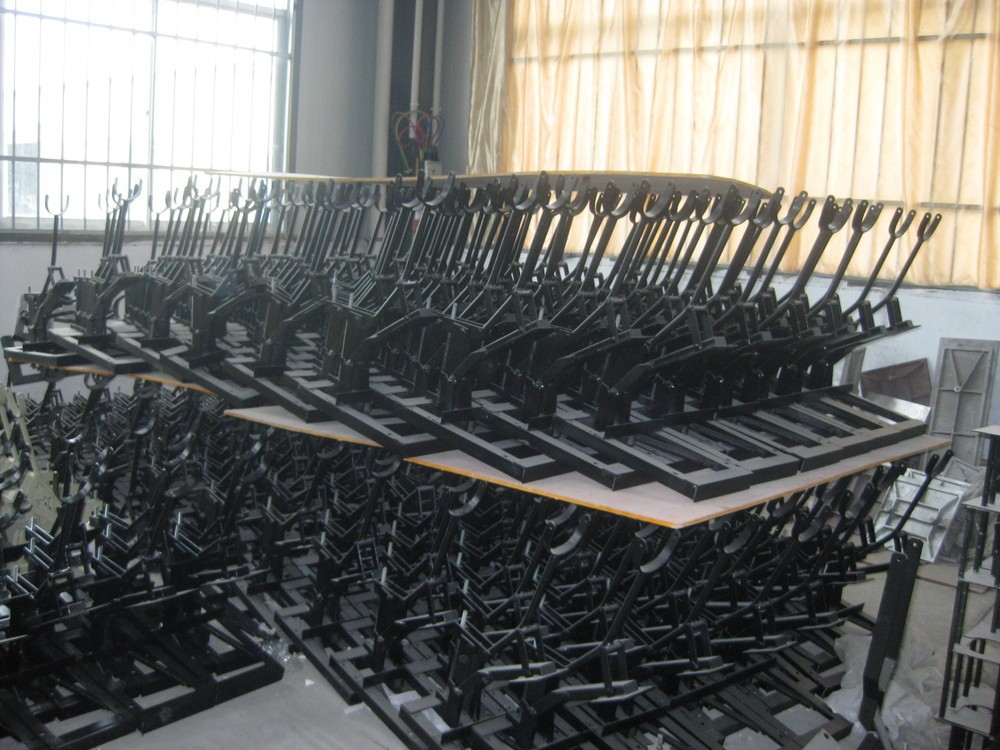

Mechanical Parts

♦ For all our machines, we provide one year warranty.


♦ Lifetime online technical support, free accessories if there is a problem within one year, excluding shipping.

♦ Any warranty shipping costs to us are the responsibility of the buyer.

♦ Any shipping to buyers is our responsibility.

main feature

Name: Heat Press

Price: Ex-factory price in China

Si County Hengxing Screen Printing Heat Transfer Machinery Co., Ltd.

(sublimation printer t-shirt printing machine, sublimation machine, heat press machine)

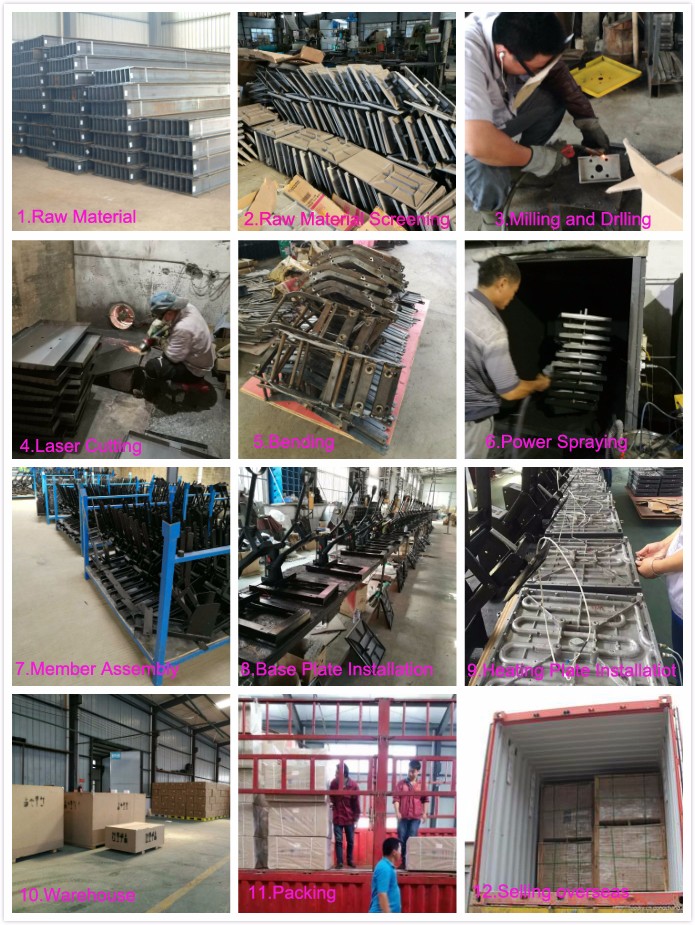

Heat press flow chart


application

application

Suitable for T-shirts, hats, umbrellas, leather, advertising boards, mouse pads, metal plates, slippers, bags, cushions, etc.

This machine can print T-shirts, mouse pads, stones, pillows, puzzles, photo frames, mirrors, tiles, etc.

Transfers to t-shirts, apparel, bags, mouse pads, jigsaw puzzles, tiles, plates and other flat items are permitted.

Electronic equipment controls temperature with high accuracy.

How to use a heat press?


1. Prepare cloth and plastic paper for sublimation

2. Turn on the heat press and set the temperature and time.

3. Put the fabric and picture on the plate of the heat press

4. Pull the heat press handle so the heat plate is down.

5. When the time is right, remove the fabric and cover with plastic wrap.

6. Finish the process of printing the fabric.


operating procedure

Please note: For safety reasons, the user should operate the machine with the ground wire connected!

1. Check the voltage before use, then turn on the power!

2. Plug in the power supply, turn on the power switch of the machine, and the power indicator light is on.

3. Set the thermostat to the desired temperature (usually 120-200ºC) and the timer to the desired temperature. (usually 5~20 seconds).

4. Put the clothes on the motherboard and cover the printing paper (please pay attention to the right side of the printing paper). Press the handle down until you reach the terminal.

5. When the time is up, the buzzer will alarm, pull the handle back.

6. If it is cold tear transfer paper, please wipe the whole transfer paper with blackboard paper, wait 5-10 seconds, then tear off the transfer paper. In the case of thermal tear transfer paper, you can tear it off immediately after printing.


Heat presses are widely used to heat transfer images to T-shirts, mouse pads, tiles and any other objects with a flat surface via foil, sublimation, inkjet, etc. We have many different heat presses (like 15x15 and 16x24 inches...) to suit your needs.

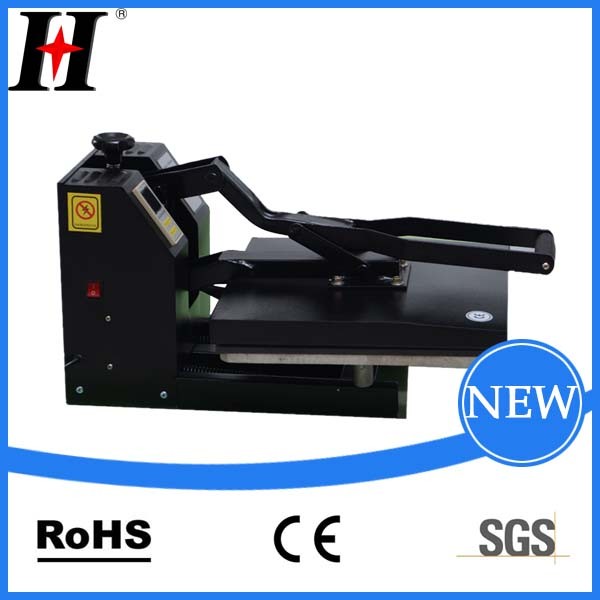

1. Handle 2. Timer and Temperature Controller 3. Heater 4. Fuse 5. Power Cord 6. Switch

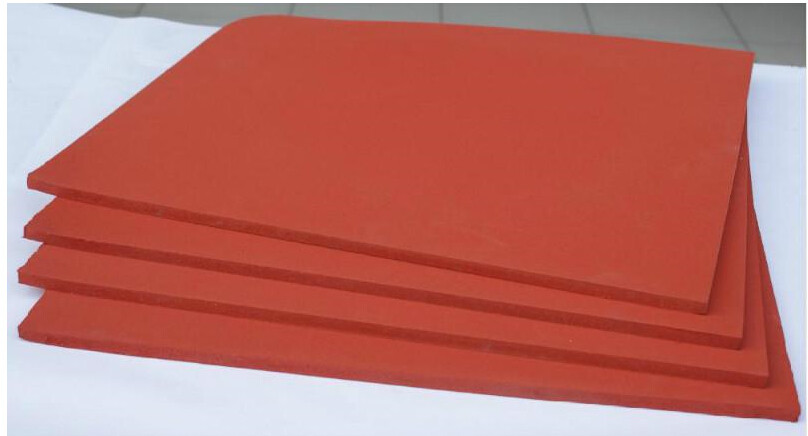

7. Pressure adjustment screw 8. Silicone pad

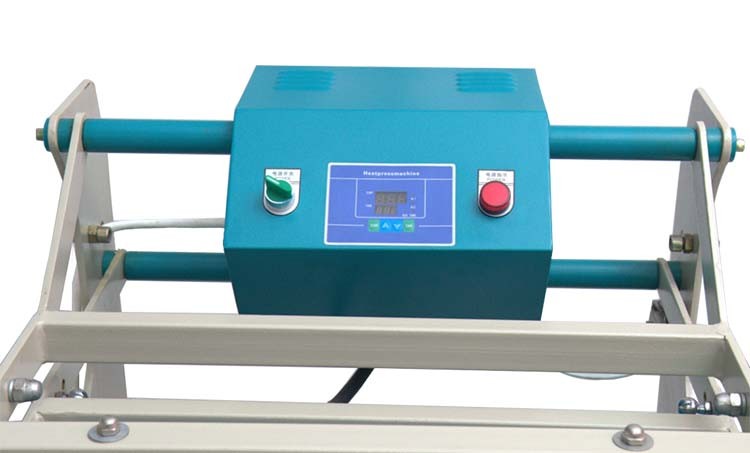

• This machine adopts full touch digital integrated instrument, which is convenient and efficient

• High precision, ideal for beginners and professional thermal printers.

• Easier to fix garment prints.

• Simple operation, greatly saving labor.

• This heat press is very space saving in any store.

• high quality


Suitable for T-shirts, pillowcases, puzzles, mouse pads, metal plates, fridge magnets, coasters, slippers, bags, cushions, etc.

Temperature and time settings:

1. Turn on the switch, the machine is powered on once with the buzzer, and the temperature and time are displayed.

OUT light stays on

2. Press the TEMP button, the temperature screen flashes, and the temperature changes up and down

key. Press the TEMP button again to fix your desired temperature.

3. Press the TIME key, the time screen flashes, and the time can be changed by pressing the up and down keys.

Press the TIME button again to determine your desired time.

4. When the heater temperature reaches the set temperature, the OUT light goes out.


Printing steps:

Take white chemical fiber cloth as an example

1. Feed the material into the inkjet printer, making sure to print on the printable side (white matte coated side).

2. Design your image and invert it, printer settings use photo quality

or best quality print mode

3. Lift the press handle and turn on the power. The press should always be in the open position

when heating.

4. Set the temperature and time.

5. The press maintains a constant temperature when it reaches the desired temperature.

Place the cloth on the silicone pad with the side to be transferred facing up, and smooth all parts

Wrinkles warm up for 5 seconds.

6. Place the image face down on the fabric.

7. Put down the grip to start teleporting, and the timer will automatically time.

8. When the time is up, the buzzer will sound.

9. Lift the pressing hand again, remove the cloth, and peel off the paper.

Refer to transfer paper instructions for hot peel or cold peel

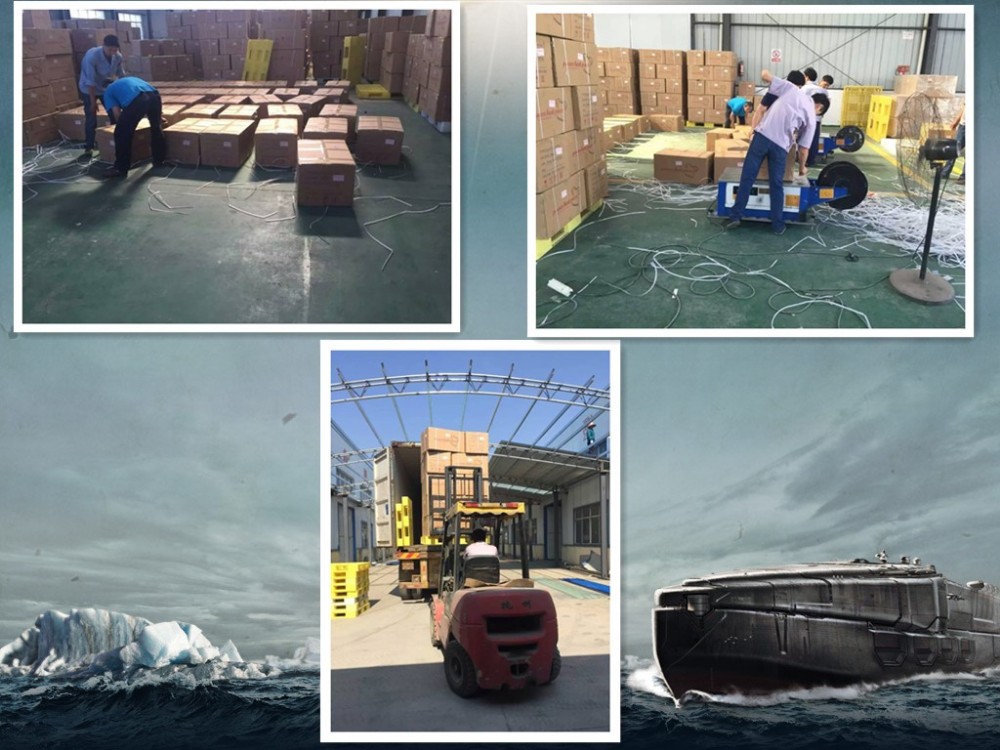

Packaging and Delivery
Bale
size
111(L)*93(W)*59(D)
weight
125kg



Packaging Details
The normal packing is wooden box (size: L*W*H). If exported to European countries, the wooden box will be fumigated. If the container is too tight, we will use pe film packaging or according to customer's special requirements.
our company

Si County Hengxing Screen Printing Heat Transfer Machinery Co., Ltd.

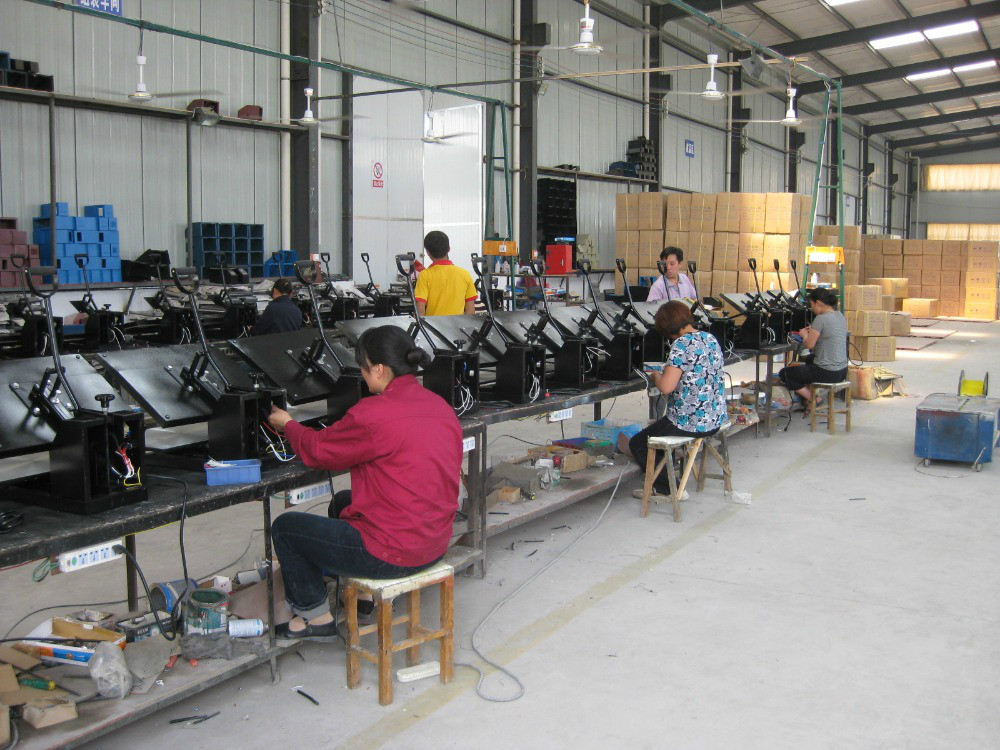

Factory information

Factory size:Below 1000 square meters

Factory Location:Sunwan Village, Sixian Development Zone, Anhui Province, China

Number of production lines:10 or more

contract drafting (noun:Provide OEM service Provide design service Provide buyer label

annual output value: $1 million - $2.5 million

We are the top three heat press factory in China, welcome you to visit us in the future.


FAQ

FAQ

Q: Are you a trading company or a manufacturer?


A: We are a factory.

Q: How long is your delivery time?

A: If the goods are in stock, usually 3-7 days. Or 7-10 days if the goods are not in stock, depending on the quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples, but customers should pay.

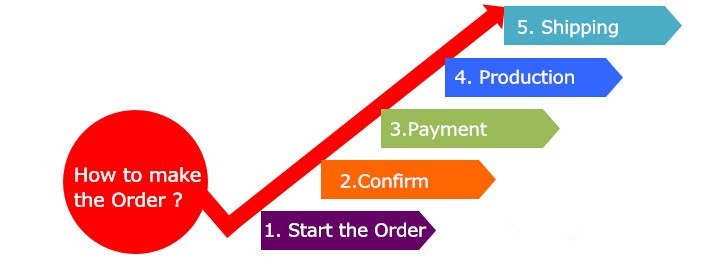

1. After confirming the order details, we will issue a pro forma invoice for you.

2. After receiving your down payment, the test machine will be started carefully. ensure excellent performance.

3. After the machine test, send the package.

Q: What are your payment terms?


A: Payment<=10000USD, 100% prepayment. Payment >=10000 USD, 30% T/T in advance, balance before shipment.

trade assurance

We can send you a sample by express, also thank you for your

1. Detailed shipping address and phone number

Online payment method, please share the online payment method so that the process goes smoothly.

If you have some concerns about the security of payment, you can pay through 2. Alibaba Security Service (link below)

https://tradeassurance.alibaba.com/#rd

It can well protect your legal rights
