sesame oil distillation machine fish oil distillation machine film molecular distillation
- $12000.00 /set
- 1 set
- VANOO (SHANGHAI) MACHINERY EQUIPMENT CO.,LTD
- Shanghai, China
- Ms Antonia Shu
PRODUCT DETAIL
| brand: | Vanu | Main selling point: | easy to operate |
| payment terms: | Letter of Credit, T/T, Western Union, MoneyGram | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Packaging Preview: | Warranty: | one year | |
| usage: | CBD oil | strength: | custom made |
| Material: | SS304/SS316(L) | Video external inspection: | if |
| Voltage: | custom made | Supply capacity: | 10 sets per month |
| Certification: | CE certificate | Industrial Oil Boiler: | hot oil boiler |
| port: | Shanghai/Ningbo Port | Packaging Details: | We usually put the machines in containers with soft clothes, some in wooden boxes, and most importantly some control systems we take care and put in boxes. |
| Name: | Ethanol recovery 8" falling film evaporator Turkish solution. | Showroom location: | U.S. |
| type: | continue | Maximum temperature: | 225 |
| Health status: | new | Dimensions (L*W*H): | custom made |
| weight: | custom made | Mechanical test report: | if |
| Type of machine: | multifunctional | Marketing Type: | New Products 2020 |
| Applicable industries: | Hotels, Clothing Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Others, Advertising Agencies | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Product Category: | vacuum | place of origin; place of origin: | China |
| Core Components Warranty: | 1 year | Local service location: | U.S. |
| capacity: | 300L |
product description

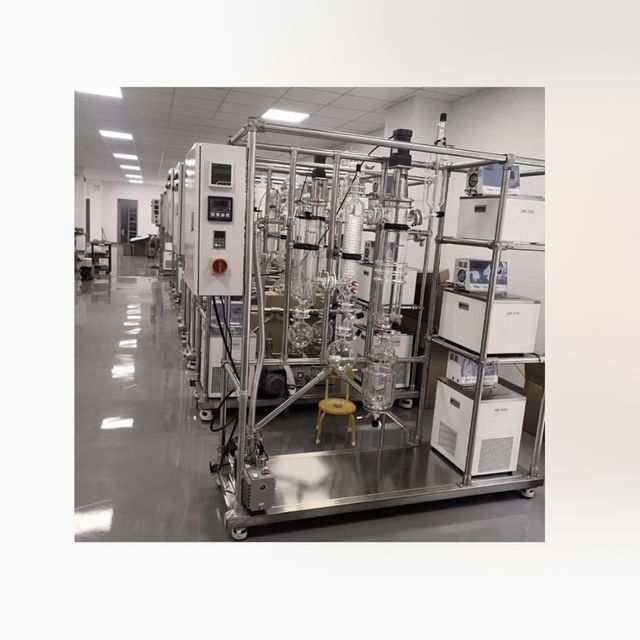

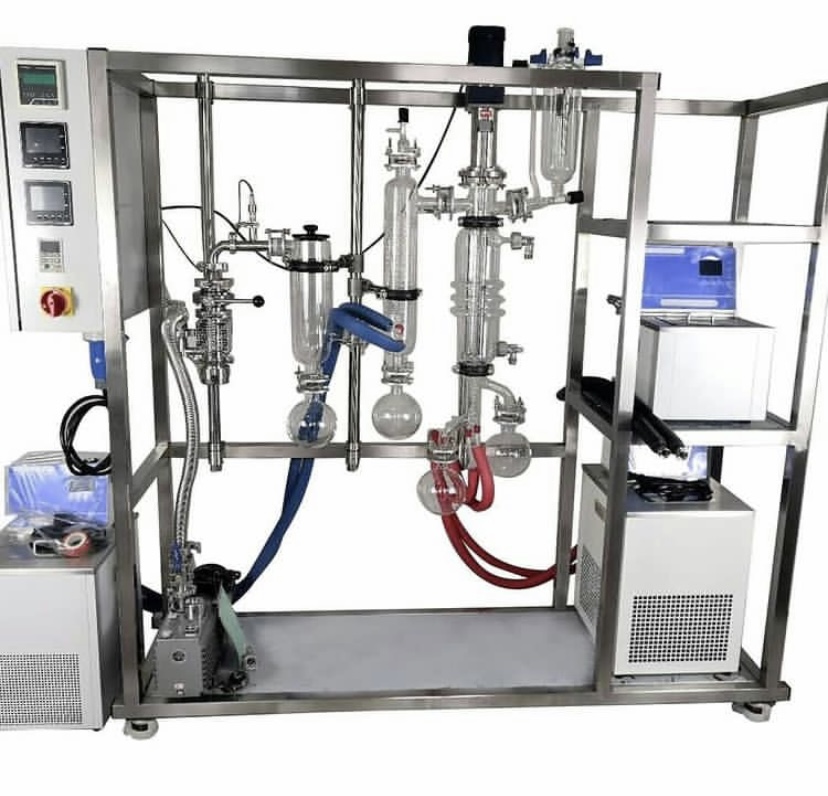

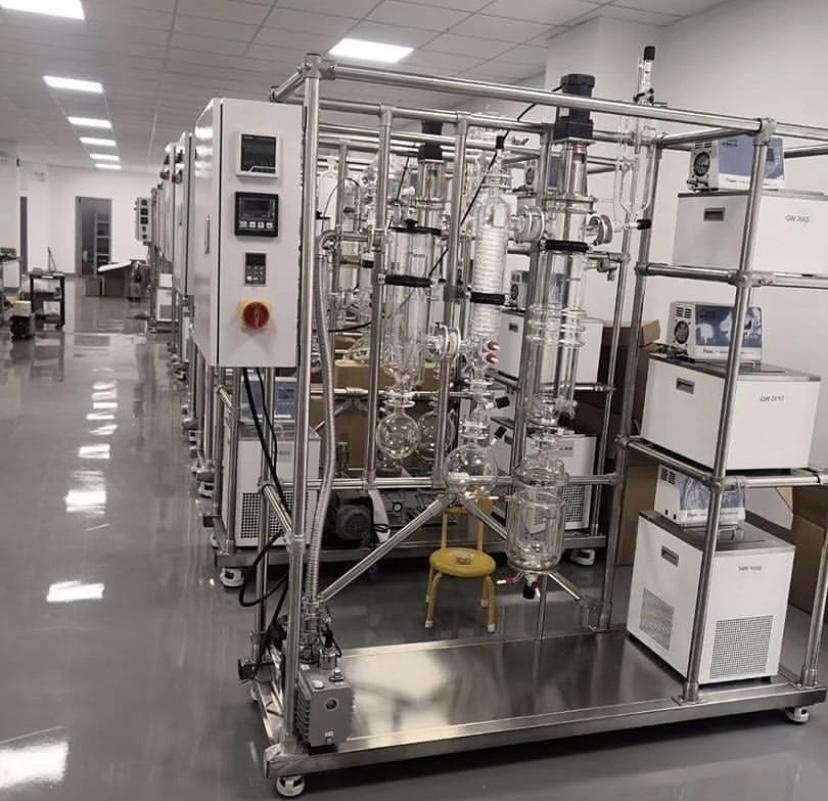

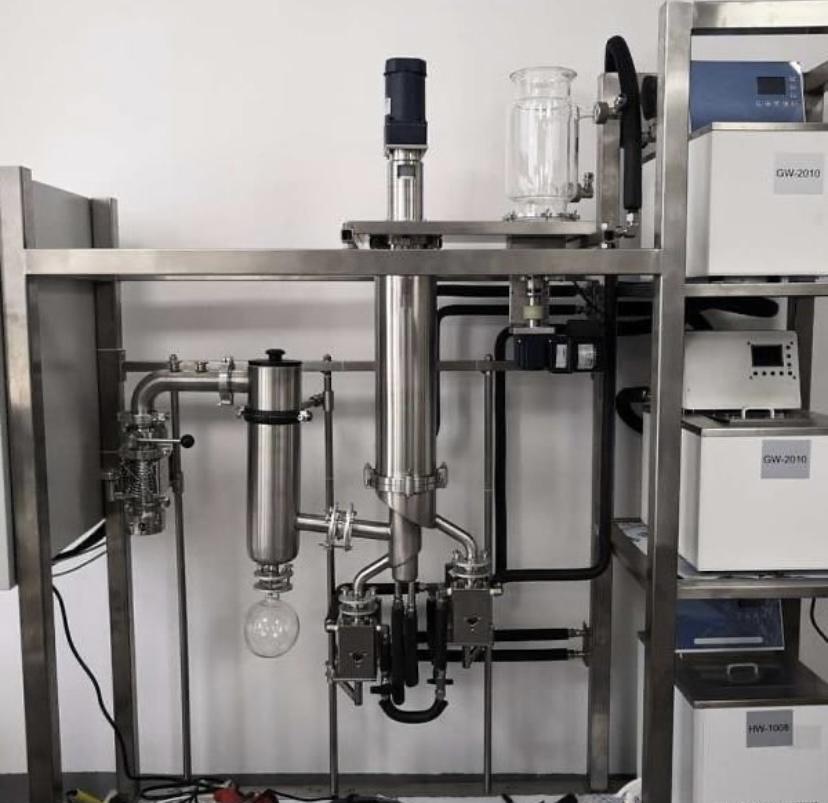

Wiped Film Evaporator Molecular Distillation Unit
A distillation apparatus for laboratory use is described below.
This plant can be used for:
• Process development
• Feasibility study
• Small continuous distillation
For heat sensitive chemicals, pharmaceuticals or food.
Product Description
Model | unit | VNDS-1 | VNDS-2 | NVDS-5 | VNDS-10 | VNDS-15 | VNDS-20 | VNDS-30 | |||||
Feed rate | l/h | 1-10 | 4-20 | 10-50 | 20-100 | 30-150 | 40-200 | 60-300 | |||||
Evaporation | square meter | 0.1 | 0.2 | 0.5 | 1 | 1.5 | 2 | 3 | |||||
cooling zone | square meter | 0.15 | 0.4 | 1.7 | 3 | 4 | 5 | 6.5 | |||||
feeding method | large | High-precision gear pump continues to feed | identical | ||||||||||
Collection method | large | Continue to discharge from the high precision pump | identical | ||||||||||
Operating temperature | degree | Maximum -380 degrees | identical | ||||||||||
Electrical requirements | 220V, 380V, 480V/50-60HZ | identical | |||||||||||
Our molecular distillation systems
1) All system power options: 3-phase 220/380/480V, 50/60Hz;
2) Depends on what capacity you need;
3) All parts of the flange of the pipe valve joint fittings;
4) Pump and heater and cooler power per model:

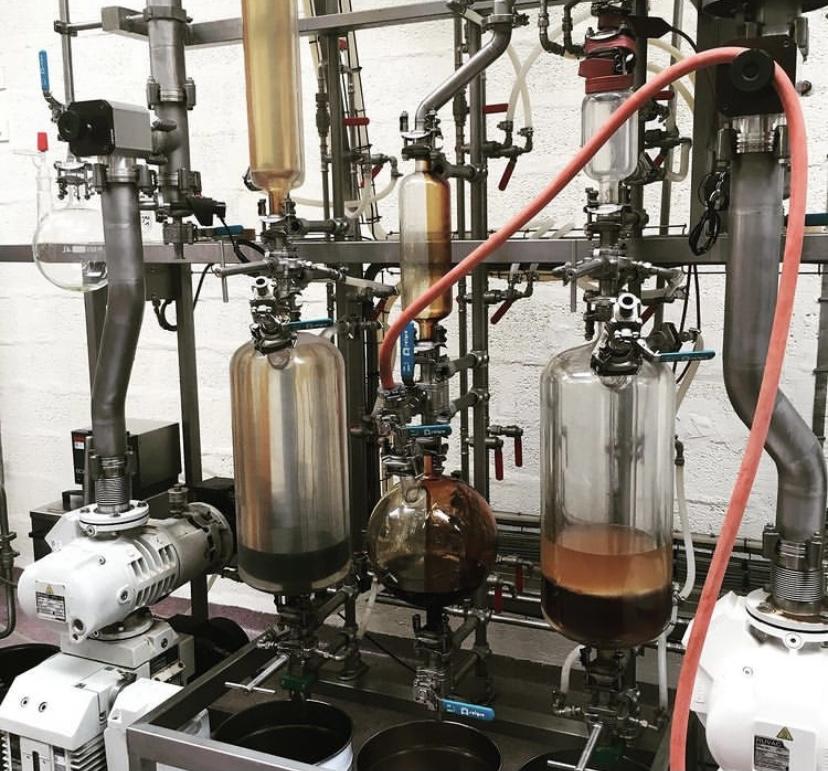

Production Process

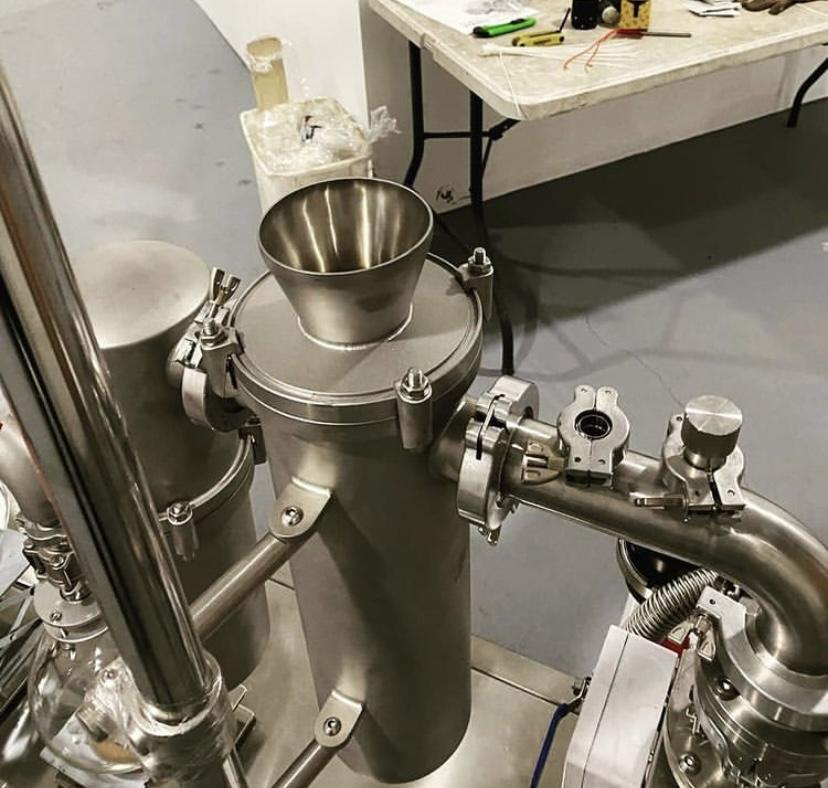

Crude feed
100L three-layer storage tank, the inner layer is heated and the outer layer is insulated;
filter inside
filter inside
Pump
High Precision Gear Pump, 750W
30~120L/h flow depends on your pretreatment
condenser
30~120L/h flow according to your pretreatment, SS316L material

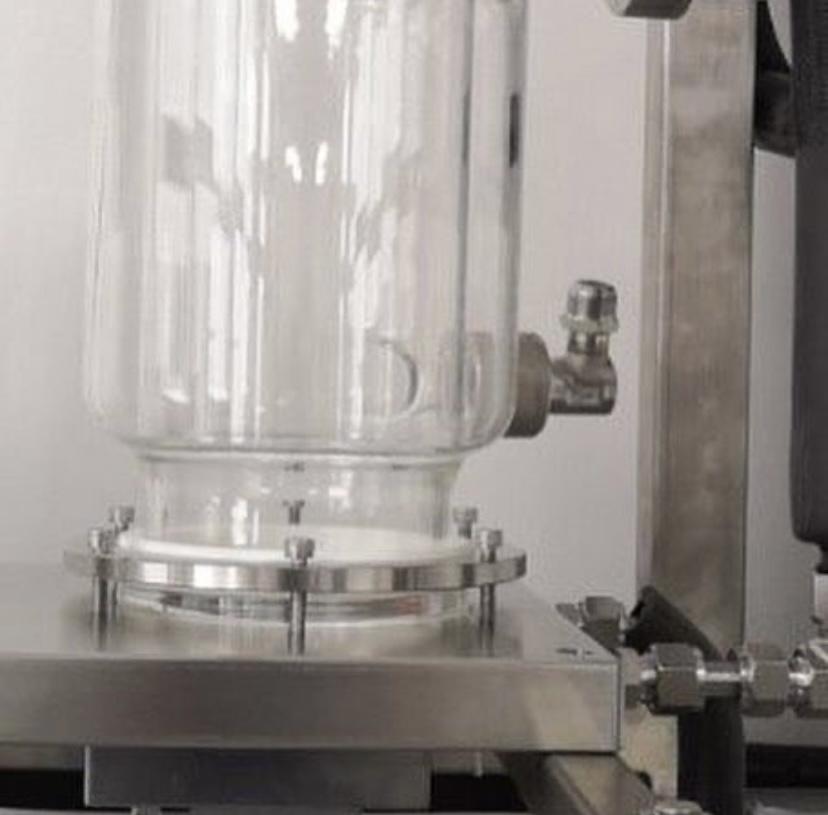

glass mirror
Dual-purpose 4m2 external condenser with 5L cold trap
removable seal
insulating sheath
Drain pump
Gear pump discharge, 750W, 50L insulation tank
