10000w 48v hybrid solar inverter 10kw with MPPT charger for home and government solar power system

PRODUCT DETAIL
Warranty:one yearOutput current:30A-100A, 45/60A
output type:singlebrand:must, must
Output frequency:50-60 Hzsize:505*701*330mm
model:PV3500 5-15K, PV3500 5-15KMPPT maximum efficiency:98%
Packaging Details:Our 10KW power inverter packaging: carton or wooden box, or according to customer needsOutput Power:1 - 200KW
type:DC/AC InverterThe output voltage:100v/110v/120v/220v/230v
port:Shenzhen/Hong KongInput voltage:100v/110v/120v/220v/230v
exhibit:LCD + LED displaycolor:red or green or OEM
Supply capacity:5000pcs more order per month will have discountweight:40-70 kg
Audible noise:60 decibelsRated charging current:100A
place of origin; place of origin:Guangdong, Chinapayment terms:L/C, Western Union, T/T
Product Description

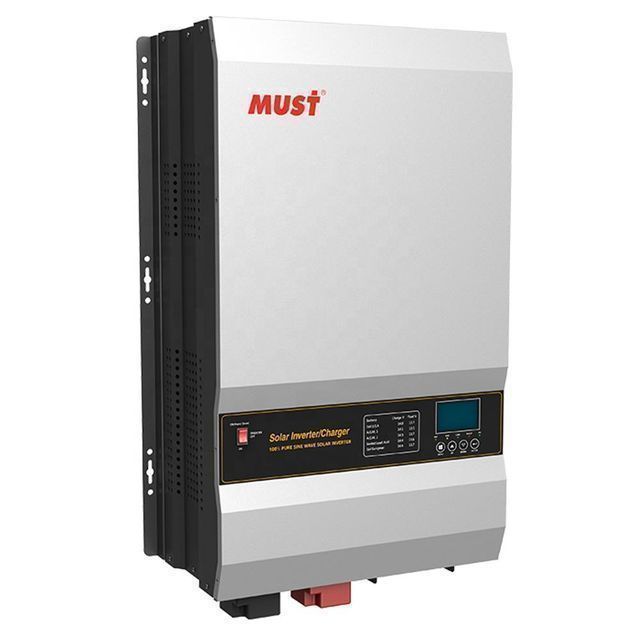

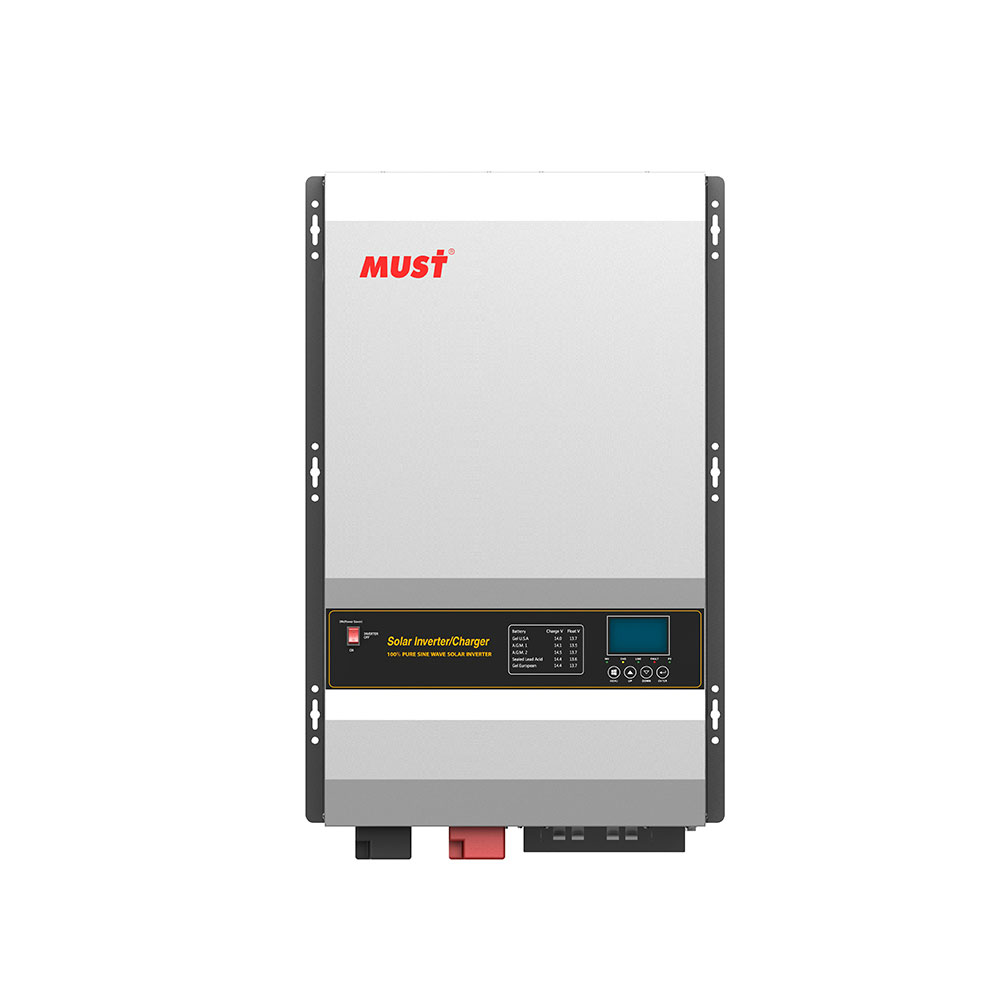

MeterUST 8KW 10KW 12KW 48V DC AC Inverter Off Grid Solar Inverter with Charger
Low frequency off-grid solar inverterr
PV3500 Pro series (4-12KW)

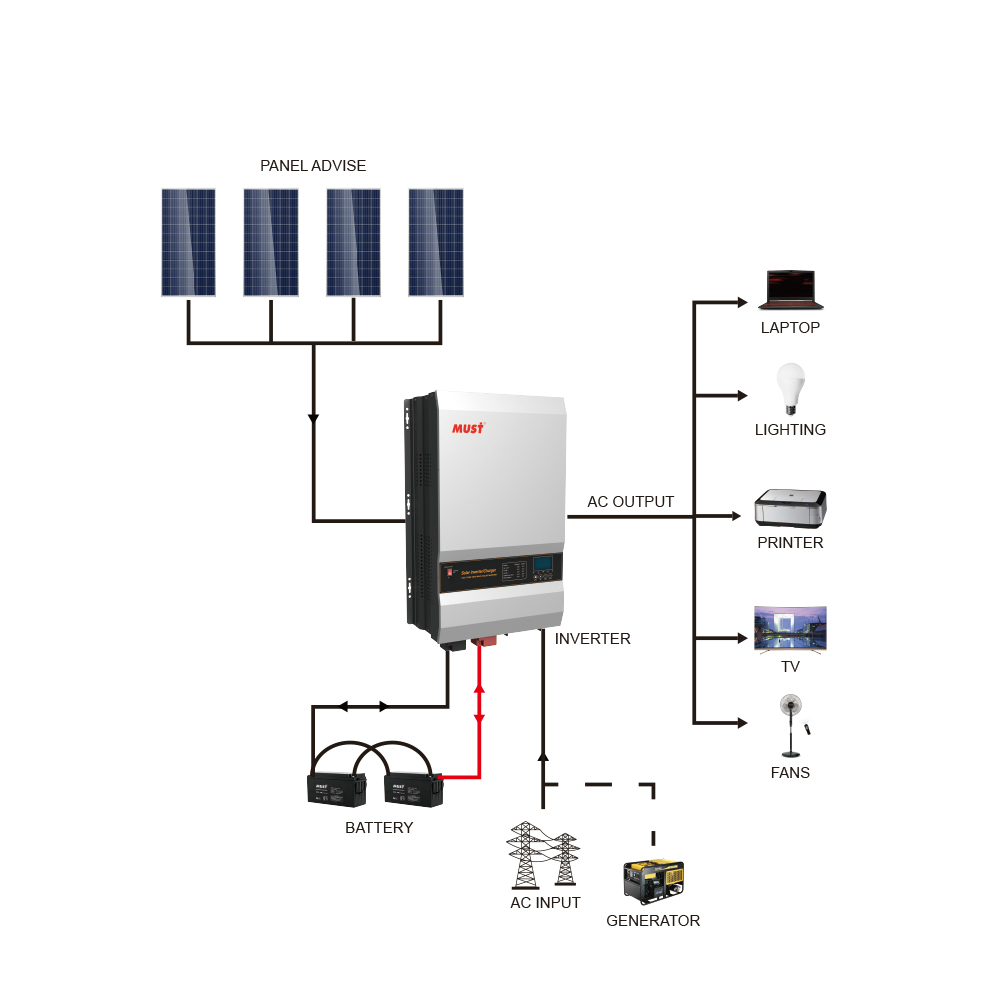

PV3500 series is a multifunctional inverter that combines the functions of inverter and mppt solar charger controller, solar charger and battery charger to provide uninterruptible power supply support with a portable size. A comprehensive LCD display provides user-configurable and easy-to-access button operations such as battery charge current, AC/solar charger priority, and selectable input voltage based on different applications.
Click here for best prices and availability
Model
PV35-4K
PV35-5K
PV35-6K
PV35-8K
PV35-10K
PV35-12K
Nominal battery system voltage
24V
48V
48V
48V
48VDC
48VDC
Inverter output
rated power
4KW
5KW
6KW
8.0KW
10.0KW
12.0KW
Surge rating (20ms)
12KW
15KW
18KW
24KW
30KW
36KW
start motor
2 hp
2 hp
3 hp
4 hp
5 hp
6 hp
waveform
Pure sine wave/same input (bypass mode)
RMS value of nominal output voltage
220V/230V/240VAC(+/-10%RMS)
Output frequency
50 Hz/60 Hz +/-0.3 Hz
Inverter Efficiency (Peak)
>85%
>88%
>88%
Linear Model Efficiency
>95%
power factor
0.8
typical transfer time
10 ms (maximum)
AC input
Voltage
230VAC
Selectable voltage range
154~272VAC (for personal computer)
Frequency Range
50Hz/60Hz (automatic sensing)
Battery
Minimum starting voltage
20.0VDC/21.0VDC for 24VDC mode (40.0VDC/42.0VDC for 48VDC mode)
low battery alert
21.0VDC+/-0.3V for 24VDC mode (42.0VDC+/-0.6V for 48VDC mode)
Low battery cut off
20.0VDC+/-0.3V for 24VDC mode (40.0VDC+/-0.6V for 48VDC mode)
High pressure alarm
32.0VDC+/-0.3V for 24VDC mode (64.0VDC+/-0.6V for 48VDC mode)
High battery voltage recovery
31.0VDC+/-0.3V for 24VDC mode (62.0VDC+/-0.6V for 48VDC mode)
Idle Consumption - Search Mode
<25W when power saving mode is on
<25W when power saving mode is on
<25W when power saving mode is on
AC charger
depending on battery type
The output voltage
depending on battery type
40A
50A
80A
80A
80A
Charger AC Input Breaker Rating
40A
40A
50A
80A
80A
80A
SD overcharge protection
31.4VDC for 24VDC mode (62.8VDC for 48VDC mode)
40A
50A
60A
70A
80A
Maximum charging current
65A
40A
50A
60A
70A
80A
BTS
continuous output power
are the charging voltage and SD voltage based on the change of battery temperature
bypass and protection
Input voltage waveform
Sine wave (grid or generator)
Nominal input frequency
50Hz or 60Hz
Overload protection (switching power supply load)
breaker
Output short circuit protection
breaker
Bypass Breaker Rating
40A
63A
63A
63A
63A
63A
bypass current
40 amps
80 amps
80 amps
Solar Charger & AC Charger
Maximum Photovoltaic Charging Current
60A
60A (120A optional)
60A (120A optional)
DC voltage
24V/48V automatic work
48V
48V
Maximum photovoltaic array power
1600W
3200W
3200W
3200W (120A optional 6400W)
3200W (120A optional 6400W)
MPPT range @ working voltage (VDC)
32-145VDC for 24V mode, 64-147V for 48V mode
64~147VDC
64~147VDC
Maximum photovoltaic array open circuit voltage
147V DC
maximum efficiency
>98%
Standby power consumption
<2W

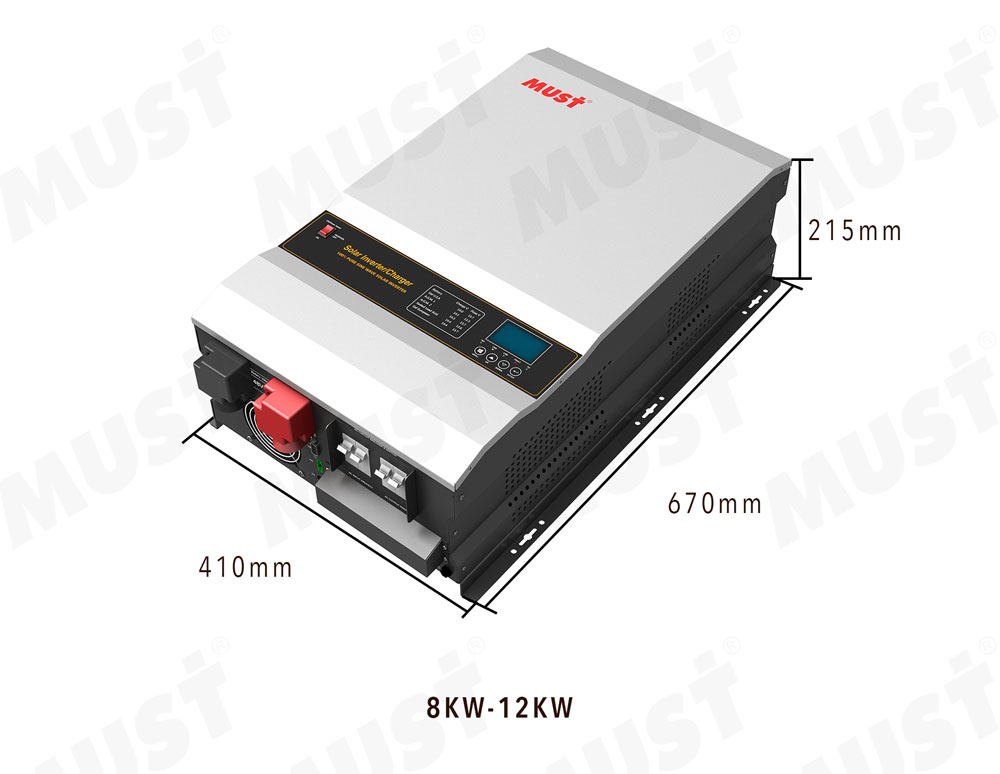

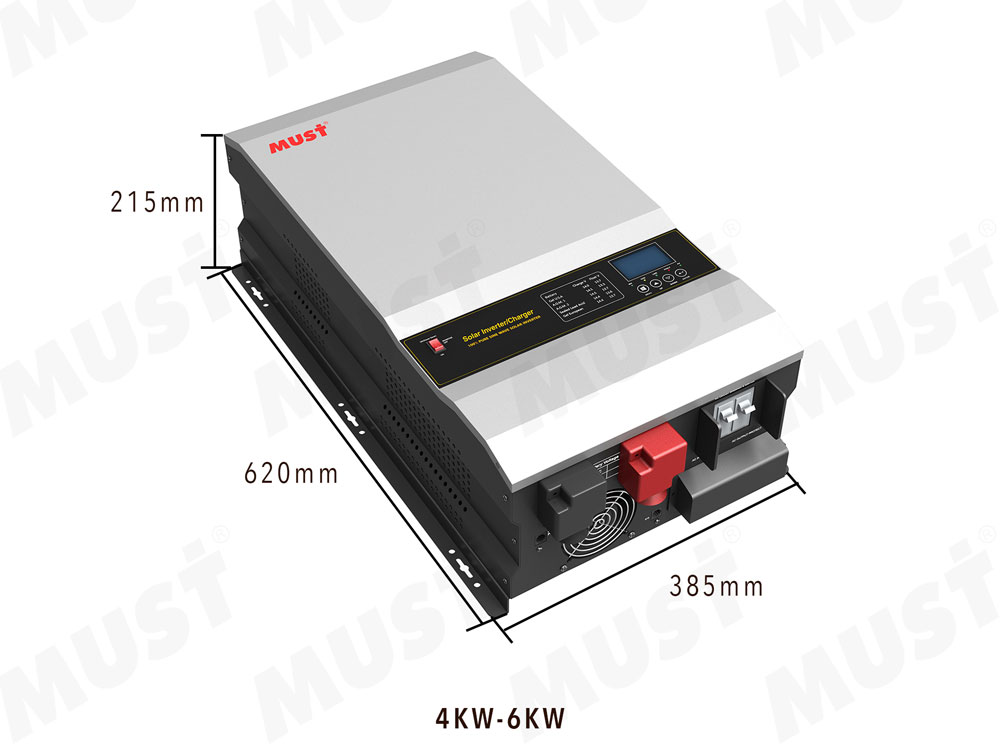

Mechanical Specifications
Machine size(W*H*D)(mm)
620*385*215mm
670*410*215mm
670*410*215mm
Package size(W*H*D)(mm)
755*515*455mm
638*395*241
884*618*443mm
other
audible noise
60dB max
exhibit
LED+LCD display
Loading (20GP/40GP/40HQ)
140/280/320
Operating temperature
0°C -40°C
Storage temperature
-15°C -60°C

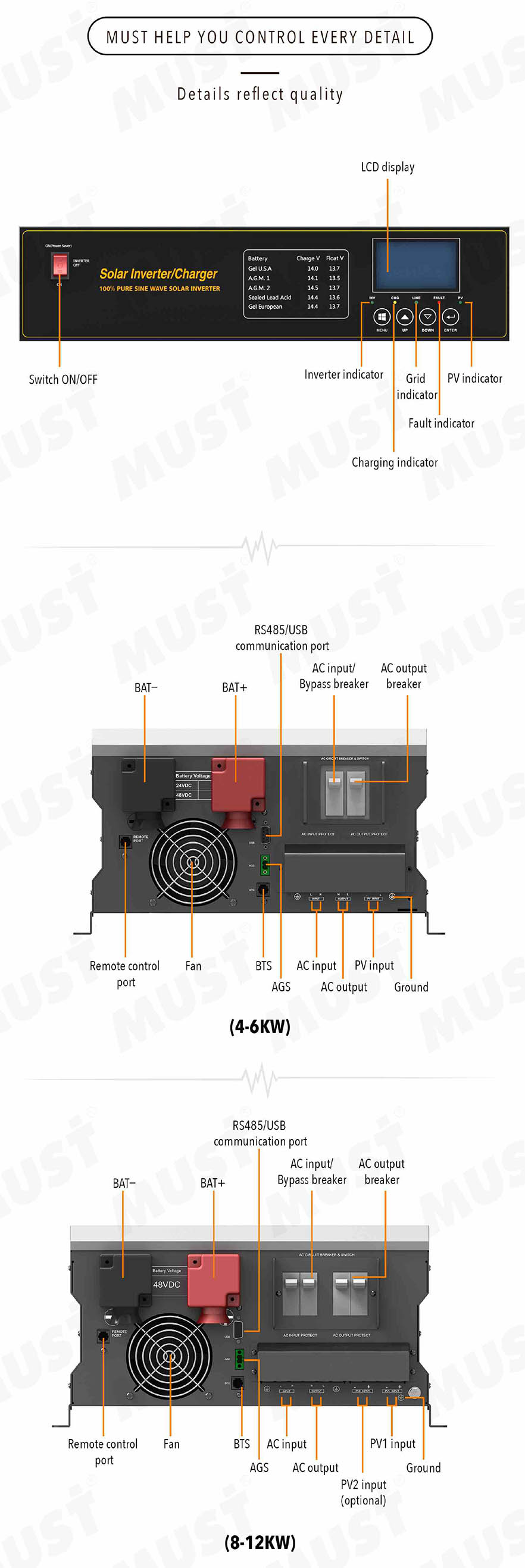

detailed image

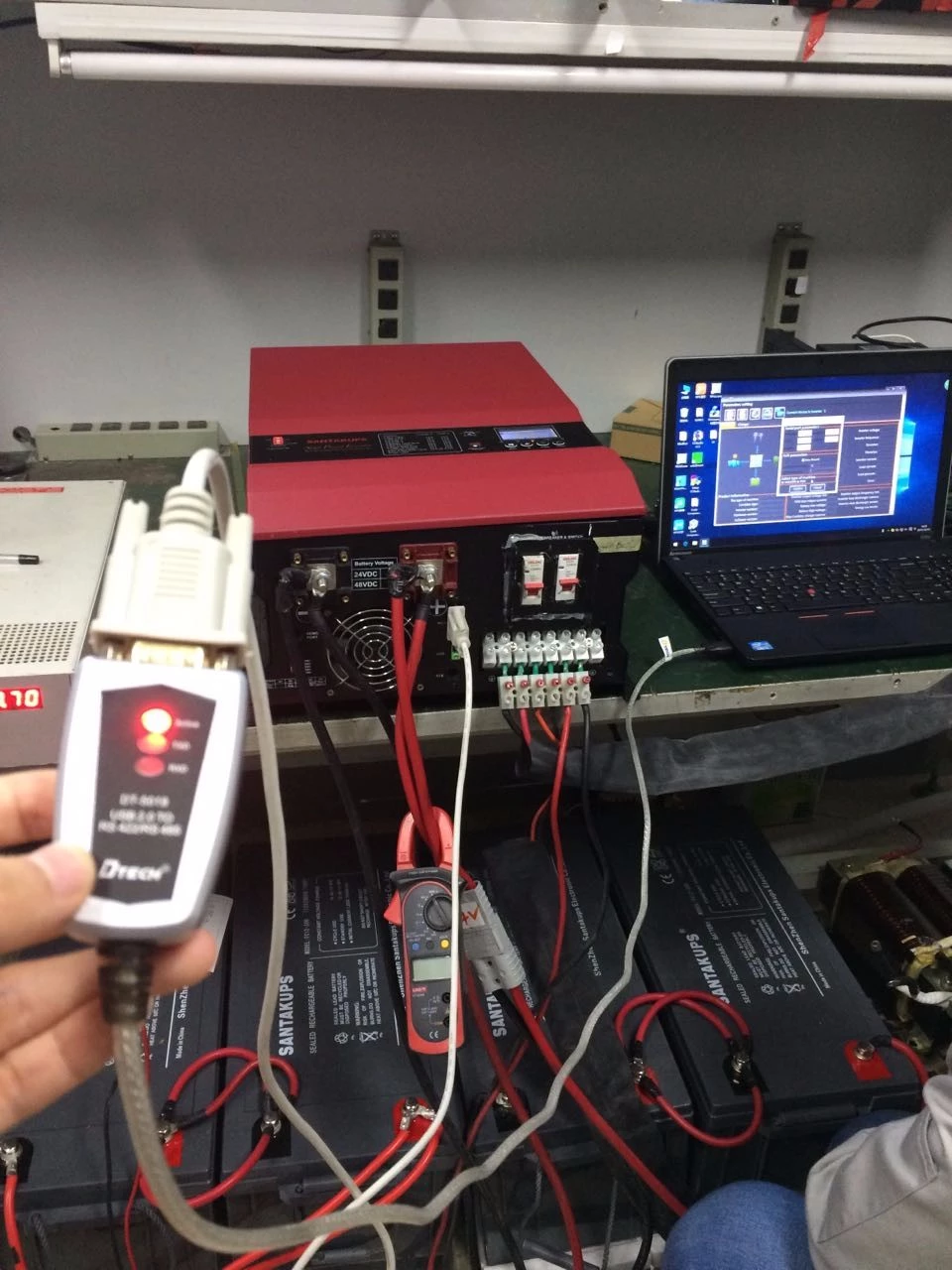

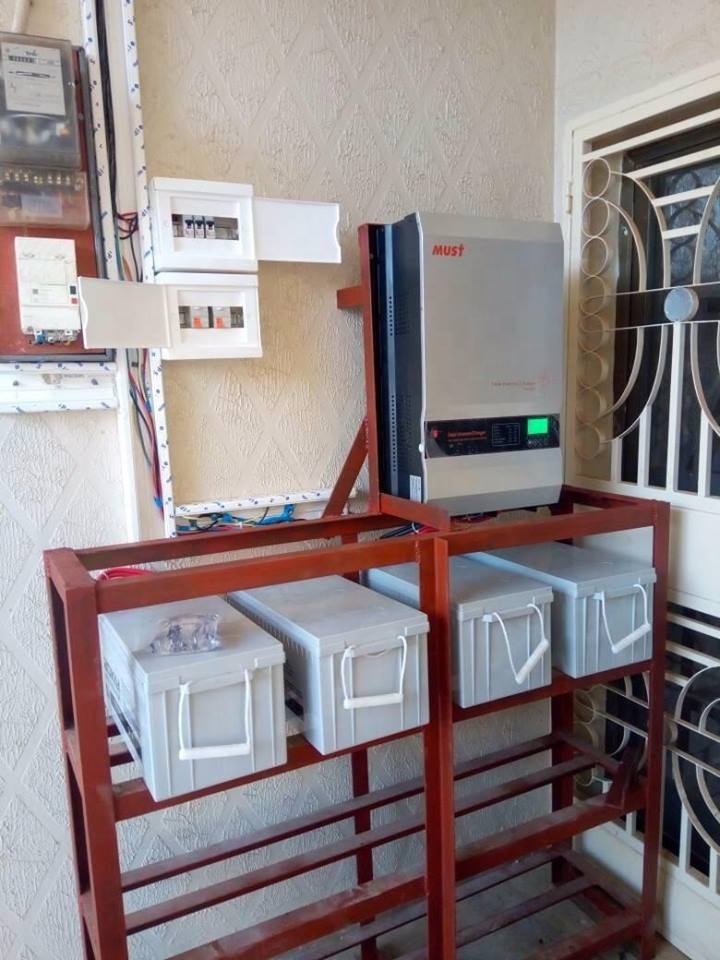

customer photo

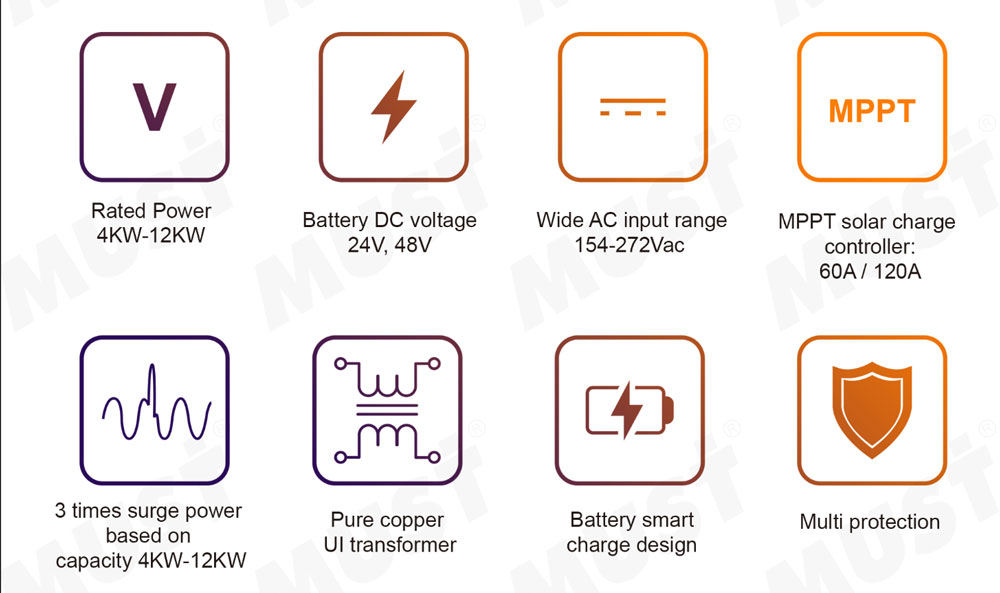

Features:
  • 1. Smart LCD settings (working mode, charging current, charging voltage, etc.)
  • 2. Built-in MPPT solar charge controller 60A/120A
  • 3. MPPT efficiency up to 98%
  • 4. Powerful charging rate up to 100Amp

  • 5. Built-in pure copper UI transformer
  • 6. DC start and automatic self-diagnosis function
  • 7. RS485/USB monitoring function, free CD
  • 8. Support AGS, BTS ports
  • 9. Compatible generator
