Split Phase 120V/240V, 6KW 48V MPPT Hybrid Solar Inverter + MPPT Solar Charger 120A, High PV Input 450 VDC, No Battery Support

  • $999.00 / 1 - 4 pieces
    $959.00 / 5 - 11 pieces
    $935.00 / >=12 pieces
  • 1 piece
  • MPPSOLAR INC.
  • Taiwan, China
  • Ms Linda Huang
PRODUCT DETAIL

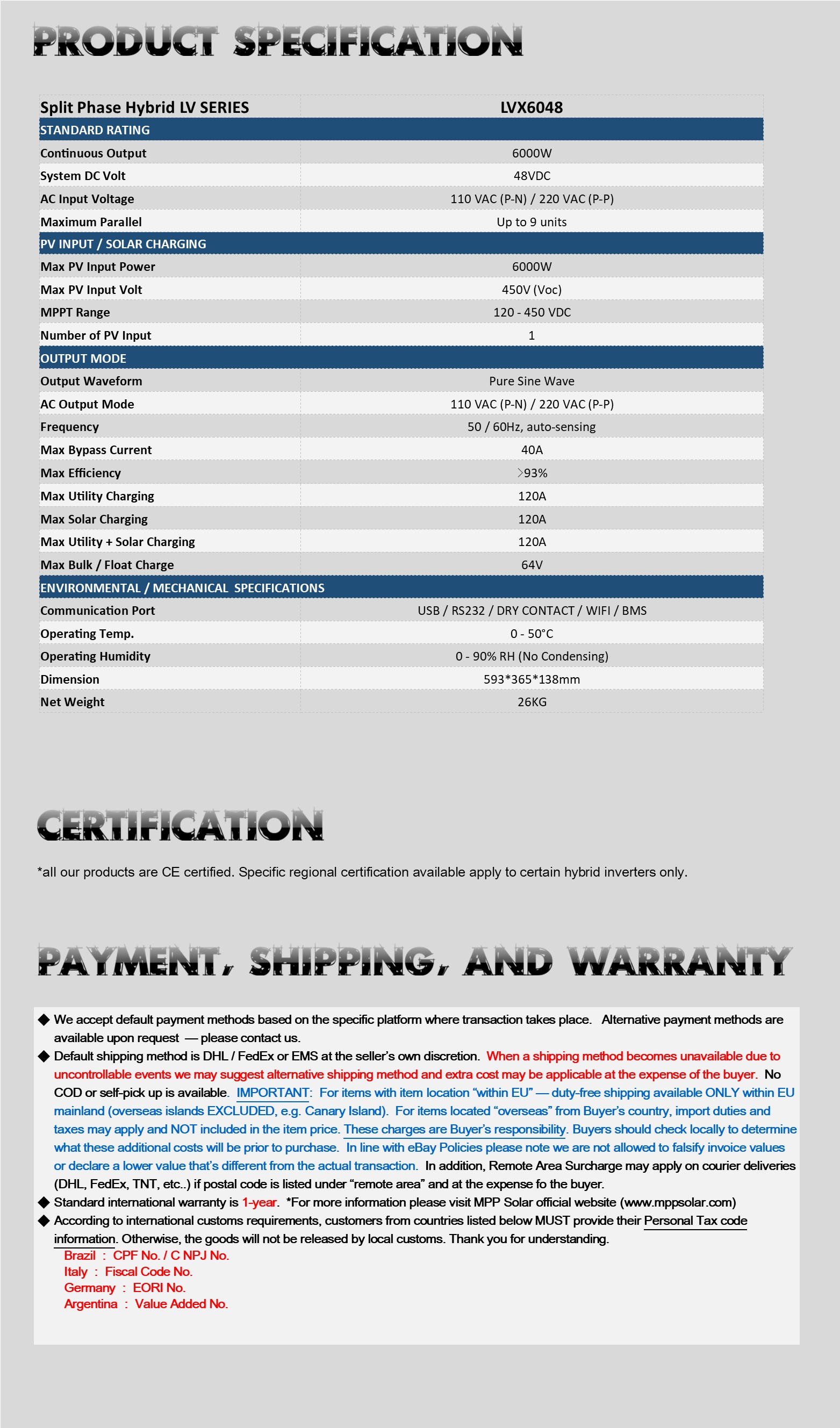

type:DC/AC inverterweight:26kg
payment terms:Western Union, T/T, Credit CardPackaging Details:carton
place of origin; place of origin:Taiwan, Chinamodel:LVX6048
Inverter efficiency:97-99%size:59.3*36.5*13.8cm
Output current:27abrand:MPP Solar
Certificate:CE EMC LVDoutput type:Double
The output voltage:110Vac/220vacOutput frequency:50hz/60hz
Input voltage:48Vdc

special function

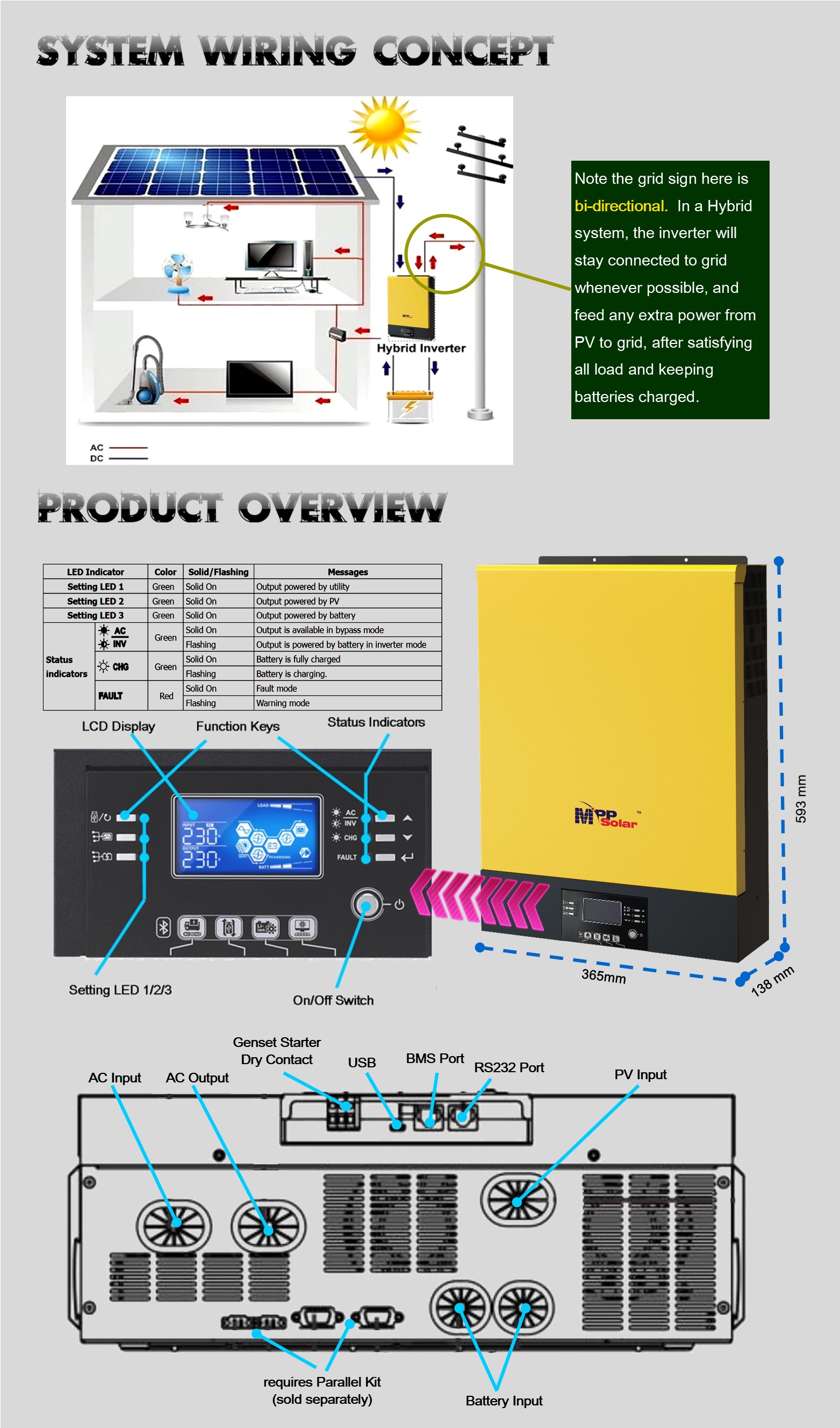

  • Support 120V/240V split phase
  • MPPT charger 120A
  • Maximum 6KW PV array support
  • Maximum PV input 450 VDC (Voc)
  • Up to 9 units can be connected in parallel**
  • Built-in wifi transmitter
  • BMS communication (support Pylontech / Soltaro / WECO BMS system)
  • No battery support (standalone mode only)*

main feature

  • 120V/240V output voltage for US/PR
  • Maximum 6KV output, pure sine wave
  • 48V system voltage
  • Max solar charging 120A MPPT
  • Maximum practical charging 120A
  • Built-in genset starting dry contact
  • Extensive programmable functions
  • Adjustable Bulk/Float/Low Cutoff Settings
  • Indoor installation only
  • LCD + LED indicator

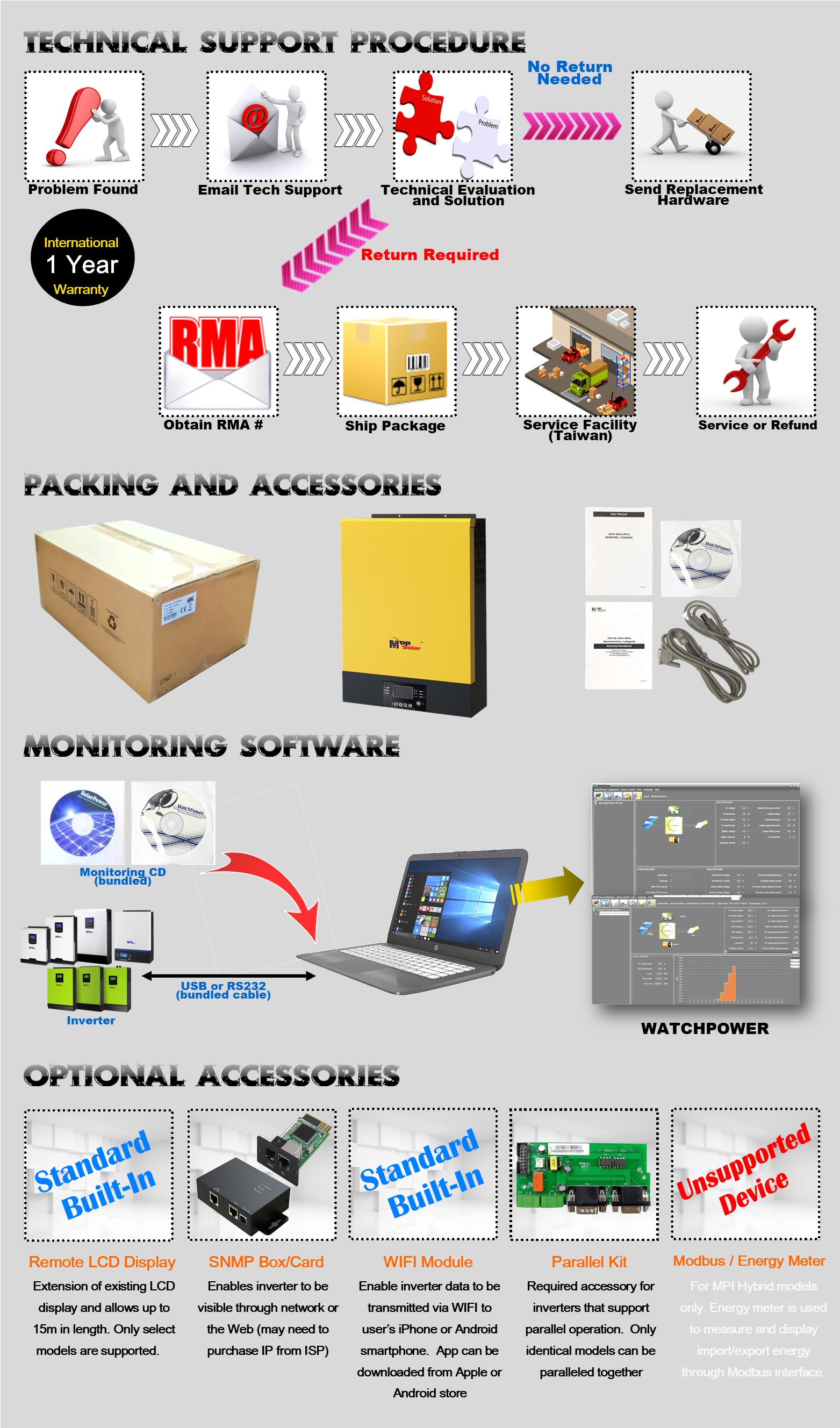

  • Free Monitoring Software





Use generator as AC input
  • It is recommended that the generator power be 50% larger than the inverter rating to reduce the chance of overloading.
  • A variable frequency generator is recommended as its output is cleaner than conventional generators. The inverter may reject unsuitable generator output.
  • When using generator as AC input - grid injection must be disabled.
