12x12m square HDPE Tilapia fish farming cages for lake
- $100.00 / >=10 pieces
- 10 pieces
- Hebei Zhuoshi Pipeline Technology Co., Ltd.
- Hebei, China
- Mr Zhuo Shi
PRODUCT DETAIL
| Diameter: | as your request; | Feature: | Eco-Friendly,; |
| Advantage: | Durable,strong; | shape: | round,square,or as request; |
| Port: | Tianjn China; | Mesh Size: | 10-25mm or as request; |
| Place of Origin: | Hebei China; | Usage place: | lake,pool,,river,sea; |
| Use: | fish or crab or others; | Package Preview: | ; |
| Model Number: | ZS-FN-001; | Certificate: | ISO4427,CE; |
| Shape: | round or square; | Supply Ability: | 100000 Metric Ton/Metric Tons per Month; |
| Packaging Detail: | nude; | connection: | fitting; |
| Product Type: | Aquaculture Traps; | Color: | black or as request; |
| Payment Terms: | L/C,Western Union,T/T,MoneyGram; | Material: | HDPE; |
| Brand Name: | ZHUOSHI; | Frame material: | hdpe; |
| Net: | PE or nylon; |
Product Description
12x12M square hdpe floating aquaculture traps for fish farming

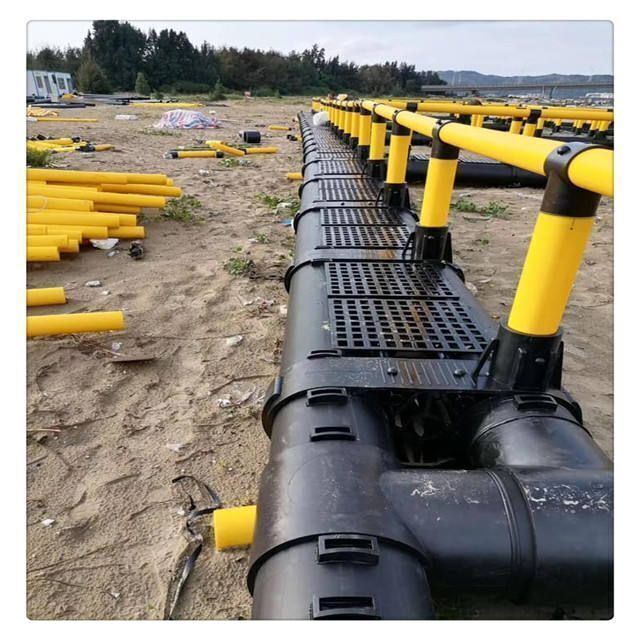

HDPE Square Fish Cage
square aquaculture traps PE material

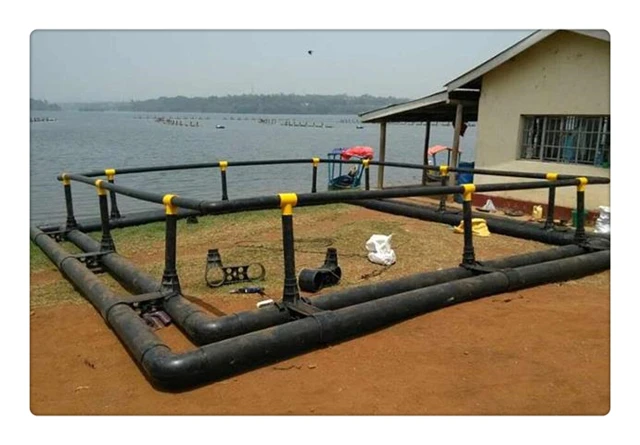

Square fish cages are suitable for inland waters, for example, lake, river, lagoon, dam and etc. Popular cage sizes are 3mx3m, 4mx4m,5mx5m, 6mx6m, 7mx7m and 8mx8m
Circular Hdpe fish cage,circumference range from 30 meters to 120 meters.
The construction is designed to flex with the forces of the sea,providing a robust platform with easy access but with incressed strength to withstand the rigours of more exposed waters.
Construction of the cage frame:
Specification
Square Structure | 4mx4m | 5mx5m | 6mx6m | 7mx7m | 8mx8m |
Floating pipe | HDPEФ200mm | HDPEФ200mm | HDPEФ200mm | HDPEФ250mm | HDPEФ250mm |
Handrail pipe | HDPEФ90mm | HDPEФ90mm | HDPEФ90mm | HDPEФ110mm | HDPEФ110mm |
Standing pipe | HDPEФ90mm | HDPEФ90mm | HDPEФ90mm | HDPEФ125mm | HDPEФ125mm |
Cage bracket | HDPE 200 | HDPE 200 | HDPE 200 | HDPE 250 | HDPE 250 |
Square Structure | 9mx9m | 10mx10m | 11mx11m | 12mx12m | 15mx15m |
Floating pipe | HDPEФ250mm | HDPEФ250mm | HDPEФ315mm | HDPEФ315mm | HDPEФ315mm |
Handrail pipe | HDPEФ110mm | HDPEФ110mm | HDPEФ110mm | HDPEФ110mm | HDPEФ110mm |
Standing pipe | HDPEФ125mm | HDPEФ125mm | HDPEФ125mm | HDPEФ125mm | HDPEФ125mm |
Cage bracket | HDPE 250 | HDPE 250 | HDPE 315 | HDPE 315 | HDPE 315 |
Performance parameters of Square Cage:
2) Ability of anti-wave:Maximum wave high of 3 meter in the water
3) Anti-flow capability:Maximum flow rate of 1.0m/s
Circular Cage Model | Z200 | Z250 | Z315 | Z400 |
Cage Circumference(m) | 30 to 60 | 40 to 80 | 60 to 120 | 90-160 |
Depth(M) | -5 to -60 | -5 to -60 | -5 to -60 | -5 to -60 |
Floating Pipe Dia(mm) | 200 | 250 | 315 | 400 |
Handrail Pipe Dia(mm) | 90 | 110 | 110 | 125 |
Standing Pipe Dia(mm) | 110 | 125 | 125 | 140 |
Backet Separation(m) | 2 | 2 | 2 | 2 |
Net | Nylon/PE/PP | Nylon/PE/PP | Nylon/PE/PP | Nylon/PE/PP |
Styrofoam Filling | Option | Option | Option | Option |
Walkway Decking | Option | Option | Option | Option |
Performance parameters of Circular Cage:
1)Anti-Windstorm capacity:Maximum grade 112) Ability of anti-wave:Maximum wave high of 5 meter in the water
3) Anti-flow capability:Maximum flow rate of 1.5m
Advantages
1. High intensity
2. Excellent flexibility
3. Corrosion resistant
4. Strongly resistant to the storm
5. Long service life
6. Sufficient aquaculture water volume with high efficiency and low comprehensive cost
7. Less pollution and high-grade aquaculture water resulted in the perfect quality of the fish products, the desirable benefits and returns.
2. Excellent flexibility
3. Corrosion resistant
4. Strongly resistant to the storm
5. Long service life
6. Sufficient aquaculture water volume with high efficiency and low comprehensive cost
7. Less pollution and high-grade aquaculture water resulted in the perfect quality of the fish products, the desirable benefits and returns.
Fittings
FISH CAGE NETS
square aquaculture traps PE material
Fish cage net is very import in the whole fish cage system, as fishes are growing inside the net cage. The fish net cage provides a environment that keep fishes from the risk of escape and predator attacks.
We make sure the fish net cages are pure material, we've been improving and using advanced sewing methods to make sure strong and clean connection points, as well as neat grid ropes to ensure that load is evenly distributed throughout the net system.
All hapa nets, fingerling nets, grow out nets, protection nets are available.
We make sure the fish net cages are pure material, we've been improving and using advanced sewing methods to make sure strong and clean connection points, as well as neat grid ropes to ensure that load is evenly distributed throughout the net system.
All hapa nets, fingerling nets, grow out nets, protection nets are available.
Company Profile
Hebei Zhuoshi Pipeline Technology CO., Ltd. is a high-tech enterprise integrating design, production, sales, construction power,municipal administration, communication and energy. We adhere to the principle of taking scientific and technological innovation as the core,promoting the development of productivity,taking innovative talents as the benchmark, improving the competitiveness of core science and technology,insisting on scientific and technological innovation to promote the integration of innovative resources, and forming a joint force of enterprise innovation!
Our main products include: PVC Pipe for Electrical Cable Protection, MPP Pipes for Electrical Communication Cable Protection,PVC Grid Pipe,HDPE Water Pipe,PVC water Pipe,SRTP pipe,FRP Pipe,Hdpe Double Wall Corrugated Pipe,HDPE Porous Pipe,N—HAP Pipe and many other plastic pipe series.
We continuously increases the investment in scientific and technological innovation,introduces talents boldly,and deepened cooperation with institutions of higher education to provide a strong guarantee for the excellent quality of pipelines;Pipes are widely used in construction water supply and drainage,hydraulic engineering projects,municipal engineering,power communication protection,gas transmission,agricultural irrigation,chemical sewage and other fields. At present, we has set up an intensive sales network in central China, north China, east China, southwest China, northwest China and other places, which can provide end users with high-quality products and good service of pre-sale, in-sale and after-sale timely.
We continuously enlarge the marketing channels, innovate and improve production process and enter market with our own brand.We have established good corporate image in market and industry based on our superior quality and first-class reputation.Our company is developing rapidly with our innovative technology,perfect products and high-quality services.Meanwhile, we will share the development and the bright future with our customers from all over the world!
Our main products include: PVC Pipe for Electrical Cable Protection, MPP Pipes for Electrical Communication Cable Protection,PVC Grid Pipe,HDPE Water Pipe,PVC water Pipe,SRTP pipe,FRP Pipe,Hdpe Double Wall Corrugated Pipe,HDPE Porous Pipe,N—HAP Pipe and many other plastic pipe series.
We continuously increases the investment in scientific and technological innovation,introduces talents boldly,and deepened cooperation with institutions of higher education to provide a strong guarantee for the excellent quality of pipelines;Pipes are widely used in construction water supply and drainage,hydraulic engineering projects,municipal engineering,power communication protection,gas transmission,agricultural irrigation,chemical sewage and other fields. At present, we has set up an intensive sales network in central China, north China, east China, southwest China, northwest China and other places, which can provide end users with high-quality products and good service of pre-sale, in-sale and after-sale timely.
We continuously enlarge the marketing channels, innovate and improve production process and enter market with our own brand.We have established good corporate image in market and industry based on our superior quality and first-class reputation.Our company is developing rapidly with our innovative technology,perfect products and high-quality services.Meanwhile, we will share the development and the bright future with our customers from all over the world!
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Cases
Certifications
FAQ
A: We are professional manufacture and welcome to visit us at any time.
Q2. How long is your delivery time?
A: Generally it takes 10-15 days if the goods are in stock, which depends on your quantity and can be negotiable.
Q3: Can you provide samples?
A: Yes, of course, samples is available for small quantity we can supply for free.
Q4: What is your terms of payment?
A: L/C, Western Union, T/T 30% in advanced, balance before shipment.
Q5: Can I have my own logo on the product?
A:Yes, sure, you just send us your drawing, we'll make logo for you, and before production we will confirm with you in advance.
Q6: Can I request to change the method of package and transportation?
A: Yes, the packing and trasportation can be as per your requirements.
