Deep Sea Fish Cage System Diameter 15mm Tilapia Breeding Cage Aquaculture
- $100.00 / >=100 meters
- 100 meters
- Tianjin Dingrunda Technology Co., Ltd.
- Tianjin, China
- Mr Dunbo Shi
PRODUCT DETAIL
Anti-flow ability: | Maximum flow velocity 1.5 m/s | diameter: | 10-40m or customized, 16-30M |
Product Category: | aquaculture trap,aquaculture trap | use: | fish cage |
Fish cage net: | Knotted and knotless nets | Package preview: | |
Windproof: | Highest level 11 | Packaging details: | Bare installation or as required, 5.8M/11.8M length pipe load at 20'GP or 40'HQ. HDPE pipes and fittings for water supply and gas supply DN16-1600mm |
shape: | Round Square Rectangle Square Round, Square/Round | application: | aquaculture farm |
Place of origin: | China | Wave resistance: | The maximum wave height in the water is 5m |
model: | fish cage | Material: | High-density polyethylene |
Supply capacity: | Annual output of 5,000 tons of HDPE pipes and fittings for water and gas supply DN16-1600mm | brand: | DRD |
product name: | Deep sea fish cage system 40m diameter tilapia floating tube | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Fish cage circumference: | 30-160m | port: | Tianjin harbor |
Pet fish breeding cage
Product Description

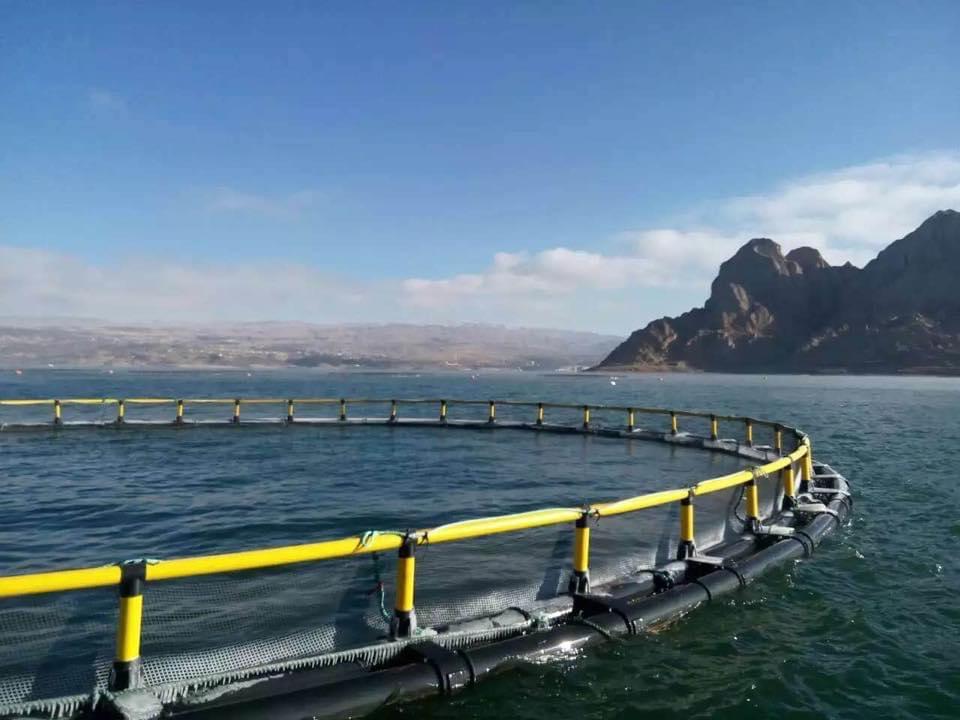

HDPE fish cage
Marine fish cages have strong wind, current and wave resistance. Made of new material HDPE pipe, the cage has a long service life. The cage capacity is large and the survival rate is high. 1. Wide application range, can be set in water depths from -6m to 50m. 2. It has strong wind resistance and can defend against typhoons, up to level 12. It has strong wind and wave resistance, up to 7m, and strong current resistance, up to 1.5m/s. 3. Large breeding capacity, living space and growing space. 4. The cage has a long life and the cage frame can be used for more than 15 years.
Specification

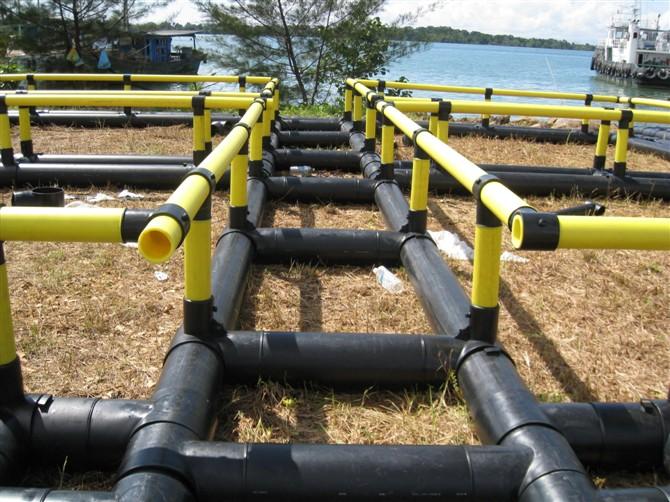

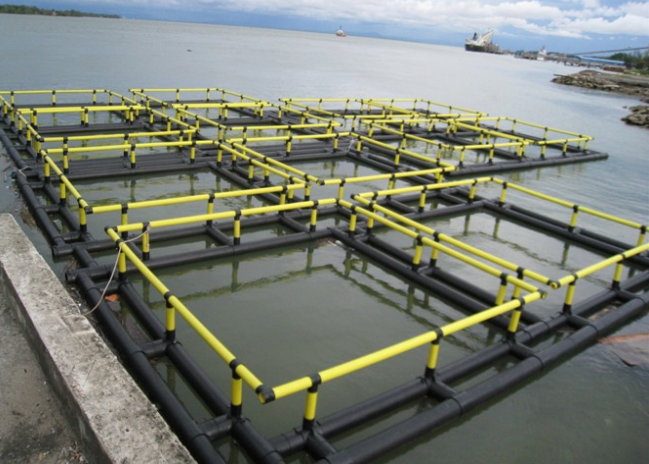

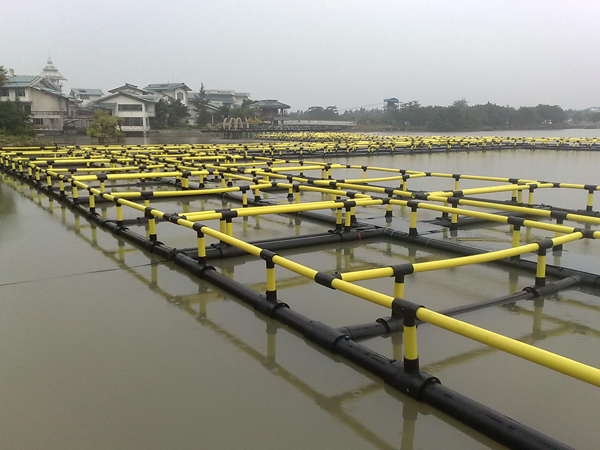

Square floating cage specifications
Length*Width (meters) | Floating tube diameter (mm) | Handrail tube diameter (mm) | Standpipe diameter (mm) | Bracket diameter (mm) | Bracket distance (m) |
2*2 | 200 | 90 | 110 | 200 | 2 |
3*3 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
4*4 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
5*5 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
6*6 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
7*7 | 200/250 | 110 | 125 | 200/250 | 2 |
8*8 | 315/350 | 110 | 125 | 315/350 | 2 |
9*9 | 315/350 | 110/125 | 125/bracket | 315/350 | 2/2.5 |
10*10 | 315/350 | 110/125 | 125/bracket | 315/350 | 2/2.5 |
12*12 | 315/350 | 110/125 | 125/bracket | 315/350 | 2/2.5 |
15*15 | 350/400 | 125 | 125/bracket | 350/400 | 2.5 |
20*20 | 450/500 | 140/160 | 125/bracket | 450/500 | 2.5/3 |
30*30 | 500/600 | 160 | 125/bracket | 500/600 | 3/3.5 |

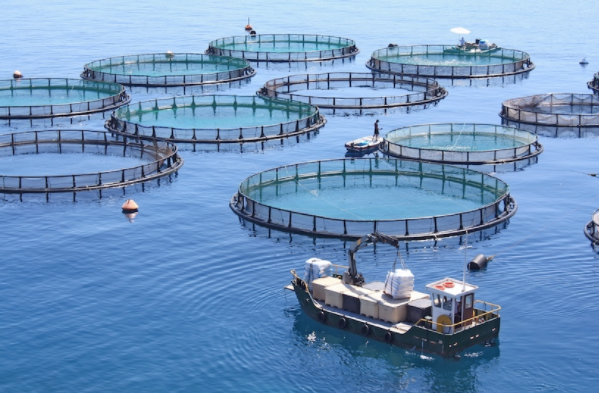

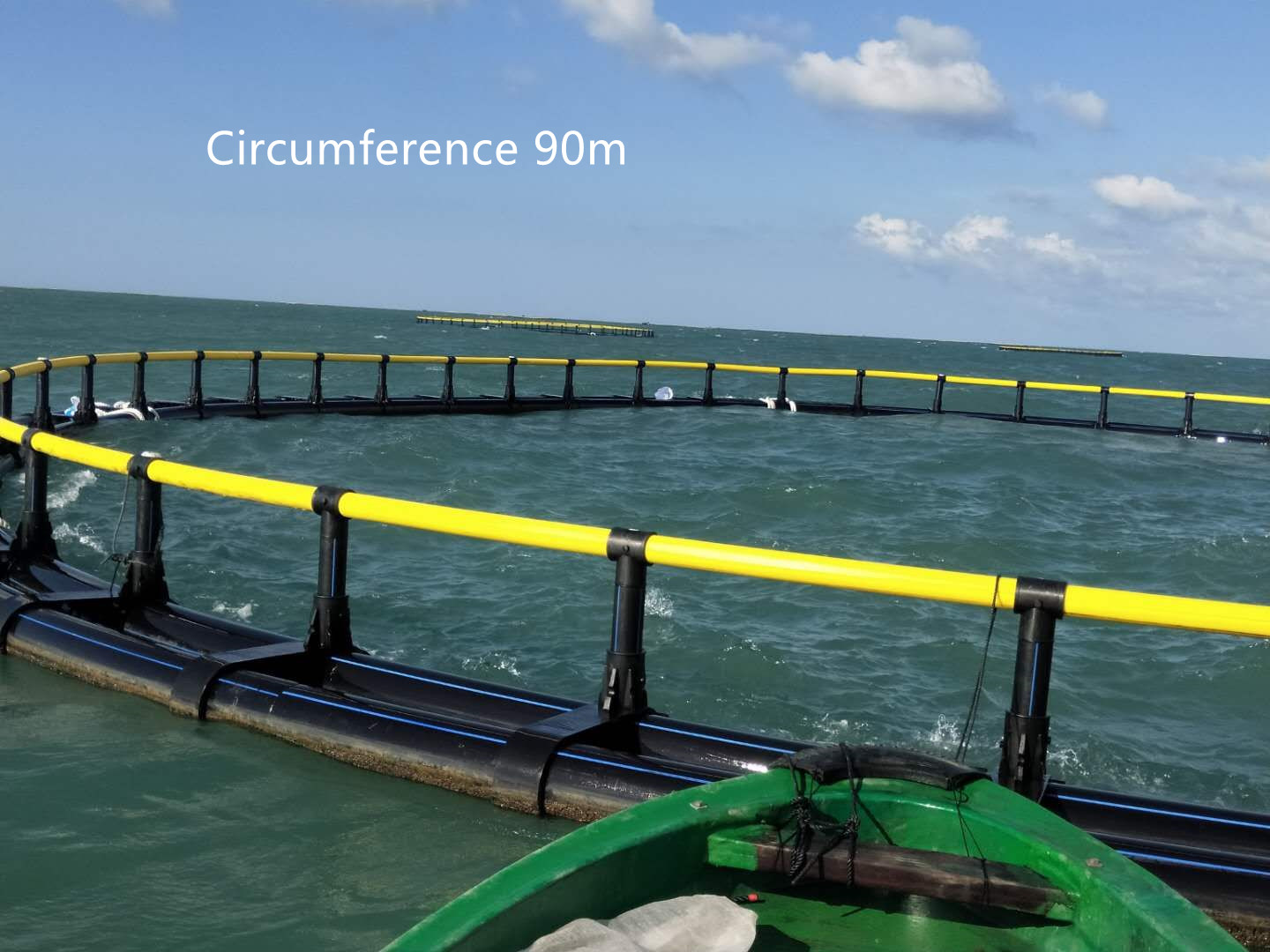

Round cage specifications:
cage model | 200 | 250 | 315 | 350/400 | 450/500/600 |
cage circumference | 30-60 | 40-80 | 60-120 | 120-160 | 160-260 |
(rice) | |||||
agricultural area | 70-286 | 127-509 | 286-1146 | 1146-2037 | 2037-5379 |
(square meters) | |||||
Place water depth (m) | -5 to | -5 to | -5 to | -5 to | -5 to |
-60 | -60 | -60 | -60 | -60 | |
Floating tube diameter (mm) | 200 | 250 | 315 | 350/400 | 450/500/600 |
Handrail diameter (mm) | 90 | 110 | 125 | 125 | 140/160 |
Handrail column diameter (mm) | 110 | 125 | 125/bracket | brackets | brackets |
Bracket type | Split | Split | Split/one-piece upright with armrests | integratedwith armrestsupright | integratedwith armrestsupright |
Bracket spacing (m) | 2 | 2 | 2 | 2.5 | 2.5 |
Materials used | Polyethylene 100 | Polyethylene 100 | Polyethylene 100 | Polyethylene 100 | Polyethylene 100 |
add bubbles | Float tube only | Float tube only | Float tube only | Float tube only | Float tube only |
Equipped with settling tube | Yes | Yes | Yes | Yes | Yes |
Can be used with walkway decking: | Yes | Yes | Yes | Yes | Yes |
Available via the web | Nylon/PE/HDPE/ | Nylon/PE/HDPE/ | Nylon/PE/HDPE/ | Nylon/PE/HDPE/ | Nylon/PE/HDPE/ |
feature
1) Low investment. (2) Easy to install. (3) Since only a small part of the pond is covered, the rest can be used in the normal way
(4) It provides the opportunity to select a controlled culture.
(5) Inspection of fish and their feeding is easier. (6) Treating diseases is much simpler than pond farming. (7) Can be moved from one place to another in case of emergency.
(8) Since the cages are mesh-like, the fish inside have less chance of being attacked by predators.
(9) Harvest is very simple. (10) The required number of fish can be caught at a specific time, which is beneficial to maintaining the non-seasonal supply of fish. (11) Economical compared with other fish farming methods except running water fish farming.
advantage
1. Light weight, flexible, tough, chemically inert, wear-resistant, smooth surface 2. Resistant to environmental stress cracking, corrosion-resistant, anti-freeze and rodent-proof, hygienic and safe 3. Easy and fast installation

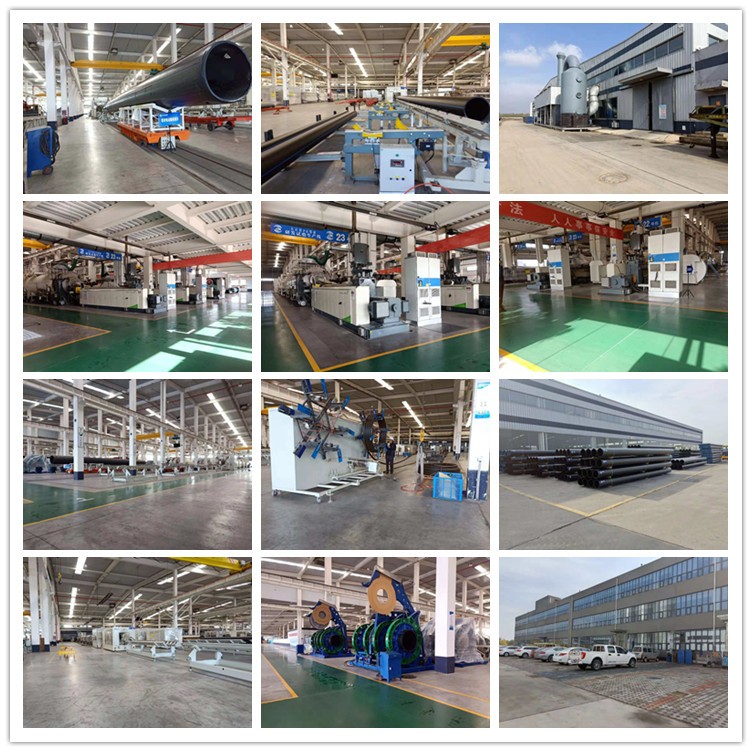

factory
Application display
