popular hdpe Fish Farming cage floating cage

PRODUCT DETAIL
Place of Origin:Tianjin;Delivery:7-10days;
Material:PE100;Shape:Circular, Round;
Diameter:2m-60m,de;Supply Ability:500 Piece/Pieces per Week High Quality Hdpe Fish Cage With Floating Pontoon;
Port:Tianjin port;Package Preview:;
Product Type:Aquaculture Traps;MOQ:100pcs;
Color:Black;Use:Fish, Fish Farming;
Packing:nude;Application:Fish, Fish Farming;
Advantage:Durable;Model Number:PE100;
Packaging Detail:Standard Seaworthy Package for 20'' and 40'' Container. popular hdpe Fish Farming cage floating cage;Brand Name:DRD;
Item Name:fish farm;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Logo:For you requiry;Product name:popular hdpe Fish Farming cage floating cage;
Certificate:ISO4427;
Product Description

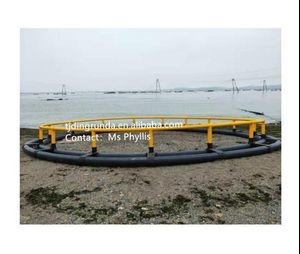

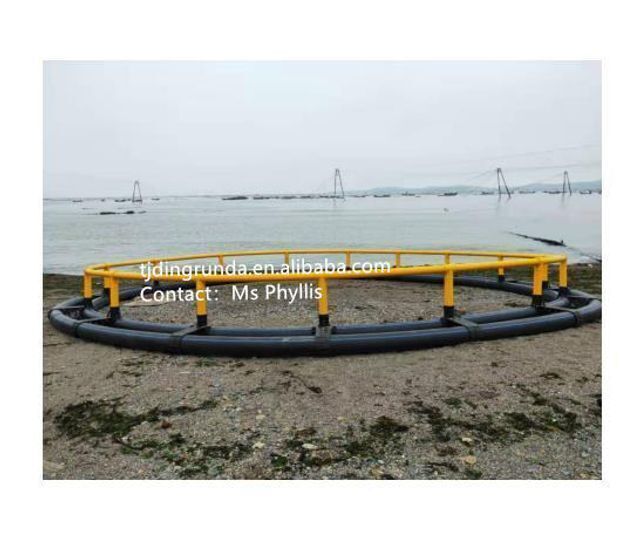

Product name:HDPE Fishing cage

Mainly Designed For Lake & Sea.
Be Able To Be Used For Harvest.
Resist Maximum to 6-10M Wave.
Still Very Strong And Working Well During Typhoon.



Function:

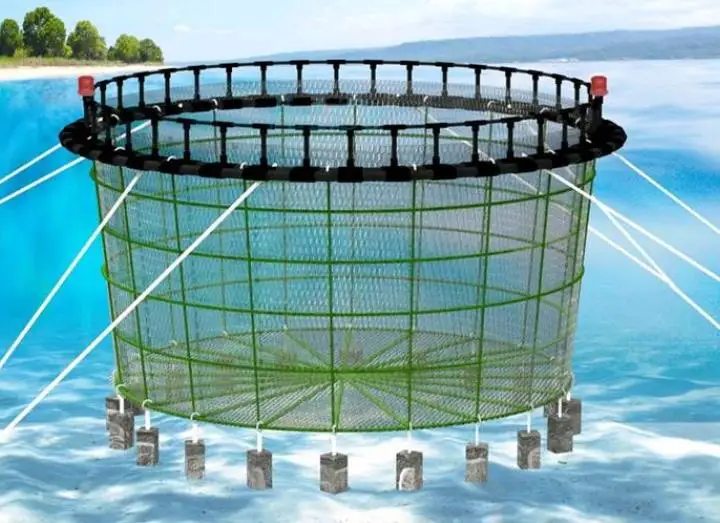

  • Marine cage farming system can be used in various water environments including lake, sea and river...etc.
  • Suitable for intensive farming.
  • Suitable for different species, such as Tilapia, Japanese Sea Bream, Goldlined Sea Bream, Cobia, Greater Amberjack, Blue-Banded Sea Perch, Spangled Emperor (Sand Snapper, Parrot-Fish), Snappers, Yellow-Wax Pampano, Orange-Spotted Grouper, Red Drum, Catfish, Striped bass, Bluegill sunfish, Crappie, Carp… etc.

Characteristic
  • "One-Piece Injection Molded" HDPE 100 Bracket, extremely sturdy.
  • HDPE 100 Floating Pipe and HDPE 100 Handrail Pipe offer excellent Environmental Stress Cracking Resistance and resist deformation.
  • High carbon component, strong UV resistance ensures sound durability, low maintenance and investment cost.
  • Removable Handrail T Bar makes more easily assembling, simplified harvesting & efficient maintenance as well as resistant to corrosion.
  • Heavy duty standing pole. Bear heavier net weight.
  • All the "Round" and "Square" shape cages can be customer made.







HDPE Circular Floating Cage Frame Specifications
Circumference (m) Cage Dimeter (m) Diameter of the floating pipe(mm) Diameter of the  stand pipe(mm) Diameter of thehandrail pipe(mm) Distance of the  brackets(m) Farming Area(m2)
30 10 200 90 90 2 80
40 12 200/250 90/125 90/110 2 110
50 15 250 125 110 2 180
60 20 250/315 125 110 2 310
80 25 315/355 125/140 110/125 2.0/2.5 500
100 30 350/400 140 125 2.0/2.5 700
120 40 350/400 140 125 2.0/2.5 1300
150 50 350/400 140 125 2.0/2.5 2000
200 60 400 140 125 2.5 2800
300 100 400 140 125 2.5 7800
600 200 400/450 160 140 3.0/3.5 31400
800 250 400/450 160 140 3.0/3.5 50000
1000 300 500/630 160 140 3.0/3.5 70000
We can design the cage according to your feeding area and circumstance


Square cage system is an efficient and easily organized solution for farmers delivered via the best construction technique in the industry of cage aquaculture. This has become a system with the durability that outperforms typical expectations for the square cage systems.



HDPE square floating cage frame specificaitons
Length (m) Width (m) Diameter of the floating pipe(mm) Diameter of the  stand pipe(mm) Diameter of thehandrail pipe(mm) Distance of the  brackets(m) Farming Area(m2)
3 3 200 90 90 2 10
4 4 200 90 90 2 15
5 5 200 90 90 2 25
6 6 200 90 90 2 40
7 7 200 90 90 2 50
8 8 200 90 90 2 65
9 9 200/250 90/125 90/110 2 80
10 10 200/250 90/125 90/110 2 100
12 12 200/250 90/125 90/110 2 150
15 15 250/315 125 110 2 225
20 20 250/315 125 110 2/2.5 400
30 30 250/315 125 110 2/2.5 900
We can design the cage according to your feeding area and circumstance









Packaging & Shipping

Delivery time with 7 days after received the deposit.





Why you choose us:



 1.Good quality products

 2.10 year experience in fishing cage producer and designer

 3.Best service
