Fish Cage Aquaculture HDPE Fish Breeding Cage Floating in Deep Sea Fish Farming
- $450.00 /set
- 1 set
- Tianjin Dingrunda Technology Co., Ltd.
- Tianjin, China
- Mr Dunbo Shi
PRODUCT DETAIL
port: | Tianjin harbor | Fish cage net: | Knotted and knotless nets |
Supply capacity: | Annual output of 5,000 tons of HDPE pipes and fittings for water and gas supply DN16-1600mm | use: | fish culture |
Anti-flow ability: | Maximum flow velocity 1.5 m/s | Material: | HDPE, HDPE fish cage floating body |
model: | Fish cage floating body-01 | Product Category: | aquaculture trap,aquaculture trap |
Package preview: | shape: | Round, square, rectangular, square, round, round/square fish cage | |
Fish cage circumference: | 30-160m | diameter: | 10-40 m or customized, 20-160m diameter |
Windproof: | Highest level 11 | Wave resistance: | The maximum wave height in the water is 5m |
brand: | DRD fish cage floating body | application: | aquaculture farm |
Packaging details: | Bare installation or as required, 5.8M/11.8M length pipe load at 20'GP or 40'HQ. Hot selling HDPE fishing net floating deep sea fish cage | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |

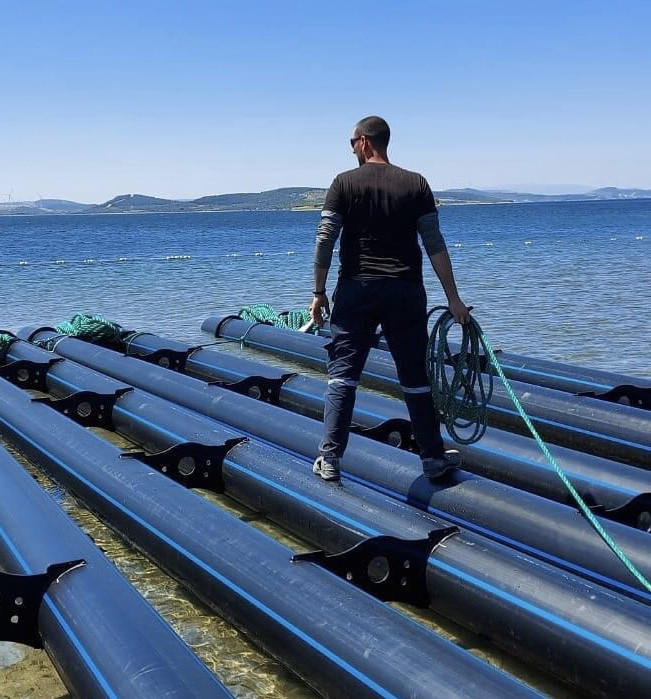

Fish cage floating body
Product Description

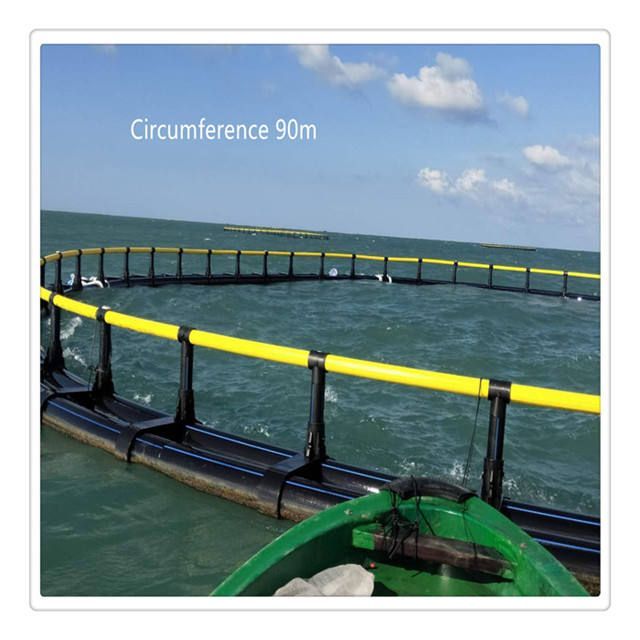

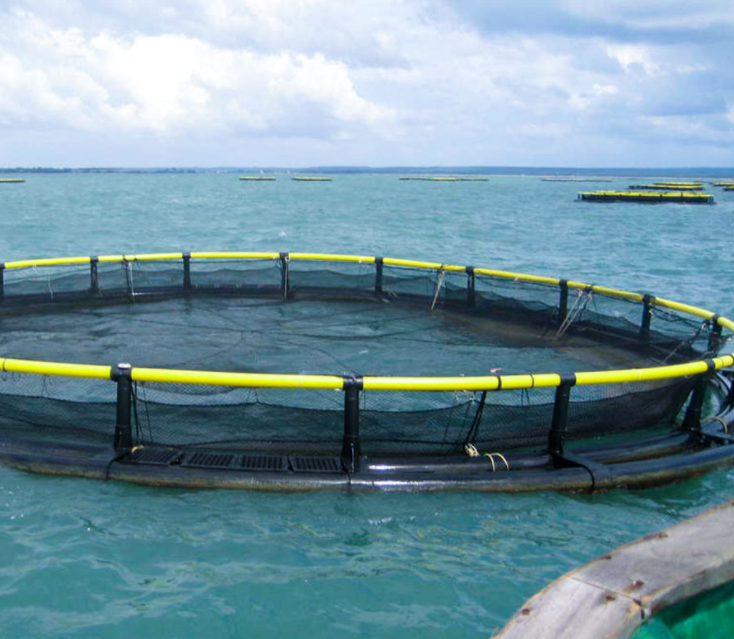

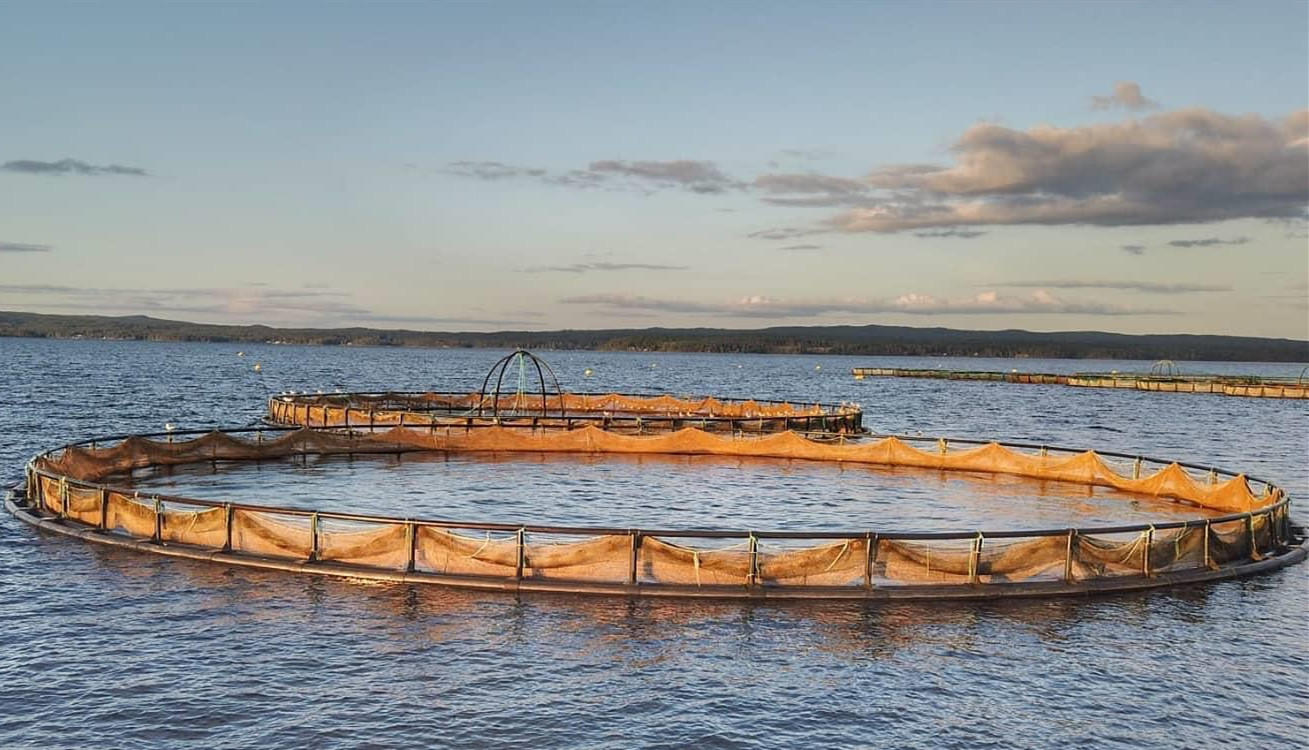

HDPE FISH CAGE
Marine fish cages have strong wind, current and wave resistance. Made of new material HDPE pipe, the cage has a long service life. The cage capacity is large and the survival rate is high. 1. Wide application range, can be set in water depths from -6m to 50m. 2. It has strong wind resistance and can defend against typhoons, up to level 12. It has strong wind and wave resistance, up to 7m, and strong current resistance, up to 1.5m/s. 3. Large breeding capacity, living space and growing space. 4. The cage has a long life and the cage frame can be used for more than 15 years.
Features* "One-piece injection molded" HDPE 100 bracket, extremely strong.
* HDPE 100 floating pipe and HDPE 100 handrail pipe have excellent resistance to environmental stress cracking and
Resist deformation.
* High carbon content, strong UV resistance, good durability, low maintenance cost and low investment cost.
* Removable handrail T-bar makes assembly easier, simplifying harvesting and efficient maintenance as well
preservative.
*Heavy duty pole. Bear heavier net weight.
* All "round" and "square" shaped cages can be made according to customer requirements.
* HDPE 100 floating pipe and HDPE 100 handrail pipe have excellent resistance to environmental stress cracking and
Resist deformation.
* High carbon content, strong UV resistance, good durability, low maintenance cost and low investment cost.
* Removable handrail T-bar makes assembly easier, simplifying harvesting and efficient maintenance as well
preservative.
*Heavy duty pole. Bear heavier net weight.
* All "round" and "square" shaped cages can be made according to customer requirements.
Specification
The square cage system is an efficient, easy-to-organize solution provided to farmers through the best construction technology in the world.
Cage aquaculture industry. This has become a system with durability beyond square expectations
Cage system.
Cage aquaculture industry. This has become a system with durability beyond square expectations
Cage system.
Fish cage floating body square frame specifications
Length*Width (meters) | Floating tube diameter (mm) | Handrail tube diameter (mm) | Standpipe diameter (mm) | Bracket diameter (mm) | Bracket distance (m) |
2*2 | 200 | 90 | 110 | 200 | 2 |
3*3 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
4*4 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
5*5 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
6*6 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
7*7 | 200/250 | 110 | 125 | 200/250 | 2 |
8*8 | 315/350 | 110 | 125 | 315/350 | 2 |
9*9 | 315/350 | 110/125 | 125/bracket | 315/350 | 2/2.5 |
10*10 | 315/350 | 110/125 | 125/bracket | 315/350 | 2/2.5 |
12*12 | 315/350 | 110/125 | 125/bracket | 315/350 | 2/2.5 |
15*15 | 350/400 | 125 | 125/bracket | 350/400 | 2.5 |
20*20 | 450/500 | 140/160 | 125/bracket | 450/500 | 2.5/3 |
30*30 | 500/600 | 160 | 125/bracket | 500/600 | 3/3.5 |
Fish cage buoy circular cage specifications:
cage model | 200 | 250 | 315 | 350/400 | 450/500/600 |
cage circumference | 30-60 | 40-80 | 60-120 | 120-160 | 160-260 |
(rice) | |||||
agricultural area | 70-286 | 127-509 | 286-1146 | 1146-2037 | 2037-5379 |
(square meters) | |||||
Place water depth (m) | -5 to | -5 to | -5 to | -5 to | -5 to |
-60 | -60 | -60 | -60 | -60 | |
Floating tube diameter (mm) | 200 | 250 | 315 | 350/400 | 450/500/600 |
Handrail diameter (mm) | 90 | 110 | 125 | 125 | 140/160 |
Handrail column diameter (mm) | 110 | 125 | 125/bracket | brackets | brackets |
Bracket type | Split | Split | Split/one-piece upright with armrests | integratedwith armrestsupright | integratedwith armrestsupright |
Bracket spacing (m) | 2 | 2 | 2 | 2.5 | 2.5 |
Materials used | Polyethylene 100 | Polyethylene 100 | Polyethylene 100 | Polyethylene 100 | Polyethylene 100 |
add bubbles | Float tube only | Float tube only | Float tube only | Float tube only | Float tube only |
Equipped with settling tube | Yes | Yes | Yes | Yes | Yes |
Can be used with walkway decorations: | Yes | Yes | Yes | Yes | Yes |
Available via the web | Nylon/PE/HDPE/ | Nylon/PE/HDPE/ | Nylon/PE/HDPE/ | Nylon/PE/HDPE/ | Nylon/PE/HDPE/ |
feature
1) Low investment. (2) Easy to install. (3) Since only a small part of the pond is covered, the rest can be used in the normal way
(4) It provides the opportunity to select a controlled culture.
(5) Inspection of fish and their feeding is easier. (6) Treating diseases is much simpler than pond farming. (7) Can be moved from one place to another in case of emergency.
(8) Since the cage is mesh-shaped, the fish inside are less likely to be attacked by predators.
(9) Harvest is very simple. (10) The number of fish required at a specific time can be caught, which helps maintain a non-seasonal supply of fish. (11) Economical compared with other fish farming methods except running water fish farming.
advantage
1. Light weight, flexible, tough, chemically inert, wear-resistant, smooth surface 2. Resistant to environmental stress cracking, corrosion-resistant, anti-freeze and rodent-proof, hygienic and safe 3. Easy and fast installation
factory
