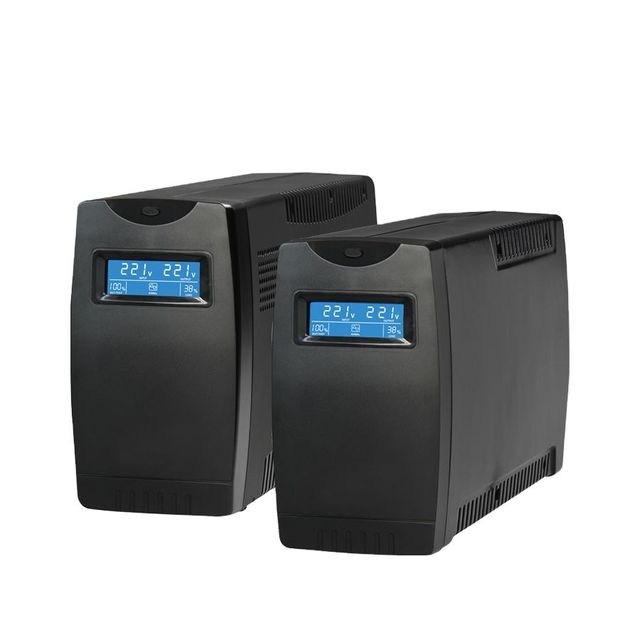

1KVA line interactive UPS with battery backup power supply system
- $20.70 /piece
- 1 piece
- IDEAL POWER CO., LTD.
- Taiwan, China
- Ms Angel Chen
| application: | computer | place of origin; place of origin: | Guangdong, China |
| Warranty: | 2 years, 3 months - 1 year | Supply capacity: | 3500 pieces per day |
| Packaging Preview: | UPS shows: | LCD UPS | |
| Waveform: | Analog sine wave | brand: | Ideal UPS |
| payment terms: | letter of credit, wire transfer | type: | line interaction |
| stage: | Simplex | Protect: | Lightning strike, overvoltage, short circuit |
| Input frequency: | 50Hz or 60Hz (auto-sensing) | Transfer time: | < 6ms (typ) |
| UPS capacity: | 400VA/600VA/800VA/1000VA/1200VA | Packaging Details: | color box |
| weight: | 10 kg | UPS battery: | 12V/4.5AH/7AH/9AH |
| Stabilizer adjustment: | 2-stage boost + 1-stage buck | Certification: | CE (EMC + LVD) |
| model: | Ideal UPS 7100C Series | Power factor: | 0.6 |
| port: | Shenzhen, China |
Safe and reliable power protection
400VA-1200VA full line interactive UPS is ideal for 7100C LCD seriesups power
IDEAL-7100CupsseriesIt is the power solution to avoid the loss of computer data due to power failure. Built-in 2-stage boost and 1-stage buck AVR regulators are capable of stabilizing output voltage fluctuations and correcting any abnormal voltages to protect connected equipment. It provides comprehensive power protection against surges, spikes, and over- or under-voltage conditions. Microprocessor control technology ensures high reliability and is suitable for home or small office applications.line interactionUPS 1KVA
main feature
*Auto restart: The UPS shuts down when the battery is low and restarts automatically when the AC is restored.ups power
* Off mode charging: UPS will charge itself even if the power switch is offups backup
* No-load shutdown function (UPS green mode) to save power
* 2 step boost and 1 step buck AVR to stabilize output voltage
* Constant current, constant voltage battery chargerUPS 1kva
* Advanced microprocessor control technology
* Lightning/surge protection 175 joules
* Modem/telephone line RJ-45 protectionups backup
* Over/under voltage protectionLine Interactive UPS 1KVA
Micro Control Unit (MCU)
Advanced microprocessor control technology enables the UPS to maintain high performance and reliable operation, effectively reducing energy waste.ups power
Constant Current/Constant Voltage Charger
The built-in CC charger keeps the battery charged with constant current while charging.ups backup battery
Built-in constant voltage charger, keep the battery constant voltage charging after fully charged, to ensure the battery power.Sine wave UPS power supply

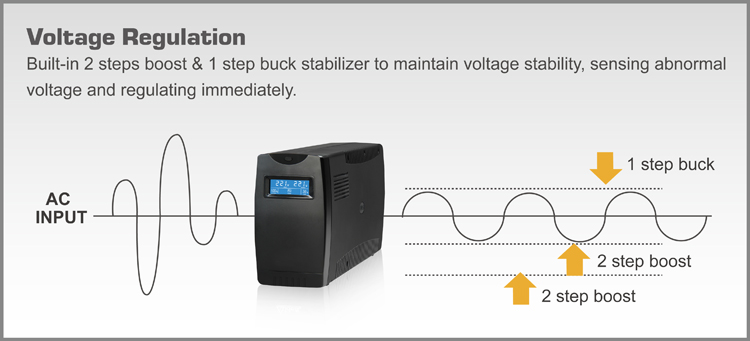

Voltage regulation
Built-in 2-stage boost and 1-stage buck regulators maintain voltage stability, detect abnormal voltages and adjust immediately.Online Interactive UPS Power Backup
Model | IDEAL-7104C | IDEAL-7106C | IDEAL-7108C | IDEAL-7110C | IDEAL-7112C | |||||
abilityups | 400VA/240W | 600VA/360W | 800VA/480W | 1000VA/600W | 1200VA/720W | |||||
enter | ||||||||||
Voltage | 110/115/120Vac or 220/230/240Vac | |||||||||
voltage range | -30% +25% | |||||||||
frequency | 50Hz or 60Hz (auto-sensing) | |||||||||
output | ||||||||||
Voltage regulation | AC Mode/Battery OK: 110/115/120Vac or 220/230/240Vac +/- 10% | |||||||||
frequency | AC Mode: 47-53Hz at 50Hz or 57-63Hz at 60Hz; Battery Mode: 50Hz or 60Hz +/- 1Hz | |||||||||
waveform | Analog sine wave | |||||||||
transfer time | < 6ms (typ) | |||||||||

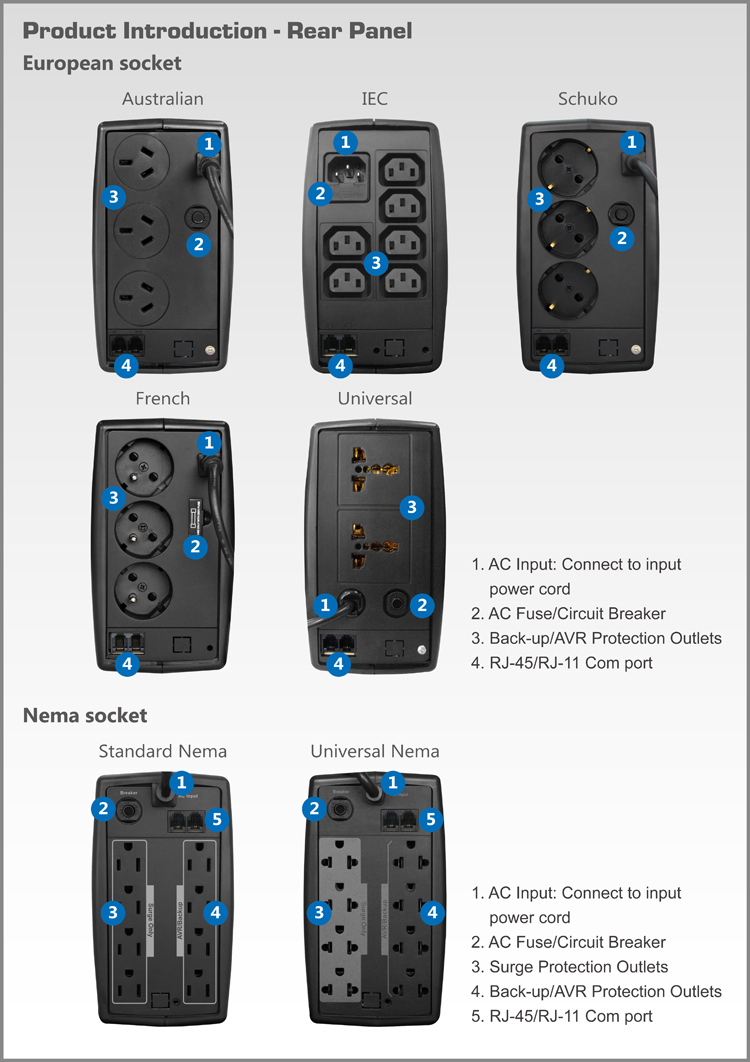

Socket: Nema5-15R or Universal Nema | 4 with backup + 4 with surge only | |||||||||
Export: IEC | 4 pieces with backup and surge protection | |||||||||
Export: General | 2 pieces with backup and surge protection | |||||||||
Export: Germany or France or Australia | 3 pieces with backup and surge protection | |||||||||
Battery | ||||||||||
Voltage | 12VDC | 24VDC | ||||||||
type | 12V/4.5AH*1 | 12V/7AH*1 | 12V/9AH*1 | 12V/7AH*2 | 12V/7AH*2 | |||||
charging time | 5 hours to 90% after full discharge | |||||||||
Security | Overcharge and overdischarge protection | |||||||||
Advanced battery management | Yes | |||||||||
exhibit | ||||||||||

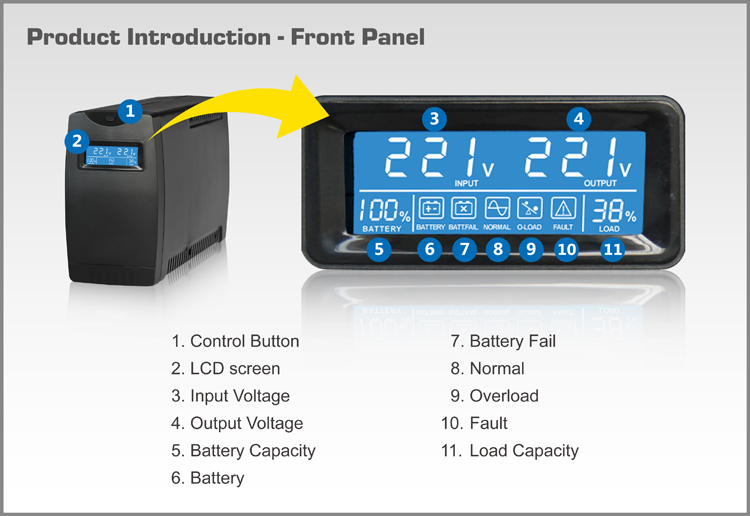

LCD Status | I/P & O/P Voltage and Frequency, Load %, Battery % | |||||||||
surroundings | ||||||||||
Operating temperature | 0°C~40°C (3°F~104°F) | |||||||||
humidity | 0-95% (non-condensing) | |||||||||
noise | <40 dB at 1M | |||||||||
physical | ||||||||||
Dimensions (D*W*H) | 305*98*170mm | 385*98*170mm | ||||||||
