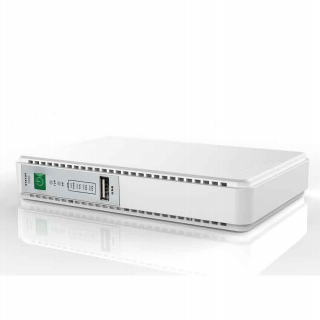

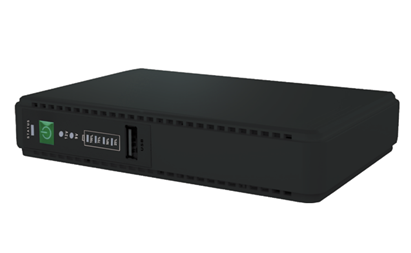

Ups 8800mah lithium battery 9v 12v Dc 15v 24v Poe Mini Ups

New Portable Mini DC Ups Poe Mini Ups 5V 9V 12V 15V 24V for Monitor

Product Description:

• Large-capacity lithium battery provides long-term backup for the load.
• High compatibility, suitable for most digital products on the market.
• USB output (5V), can charge digital products such as mobile phone, PDA, PSP, IPOD, MP4, etc.
• Power over Ethernet (POE) can transmit both data and power to simplify wiring.
• Intelligent circuit design, with overcharge, overdischarge, short circuit protection.
• The built-in adapter allows a wide AC voltage range (100-240Vac).
• Automatic restart.

Specification:

Model	POE1788L
Related working voltage	100-240Vac / 50-60Hz
output power (max)	17W
output	USB interface	DC interface	POE interface
Output voltage (optional)	5Vdc	9Vdc / 12Vdc	15Vdc/24Vdc
output polarity	Not applicable		+4,5 pin - 7,8 pin
Output power and current (common)	1.0A/5W	1.0A/12W	0.6A (15V 10W) ​​or (24V 15W)
Quantity.& Battery Capacity	2200 mA*4
Unit size (mm)	160*105*28
Net weight/kg)	0.4

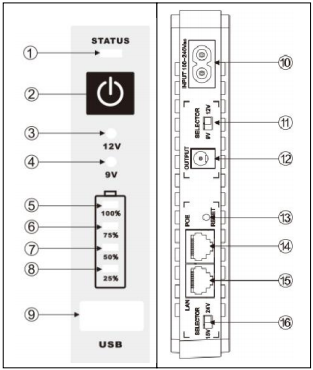

Detailed description:

(1). Working status indicator. (2). switch

(3).12 Vdc LED indicator (4).9Vdc LED indicator.

(5). 100% BAT capacity LED indicator.

(6). 75% BAT capacity LED indicator.

(7). 50% BAT capacity LED indicator.

(8). 25% BAT capacity LED indicator.

(9). USB (5Vdc) output (10). AC input socket.

(11). Output voltage selector (9V/12V).

(12). Output socket (9V/12V) (13). Reset button for POE devices.

(14). Ethernet output interface (Poe output: 15V, 24V)

(15). LAN Ethernet interface LAN.

(16). Output voltage selector (15V/24V)

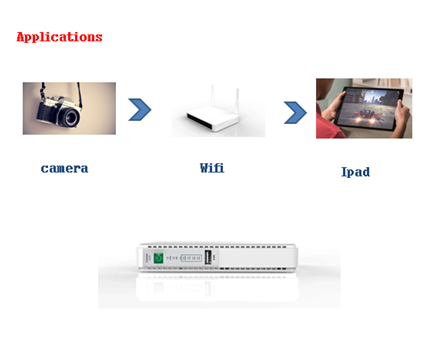

application:

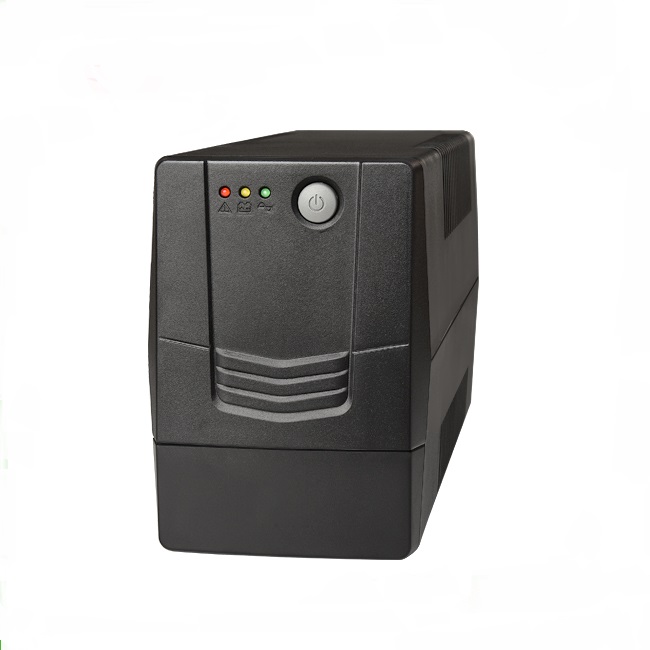

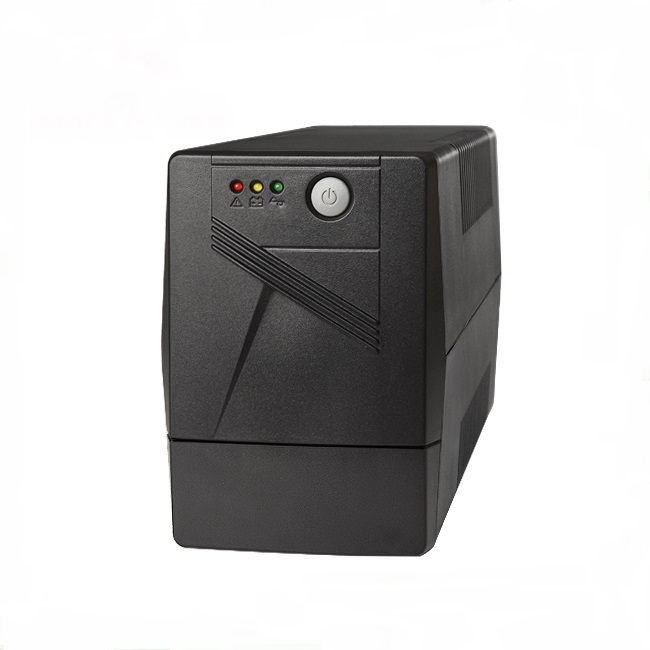

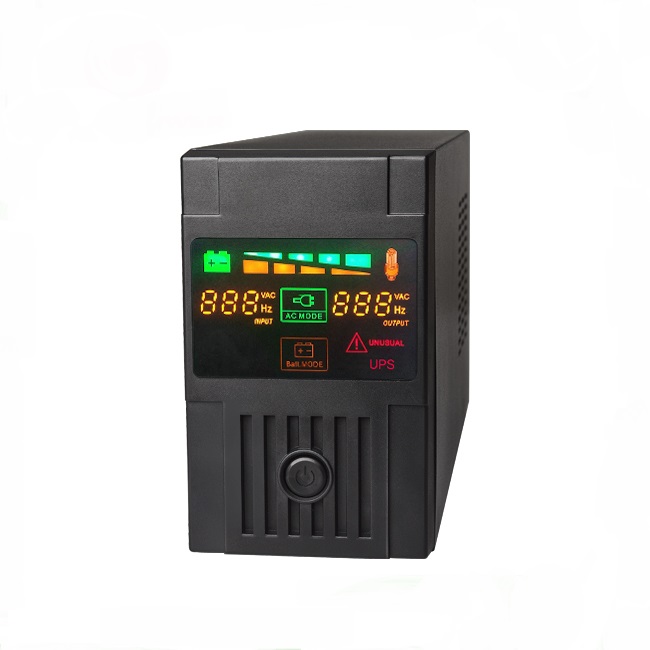

more products:

company information:

our service:

(1) Warranty:

A. Our product warranty is valid for 12 months from the date of receipt.
B. We promise to repair any faulty unit caused by imperfectly worked parts
(2) Delivery time:

A. Sample orders will be delivered within 7 working days after full payment is received.
B. General orders (below 2000pcs) will be delivered within 25 working days after receiving the deposit or receiving the letter of credit.
C. Bulk orders (over 2000 pcs) will be delivered within 30 working days upon receipt of deposit or letter of credit.
(3) Delivery:

By ship or freight, for sample order, please by EMS, DHL, FedEx, TNT, UPS or other express.

(4) Payment:

T/T, L/C, Western Union

exhibition:

Shipping:

FAQ:

What is a UPS?
An uninterruptible power supply, also known as an uninterruptible power supply, UPS, or battery/flywheel backup power supply, is an electrical device that provides emergency power to a load in the event of a failure of the input power source (usually utility power).

Why do I need a UPS?
Power disturbances and blackouts can be costly. Preservation of information, availability of business-critical equipment, maintaining a full workforce, reducing overrun costs, performing reliably and getting results on time are all key elements of any successful operation. The UPS will provide clean, stable power to critical application equipment during utility power disturbances and power failures.

How many types of UPS are there?
There are three typical types of UPS: off-line, on-line, and on-line interactive.

What is an "Online UPS"?
An online UPS takes incoming power, converts it to DC, conditions it, and converts it back to AC. This means that the UPS is online because there is no delay in switching to battery. Use an online UPS for your critical applications, high availability servers, and more. The output of these online UPS systems is a true sine wave, which is usually better than the power company's power.

What is "LINE INTERACTIVE UPS"?
An online UPS takes incoming power, converts it to DC, conditions it, and converts it back to AC. This means that the UPS is online because there is no delay in switching to battery. Use an online UPS for your critical applications, high availability servers, and more. The output of these online UPS systems is a true sine wave, which is usually better than the power company's power.


How to choose the right UPS?
1. Know the specifications of all UPSs.
2. Consider the requirements of power quality.
3. Understand the current capacity of the UPS and consider future expansion.
4. Choose well-known brands and manufacturers.
5. Select UPS according to your requirement.

What are the important items you should evaluate when buying a UPS?
1. The reliability and stability of UPS.
2. Excellent engineer and product creation ability.
3. High efficiency and low noise.
4. Supplier's reputation and financial condition.
5, TUV, UL, CSA and other international safety certification.
6, ISO9001, ISO9002 and other factory certification.

Power outages are rare where I live, do I still need a UPS?
In fact, power failure is one of the power problems. Other power issues such as high voltage, low voltage and spikes are major problems. The purpose of UPS is to provide customers with comprehensive power protection such as voltage regulation, surge protection, spike and sag protection. It also provides extended backup time without any limitations.

What is the RJ11 connector on the rear panel of the UPS for?
RJ11 connectors are used to protect telephone lines. So you can connect cell phones; fax machines, modems and ADSL for better protection.

What kinds of power problems are there?
In addition to power outages, there are dips, spikes, surges, noise, and transients that can damage or shorten a PC or other high-tech equipment.


What types of equipment should the UPS use?Does it have any limitations?
Typically, UPSs are used in personal computers, high-tech equipment, and medical equipment. Since most UPSs are designed for PCs, not all devices can be connected to it. In particular, conduct loads like cooling fans, refrigerators with motors. Such equipment can damage the UPS. In addition, copiers and laser printers with high starting current cannot be used with UPS. The huge starting current will affect the capacity of the UPS.

What is the effect of different output waveforms?
There are three main types of loads: resistive loads (lamps); SPS loads (PC power) and conductive loads (motors). All types of loads can be used with Pure Sinewave. However, only resistive and SPS loads can be used with the modified sine wave.

What is the effect of different transfer times on the PC?
With the exception of the online UPS, power transfer for both offline and online UPS will have a short transfer time between 2ms and 10ms. Under normal circumstances, when a power failure occurs, the PC's power supply can continue to supply power for 16ms. As a result, most PCs will still work fine with short transfer times.

What is the battery type of the UPS?
Most UPSs use lead-acid maintenance-free batteries. The batteries are hermetically sealed so the UPS can be oriented in any direction and will not emit toxic fumes during charging and discharging. So it can also be installed indoors.

What is the battery life?
Battery life depends on ambient temperature and number of charges and discharges. Higher ambient temperature and excessive charge and discharge cycles will shorten the service life. Typically, battery life is closer to three years.
