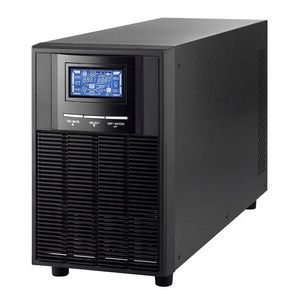

Shenzhen Supplier Single Phase 3kva Online Ups with Best Price

PRODUCT DETAIL
Place of Origin:Guangdong, China;Product name:High Frequency Single Phase Online UPS;
Phase:Single Phase;Protection:Overvoltage;
Warranty:1 year;Surge Ratio:3:1;
Payment Terms:T/T,Western Union;Supply Ability:100 Pieces per Month We can work overtime if the order quantity is very large;
Output Waveform:Pure Sine Wave;OEM&ODM:Available;
Packaging Detail:standard export package or based on customer's requirement;Battery Model:12V / 9AH;
Voltage Range (Battery Mode):± 1%;Port:ShenZhen;
Weight:27.6 kg;Model Number:S1103-3KVA;
Alarm Battery Mode:Sound every 4 seconds;Application:Security / Monitoring / Alarm;
Type:On-line;Brand Name:GOTER/OEM;
Transfer Time:0ms;Alarm Low Battery:Sound every second Sound every second;
Peak Factor:100% loa≥0.99;

Shenzhen Supplier Single Phase 3kva Online Ups with Best Price

Product Description

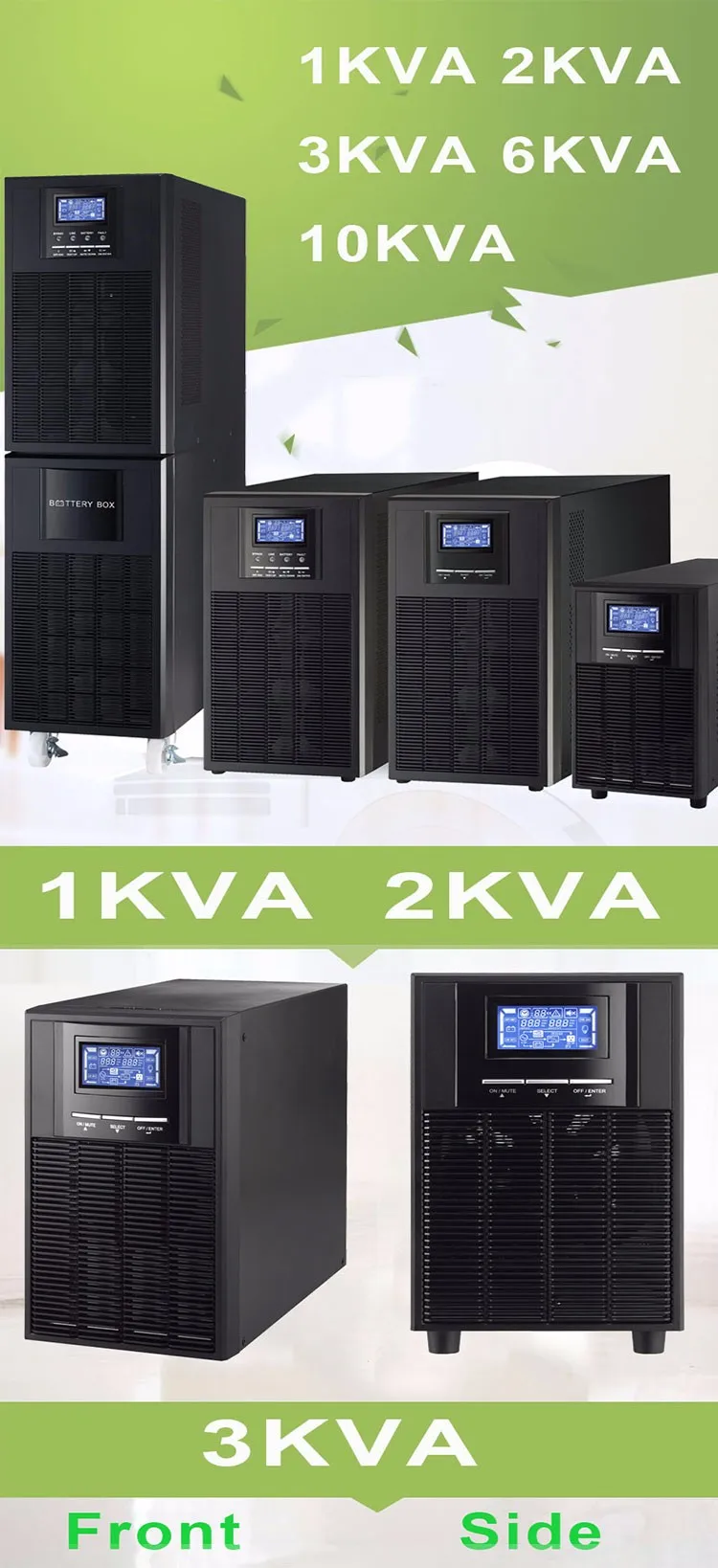

Items  1KVA (L or S series)  2KVA (L or S series)  3KVA (L or S series) 6KVA (L or S series)  10KVA (L or S series)
Phase Single Phase
Power Rating 1000 VA / 800 W 2000 VA / 1600 W 3000 VA / 2400 W 6000 VA / 4800 W 10000 VA / 8000 W
Input
Input Voltage Range/Window  110 -300VAC  when 50% load
160 -280 VAC when 100% load
 110 -300VAC  when 50% load
176-300 VAC when 100% load
Frequency 40Hz  ~ 70 Hz 46Hz ~ 54 Hz or 56Hz ~ 64 Hz
Power Factor 100% load≥0.99
Output
Output Voltage 200/208/220/230/240VAC   208/220/230/240VAC
Voltage Range (Battery Mode) ± 1%
Frequency(Synchronization correction range) 47~ 53 Hz or 57 ~ 63 Hz 46Hz ~ 54 Hz or 56Hz ~ 64 Hz
Frequency (Battery Mode) 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Surge Ratio 3:1
Harmonic Distortion ≤ 3% THD  (Linear Load)
≤6% THD (Nonlinear Load)
≤ 3% THD  (Linear Load)
≤5% THD (Nonlinear Load)
Transfer Time AC to DC 0ms
Inversion to Bypass 4 ms (Standard ) 0ms
Waveform(Battery Mode) Pure Sine Wave
Efficiency≤
Bypass Mode 88% 88% 90% 92% 93%
Battery Mode 83% 85% 88% 90% 91%
Battery
Standard model Battery Model 12V / 9AH
Quantity 2 4 6 16 20 16 20
The Max Charging Current 1.0A(Max) Preset:1.0 A ±  10%, Max.:2.0A ±  10%
Charging Voltage 27.4VDC ± 1% 54.7VDC ± 1% 82.1VDC ± 1% 218.4 VDC ±  1% 273 VDC ±  1% 218.4 VDC ±  1% 273 VDC ±  1%
Long Run model Battery Model It ups to the User's requirement
Quantity 2 3 4 6 6 8 16-20(Adjustable)**
The Max Charging Current 1A/2A/4A/6A(Adjustable) 1A/2A/4A/6A(Adjustable,6A(Only sutible for 16pcs batteries)
Charging Voltage 27.4VDC ± 1% 41.0VDC ± 1% 54.7VDC ± 1% 82.1VDC ± 1% 82.1VDC ± 1% 109.4VDC ± 1% 273VDC ± 1%(When 20pcs batteries)
Apperance

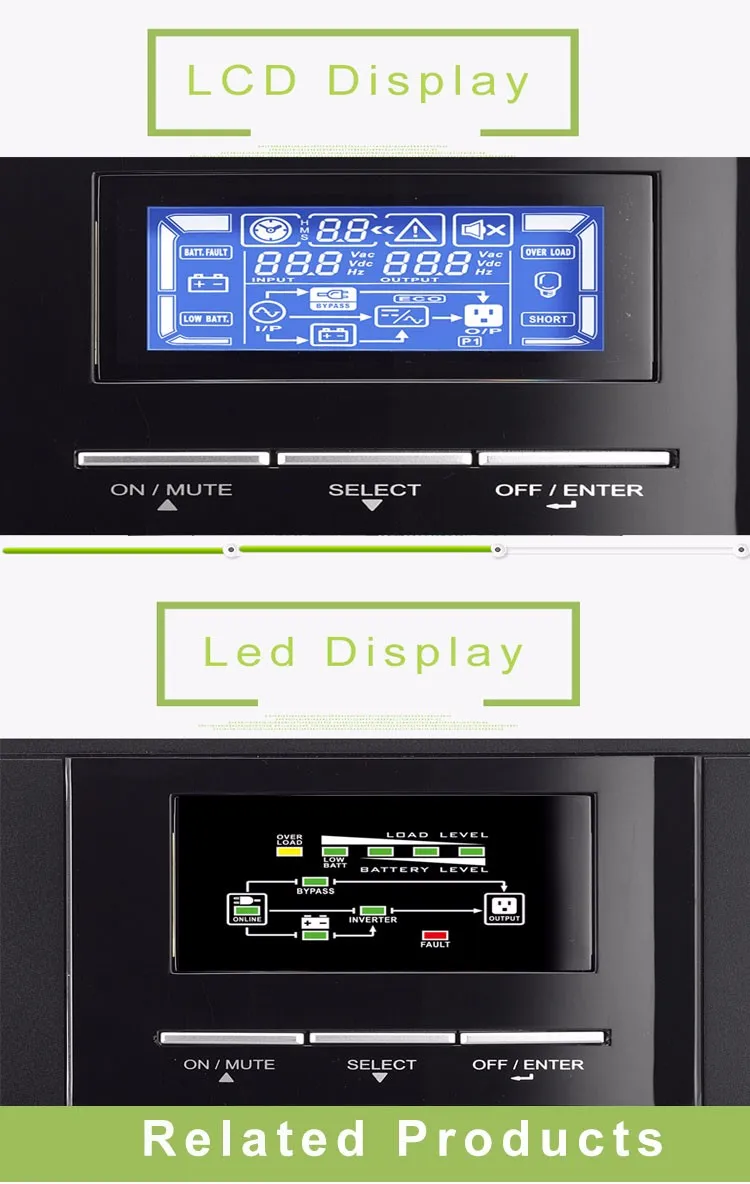

LCD or LED Display Load size, Battery power, Mains Supply Mode, Battery mode,Failure instruction
Alarm
Battery Mode Sound every 4 seconds
 Low Battery Sound every second
Over-load Sound every second
Fault Continuous sounding
Physical Performance
Standard model Size,WxDxH(mm) 145 X282 X  220  145 X397 X 220  190 X421 X 318 190 x369x688 190 x442 x  688
Net Weight(KG) 9.8 17 27.6 61 74 66 75
Long Run Model Size,WxDxH(mm)  145 X282 X 220 145 X397 X  220 190 x369 x  318  190 x442 x 318
Net Weight(KG) 4.1 6.8 7.4 12 16 18
Operating Environment
Temperature & Humidity Relative humidity 20-90 %  and temperature  0- 40°C (No condensation ) Relative humidity 0-95 %  and temperature  0- 40°C (No condensation )
Noise less 50dBA @1 Meter Less 55dBA @ 1 Meter Less 58dB @ 1 Meter
Control Management
Smart RS-232 / USB  Support  Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
 SNMP(Option) Power management support SNMP management and network management
Product Details



Packaging & Shipping

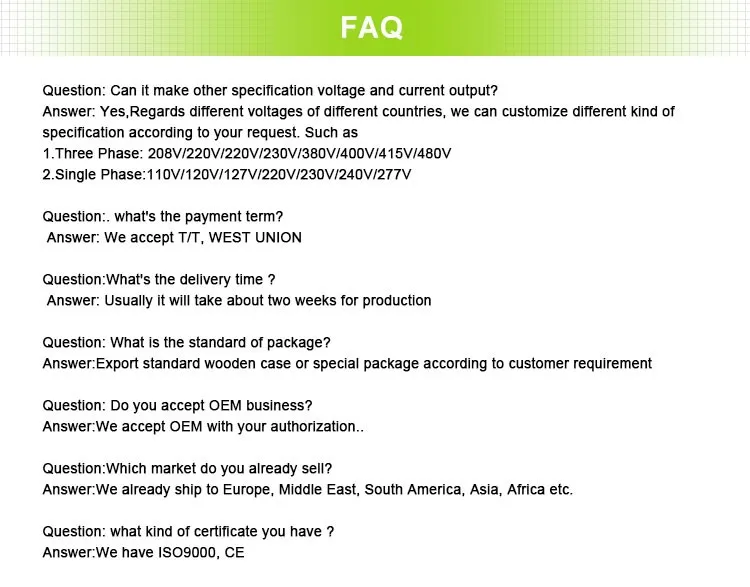

FAQ
