2022 Develop Bluetooth 4.0 5.0 Power Amplifier I2S Analog Stereo Bluetooth Audio Transmitter and Receiver Bluetooth Audio Module
- $6.50 / 2 - 99999999 pieces
$1.00 / >=100000000 pieces - 2 pieces
- Shenzhen Feasycom Co., Ltd
- Guangdong, China
- Mr Andy Hu
PRODUCT DETAIL
| Storage temperature: | -40°C to +85°C | power supply: | 3.1V~4.35V |
| port: | Shenzhen | Business terms: | Factory in Shenzhen |
| Supply capacity: | 100000000 pieces per month | model: | FSC-BT1036B |
| payment terms: | Western Union, T/T | Packaging Details: | Carton pallet packaging |
| application: | Audio Transmitter and Receiver | country of origin: | Guangdong, China |
| protocol: | A2DP AVRCP HFP HSP HOGP PBAP SPP | brand: | Flyto |
| Package preview: | range of working temperature: | -20°C to +85°C | |
| aspect: | 13mm (W) X 26.9mm (L) X 2.4mm (H); pad spacing 1mm | type: | Audio transmission and reception, Bluetooth 5.2 |
| Application products: | Bluetooth speakers, headphones, intercom equipment | audio port: | Analog I/O, I2S, PCM, SPDIF, USB |
Product Description

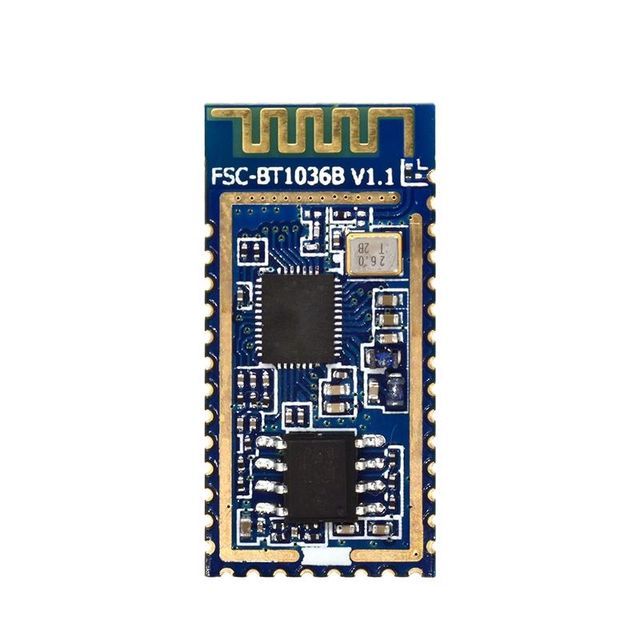

FSC-BT1036B is a Bluetooth 5.2 dual-mode transceiver module. It supports Bluetooth Low Energy and compatible systems for audio and data communications. FSC-BT1036B integrates ultra-low power DSP and application processor with embedded flash memory, high-performance stereo codec, power management subsystem, I²S, LED driver and ADC I/O in a SOC IC. By default, the FSC-BT1036B module is equipped with powerful and easy-to-use Flytocom firmware. It's easy to use and fully encapsulated. The Feasycom firmware enables the user to send simple ASCll commands to the module over the serial interface to access the Bluetooth functionality - just like a Bluetooth modem.
FSC-BT1036B is a Bluetooth audio module newly developed in Bluetooth 5.2 version, which can
Compatible with Bluetooth 5.0 Bluetooth 4.0. Can be used for amplifiers and other bluetooth
equipment. It supports analog and stereo audio, supports audio transmission and reception.
FSC-BT1036B can be used as Bluetooth audio transmitter module and Bluetooth audio receiver
module. Feiyi Communication developed this module to solve the problem that the supply of CSR8670 and CSR8675 chips is in short supply.
Bluetooth module model | FSC-BT1036B |
size: | Small, Medium to Large. Support customization |
bluetooth version | Bluetooth 5.2 dual mode (BR/EDR+BLE) |
frequency | 2.402 - 2.480 GHz |
feature | High Quality Audio Transceiver |
Introduction | HFP, A2DP, AVRCP, PBAP, HID, SPP |
aspect | 13mm*26.9mm*2.2mm |
transmit power | +10dBm |
antenna | Built-in PCB antenna, support external antenna |
certified | BQB, FCC, IC, CE, RCM, TELEC |
From the interface point of view:
Support I2S, PCM, ES8388 codec interface.
From the Bluetooth audio transmitter point of view:
It supports profiles for HFP, A2DP, AVRCP
From the bluetooth audio receiver:
It supports profiles for HFP, A2DP, AVRCP
Additional features:
PBAP, HID, SPP
