20NM 110 high voltage steering motor with closed circuit motor DE3722D
- $152.00 /set
- 1 set
- BEIJING TIMES-CHAOQUN ELECTRONIC APPLIANCE COMPANY
- Beijing, China
- Ms Selina xiao
PRODUCT DETAIL
| Warranty: | 3 months - 1 year | Voltage: | 220V |
| Commuting: | closed loop | stage: | 3 |
| model: | 110ECP220ALC+DE3722D | Packaging Preview: | |
| Single package size: | 60X40X40 cm | Packaging Details: | Styrofoam, Cardboard Box |
| brand: | outstanding | Sales unit: | single product |
| Gross weight per piece: | 13.000 kg | type: | hybrid |
| place of origin; place of origin: | Beijing China | Current/Phase: | 7A |
Product Description

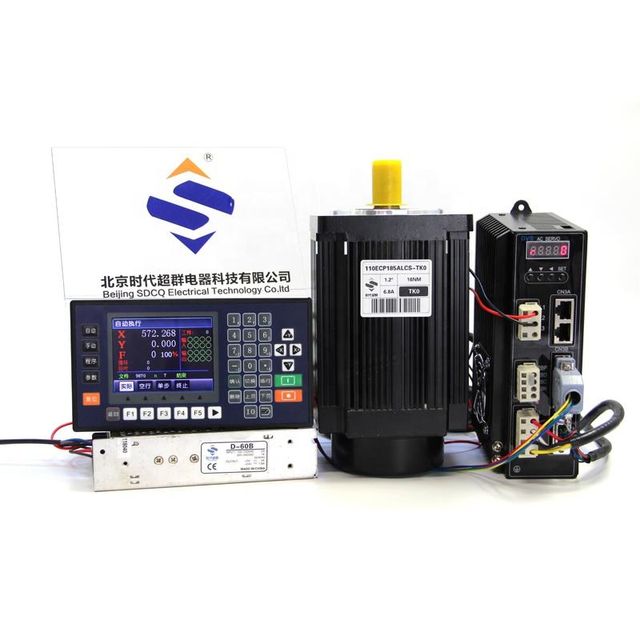

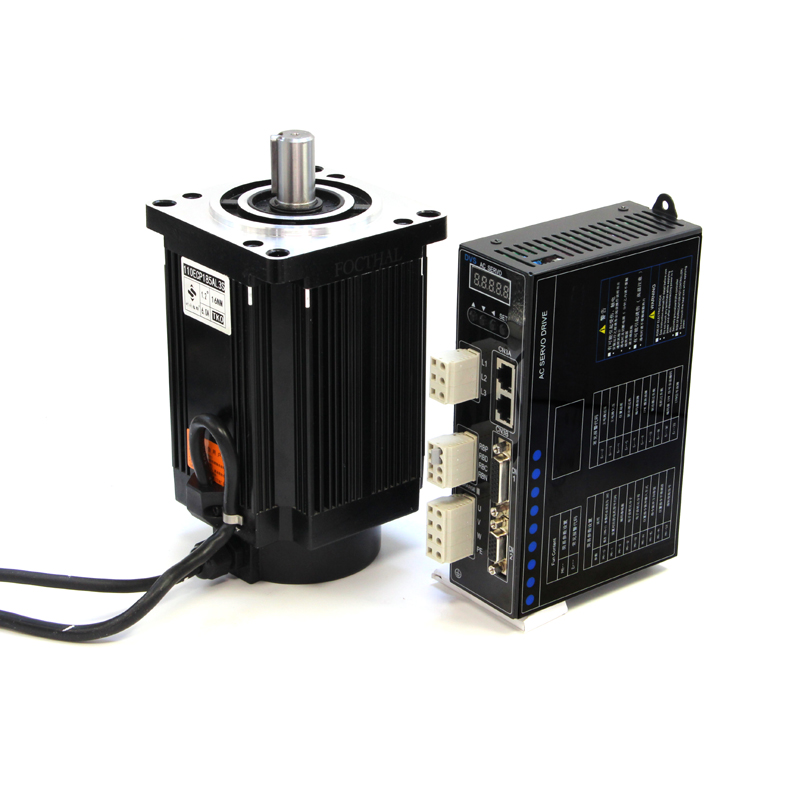

Three-phase 20NMNema 42Closed loop stepper motor high voltage driver group

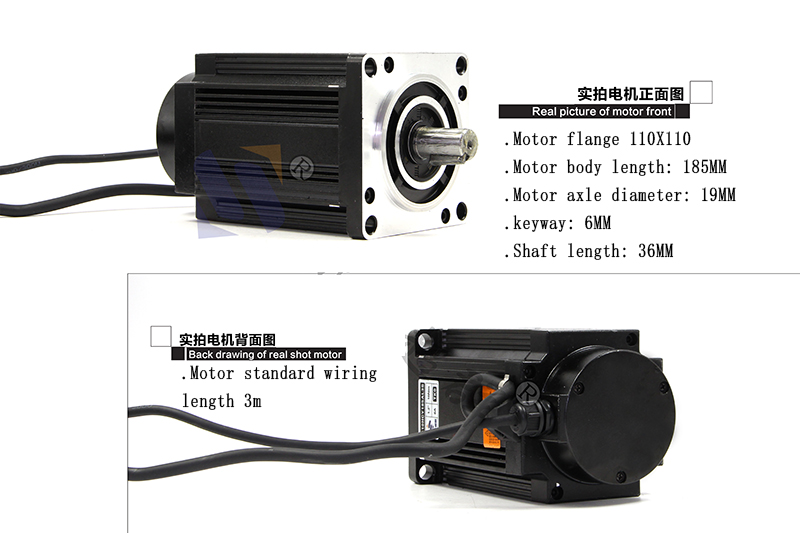

Details of motor parameters:
| Model | Angle (°) | torque | Current (A) | Voltage (V) | Resistance (Ω) | Body length (mm) | Number of encoder lines | Inspection port(mm) | Spacing(mm) |
| 110ECP185ALC | 1.8° | 16 | 6.8 | 220 | 0.76 | 185 | 1000P | 85 | 36 |
| 110ECP220ALC | 1.8° | 20 | 6.8 | 220 | 0.76 | 220 | 1000P | 85 | 36 |

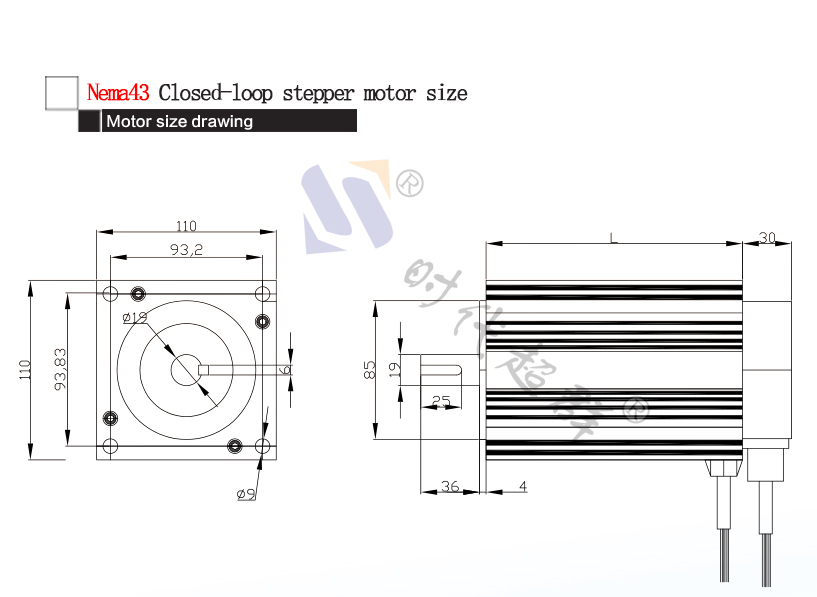

size
writing
