25BYJ-01/25BY048/25BYJ412 full range of intelligent TRV constant temperature radiator PM linear actuator
- $2.99 / >=2 pieces
- 2 pieces
- Changzhou Spark Motor Tech Co., Ltd.
- Jiangsu, China
- Ms Jue Wu
PRODUCT DETAIL
| Step angle: | 7.5 degrees. | Packaging Details: | carton |
| port: | Shanghai | Current/Phase: | 0.64A |
| model: | 25BYJ-01/25BY048-03R/25BYJ412 full range | Warranty: | 3 months - 1 year |
| type: | Permanent magnets | Origin: | China |
| Supply capacity: | 300000 pieces per month | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Voltage: | 3.2V | Package: | carton |
| stage: | 2,2 | thrust: | ≥70N |
| Transmission ratio: | 1:10 | Package preview: | |
| brand: | spark |
Product Description

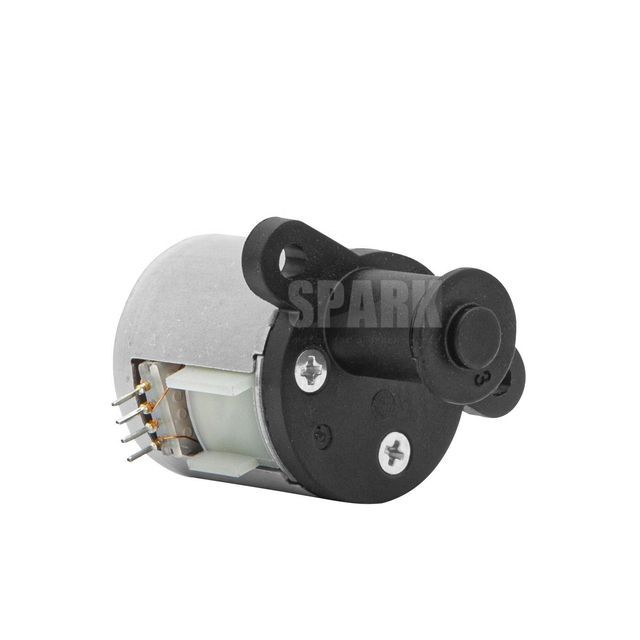

25BYJ linear actuator
The permanent magnet linear actuator converts the rotational motion of the motor into linear motion through the relative motion of the inner rotor and the screw. Mainly used in smart home appliances, valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields.

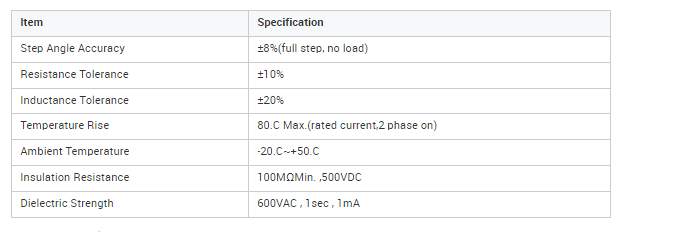

Specification:

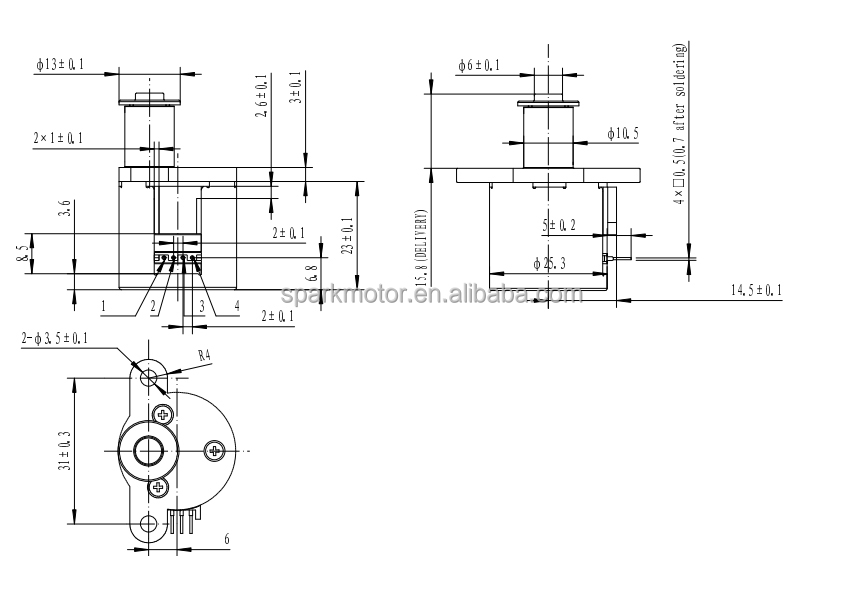

Mechanical Dimensions:
Advantages of permanent magnet linear actuators:
* Easily determine and control speed
* Fine incremental movement without feedback encoder (open loop)
* Acceleration with non-cumulative positioning error
* The load remains in a static position without overheating
* Stable performance and long life cycle
* Easily determine and control speed
* Fine incremental movement without feedback encoder (open loop)
* Acceleration with non-cumulative positioning error
* The load remains in a static position without overheating
* Stable performance and long life cycle
Customized
Coil Modifications - Resistance and Inductance.
Magnets - Generate higher linear force or lower braking levels.
Higher strength plastics are used for higher impact.
Reduce or increase braking force to suit application.
Screws - Metric or Imperial Tip, Length.
Special flanges, connectors, motion detection sensor ends.
Wire harness - connectors, pins, lead lengths, shrink tubing.
Magnets - Generate higher linear force or lower braking levels.
Higher strength plastics are used for higher impact.
Reduce or increase braking force to suit application.
Screws - Metric or Imperial Tip, Length.
Special flanges, connectors, motion detection sensor ends.
Wire harness - connectors, pins, lead lengths, shrink tubing.
application
Wide range of applications
Stepper motors use input pulses to take proportional steps. These motors can be used for positioning and/or speed control in various applications:* Valve control. * clinical diagnosis
* CCTV system. * Printers and copiers
* Dispensing. * robot
* CCTV system. * Printers and copiers
* Dispensing. * robot
our market
Spread over more than 20 countries and regions around the world, with high customer satisfaction.
