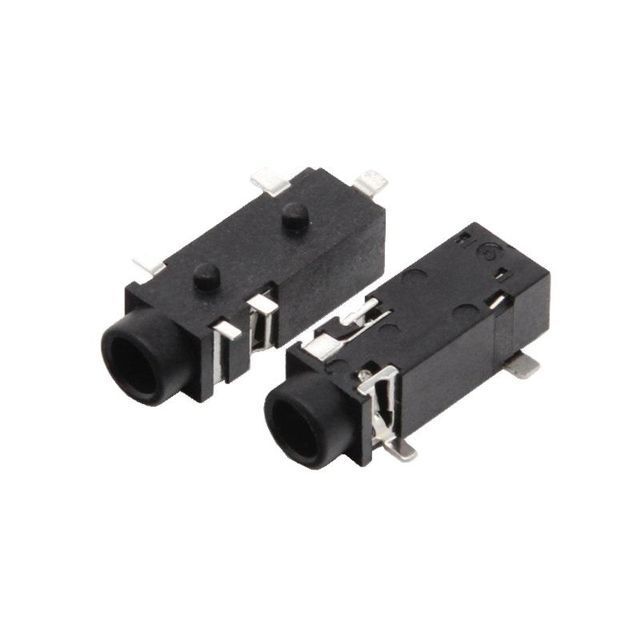

3.5mm audio jack connectors 3.5mm phone jack female 5pin surface mount SMT type Ag/gold plating PJ-328
- $0.10 / 1000 - 4999 pieces
$0.09 / 5000 - 9999 pieces
$0.08 / >=10000 pieces - 1000 pieces
- Xiamen Jinbeili Electronics Co., Ltd.
- Fujian, China
- Mr Luke Huang
PRODUCT DETAIL
| Place of Origin: | Guangdong, China; | Operating Life: | 5,000 cycles; |
| Supplier Type: | Original manufacturer; | D/C: | PJ-328; |
| Description: | 3.5mm Phone Jack; | Operating Temperature: | -20°C~+70°C; |
| Selling Units: | Single item; | Insertion and withdraw forces: | 3-30N; |
| Impedance: | 100 Ohms; | Dielectric Strength: | AC 500V for 1min; |
| Single gross weight: | 0.001 KG; | Packaging Detail: | T&R PACKING/MPQ:1000PCS; |
| Model Number: | PJ-328; | Salt Spray Test: | NSS 24H(Can be customized according to customer requirements); |
| Type: | Contact Connector,HDMI Connector; | Brand: | JINBEILI; |
| Single package size: | 2X2X1 cm; | Packaging: | Tape & Reel (TR); |
Product Description

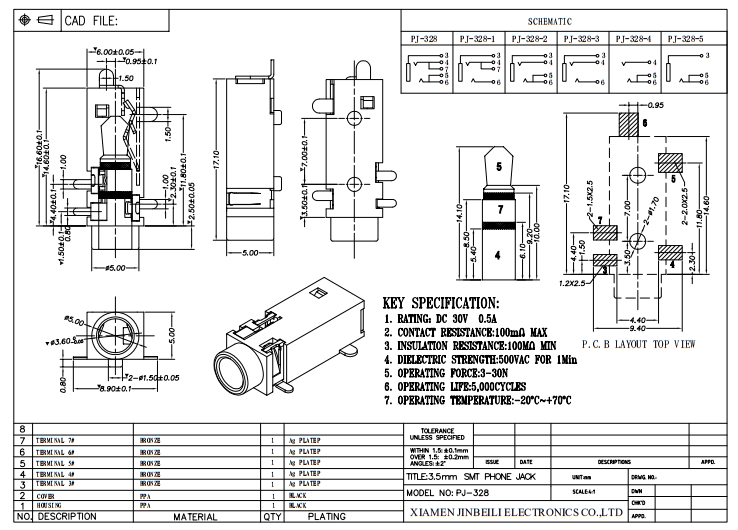

Details Images
contact us
If you need original PDF format date or other product details,pls contact us
Email:[email protected]
TEL:+86-592-7390769
Web:www.jblec.com
The way our products are used
Manual welding:
Temperature:360°c max
Time：25 MAX
Number of rewelding：25 time
wave soldering
Preheating temperature：130°c
Preheating time：1.3min
Welding temperature：250°c max
Welding time：2-3s
Chain speed(transfer speed):1300mm/min

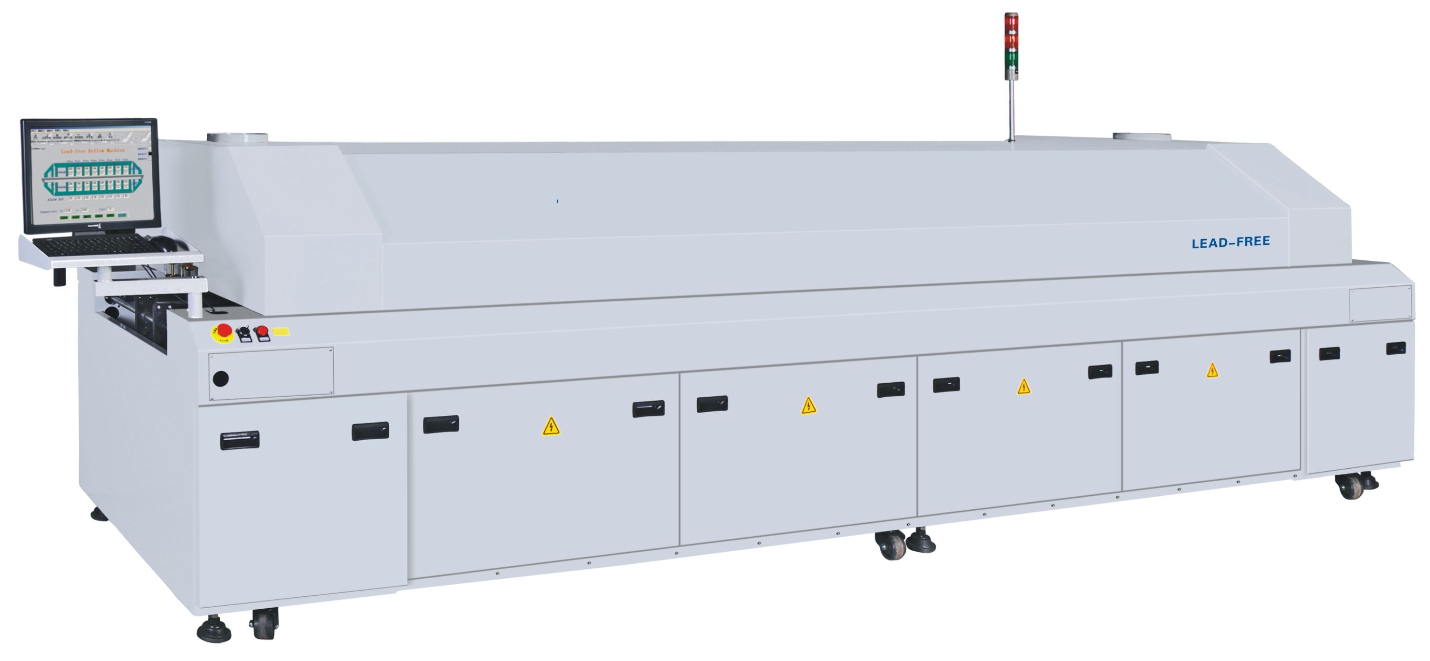

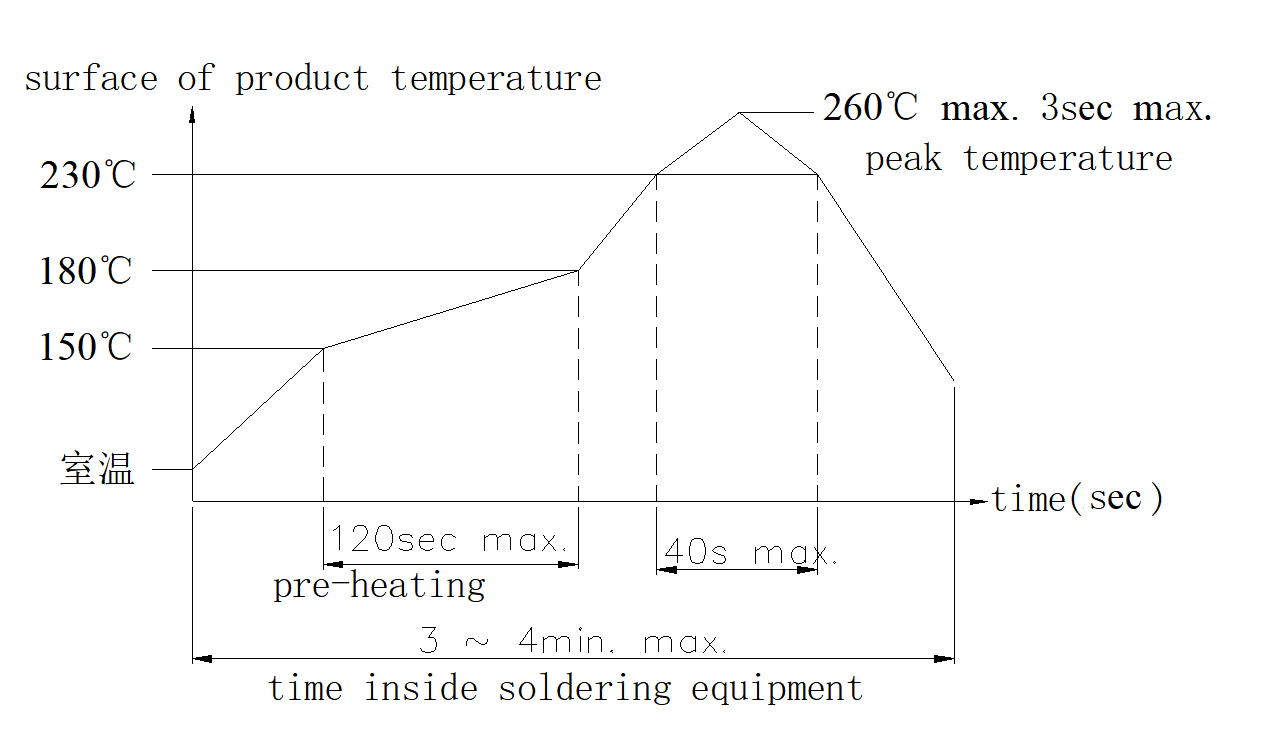

Reflow soldering Surface of product temperature
Automatic flow soldering(for the product of SMT,type solder according to the following conditions

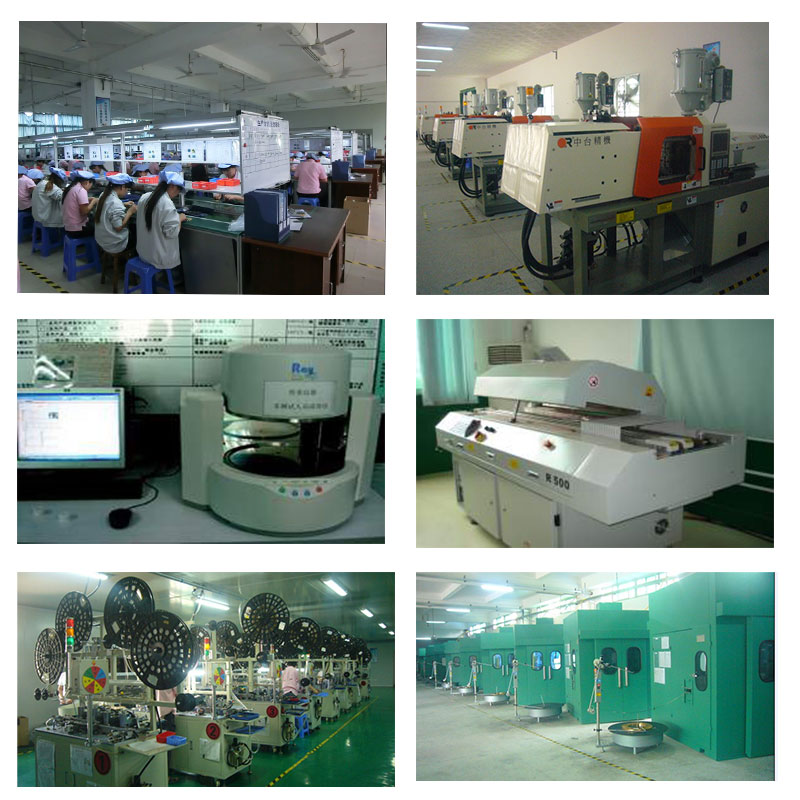

Company Profile
Compang Information
Xiamen Jinbeili Electronical Co.,ltd specializes in the manufacture of connector parts, DC jack connectors and switches. The main
products are computer high-speed USB connectors, tact switches, toggle switches, push button switches, headphone sockets, power
sockets, etc. Our company was founded in 1999 and has more than 300 employees.
products are computer high-speed USB connectors, tact switches, toggle switches, push button switches, headphone sockets, power
sockets, etc. Our company was founded in 1999 and has more than 300 employees.
Our products are widely used in electrical appliances, industrial equipment, meters, ventilation systems and fitness equipment.
Combining R&D experience and advanced manufacturing equipment, we proudly announce that all our switches and other electronic
products comply with RoHS and REACH environmental protection requirements.
Combining R&D experience and advanced manufacturing equipment, we proudly announce that all our switches and other electronic
products comply with RoHS and REACH environmental protection requirements.
Our company has passed ISO9001 and IATF 16949 quality management system certification. High-quality products, competitive prices
and satisfactory after-sales service will win customer satisfaction and market share. Now that our products are welcomed by
Europe, America and Southeast Asia, we will continue to develop in the right direction and continue to develop the jinbeili connector
brand, and improve the quality of products and services to meet your specific needs.
and satisfactory after-sales service will win customer satisfaction and market share. Now that our products are welcomed by
Europe, America and Southeast Asia, we will continue to develop in the right direction and continue to develop the jinbeili connector
brand, and improve the quality of products and services to meet your specific needs.
Our qualification certificates
Companies that we work with
Hot/More product
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.What does your company mainly produce?
Our company maily produce computer high-speed USB connectors, tact switches, toggle switches, push button switches, headphone sockets, power sockets, etc
2.Does your factory have export right?
Our factory has the right to export product to overseas markets by our own
3.What countries do you sell your products to?
Our products are mainly sold to America,Germany,Russia,Europe,South,Africa and so on
4.What are your strengths?
We have stable quality affordable price and quick delivery
5.Can you provide samples? Are the sample free?
Yes,we can provide samples .Normally,we provide free samples for test or quality checking.By the way The freight of the sample will be charged to you.
Our company maily produce computer high-speed USB connectors, tact switches, toggle switches, push button switches, headphone sockets, power sockets, etc
2.Does your factory have export right?
Our factory has the right to export product to overseas markets by our own
3.What countries do you sell your products to?
Our products are mainly sold to America,Germany,Russia,Europe,South,Africa and so on
4.What are your strengths?
We have stable quality affordable price and quick delivery
5.Can you provide samples? Are the sample free?
Yes,we can provide samples .Normally,we provide free samples for test or quality checking.By the way The freight of the sample will be charged to you.
6.Do you do OEM/ODM services?
Yes,we have many years experiences on ODM/OEM services
